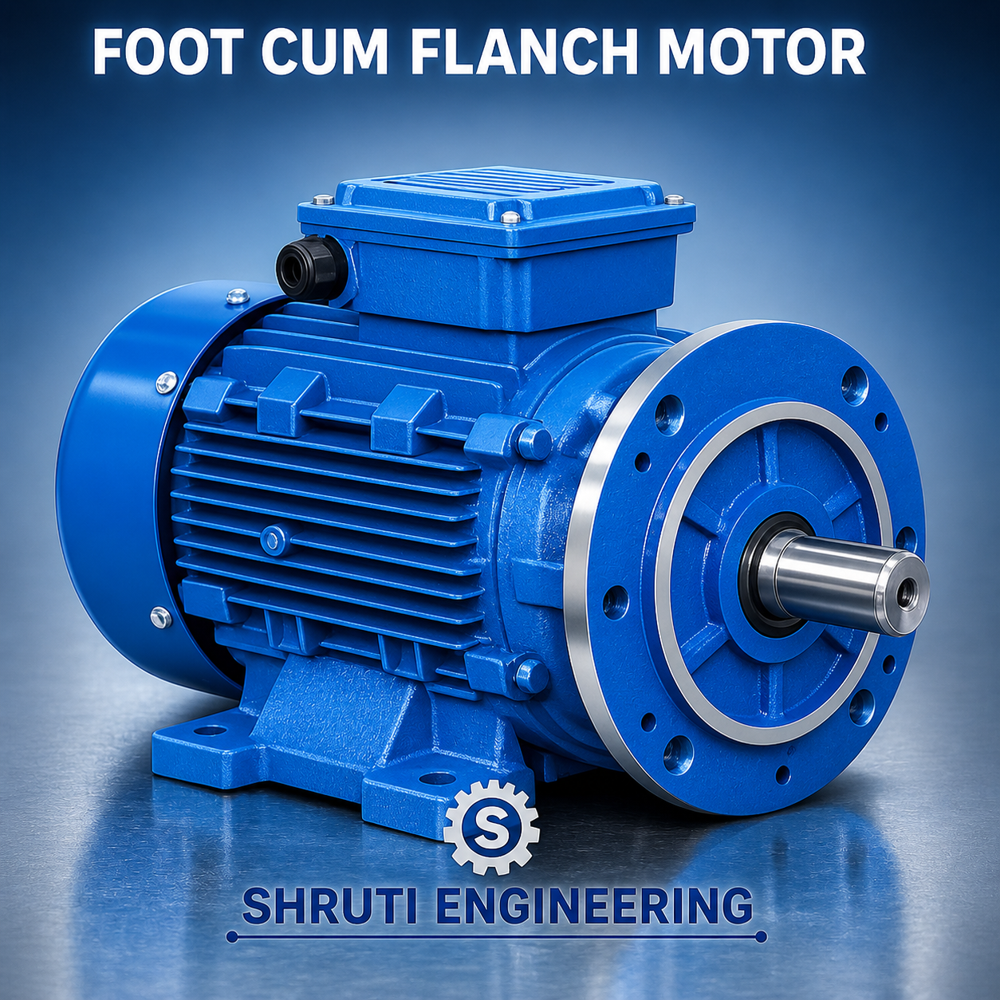

Three Phase Motor for Food Processing Machine

Three Phase Motor for Food Processing Machine Specification

Sealed Type
TEFC

Torque
High Starting Torque

Horse Power
0.5 HP - 200 HP

Motor Type
Foot Cum Flange Mounted Induction Motor

Noise Level
Low Noise

Bearing Type
Double Sealed Ball Bearings

Pressure
Standard Atmosphere

Features
Corrosion Resistant, Low Maintenance, Vibration Free

Standard
ISI/IE/IEC Standards

Starting Type
Direct On Line (DOL) / Star Delta

Ambient Temperature
Up to 50C

Rated Frequency
50 Hz

Voltage
415 V

Current Type
AC

Poles Number
2, 4, 6, 8 Poles

Rated Voltage
415 V

Power Rating
Up to 200 HP

Efficacy
High Efficiency (IE2/IE3)

Cooling Method
IC411 (Fan Cooled)

Product Type
Three Phase Induction Motor

Output Power
Up to 200 HP

Frequency (MHz)
50 Hz

Protect Feature
IP55 Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.5 HP - 200 HP

Color
Blue

Dimension (L*W*H)
As per frame size (customizable)

Weight
Based on capacity (approx. 10 kg - 200 kg)

Shaft Diameter
Standard as per output power

Mounting Type
Foot Cum Flange Mounted

IP Rating
IP55

Rotor Type
Die Cast Aluminum

Frame Material
Cast Iron / Aluminum

Vibration
2.0 mm/s

Thermal Protection
PTC Thermistor (Optional)

Paint Type
Epoxy Powder Coated

Standards Compliance
IEC 60034, IS 12615

Insulation Class
Class F

Suitable For
Mixers, Grinders, Pulverizers, Conveyors, Food Processors

Application
Food Processing Machinery

Duty Cycle
S1 (Continuous)

Resistant To
Moisture, Dust, and Food-Grade Chemicals

Service Factor
1.15

About Three Phase Motor for Food Processing Machine

Shruti Engineering is a trusted manufacturer and supplier of high-performance Three Phase Electric Motors, designed to deliver reliable, efficient, and durable power for industrial and material handling applications. Our motors are built with high-grade materials, precision engineering, and strict quality control, ensuring excellent performance even under demanding working conditions.

Our Three Phase Motors are available in various configurations foot-mounted, flange-mounted, and brake-integrated types suitable for cranes, hoists, conveyors, and automation systems. Each motor is designed for high torque output, smooth operation, low noise, and energy efficiency, meeting both domestic and international standards.

Engineered for Food Processing

Specially constructed to meet the rigorous demands of food machinery, this three phase induction motor boasts high starting torque and continuous S1 duty, making it well-suited for 24/7 operation in mixing, grinding, and conveying applications. The corrosion-resistant epoxy coating and TEFC enclosure provide long-lasting performance, even in challenging, moisture-laden environments.

High Efficiency, Low Maintenance

With high efficiency (IE2/IE3) and thermal protection options (PTC thermistor), this motor is designed for consistent operation and energy savings. The double sealed ball bearings, low vibration (2.0 mm/s), and reduced noise levels minimize maintenance requirements, while the durable cast iron or aluminum frame ensures longevity even in heavy-duty use.

FAQ's of Three Phase Motor for Food Processing Machine:

Q: How does the Three Phase Motor benefit food processing applications?

A: This motor enhances food processing operations by delivering high efficiency, consistent torque, and robust corrosion resistance, resulting in reliable performance for equipment like mixers, grinders, and conveyors while reducing energy consumption.

Q: What protective measures are in place for harsh food processing environments?

A: The motor features an IP55 Totally Enclosed Fan Cooled (TEFC) design and is coated with moisture, dust, and food-grade chemical-resistant epoxy powder, ensuring safe operation and extended lifespan even in demanding conditions.

Q: When should thermal protection (PTC thermistor) be considered?

A: Thermal protection through an optional PTC thermistor is recommended if the motor is frequently exposed to high ambient temperatures or operated under heavy loads, helping to prevent overheating and potential damage.

Q: Where can this motor be installed, and what types of machinery is it suitable for?

A: It can be installed in food processing facilities on machinery such as mixers, grinders, pulverizers, conveyors, and food processors-anywhere reliable, hygienic, and efficient motive power is needed.

Q: What mounting options and frame materials are available?

A: The motor is available in Foot Cum Flange mounting configurations, with frame options made from high-grade cast iron or aluminum for robust mechanical support and adaptability to various installation requirements.

Q: How does the motor comply with international standards?

A: It is designed and manufactured in line with IEC 60034 and IS 12615 standards, ensuring quality, safety, and compatibility for global export and industrial usage.
