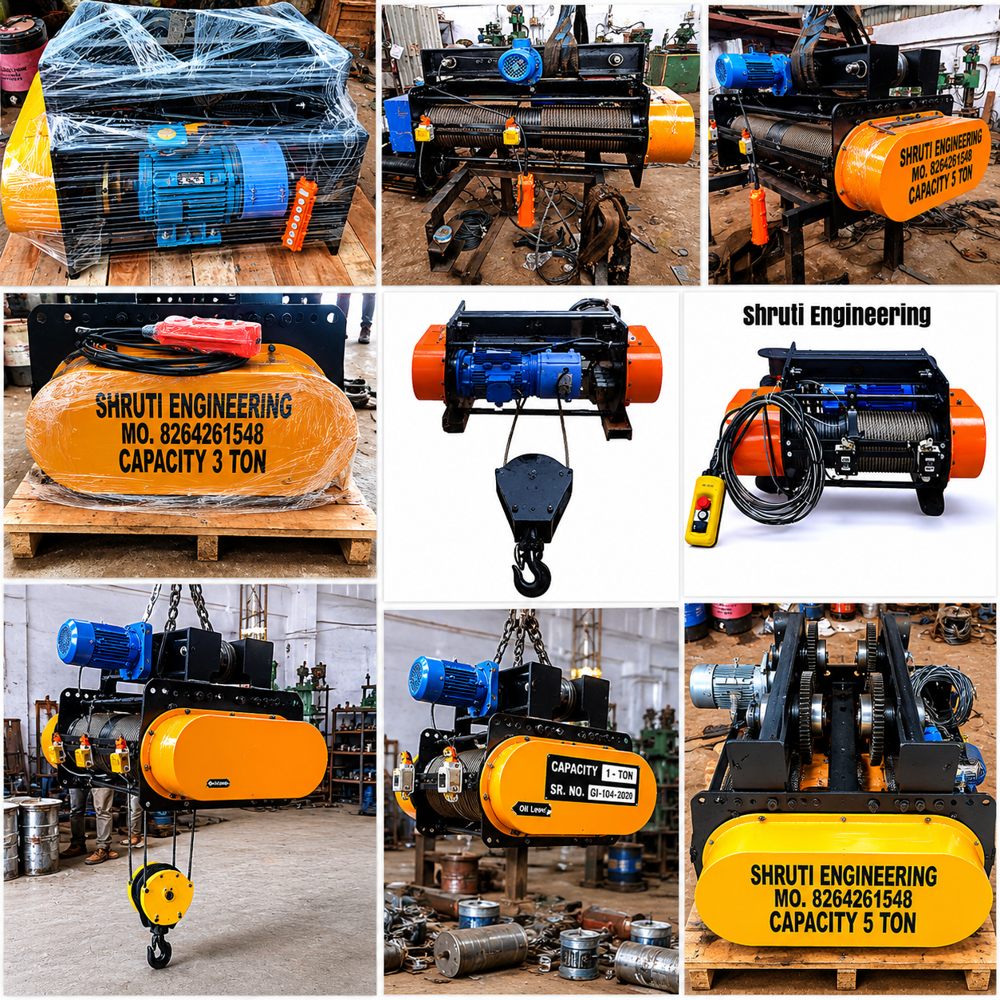

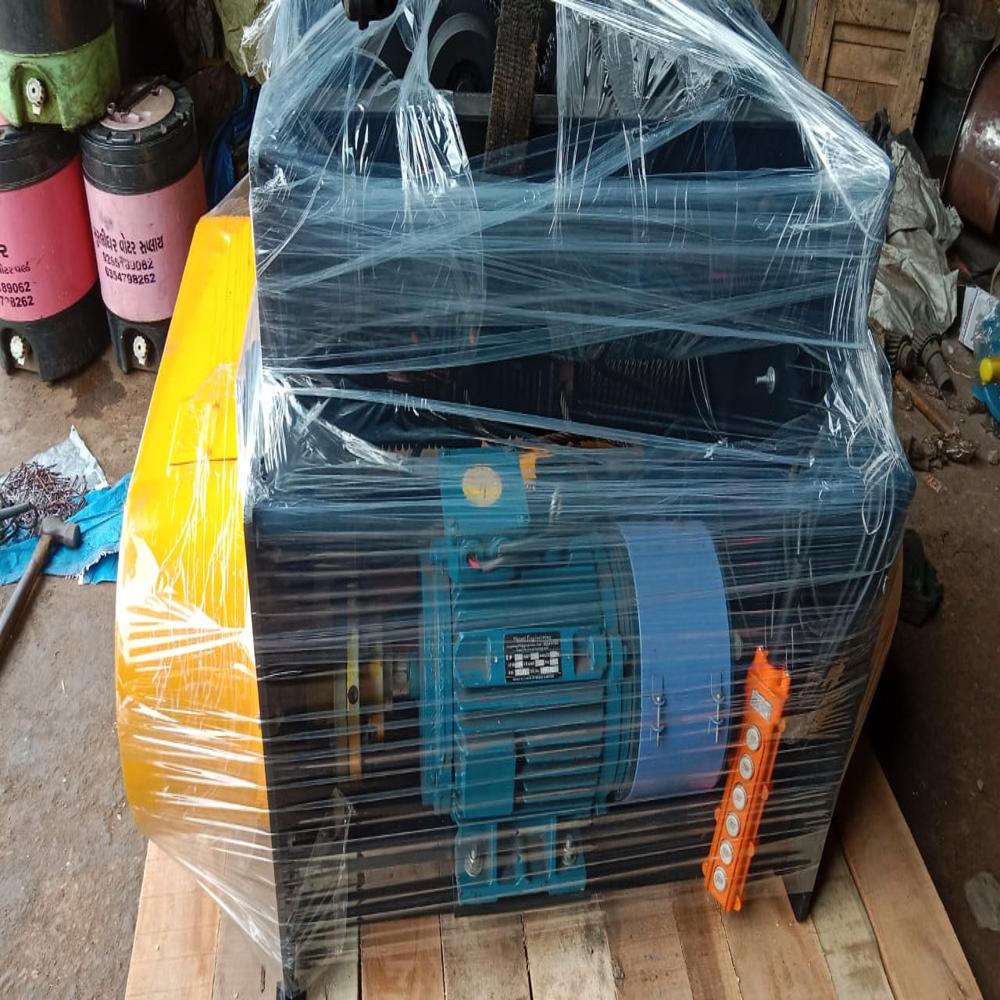

Wire Rope Hoist

Wire Rope Hoist Specification

Frequency
50 Hz

Lifting Speed
5-8 m/min (Depending on Model)

Hook
Heavy Duty Forged Steel

Capacity
1 Ton, 3 Ton, 5 Ton (Multiple Options)

Trolley
Motorized Trolley Attachment Available

Rotation Speed
1440 RPM

Condition
New

Lift Speed
5-8 m/min

Max. Lifting Height
Up to 12 meters (Customizable)

Max. Lifting Weight
1 Ton, 3 Ton, 5 Ton

Sling Type
Wire Rope

Power Source
Electric

Power
2 HP, 3 HP, 5 HP (Model Dependent)

Voltage
415V AC, 3 Phase

Wire Rope Construction
6x36 Construction with Fiber Core

Operating Temperature Range
-20C to +55C

Duty Class
Heavy Duty - Suitable for Industrial Use

Control Type
Pendant Control with Push Button

Phase
Three Phase

Application
Material Lifting, Loading and Unloading Operations

Protection Class
IP54 for Motor and Electrical Components

Brake Type
Electro-magnetic Disc Brake

Material
Mild Steel Body with Epoxy Painted Finish

Color
Yellow/Black or as per order

Rope Length
Customized as per customer requirement

Mounting Type
Floor Mounted or Overhead Mounted

Wire Rope Hoist About

Warehouse Hoist Description

A Warehouse Hoist is a specialized lifting device designed for efficient material handling in warehouses, storage facilities, and distribution centers. It enables smooth vertical and, in some cases, horizontal movement of goods, reducing manual labor and enhancing productivity.

Warehouse hoists are available in manual, electric chain, and wire rope models, offering versatility to handle different load capacities and lifting heights. Built with durable construction and safety features, these hoists ensure reliable operation even under continuous industrial use.

Key Features:

Capacity Range: 0.25 Ton to 10 Ton (customizable)
Types Available: Electric chain hoist, wire rope hoist, manual hoist
Construction: Sturdy steel frame with corrosion-resistant coating
Operation: Pendant push button, remote control, or manual chain operation
Safety Features: Overload protection, limit switches, and fail-safe braking system
Mounting Options: Hook suspension, push trolley, geared trolley, or motorized trolley

Robust Industrial Performance

Designed for demanding environments, this wire rope hoist ensures seamless lifting in warehouses, manufacturing plants, and construction sites. Its heavy-duty construction and IP54-rated protection make it reliable and safe under varied operational conditions. Whether handling 1, 3, or 5 tons, each unit delivers consistent power and control, backed by a precision-engineered motor and high-grade components.

Flexible Operation and Customization

Choose floor or overhead mounting, and tailor rope lengths and lifting heights to fit your unique application. Its metal body withstands rigorous use, and the pendant control with push buttons offers intuitive operation. Additional options like motorized trolley attachments further enhance material handling, streamlining workflow and increasing productivity in busy industrial settings.

FAQ's of Wire Rope Hoist:

Q: How does the pendant control system enhance the operation of the wire rope hoist?

A: The pendant control system utilizes push buttons, allowing operators to control lifting and lowering precisely from a safe distance. This setup improves operational safety, efficiency, and ease of use, especially in busy industrial settings.

Q: What materials and protection features make this hoist suitable for industrial use?

A: Constructed from mild steel with an epoxy-painted finish, this hoist offers excellent durability. The IP54 protection class ensures the motor and electrical components remain safe from dust and water splashes, making it ideal for heavy-duty, industrial environments.

Q: When should I choose floor-mounted versus overhead-mounted installation?

A: Floor-mounted hoists are suitable for stationary lifting tasks at a fixed location, while overhead-mounted setups are ideal for maximizing workspace and allowing the hoist to travel along beams for broader material handling.

Q: What is the process for customizing rope length and lifting height?

A: After discussing your operational requirements with the supplier, rope length and lifting height can be tailored to your specific needs, ensuring safe and efficient handling of various load sizes and building heights.

Q: How does the motorized trolley attachment benefit material handling operations?

A: The motorized trolley allows horizontal movement of the hoist along a beam, enabling safe and efficient transportation of materials across longer distances without manual intervention-reducing labor and improving productivity.

Q: Where is this wire rope hoist commonly used?

A: It is widely used in industries such as manufacturing, warehousing, logistics, construction, and assembly lines-essentially anywhere reliable material lifting, loading, and unloading are critical.

Q: What safety features are incorporated in this wire rope hoist?

A: Safety is assured with a heavy-duty forged steel hook, electro-magnetic disc brake for secure load holding, and fiber core wire rope construction, all designed to minimize risks during operation.
