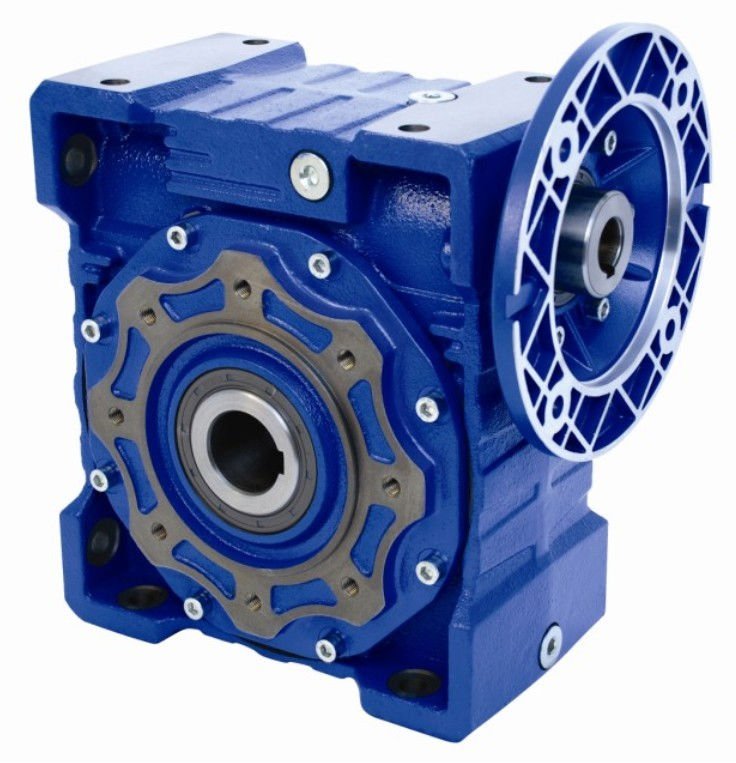

Worm Gear Box

Worm Gear Box Specification

Gear Type
Worm Gear

Material
Aluminum Alloy housing, Hardened Steel worm

Processing Type
Precision Machined

Gear Tooth Profile
Helical / Worm Tooth

Gearing Arrangement
Worm

Direction
Bi-directional / Reversible

Output Torque
Range 10 Nm - 500 Nm (varies by model)

Rated Power
0.12 kW - 15 kW (varies by model)

Input Speed
1400 rpm / 1500 rpm (standard for most motors)

Output Speed
14 rpm - 280 rpm (depends on reduction ratio)

Voltage
Not applicable (Gearbox only, voltage applies to connected motor)

Efficiency
Up to 92% (depends on ratio, lubricant, and load)

Reduction Ratio
5:1 to 100:1 (available range)

Noise Level
60 dB (under standard load)

Mounting Type
Flange Mount / Foot Mount

Ambient Temperature
-10C to 50C

Sealing
Oil Seal / Dust-proof

Application
Conveyors, Packaging Machinery, Material Handling, Textile Machinery

Protection Class
IP54 / IP55 (when properly sealed)

Shaft Material
Hardened Steel

Lubrication
Synthetic Gear Oil (Pre-lubricated, ready to use)

About Worm Gear Box

The SW reducer, which complements the Motovario NMRV gear reducer, has a shaft height between 30 and 110 mm (Baugren 030 bis 105) and a compact round smooth body casing design that reduces the space as much as possible. For better reliability and compatibility/effectiveness of supply, the gearing, the bearings, the motor flange and the accessories are those of the NMRV series.

Versatile Mounting and Robust Design

This worm gear box is available in both flange and foot mount types, providing flexibility for various installations. The aluminum alloy housing coupled with a hardened steel worm ensures high durability and strength, making it suitable for demanding industrial environments.

Efficiency and Low Maintenance

Pre-lubricated with synthetic gear oil, this gearbox is ready to use straight out of the package, minimizing initial setup time. Its efficient helical/worm tooth profile promotes smooth operation with up to 92% efficiency and a low noise level of 60 dB under standard load conditions.

Adaptable Performance Range

With reduction ratios from 5:1 to 100:1 and output torque ranging between 10 Nm and 500 Nm, this gear box fits a wide scope of applications, from conveyors to packaging and textile machinery. The ambient temperature range of -10C to 50C allows for reliable use in various settings.

FAQ's of Worm Gear Box:

Q: How is the worm gear box installed for different machines?

A: The gear box supports both flange mount and foot mount configurations, allowing easy integration into a wide range of machinery. Its bi-directional, reversible design makes it adaptable to most industrial setups.

Q: What maintenance is required for the pre-lubricated gear box?

A: Since the gear box is supplied pre-lubricated with high-quality synthetic gear oil, minimal initial maintenance is required. Periodic inspection of the oil level and seals is recommended to ensure continued optimal performance.

Q: When should I consider the ambient temperature for installation?

A: This gear box is designed to operate efficiently in temperature ranges between -10C and 50C. Ensure installation occurs within these temperatures to safeguard performance and longevity.

Q: Where can this worm gear box be utilized?

A: It is ideal for conveyors, packaging machinery, material handling systems, and textile machinery, benefiting industries that demand efficient torque transmission and reliable speed reduction.

Q: What benefits does the hardened steel construction provide?

A: Hardened steel for the worm and shaft components offers superior durability, extended service life, and increased resistance to wear, essential for heavy-duty and continuous operations.

Q: How does the oil seal and dust-proof design enhance protection?

A: The advanced oil seal and dust-proof features, along with IP54/IP55 protection, prevent lubricant leaks, ingress of dust, and environmental contaminants, ensuring consistent operation in industrial environments.
