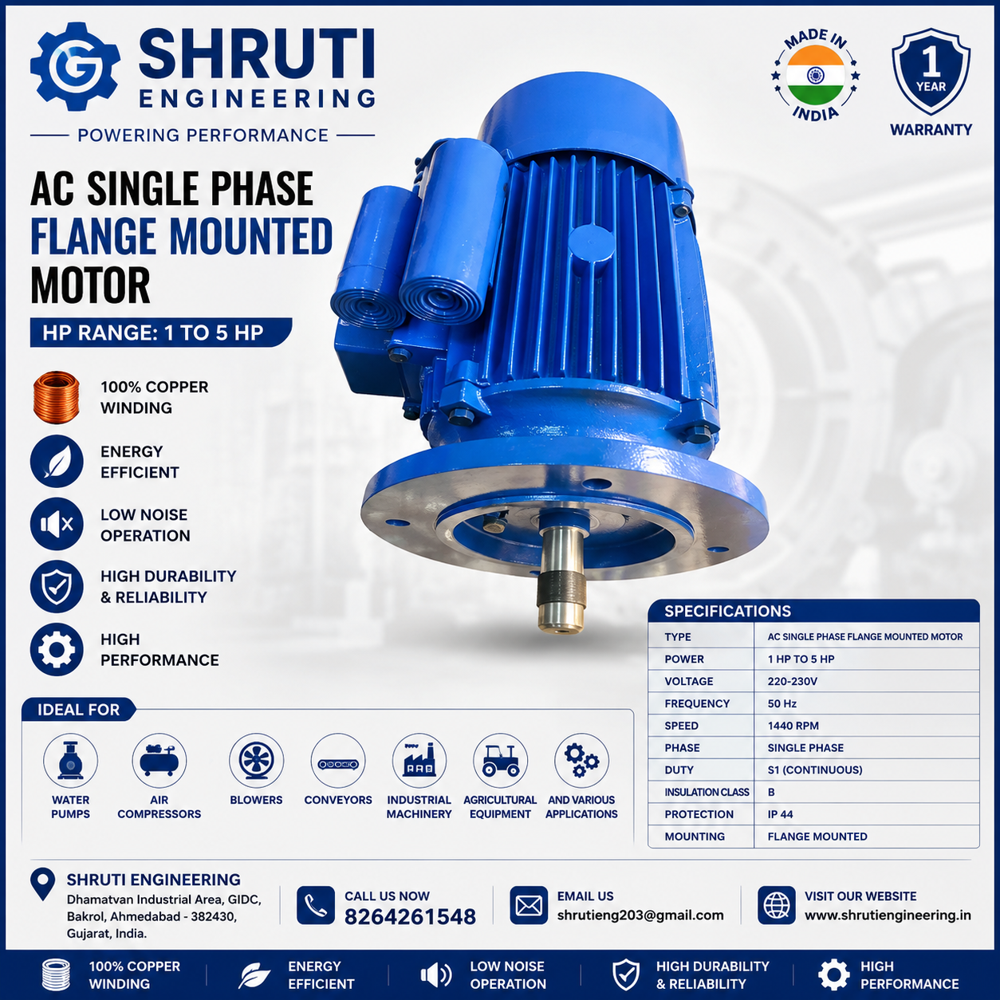

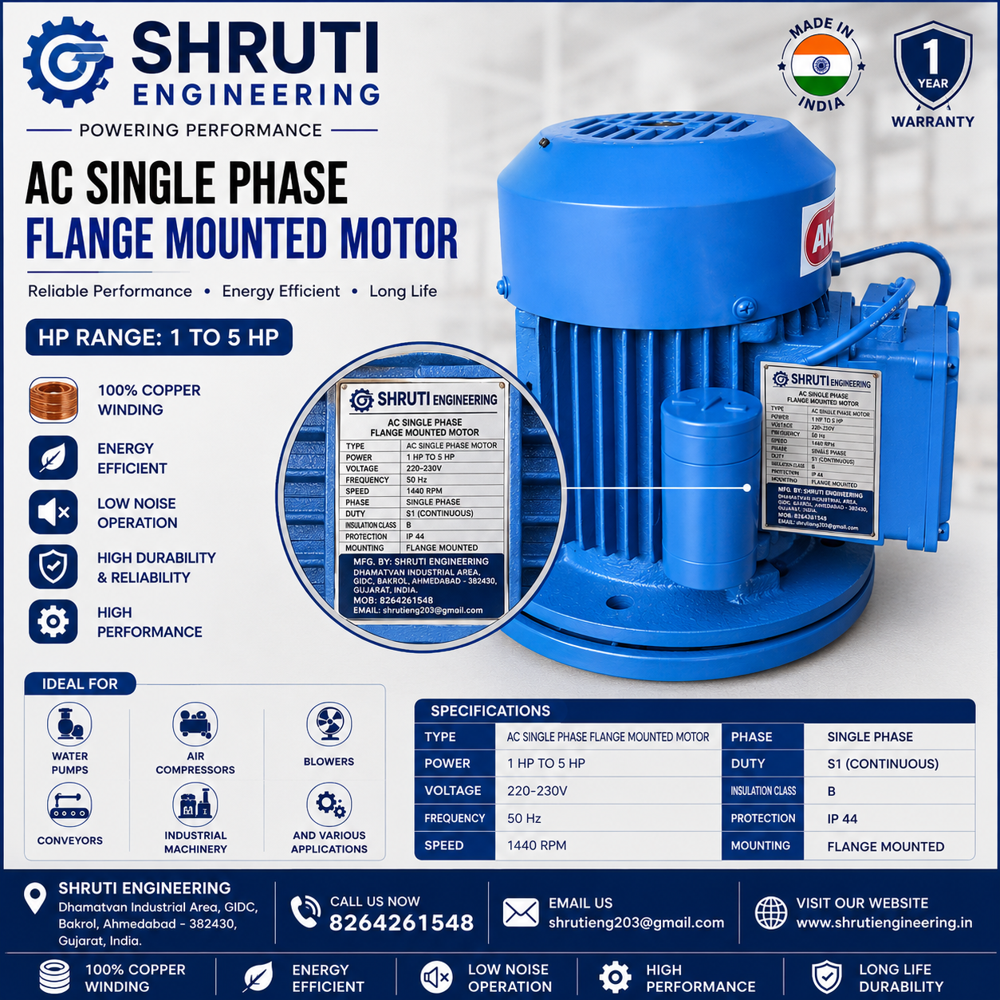

2 HP Single Phase Motor

2 HP Single Phase Motor Specification

Cooling Method
Ventilated Housing

Efficacy
High Efficiency

Starting Type
Capacitor Start

Features
100% Copper Winding, High Performance, Long Life, Energy Efficient, Low Noise, High Durability and Reliability

Horse Power
2 HP

Noise Level
Low Noise Operation

Rated Voltage
220-230V

Current Type
AC

Rated Frequency
50 Hz

Motor Type
AC Single Phase Flange Mounted Motor

Voltage
220-230V

Power Rating
2 HP

Product Type
Flange Mounted AC Electric Motor

Output Power
2 HP

Frequency (MHz)
50 Hz (0.05 MHz)

Protect Feature
High Durability and Reliability, Overload Protection

Phase
Single Phase

Speed
1440 RPM

Power
2 HP

Color
Blue

Mounting Type
Flange Mounted

IP Rating
ip44

Winding Material
100% Copper

Insulation Class
Class B

Ideal For
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Various Applications

Application
Industrial and Agricultural

Duty Cycle
S1 (Continuous)

About 2 HP Single Phase Motor

Industrial Single Phase Motor Description

An Industrial Single Phase Motor is a compact and reliable electric motor designed for general-purpose industrial and commercial applications where three-phase power is not available. Operating on a single-phase AC supply (220V / 240V, 50Hz/60Hz), these motors are widely used to drive pumps, compressors, blowers, conveyors, small machines, and workshop equipment.

Built with sturdy construction and high efficiency, these motors provide smooth performance, low maintenance, and long service life. They are suitable for both continuous and intermittent duty operations in light to medium-duty applications.

Key Features:

Operates on single-phase AC power supply
Available in capacitor start / capacitor run / split-phase designs
High starting torque with efficient performance
Robust construction with low noise and vibration
Energy-efficient and maintenance-friendly design
Suitable for industrial, commercial, and domestic applications

High-Efficiency Durable Performance

Built with precision, this 2 HP Single Phase Motor is perfect for continuous heavy usage. Its energy-efficient design and 100% copper winding ensure minimal power loss while maximizing output. Overload protection and robust housing extend service life and grant reliable operation in diverse industrial settings.

Versatile Applications Across Industries

From driving water pumps in agriculture to powering blowers and conveyors in manufacturing, this motor adapts seamlessly to a wide array of applications. Its robust construction, high RPM, and efficient cooling system sustain performance under continuous use.

Designed for Reliability and Safety

With Class B insulation and IP44 ingress protection, this motor can withstand tough environments. The advanced overload protection safeguards against power surges, while the ventilated housing maintains optimal operating temperatures for extended life and reliable duty.

FAQ's of 2 HP Single Phase Motor:

Q: How does the 2 HP single phase motor ensure high efficiency during continuous operation?

A: The motor utilizes 100% copper winding, a capacitor start mechanism, and energy-efficient design, enabling superior performance and reduced power loss during S1 (continuous) duty cycles.

Q: What applications is this motor ideal for?

A: It is suitable for water pumps, air compressors, blowers, conveyors, various industrial machinery, and agricultural equipment, making it highly versatile across multiple sectors.

Q: When is flange mounting recommended for this type of motor?

A: Flange mounting is ideal when a secure and stable installation is needed, such as in fixed machinery or equipment setups where precise alignment and minimal vibration are required.

Q: Where can this motor be installed, considering its IP44 rating?

A: This motor can be installed in indoor or semi-exposed environments where it is protected from solid objects over 1mm and water splashes from any direction, but not suitable for outdoor unprotected spaces.

Q: What is the benefit of the motor's overload protection feature?

A: The overload protection mechanism guards the motor from excessive current and overheating, reducing the risk of failure and prolonging the operational lifespan.

Q: How does the ventilated housing improve the motor's performance?

A: Ventilated housing ensures efficient cooling during prolonged operation, preventing overheating and contributing to consistent, reliable performance.
