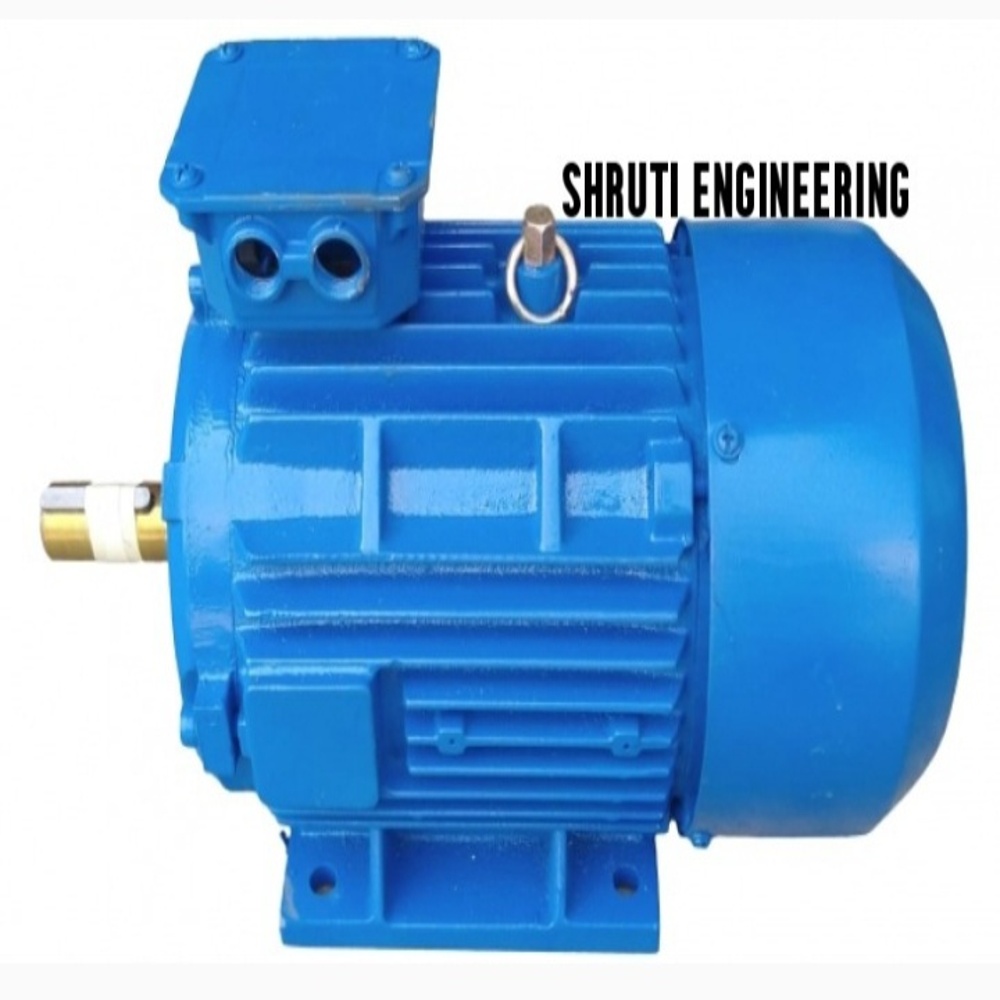

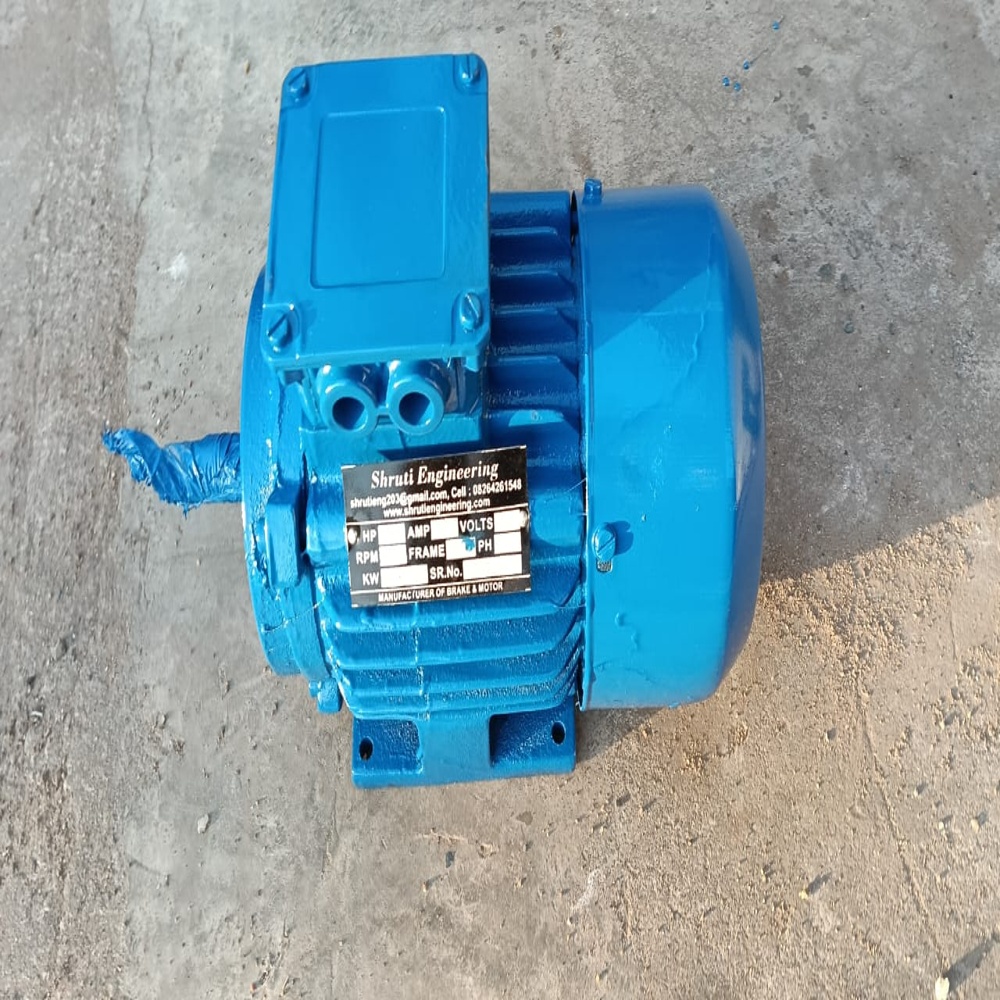

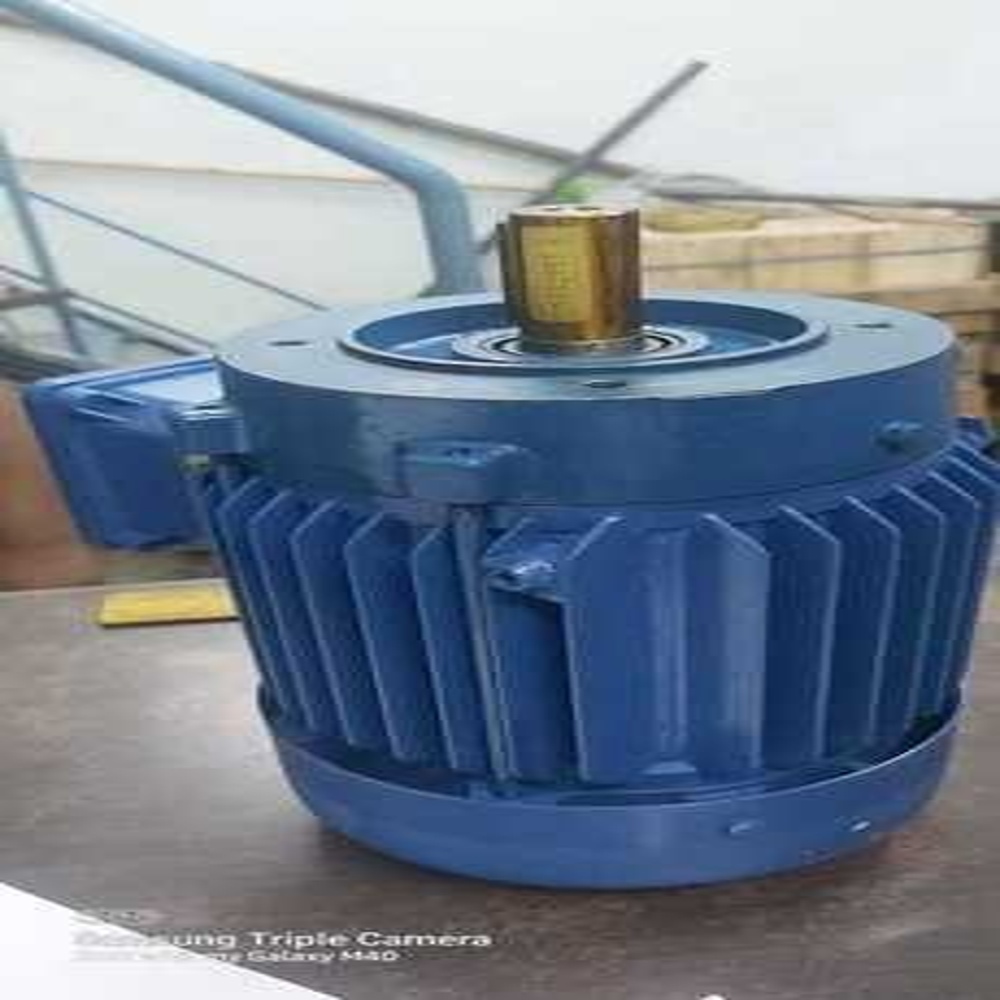

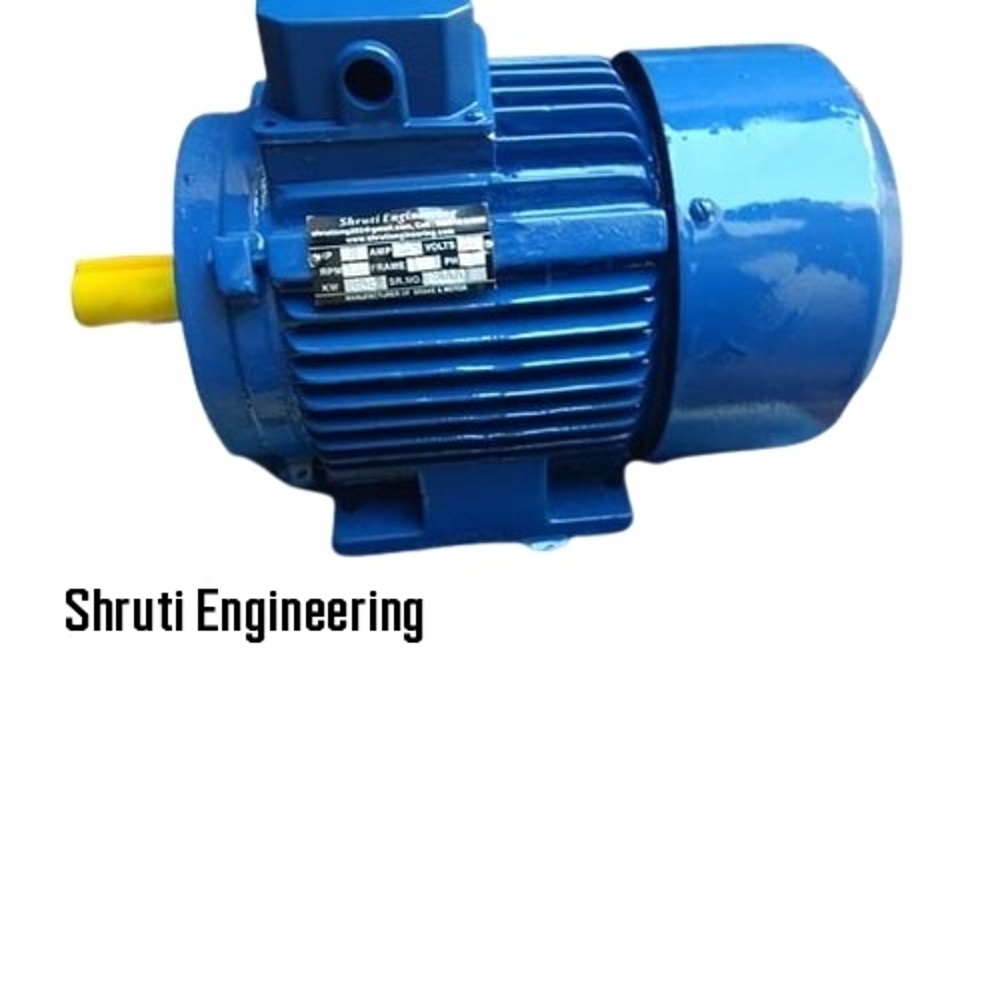

AC Single Phase Motor

AC Single Phase Motor Specification

Motor Type
AC Induction Motor

Rated Voltage
220 V

Voltage
220-240 V

Standard
IS: 996

Noise Level
Low Noise Operation

Rated Frequency
50 Hz

Horse Power
0.5 HP, 1 HP, 2 HP, 3 HP, 5 HP

Torque
High Torque

Sealed Type
Totally Enclosed

Poles Number
2/4 Poles

Ambient Temperature
-15C to 50C

Features
Heavy Duty, Low Maintenance

Starting Type
Capacitor Start Induction

Power Rating
0.37 kW to 3.7 kW

Pressure
Normal Atmospheric Pressure

Current Type
AC

Cooling Method
Fan Cooled

Bearing Type
Ball Bearing

Efficacy
High Efficiency

Product Type
Single Phase Motor

Output Power
0.5 HP to 5 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM/2880 RPM

Power
0.37 kW to 3.7 kW

Color
Blue

Dimension (L*W*H)
According to Frame Size

Weight
10 kg to 60 kg (varies by model)

Shaft Diameter
According to Model (typical 19 mm, 24 mm, etc.)

Mounting Type
Foot Mounted

IP Rating
IP55

Frame Material
Cast Iron

Rotation
Clockwise/Counterclockwise

Efficiency at Full Load
Up to 82%

Service Factor
1.15

Application
Pumps, Compressors, Fans, Industrial Machinery

Suitable Environment
Indoor and Outdoor Use

Thermal Protection
In-built thermal overload protector

Insulation Class
Class F

About AC Single Phase Motor

Country of Origin	Made in India
Phase	3 Phase
Material	Cast Iron
Input Voltage	415
Frequency	50HZ
Brand	Shruti

Shruti Engineering are the very highly acclaimed organization in this sector, engaged in manufacturing and supplying an exclusive range of AC Solenoid Magnetic Brake. These products are gaining appreciation from every where in the world for its unmatched quality and low maintenance. Our offered product range is manufactured using fine grade raw materials and modern technology and it is designed as per the specifications of our distinguished customers.

Engineered for Superior Durability

Constructed with a robust cast iron frame and designed for harsh environments, this motor is built to perform under tough industrial conditions. Its rugged build not only enhances longevity but also reduces downtime, providing consistent reliability in the most demanding applications.

High Efficiency and Thermal Protection

With efficiency rates up to 82% and a service factor of 1.15, this single phase motor operates with optimized power consumption. The in-built thermal overload protector serves as a safeguard, preventing overheating and extending the overall life of the equipment.

Versatile and Adaptable Usage

Suitable for both indoor and outdoor installations, the motor caters to a wide range of applications including pumps, fans, compressors, and various industrial machinery. Its dual-direction rotation and multiple mounting options offer excellent adaptability, making it a flexible solution.

FAQ's of AC Single Phase Motor:

Q: How does the in-built thermal overload protector benefit motor operation?

A: The in-built thermal overload protector automatically disconnects the power supply if the motor overheats, protecting the windings from damage and enhancing overall motor safety and longevity.

Q: What applications are best suited for this AC single phase motor?

A: This motor is ideal for driving pumps, compressors, fans, and various types of industrial machinery, making it a versatile choice for both manufacturing plants and commercial settings.

Q: When should this motor be used for outdoor environments?

A: With its TEFC enclosure and IP55 rating, this motor is well-suited for outdoor use in situations where protection against dust and moisture is required. Routine checks ensure optimal performance in variable weather conditions.

Q: Where can this motor be installed, and what mounting options are available?

A: The motor is designed for foot mounting and can be installed on solid, level surfaces in both indoor and outdoor locations, depending on site requirements and the intended application.

Q: What are the advantages of the Class F insulation and cast iron frame?

A: Class F insulation provides higher thermal endurance, allowing the motor to operate safely at elevated temperatures, while the cast iron frame offers strength, vibration resistance, and extended service life.

Q: How is the starting process managed in this motor?

A: The motor utilizes a capacitor start induction process, delivering high starting torque which is especially useful for applications requiring the motor to start under load, such as pumps and compressors.
