230V Single Phase Motor

230V Single Phase Motor Specification

Rated Frequency
50 Hz

Voltage
230V

Cooling Method
Fan Cooled

Rated Voltage
230V

Torque
5 Nm (approximate, check rating plate)

Motor Type
Induction Motor

Noise Level
<65 dB

Efficacy
IE2 or superior (Typical for such motors)

Current Type
AC

Power Rating
0.75 kW

Poles Number
4 Poles

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Pressure
Atmospheric (Standard for electric motors)

Starting Type
Capacitor Start

Ambient Temperature
-15C to +40C

Horse Power
1 HP

Standard
IS 325 / IEC 60034-1

Features
Low Maintenance, Robust Construction, High Durability

Bearing Type
Double Sealed Ball Bearing

Product Type
Single Phase AC Induction Motor

Output Power
1 HP (typical for this size, check nameplate for exact value)

Frequency (MHz)
50 Hz (Standard industrial motors, not MHz)

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
0.75 kW

Color
Blue

Dimension (L*W*H)
Approx. 390mm x 220mm x 260mm (dimensions may vary)

Weight
18 kg (approximate, varies with rating)

Shaft Diameter
19 mm (approx, check datasheet)

Mounting Type
Foot Mounted (B3)

IP Rating
IP55

Frequency Tolerance
5%

Application
Pumps, Compressors, Fans, Blowers, Agitators

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Thermal Protection
Available on request

Insulation Class
Class B or F

Operating Position
Horizontal

Service Factor
1.0 to 1.2

Brand Name
Shruti Engineering

Efficiency Class
IE2 or Equivalent

Rotor Type
Squirrel Cage

Body Material
Cast Iron

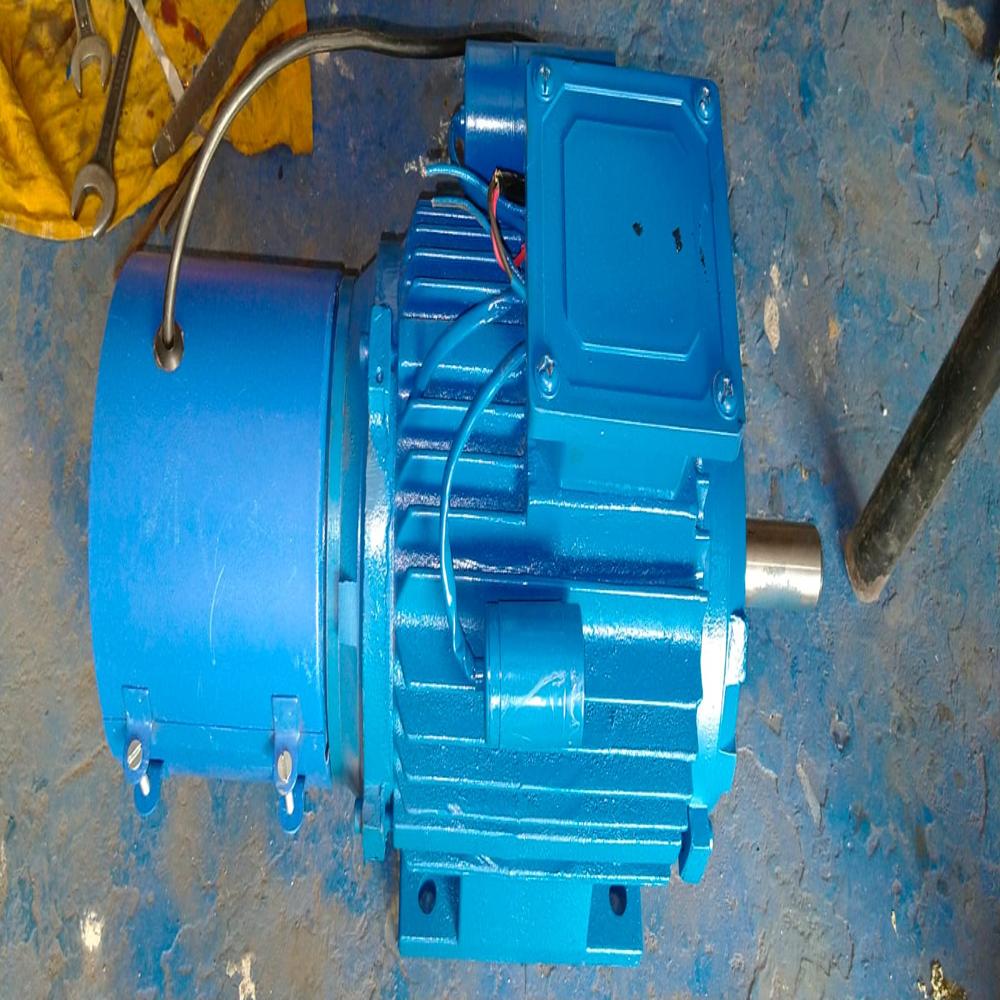

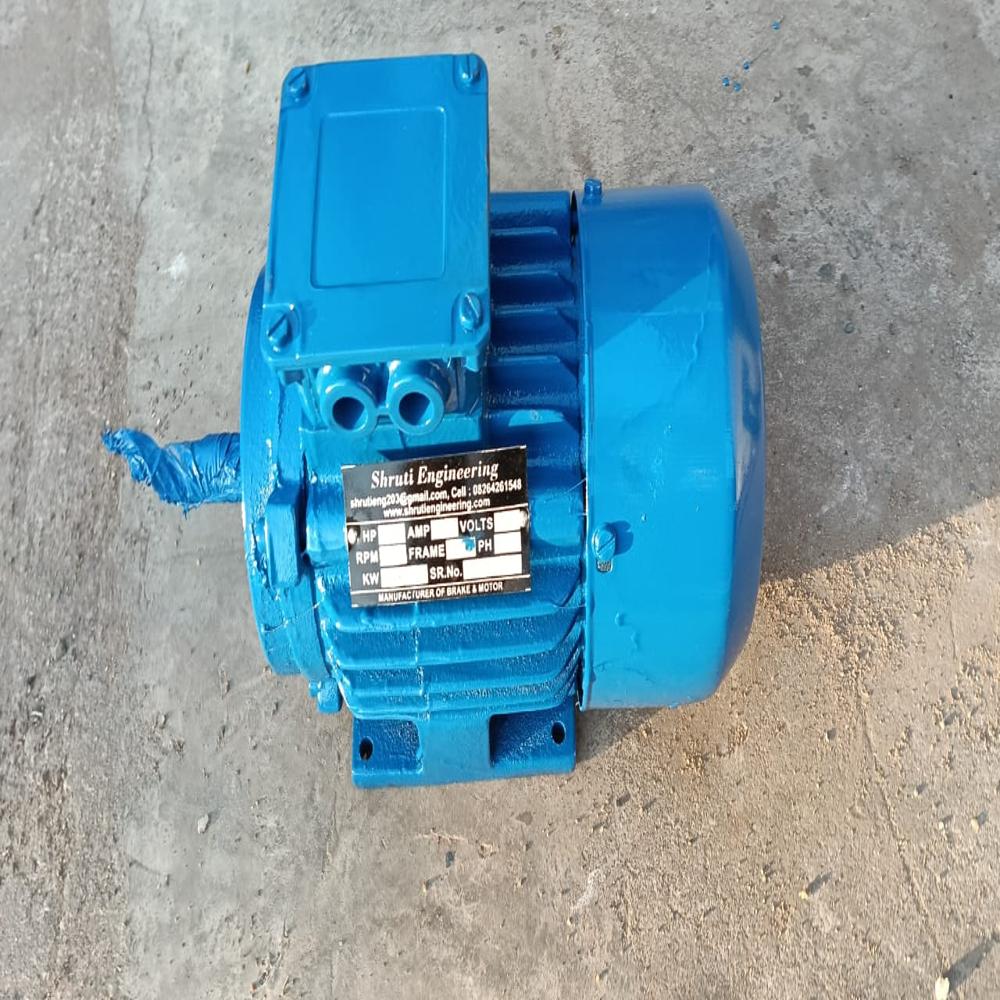

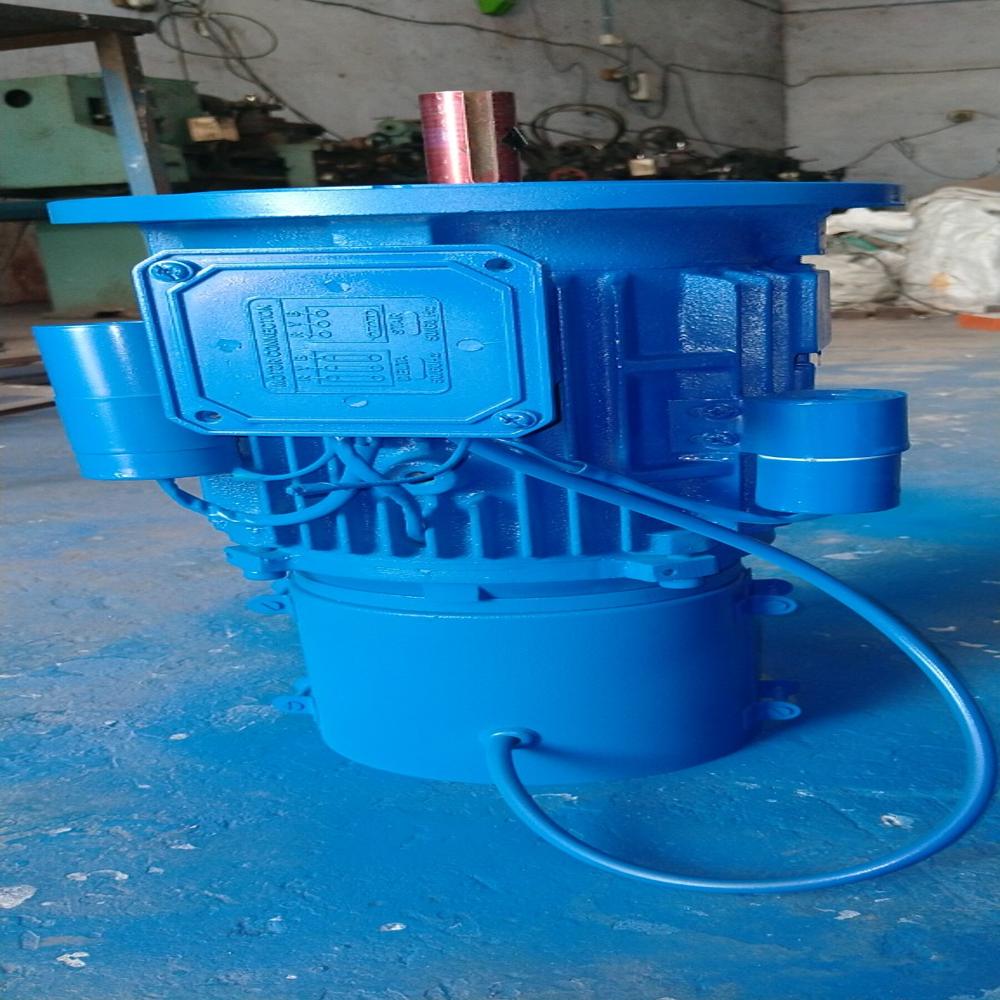

About 230V Single Phase Motor

Single Phase Motor for Hoist & Crane

A Single Phase Motor for Hoist & Crane is specially designed to deliver high starting torque, reliable performance, and continuous duty operation required in lifting and material handling applications. Built with robust construction and precision engineering, these motors ensure safe, smooth, and efficient operation of hoists and cranes even under heavy loads.

Manufactured with high-quality laminations, copper windings, and heavy-duty bearings, the motor is capable of withstanding frequent start-stop cycles, reversing operations, and overload conditions common in hoist and crane duty. Available in foot-mounted or flange-mounted designs, it can be easily integrated with hoisting mechanisms, wire rope hoists, and small cranes.

Key Features:

High starting torque for lifting applications
Rugged design for continuous crane/hoist duty
Operates on standard single-phase AC supply (230V/240V)
Withstands reversing and frequent start-stop operations
Available in foot-mounted or flange-mounted models
Low maintenance and long service life

Robust Design for Industrial Reliability

Built with a cast iron body and finished in a durable blue coating, this Shruti Engineering motor is crafted to endure the rigors of industrial operations. The TEFC (Totally Enclosed Fan Cooled) construction shields the internal components from dust, debris, and moisture, ensuring consistent performance and longer service life even in challenging working conditions.

High Performance and Efficiency

Engineered with an IE2 or equivalent efficiency class, this single phase induction motor delivers energy-saving operation. The 4-pole, 1440 RPM configuration combined with capacitor start technology provides reliable torque and efficient startup, making it an optimal choice for drives requiring stable, long-term function.

User-Friendly and Versatile

With features such as foot mounting (B3), double sealed ball bearings, and horizontal operating position, installation and maintenance are straightforward. The motor is suitable for a wide temperature range (-15C to +40C) and adheres to international standards IS 325/IEC 60034-1, ensuring broad compatibility and regulatory compliance across various applications.

FAQ's of 230V Single Phase Motor:

Q: How is the Shruti Engineering 230V Single Phase Motor installed for industrial use?

A: This motor is designed for easy installation with a foot-mounted (B3) configuration. Ensure the mounting surface is level and robust enough to support the 18 kg weight. The motor's shaft diameter is approximately 19 mm, and it is intended for horizontal operation, making it compatible with most industrial setups.

Q: What applications is this single phase motor suitable for?

A: This motor is ideal for driving pumps, compressors, fans, blowers, and agitators. Its robust design, efficiency, and reliable starting characteristics make it suitable for both light and heavy industrial applications where dependable operation is essential.

Q: When should thermal protection be requested, and how does it work?

A: Thermal protection is advisable for environments prone to overheating or variable loads. When requested, it safeguards the motor by shutting it down automatically if the temperature exceeds safe operational levels, thus preventing motor damage and prolonging its lifespan.

Q: Where can I use this motor considering environmental factors?

A: With an IP55 rating and a TEFC enclosure, the motor is protected against dust and water jets, making it suitable for most indoor and moderately harsh outdoor industrial environments. It operates efficiently in ambient temperatures ranging from -15C to +40C at atmospheric pressure.

Q: What is the benefit of IE2 efficiency class in this motor?

A: IE2 efficiency class means the motor consumes less electricity for the same output, reducing operational costs and energy consumption over its lifecycle. This is especially beneficial in continuous-duty installations such as pumps and fans.

Q: How does the TEFC enclosure benefit the motor's durability?

A: The TEFC (Totally Enclosed Fan Cooled) design protects the internal components from dust, moisture, and other contaminants. This minimizes internal wear, reduces maintenance frequency, and enhances the motor's durability in industrial environments.

Q: What maintenance processes are required for this motor?

A: Routine maintenance for this cast iron, double-sealed ball bearing motor is minimal. Periodically inspect for debris on the fan and cooling system, ensure mounting bolts are secure, and verify electrical connections. The robust construction and high-quality bearings extend intervals between servicing.
