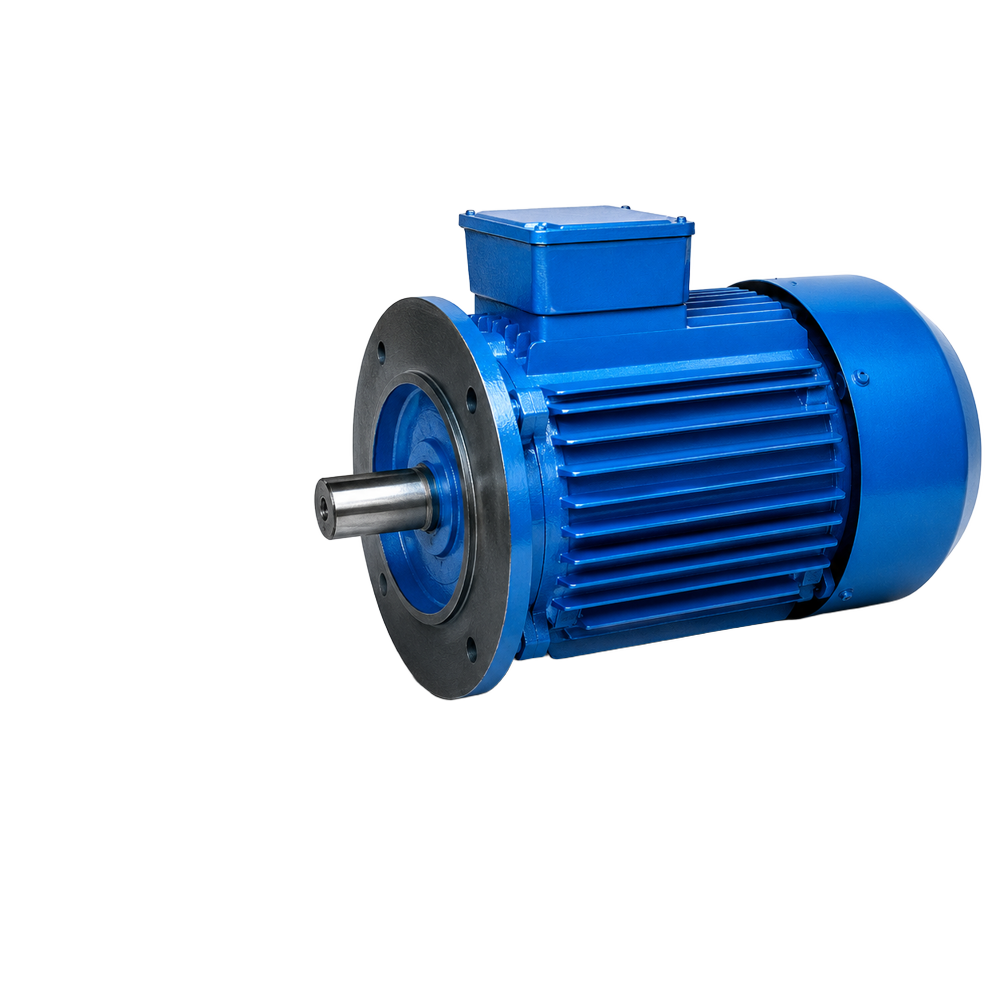

3 HP Three Phase Motor

3 HP Three Phase Motor Specification

Noise Level
Less than 70 dB

Rated Frequency
50 Hz

Current Type
AC

Motor Type
Induction Motor

Poles Number
2 Poles

Pressure
Standard Atmospheric Pressure

Sealed Type
IP55 Sealed

Efficacy
High Efficiency

Voltage
415 V

Bearing Type
Double Shielded Ball Bearings

Features
Low Vibration, Energy Efficient, Easy Maintenance

Standard
IS 325, IEC 60034

Horse Power
3 HP

Rated Voltage
415 V

Power Rating
3 HP / 2.2 kW

Starting Type
Direct-On-Line (DOL)

Cooling Method
Fan Cooled

Ambient Temperature
-15C to 50C

Torque
7.3 Nm

Product Type
Electric Motor

Output Power
3 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
2880 RPM

Power
2.2 kW

Color
Blue

Dimension (L*W*H)
380 x 240 x 290 mm

Weight
35 kg (approx.)

Shaft Diameter
28 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Altitude
Up to 1000 meters above sea level

Duty Cycle
S1 (Continuous Duty)

Thermal Protection
Optional Thermal Protection Available

Direction of Rotation
Both Directions (CW/CCW)

Insulation Class
Class F

Applications
Pumps, Blowers, Compressors, Industrial Machinery

Enclosure
Cast Iron

Connection Type
Star-Delta

Frame Size
112M

Service Factor
1.1

About 3 HP Three Phase Motor

We are manufacture, exporter and supplier of brake motor. Basically Brake motor is combination of brake and motor. Our clients can avail from us a wide collection of best quality Brake Motors. These products are appreciated for its optimum performance and excellent quality. Raw material for these products sourced from repudiated vendors, the offered motors are well known among the client and can be availed from us in standard sizes according to the requirements of individual. Highly demanded for its special features, this product is offered at budget friendly prices by us.

Reliable Performance for Industrial Applications

This 3 HP three phase motor is built to deliver consistent performance in pumps, blowers, compressors, and other machinery. Its robust cast iron enclosure and IP55 rating ensure protection against dust and water, making it suitable for operation in varied industrial environments.

High Efficiency and Easy Maintenance

Engineered with energy efficiency in mind, the motor reduces power consumption while delivering a rated output of 2.2 kW. Features such as low vibration, double shielded ball bearings, and a user-friendly design simplify upkeep and extend equipment life.

FAQ's of 3 HP Three Phase Motor:

Q: How is the 3 HP Three Phase Motor typically installed in industrial settings?

A: The motor is foot-mounted for stability and easy alignment on various industrial machines. Its compact design (380 x 240 x 290 mm) and standard shaft diameter (28 mm) allow straightforward integration during installation.

Q: What are the primary applications for this three phase induction motor?

A: This motor is ideal for driving pumps, blowers, compressors, and other types of industrial machinery, providing reliable power and versatile rotational direction to suit diverse operational needs.

Q: When should optional thermal protection be considered?

A: Optional thermal protection is recommended if the motor will be exposed to frequent load variations or overheating risks, thereby ensuring safe and trouble-free operation over time.

Q: Where can this motor be used effectively regarding altitude and environmental conditions?

A: The motor operates optimally up to 1000 meters above sea level and functions within a wide ambient temperature range of -15C to 50C, making it suitable for various geographical and environmental conditions.

Q: What is the process for connecting this motor electrically?

A: The motor supports star-delta connection for reduced starting current, and must be connected to a three-phase AC supply at 415 V and 50 Hz as per standard industrial practice.

Q: How does the TEFC (Totally Enclosed Fan Cooled) feature benefit users?

A: TEFC design protects the motor from dust, water, and other contaminants while cooling the unit, significantly extending service life and reducing maintenance frequency.
