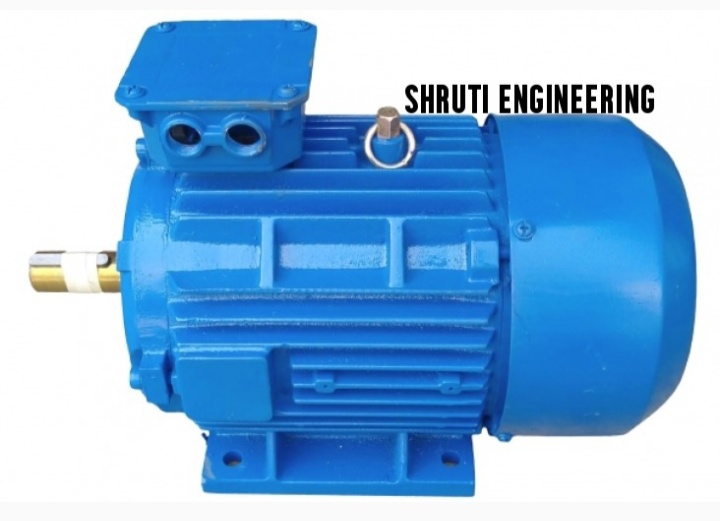

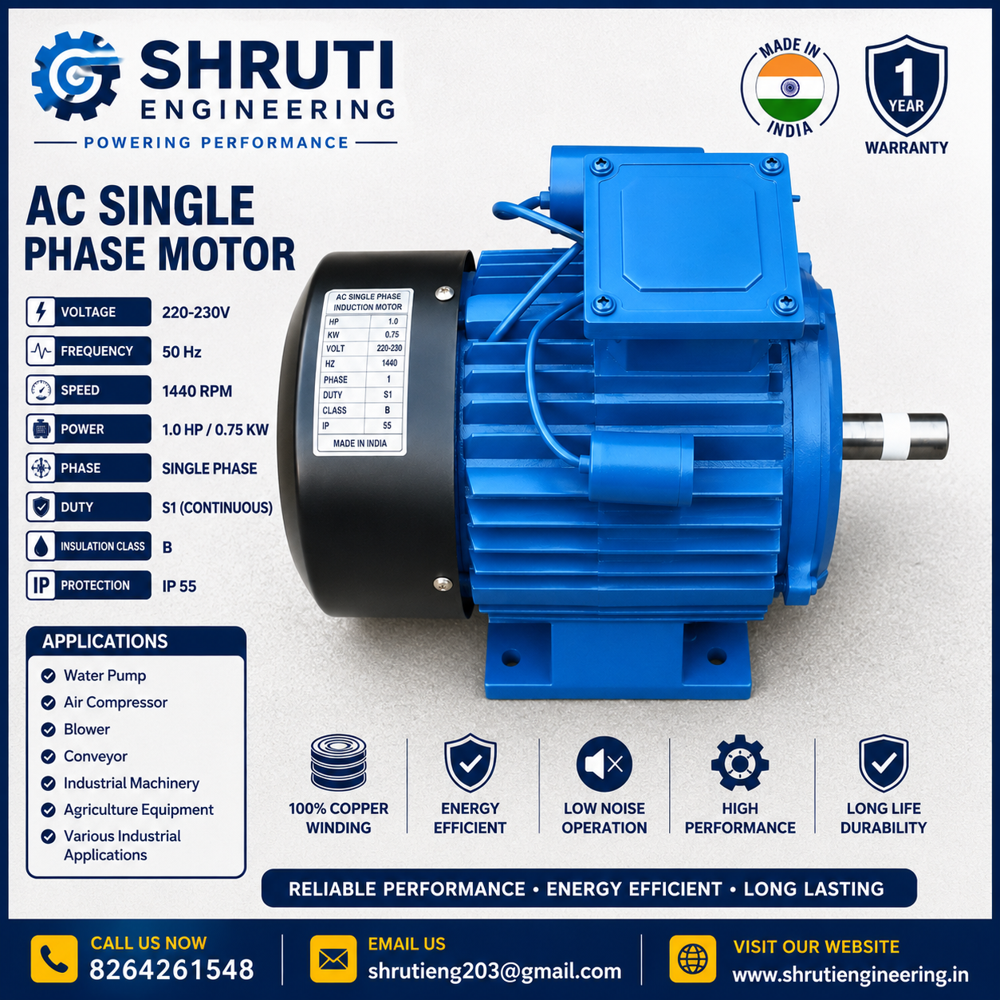

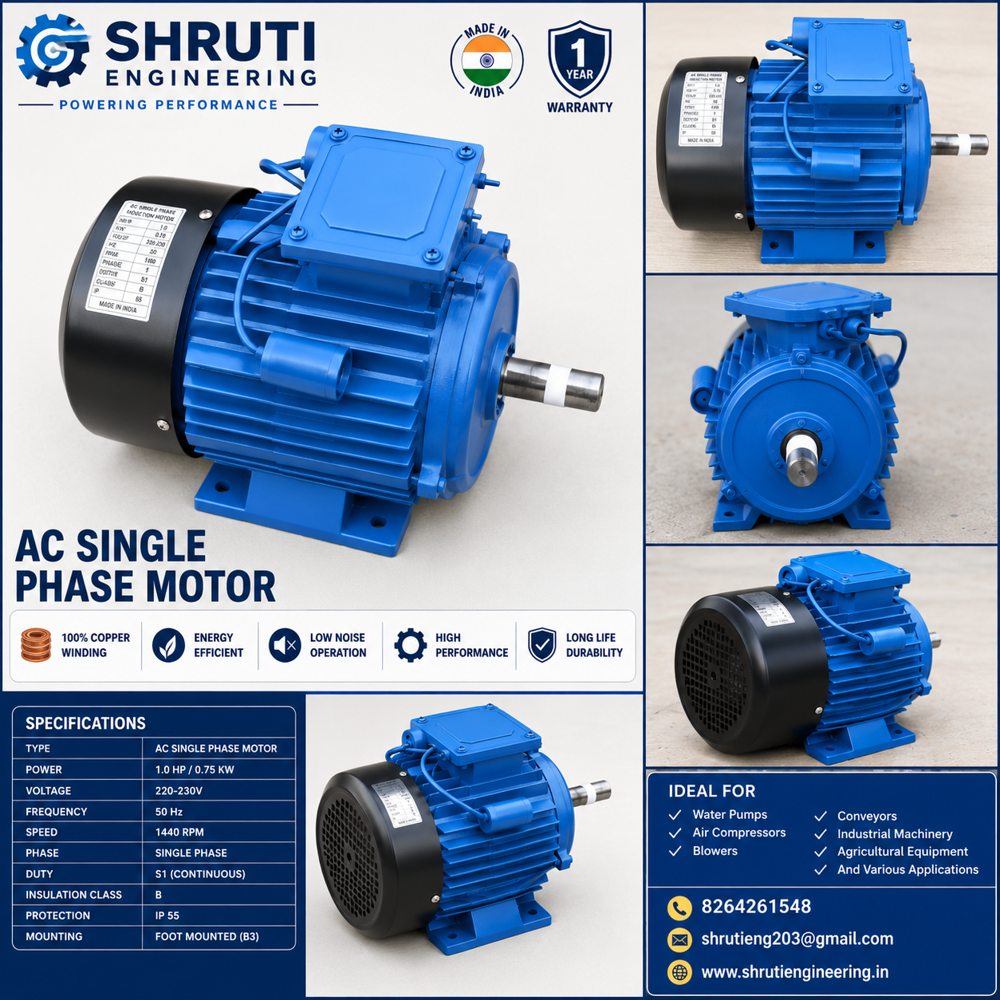

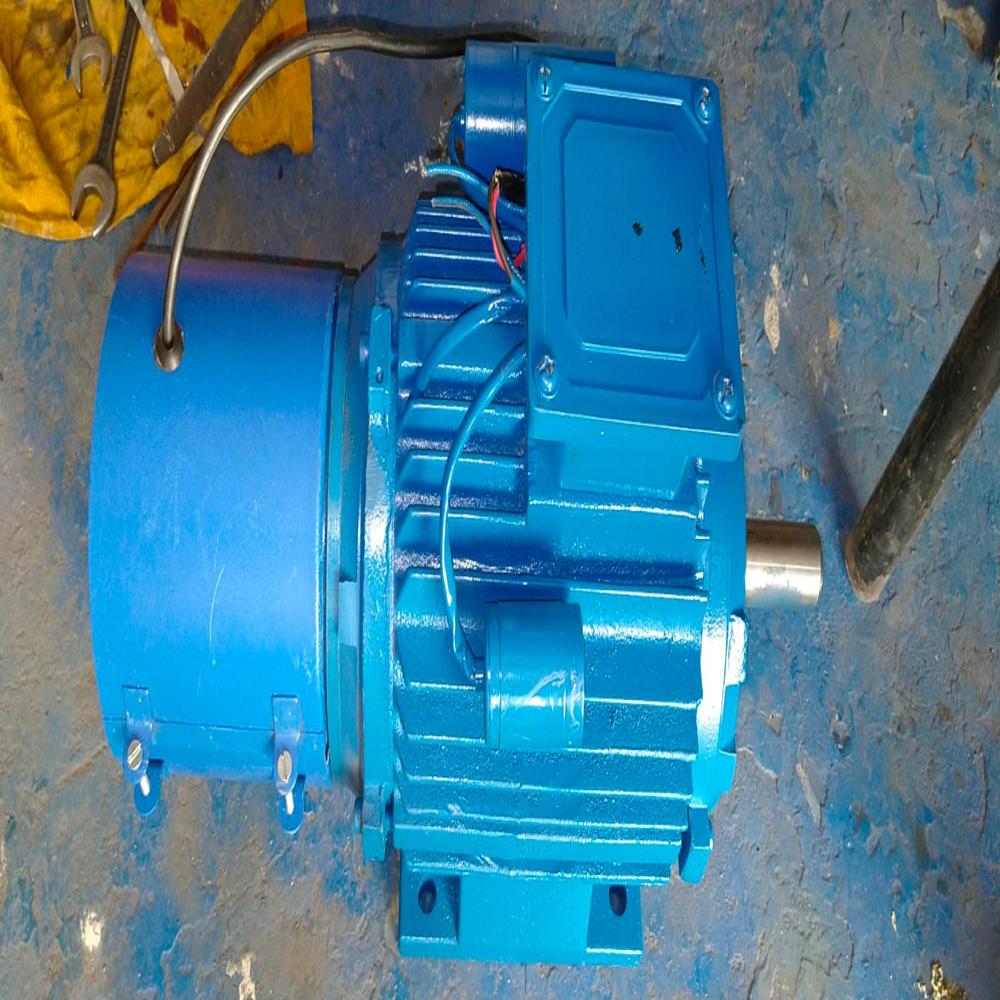

Capacitor Start Single Phase Motor

Capacitor Start Single Phase Motor Specification

Bearing Type
Deep Groove Ball Bearing

Ambient Temperature
-15C to 50C

Voltage
220V / 230V

Cooling Method
Fan Cooled

Sealed Type
Enclosed

Starting Type
Capacitor Start

Motor Type
Capacitor Start Induction Motor

Pressure
Atmospheric

Standard
ISI / IEC

Horse Power
1 HP to 5 HP

Torque
High Starting Torque

Efficacy
Standard Efficiency

Rated Frequency
50 Hz

Poles Number
2 Pole / 4 Pole

Features
High starting torque, Energy efficient, Rugged construction

Rated Voltage
220V

Noise Level
Low

Power Rating
0.75 kW - 3.7 kW

Current Type
AC

Product Type
Single Phase Induction Motor

Output Power
1 HP - 5 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM / 2880 RPM

Power
0.75 kW - 3.7 kW

Color
Blue

Dimension (L*W*H)
Based on Model, Typically 300mm x 220mm x 220mm

Weight
18 - 38 kg (Depends on Capacity)

Shaft Diameter
19mm / 24mm (As per model)

Mounting Type
Foot / Flange Mounting

IP Rating
ip44

Capacitor Type
Electrolytic Starting Capacitor

Thermal Protection
Optional

Operating Position
Horizontal

Frame Material
Cast Iron Body

Application
Pumps, Compressors, Machine Tools, Blowers

Insulation Class
Class B / F

Service Duty
S1 (Continuous)

Rotation Direction
Reversible

Capacitor Start Single Phase Motor About

Utilise this offer on our Capacitor Start Single Phase Motor, a must-have for those seeking superior performance in pumps, compressors, machine tools, and blowers. Highlighted by its splended cast iron body and rugged construction, this motor delivers high starting torque and uncommon energy efficiency. The totally enclosed fan cooled (TEFC) feature, optional thermal protection, and standard ISI/IEC compliance ensure reliable operation even in demanding conditions. With reversible rotation, class B/F insulation, and a weight range of 18-38 kg, it's engineered for both durability and versatility. Available in 1-5 HP outputs.

Versatile Application Motor for Optimum Usage

The Capacitor Start Single Phase Motor is extensively used for applications including pumps, compressors, machine tools, and blowers. Its primary advantage lies in offering high starting torque while supporting continuous S1 duty usage. Designed for single-phase operation, it is ideal for environments requiring reliable motor performance with standard efficacy. Practical in both industrial and commercial settings, this motor's horizontal operating position and foot or flange mounting ensure secure and efficient installation across diverse usage types.

Certifications, Delivery, and Sample Request Information

Certified to premium ISI and IEC standards, this superior motor guarantees safety and performance. Our streamlined delivery process ensures your order is promptly dispatched, typically within a standard lead time. For businesses seeking initial evaluation, samples can be provided for a nominal charge based on the proposal amount. Rely on our reliable exporter, manufacturer, and supplier network to access authentic, high-quality motors tailored to your specification needs.

Type	SINGLE Phase Electric Motor
Frame Size	100
Frequency	50 Hz
Horsepower	2 HP
Material	Cast Iron
Mounting Type	FOOT
No. of Poles	4
Power	1.5 KW
Speed	1440 rpm
Voltage	415 V

SINGLE PHASE FOOT MOUNTED MOTOR

FAQ's of Capacitor Start Single Phase Motor:

Q: How does the Capacitor Start Single Phase Motor enhance starting torque?

A: This motor incorporates an electrolytic starting capacitor, which delivers a surge of energy during startup, ensuring high starting torque for demanding applications such as pumps and compressors.

Q: What types of usage are recommended for this motor?

A: It is particularly recommended for continuous S1 duty in equipment like pumps, compressors, blowers, and various machine tools due to its reliability and superior build.

Q: When can I expect delivery of my order?

A: Once you finalise your proposal amount, typical delivery times are standard and communicated upon order confirmation, depending on stock and customization.

Q: Where can this motor be mounted?

A: This model accommodates both foot and flange mounting types, making it flexible for installation in a variety of machine configurations and industrial setups.

Q: What are the benefits of the totally enclosed fan cooled (TEFC) feature?

A: The TEFC feature protects the motor from dust, moisture, and contaminants, resulting in lower maintenance, longer service life, and superior operating reliability.
