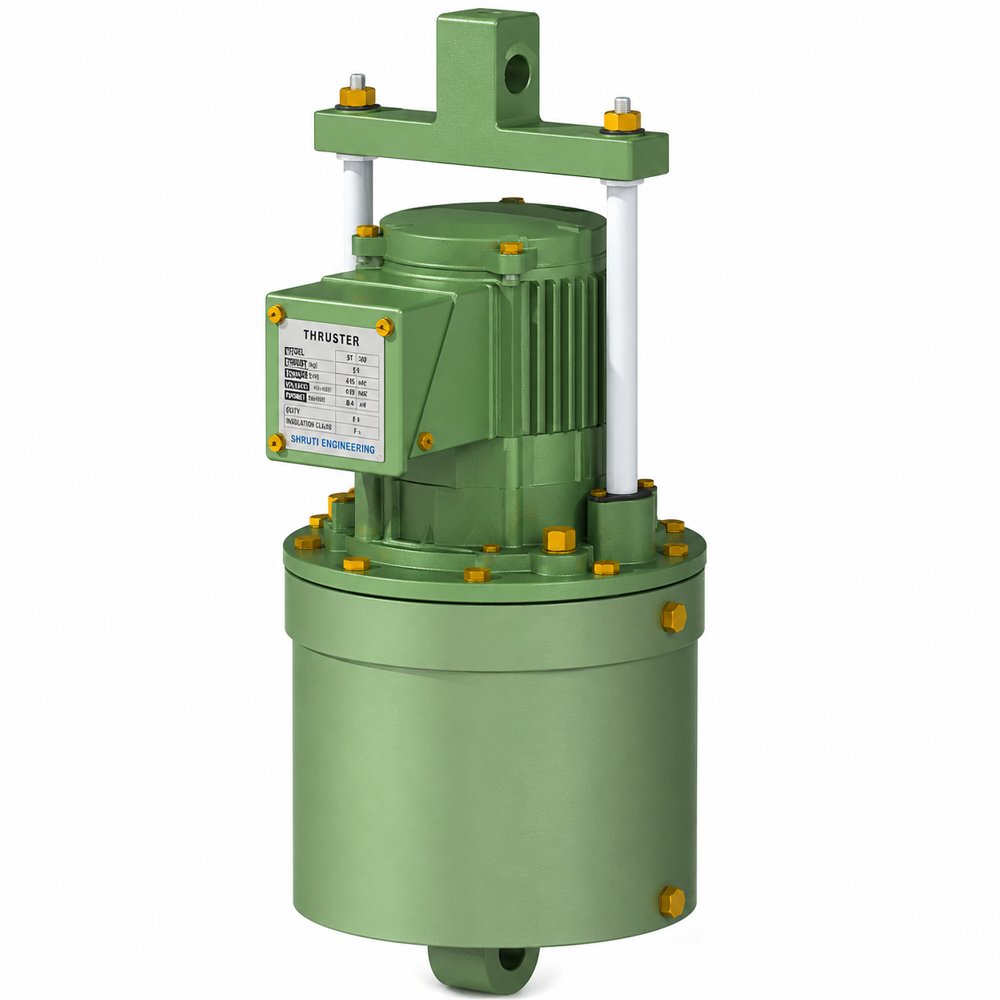

46 KG THRUSTER

46 KG THRUSTER Specification

Pressure
Hydraulic Equivalent (Self-contained Electric Motorized)

Thickness
Outer casing appx. 6-12 mm

Shape
Cylindrical

Material
Cast Iron / Mild Steel

Loading Capacity
46 kg

Diameter
80 mm (thrust rod)

Power
0.37 kW

Voltage
415 V AC

Application
Industrial Brakes and Lifting Mechanisms

Stroke Length
51 mm

Insulation Class
F

Mounting Type
Flange/Foot Mounted

Operating Temperature Range
-10C to +50C

Duty Cycle
S1 (Continuous Duty)

No. of Phases
3 Phase

Enclosure Protection
IP 55

Frequency
50 Hz

About 46 KG THRUSTER

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered for Reliability in Industrial Settings

Built with a rugged cast iron or mild steel body and protected by an IP 55 enclosure, the 46 KG THRUSTER withstands harsh industrial environments. Its flange/foot mounting versatility and continuous S1 duty cycle allow seamless integration and uninterrupted operation, ideal for braking and lifting systems.

Efficient Performance Across Challenging Conditions

With an operating range from -10C to +50C and insulation Class F, this thruster ensures safety and dependability during continuous operation. The 51 mm stroke length and 46 kg load capacity provide consistent thrust for mission-critical industrial applications, while the self-contained electric motorized system simplifies installation and reduces maintenance needs.

FAQ's of 46 KG THRUSTER:

Q: How is the 46 KG THRUSTER typically installed for industrial applications?

A: The thruster can be mounted using either a flange or foot mounting configuration, making it adaptable to various industrial setups, including industrial brakes and lifting mechanisms.

Q: What benefits does the continuous (S1) duty cycle provide for operations?

A: A continuous S1 duty cycle means the thruster is designed for non-stop operation without needing rest periods, offering sustained, uninterrupted functionality crucial for demanding industrial processes.

Q: Where can the 46 KG THRUSTER be used effectively?

A: This thruster is suitable for use in environments where reliable actuation of industrial brakes or lifting mechanisms is required, such as manufacturing plants, material handling facilities, and automated assembly lines.

Q: What is the process for maintaining the thruster's optimal performance?

A: Routine checks should include inspecting the outer casing, ensuring electrical connections are secure, monitoring operating temperatures, and verifying the enclosure's IP 55 protection from dust and water ingress. Minimal day-to-day maintenance is required due to its robust self-contained design.

Q: What is the usage of the stroke length and load capacity in the thruster's operation?

A: The 51 mm stroke length and 46 kg loading capacity enable precise and powerful actuation, making the thruster ideal for mechanisms that require accurate positioning or controlled force, like brake engagement or heavy object lifting.

Q: When should you choose insulation Class F and IP 55 protection for your application?

A: Insulation Class F and IP 55 enclosure protection should be selected when your application demands high thermal endurance and resistance to dust or water, ensuring the thruster's reliability in challenging industrial environments.
