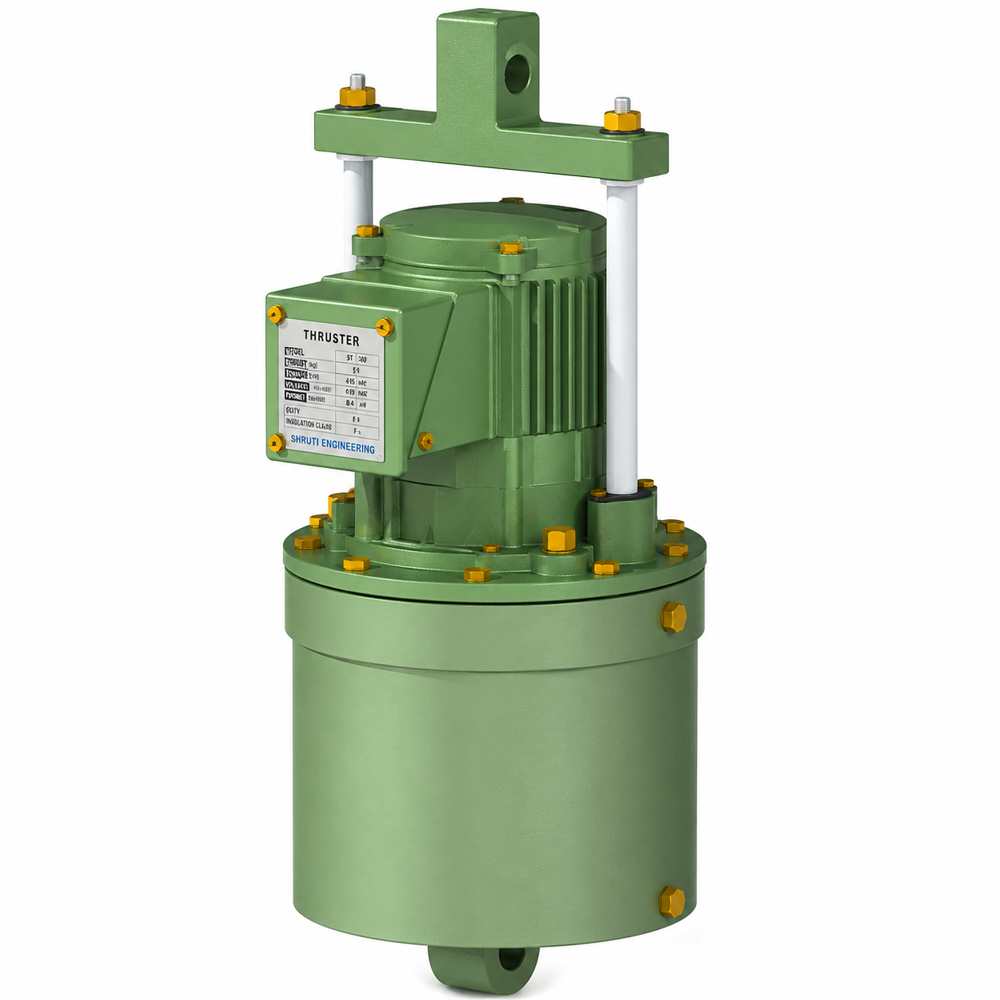

520 MODEL THRUSTER

520 MODEL THRUSTER Specification

Shape
Cylindrical

Thickness
Standard 22 mm

Pressure
Hydraulic Pressure: 6-8 Bar

Material
Cast Iron

Loading Capacity
Up to 380 Nm

Diameter
180 mm

Power
3.7 kW

Voltage
415V AC

Application
Industrial brakes, cranes, hoists, conveyors

Frequency
50 Hz

Protection Class
IP54

Stroke Length
51 mm

Duty Cycle
S3 - 40% ED

Operating Temperature
-10C to +55C

Mounting Type
Flange Mounted

Model Name
520 MODEL THRUSTER

Finish
Black Powder Coating

Weight
38 kg

520 MODEL THRUSTER About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered for Industrial Strength

Built with cast iron and finished with a resilient black powder coating, the 520 MODEL THRUSTER is designed to withstand demanding industrial environments. Its IP54 protection rating makes it suitable for use even where there is moderate exposure to dust and splashing water, ensuring dependability for a wide range of applications.

Optimized Performance and Versatility

This thruster operates seamlessly with a stroke length of 51 mm, loading up to 380 Nm under hydraulic pressures of 6-8 Bar. It supports a 40% duty cycle (S3) and is perfect for intermittent yet repetitive operations in systems like industrial brakes, cranes, and conveyors. Its flange-mounted design enables straightforward integration into existing infrastructures.

FAQ's of 520 MODEL THRUSTER:

Q: How is the 520 MODEL THRUSTER installed in industrial machinery?

A: The 520 MODEL THRUSTER is flange-mounted, allowing it to be securely fixed to compatible flat surfaces on industrial equipment such as brakes, cranes, and conveyors, ensuring stable operation during high-load activities.

Q: What are the main advantages of using the 520 MODEL THRUSTER in heavy-duty applications?

A: Key benefits include its robust cast iron construction, high loading capacity up to 380 Nm, IP54 protection for durability, and seamless fit for various industrial uses such as braking systems and material handling equipment.

Q: When is it recommended to use the thruster's S3-40% duty cycle?

A: The S3-40% duty cycle is intended for operations that require intermittent activity followed by rest periods, making it highly suitable for equipment like cranes and hoists which do not run continuously.

Q: Where can the 520 MODEL THRUSTER be effectively deployed?

A: It is best suited for integration into industrial systems requiring reliable linear motion or force, particularly in brake assemblies, materials conveyors, hoisting mechanisms, and similar applications.

Q: What steps are involved in maintaining the 520 MODEL THRUSTER?

A: Regular maintenance includes inspecting the hydraulic connections, ensuring proper voltage supply, checking for signs of wear, and keeping the unit clean to preserve its IP54 protection. Routine checks help extend its service life.

Q: How does the protection class IP54 benefit the thruster's operation?

A: An IP54 protection class safeguards the thruster from moderate dust ingress and water splashes, making it reliable for use in environments where exposure to these elements is common.
