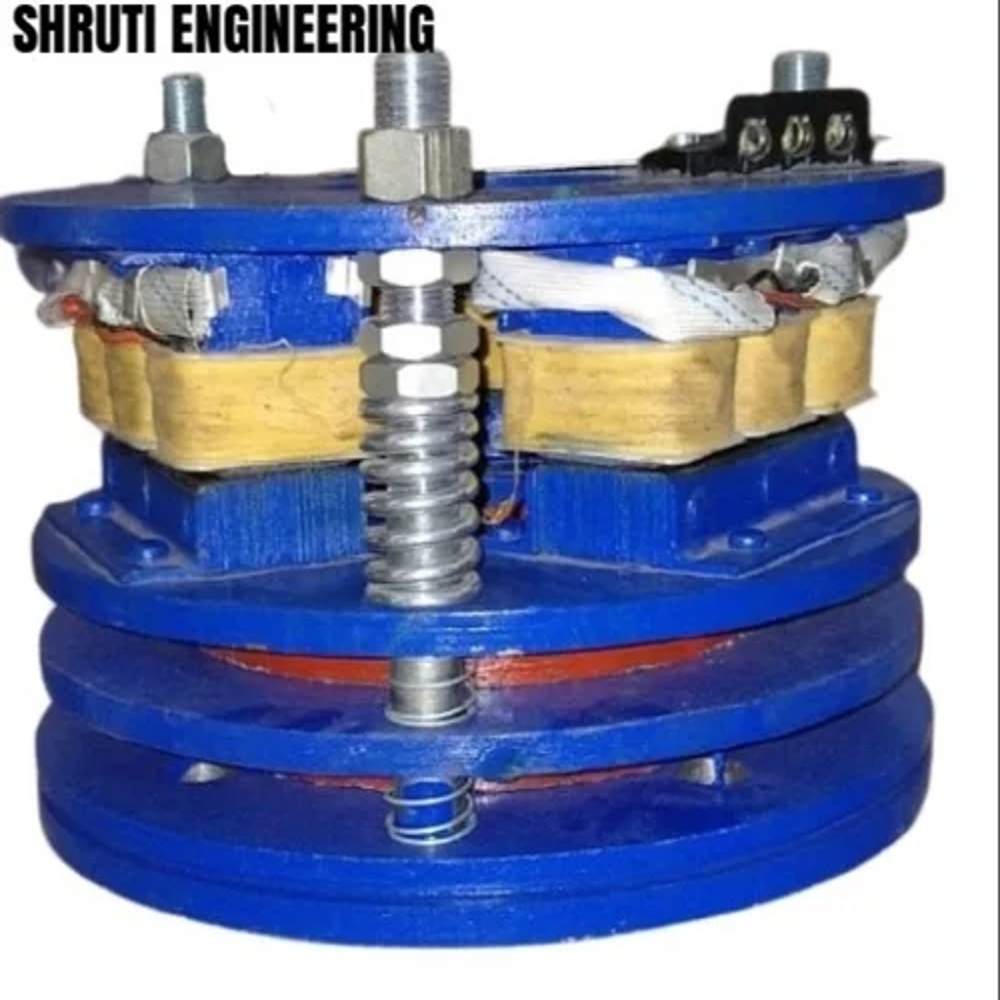

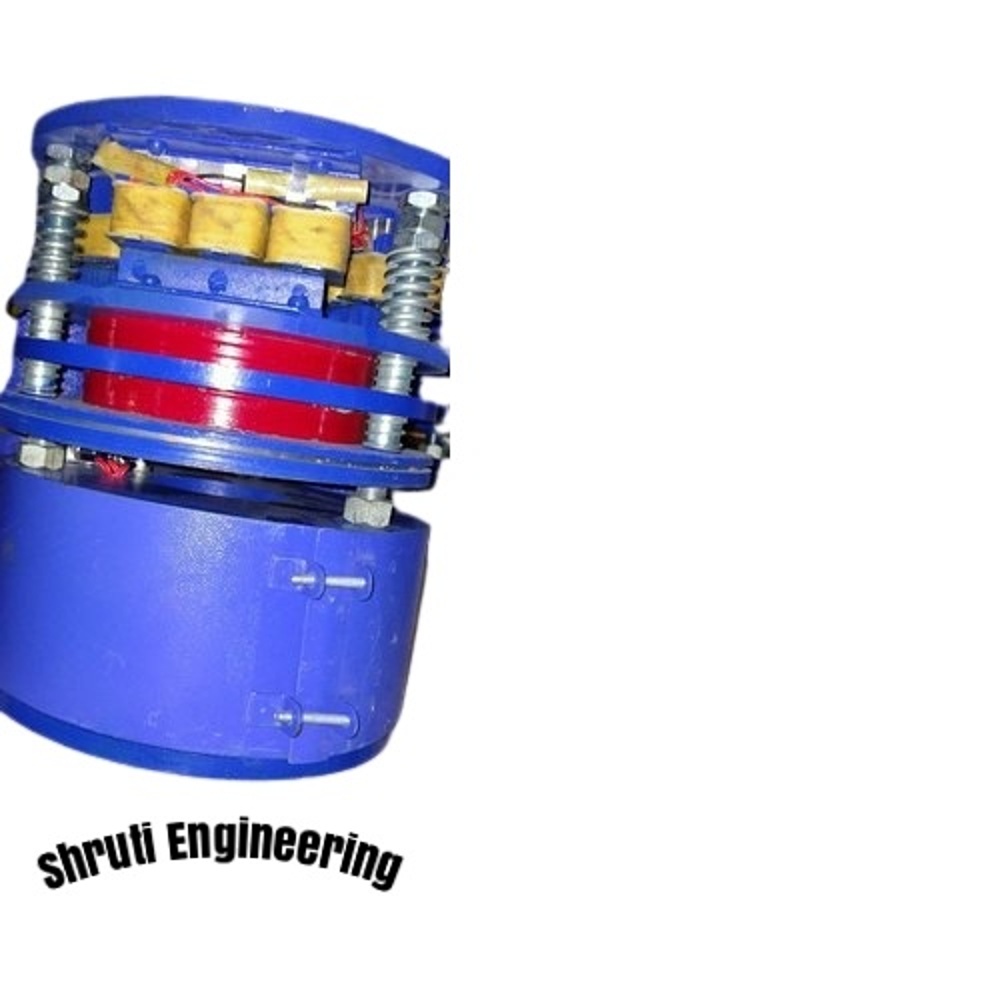

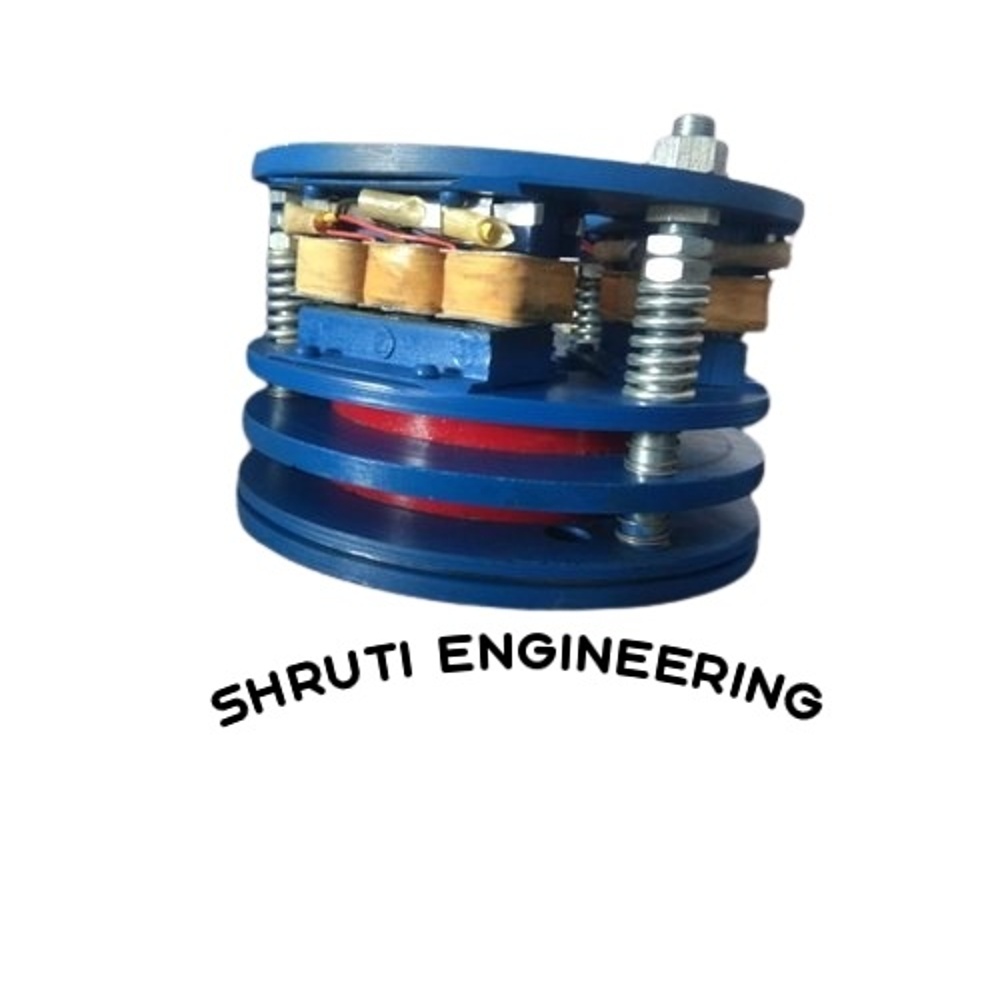

AC Brake Exporter

AC Brake Exporter Specification

Thickness
Standard, can be customized

Pressure
Adjustable as per application

Vehicle Type
Not applicable (Industrial Use)

Shape
Round

Material
Mild Steel

Loading Capacity
Customized depending on requirement

Diameter
180 mm

Power
0.5 HP to 5 HP (varies by model)

Voltage
415 V AC

Application
Industrial Machinery, Hoists, Cranes

Mounting Type
Flange Mounted

Duty Cycle
S1, Continuous

Operating Temperature Range
-10C to +50C

Frequency
50 Hz

Insulation Class
Class F

Finish
Painted/Coated

Control
Electromagnetic, Spring Loaded Release

About AC Brake Exporter

When Ac supply is given to Brake coil, the plate gets magnetized and releases the brake disc and sets to rotate free. When supply is cut off the coil and brake gets applied.
These coils are widely used in hydro extractors, cranes, hoist, electrically driven machinery. This comes as a set of 6 nos and mostly 9 nos. These coil is suitable for the model DAT130, DAT140, DAT150 and DAT190.

Engineered for Industrial Performance

Our AC brakes are expertly manufactured for the rigorous demands of industrial machinery, cranes, and hoists. The painted or coated finish resists corrosion while Class F insulation ensures enhanced thermal endurance and reliability. Designed for round, flange-mounted installation, these brakes maintain consistent performance in temperatures ranging from -10C to +50C, making them suitable for diverse working conditions.

Tailored to Your Load Requirements

Every industrial application has unique requirements, which is why our AC brakes offer customizable loading capacities and pressure settings. With diameters fixed at 180 mm and thickness customization available, our products are adaptable for a wide range of machinery. Whether you need control for lighter loads or heavy-duty applications, our brakes can be specified accordingly.

Dependable Control and Easy Integration

Fitted with electromagnetic actuation and spring-loaded release, these brakes deliver precision control and swift disengagement. The S1 duty cycle permits uninterrupted operation, ideal for continuous-use scenarios. With straightforward flange mounting and compatibility with 415 V AC power supplies, integration into your existing systems is efficient and hassle-free.

FAQ's of AC Brake Exporter:

Q: How do AC brakes with electromagnetic control and spring-loaded release function in industrial settings?

A: These AC brakes utilize an electromagnetic system to engage or release a braking force quickly, aided by a spring-loaded mechanism. When power is applied, the electromagnetic actuator releases the brake, allowing motion. Once power is removed, the spring re-engages the brake, bringing machinery to a secure stop. This ensures reliable and safe operation in demanding industrial applications.

Q: What advantages does Class F insulation provide for these AC brakes?

A: Class F insulation enables the brakes to withstand higher operating temperatures, up to 155C at the winding. This feature protects the brake components from thermal stress, ensuring long-term durability and consistent performance, even in conditions with temperature fluctuations or prolonged use.

Q: When should I consider customizing the loading capacity or thickness of the brake?

A: You should customize the loading capacity and thickness based on your machinery's requirements, such as load weight, stopping distance, and installation space. Customization is recommended when standard models do not meet your specific performance or dimensional criteria, ensuring optimal safety and efficiency for your operation.

Q: Where can your AC brakes be installed, and what is the typical application?

A: Our AC brakes are intended for integration within industrial equipment such as hoists, cranes, conveyors, and heavy-duty machinery. The flange mounting and round shape facilitate efficient installation onto existing mechanical systems in factories, warehouses, and construction sites.

Q: What is the process for selecting the right model of AC brake for my machinery?

A: To select the appropriate brake model, consider factors like required power (0.5 HP to 5 HP), voltage (415 V AC), loading capacity, and size constraints (180 mm diameter). Consult our technical team, providing specifics about your machine's operational needs and duty cycle, to receive recommendations tailored to your application.

Q: How does the S1 continuous duty cycle benefit my operations?

A: An S1 continuous duty cycle means the brake can operate non-stop under rated power without overheating. This makes it ideal for applications demanding constant performance, such as assembly lines or automated lifting systems, minimizing downtime and increasing productivity.
