AC Power Brake

AC Power Brake Specification

Thickness
20 mm

Vehicle Type
Industrial Equipment

Shape

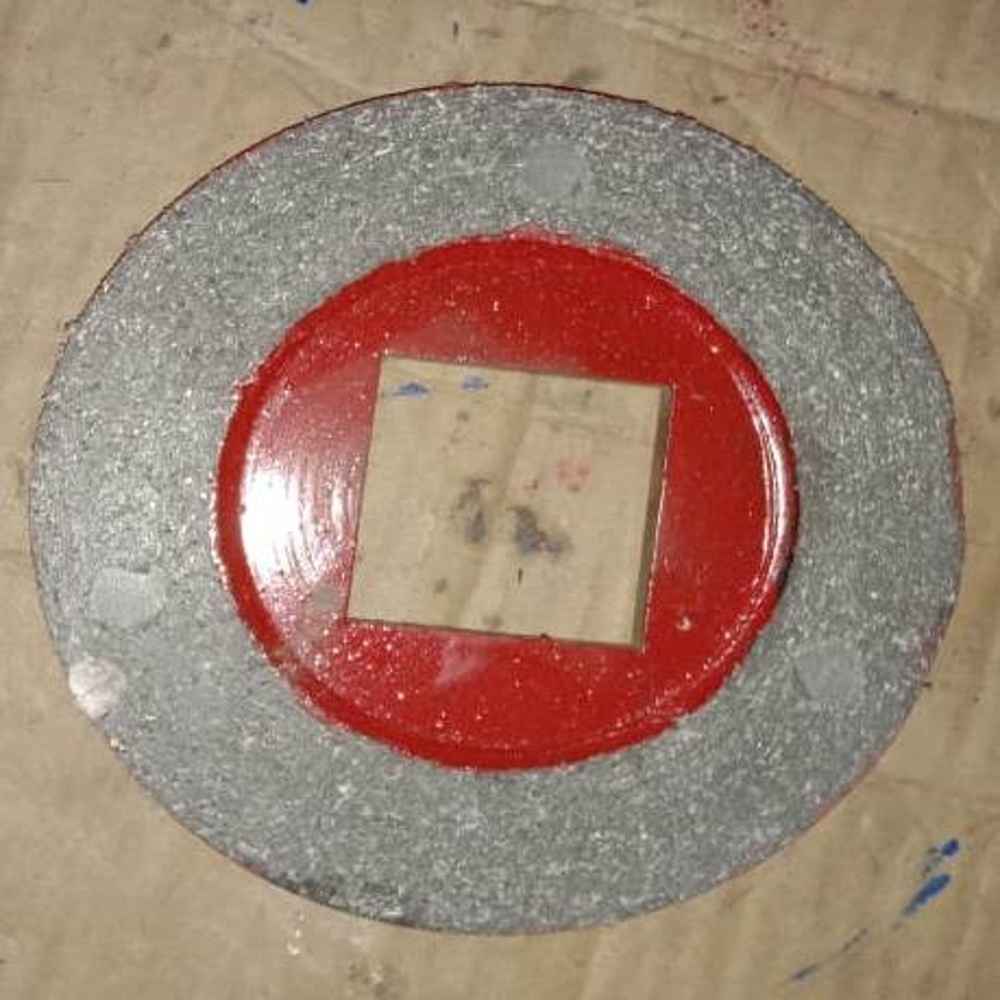

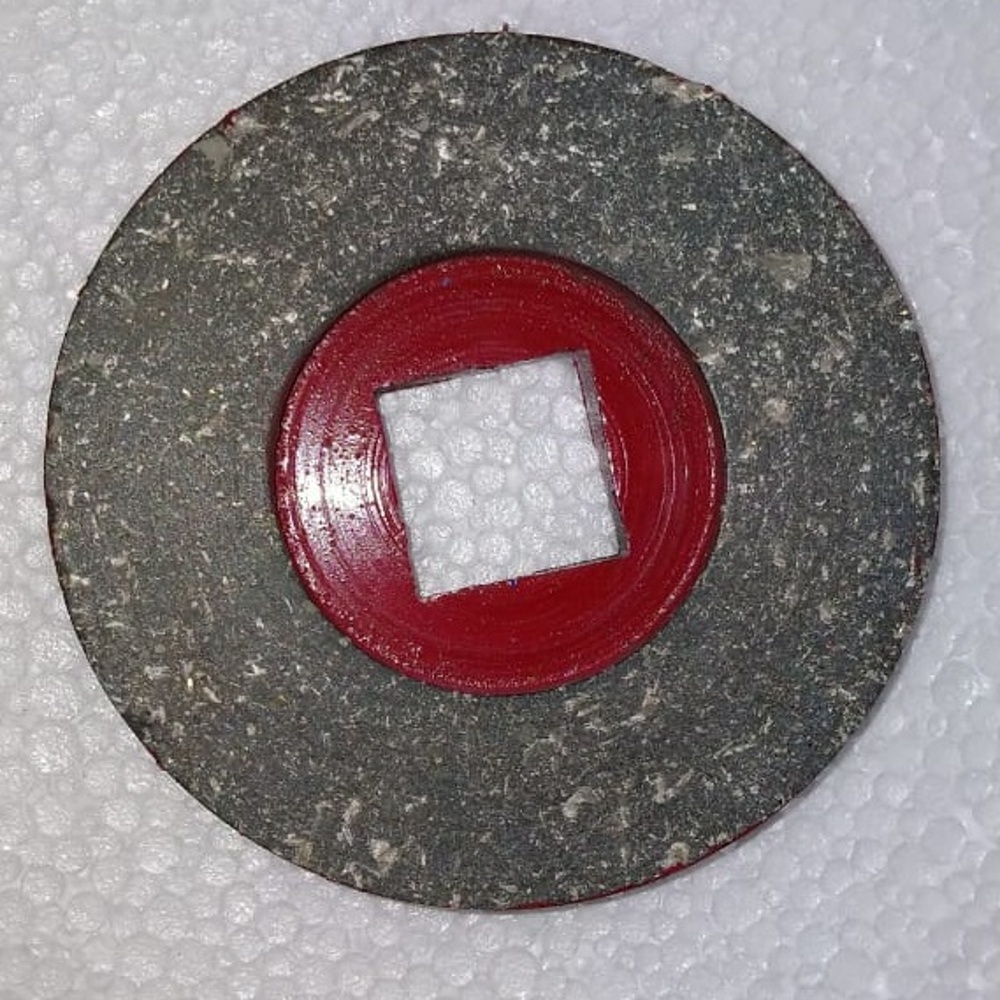

Round (Disc Shape with Square Bore)

Pressure
Electromagnetic Actuation

Material
Cast Iron and Alloy Steel

Loading Capacity
Up to 500 Nm

Diameter
200 mm

Power
0.5 HP to 3 HP

Voltage
220V / 415V AC

Application
Cranes, Hoists, Elevators, Industrial Machinery

Operating Temperature
-10C to 120C

Insulation Class
Class F

Response Time
Quick Release ( 0.1 sec)

Durability
High Wear Resistance

Brake Torque
Adjustable up to rated capacity

Finish Type
Corrosion Resistant Painted

Noise Level
Low Noise Operation

Mounting Type
Flange Mounted

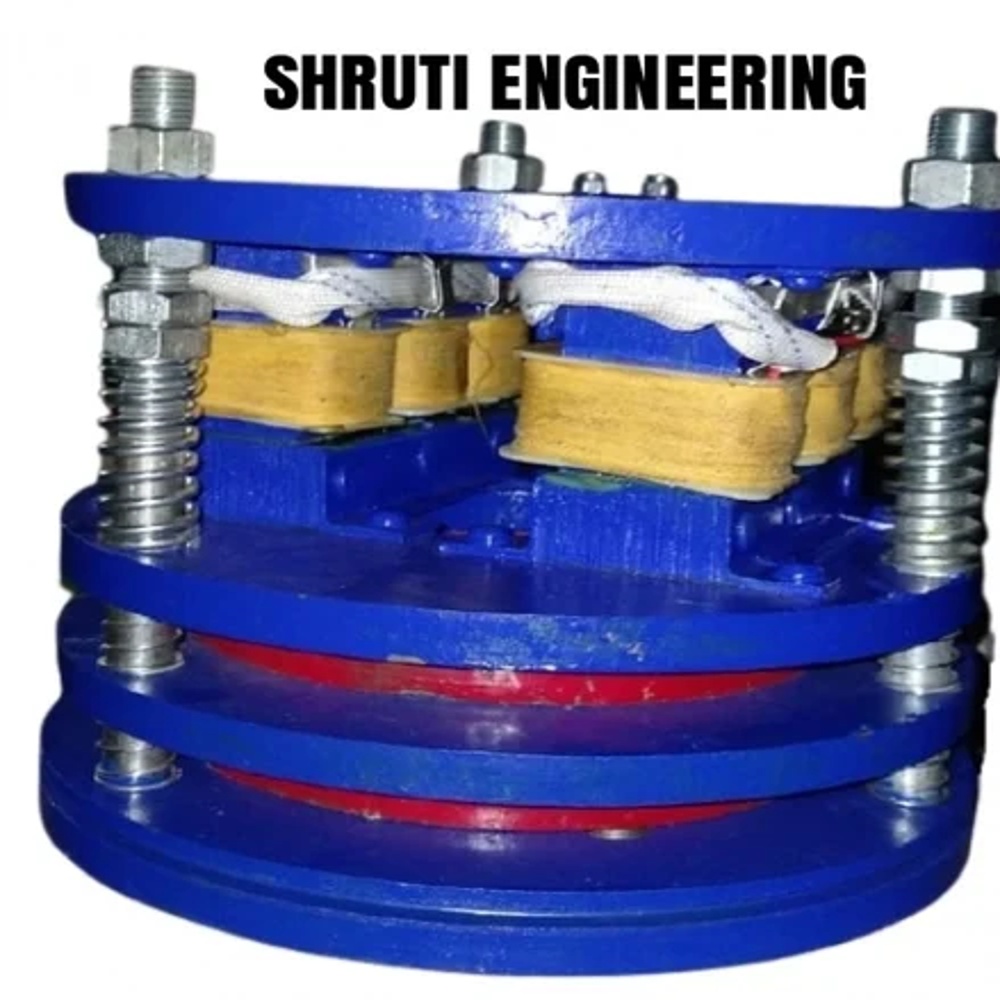

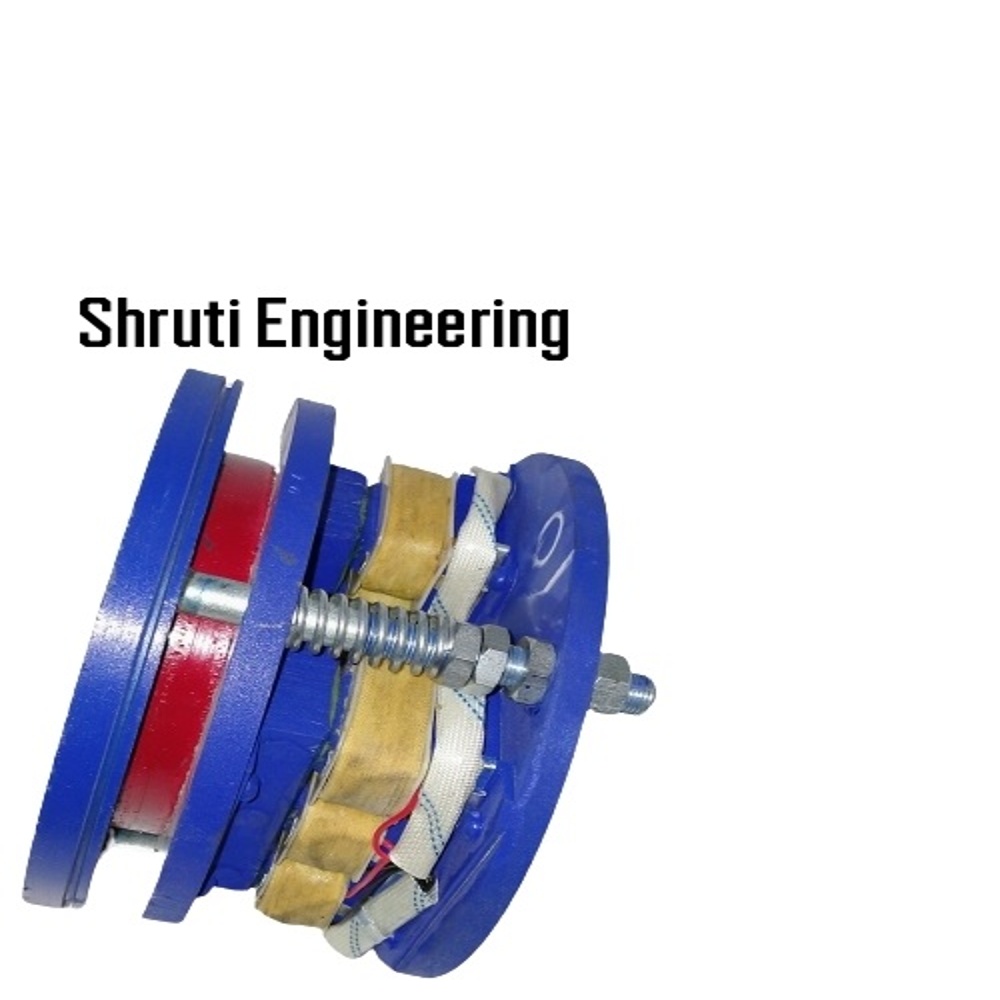

About AC Power Brake

We are offering a wide range of Disc Brakes for Text Rig which is widely used marine engineering, construction machinery and automobiles. These are known for single valve side object, corrosion resistance and external adjust-ability.

These single disc brakes are available in varied specifications, these components are also customized as per the clients' requirement.

Robust and Adaptable Industrial Brake

Designed for versatility, this AC Power Brake excels in applications such as cranes, hoists, elevators, and a variety of industrial machinery. Its adjustable torque feature and electromagnetic actuation offer precise control, while its robust materials and protective finish ensure reliable performance in challenging environments.

Rapid Response for Enhanced Safety

With a quick-release response time of just 0.1 seconds, this brake ensures fast and secure stopping power. This feature is essential for safety-critical scenarios where equipment needs to be halted almost instantaneously, reducing the risk of accidents and improving operational efficiency.

FAQ's of AC Power Brake:

Q: How does the adjustable torque feature benefit industrial applications?

A: The adjustable torque allows operators to set the brake force according to the needs of different machines and loads, ensuring optimal safety and performance across various industrial settings such as cranes or hoists.

Q: What is the process for mounting the AC Power Brake?

A: This brake is designed for flange mounting, making it easy to install on compatible industrial equipment. The round disc with a square bore simplifies alignment and secure fitting during setup.

Q: When should the brake be used within the operating temperature range?

A: The brake operates best in environments between -10C and 120C, making it suitable for both cold storage areas and high-temperature industrial facilities. Using it within this temperature range ensures longevity and consistent performance.

Q: Where can this AC Power Brake be applied?

A: It is ideal for industrial equipment such as cranes, hoists, elevators, and other heavy machinery, where reliable stopping power and controlled motion are required.

Q: What materials contribute to the brake's durability and low maintenance?

A: Constructed from cast iron and alloy steel with a corrosion-resistant painted finish, the brake offers high wear resistance, ensuring durability even in demanding operating conditions while minimizing maintenance needs.

Q: How does the electromagnetic actuation enhance the brake's performance?

A: Electromagnetic actuation provides immediate and precise engagement or release of the brake, leading to a quick response time of 0.1 seconds for increased safety and reduced downtime.
