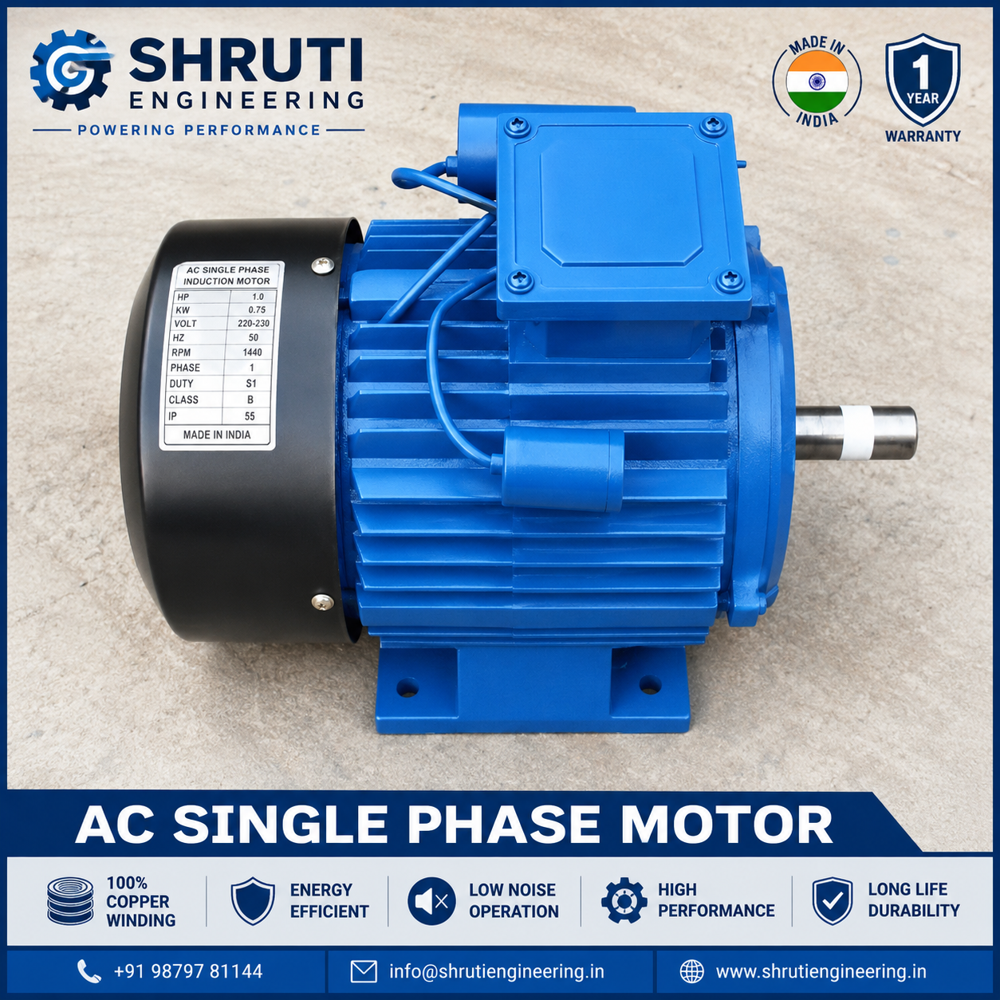

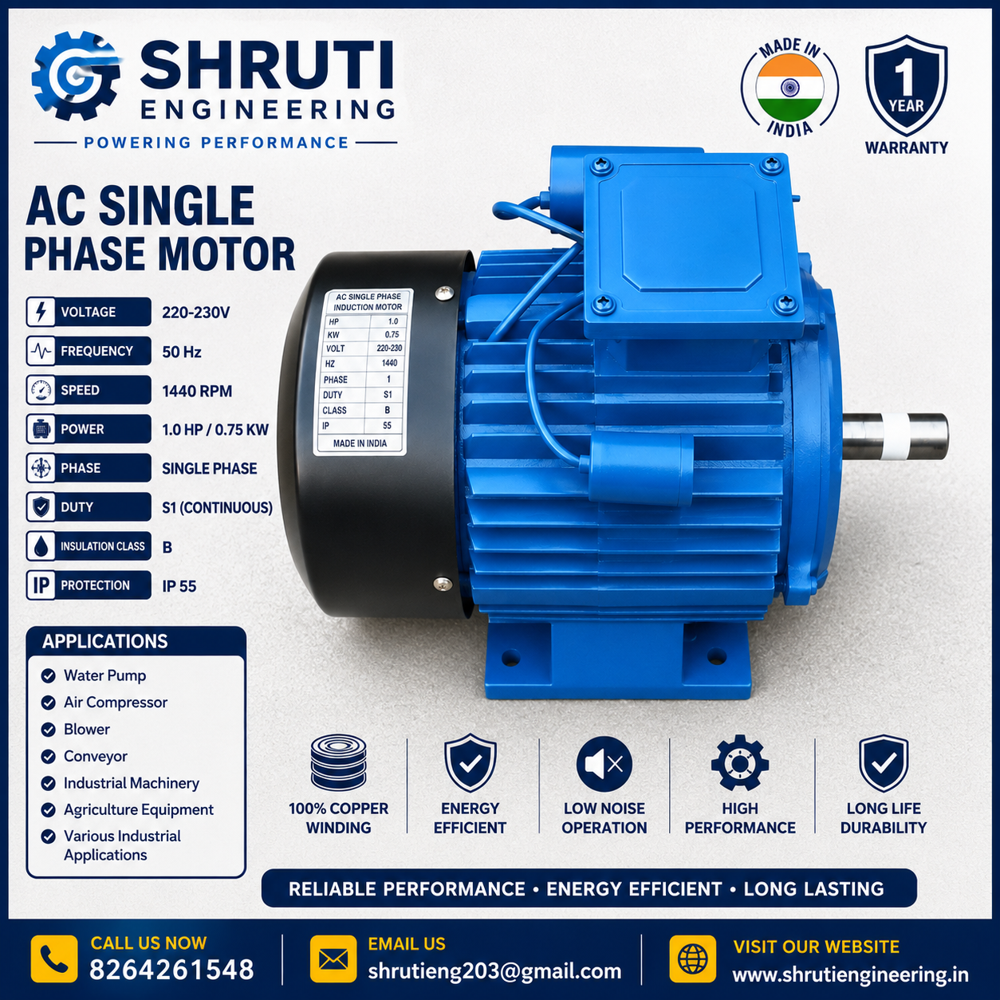

TEFC Single Phase Motor

TEFC Single Phase Motor Specification

Starting Type
DOL (Direct On Line)

Standard
IS/IEC Standards

Rated Voltage
220-230V

Voltage
220-230V

Rated Frequency
50 Hz

Motor Type
AC Single Phase Induction Motor

Current Type
AC

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Poles Number
4

Efficacy
High Performance

Power Rating
0.75 KW

Torque
Standard as per motor size

Bearing Type
Ball Bearing

Features
100% Copper Winding, Long Life Durability, Low Noise, High Efficiency

Pressure
Standard Atmospheric

Noise Level
Low Noise Operation

Ambient Temperature
-15 to 50C

Horse Power
1.0 HP

Cooling Method
Air Cooled (Fan Cooled)

Product Type
AC Single Phase Motor

Output Power
1.0 HP / 0.75 KW

Frequency (MHz)
50 Hz

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP / 0.75 KW

Color
Blue

Dimension (L*W*H)
Standard Foot Mounted (B3)

Weight
Standard as per rating

Shaft Diameter
Standard as per rating

Mounting Type
Foot Mounted (B3)

IP Rating
IP 55

Winding Material
100% Copper

Duty
S1 (Continuous)

Application
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Agricultural Equipment, and Various Applications

Protection Level
High-grade IP 55

Insulation Class
Class B

Body Material
Aluminum/ Cast Iron (as specified)

About TEFC Single Phase Motor

Our Single Phase Motor for Crane is specially designed for smooth and reliable operation in material handling and lifting applications. It delivers high starting torque, consistent performance, and low power consumption making it ideal for use where three-phase power supply is not available.

This motor is built using high-quality raw materials and precision engineering to ensure long service life, durability, and efficient operation even under heavy-duty conditions. It can also be combined with a brake or gearbox for safe and controlled crane movement.

High-Performance Motor for Multiple Applications

Engineered for continuous operation (S1 duty), the TEFC Single Phase Motor excels in usage scenarios like water pumps, air compressors, agricultural machinery, and industrial equipment. Its high efficiency and robust design enable it to cater to diverse mechanical needs with consistent reliability.

Superior Build Quality and Longevity

Constructed with carefully chosen materials such as aluminum or cast iron for the body and 100% copper winding, this motor ensures both strength and durability. The high-grade IP55 totally enclosed fan-cooled design offers substantial protection against dust and water ingress, increasing lifespan.

FAQ's of TEFC Single Phase Motor:

Q: How does the TEFC Single Phase Motor ensure safety in challenging environments?

A: The motor is equipped with a high-grade IP55 protection level, safeguarding against dust and water, making it ideal for both indoor and outdoor industrial and agricultural settings. The totally enclosed fan-cooled (TEFC) design adds an extra layer of environmental resistance.

Q: What applications is this motor suitable for?

A: It is designed for use in water pumps, air compressors, blowers, conveyors, industrial machinery, agricultural equipment, and a host of other applications requiring reliable single-phase power and continuous operation.

Q: When is it recommended to choose this motor over other variants?

A: Opt for this TEFC Single Phase Motor when you require high efficiency, low noise, robust protection (IP55), and the assurance of continuous, reliable operation in environments susceptible to moisture or dust.

Q: Where can the TEFC Single Phase Motor be installed?

A: Thanks to its IP55 rating and TEFC construction, this motor can be installed in a range of environments, including industrial plants, agricultural settings, and outdoors, provided the mounting aligns with the standard B3 (foot-mounted) configuration.

Q: What are the key benefits of the 100% copper winding and ball bearing system?

A: The use of 100% copper in the windings enhances electrical conductivity and efficiency, promoting longer life and lower energy loss. Ball bearings reduce friction, resulting in smooth rotation, decreased maintenance, and low-noise operation.

Q: How is the motor started and what voltages does it support?

A: It features Direct On Line (DOL) starting, simplifying setup and ensuring quick operation. The motor runs efficiently on 220-230V AC at a rated frequency of 50 Hz, suitable for common single-phase power supplies.
