Brake Drum Coupling for Motor

Brake Drum Coupling for Motor Specification

Torque
Rated up to 10,000 Nm depending on size and model.

Thread
Standard metric/threaded holes for secure fitting.

Max. Speed
Up to 3600 RPM or as specified by design.

Head Code
Round flange.

Connection
Flanged bolt connection.

Sealing
Not typically sealed; open structure for mounting.

Bore
Standard and custom bore sizes available as per shaft size requirements.

Material
En8/En19 steel, Cast Iron, or alloy steel.

Structure
Comprises drum, flanged cover, and gear coupling insert.

Standard
IS 8539 / IS 2693, DIN 115.

Inner Diameter
Customizable as per shaft requirements (commonly from 20 mm to 150 mm).

Outer Diameter
Varies as per application (typically 100 mm to 400 mm).

Application
Brake drum coupling for motor-used in motor-drive power transmission for connecting motor shafts and brakes.

Surface Treatment
Precision machined, anti-corrosive finish (phosphated or painted as needed).

Technique
Machined from solid bar/forged steel-gear cutting and precision turning.

Shape
Circular/round with internal and external gear structure.

Bolt Hole Quantity
4-8 holes depending on drum size.

Finish
Bright, rust-resistant finish.

Maintenance
Low maintenance, easy to disassemble and inspect.

Coupling Type
Gear type brake drum coupling.

Lubrication
Grease lubricated for longer life and reduced wear.

Hardness
Typically 50-60 HRC for gear teeth surfaces.

Weight
Varies by size, typically between 5 kg and 30 kg.

Misalignment Compensation
Allows for minor angular, parallel, and axial misalignment.

Temperature Range
Operates between -20C to +120C.

Brake Drum Coupling for Motor About

Gear Brake Drum Coupling for EOT Crane

A Gear Brake Drum Coupling for EOT Crane is a heavy-duty mechanical coupling that integrates a flexible gear coupling with a brake drum, specially designed for Electric Overhead Travelling (EOT) Cranes and hoisting machinery. It ensures efficient torque transmission, smooth power transfer, and a dependable braking surface in one compact unit.

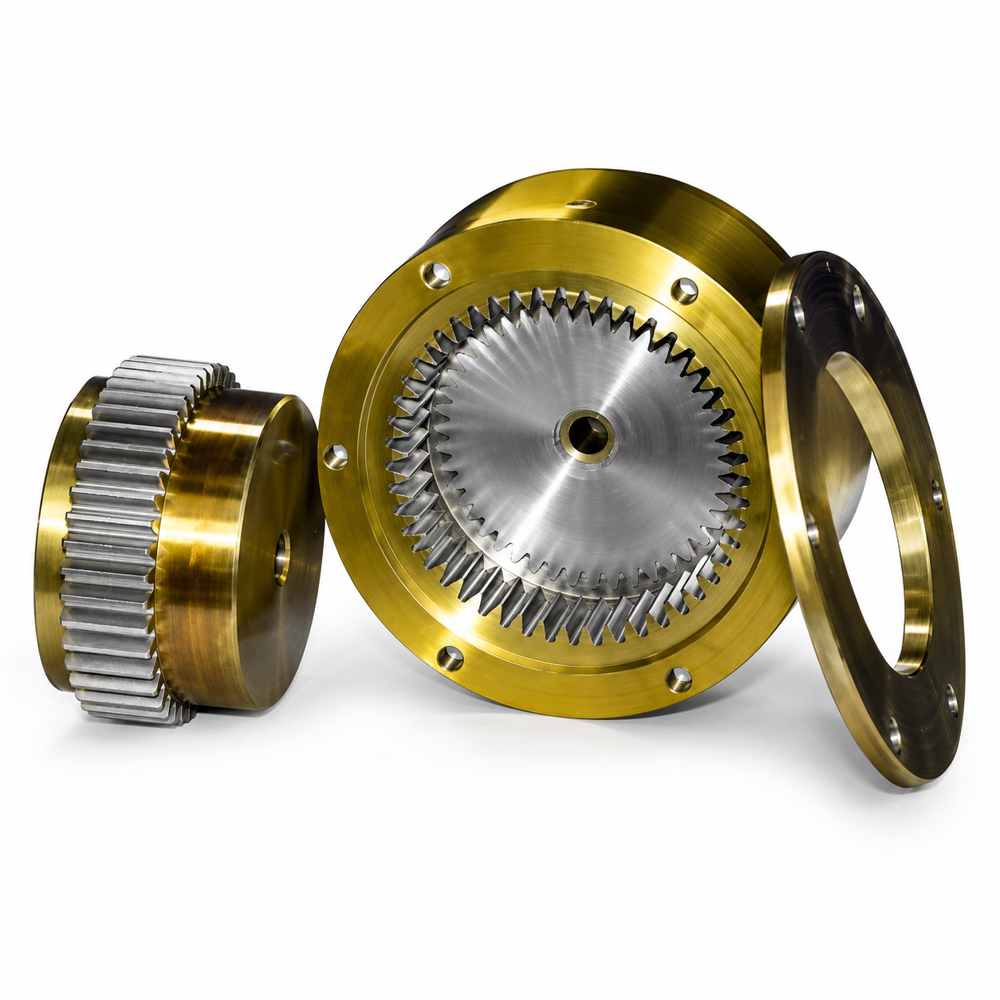

The coupling consists of precision-machined gear hubs, a sleeve with internal gear teeth, and an integrally cast or fabricated brake drum. The gear design accommodates parallel, angular, and axial misalignments between the driving and driven shafts, while the brake drum provides a reliable surface for applying shoe or band brakes, ensuring safe operation of the crane.

Key Features:

Robust design for continuous crane duty operations
High torque transmission with compact construction
Integral brake drum for safe braking and load holding
Accommodates shaft misalignments to reduce wear and tear
Easy installation and low maintenance
Manufactured in Cast Iron / Alloy Steel for long service life

Robust Gear Type Design for Reliable Power Transmission

Featuring an internal and external gear structure, this brake drum coupling expertly handles high torque demands up to 10,000 Nm. The round flanged construction ensures secure connection, while its bright, rust-resistant surface protects against harsh conditions. Precision engineering guarantees consistent performance and ease of maintenance-all in a robust package.

Versatile, Custom-Fit Options for Multiple Applications

Available in both standard and custom bore sizes (20-150 mm ID) and with various drum diameters (100-400 mm OD), this coupling can be tailored to meet specific motor and brake system requirements. Its design complies with IS and DIN standards, making it suitable for diverse industrial environments, including export-grade projects.

FAQ's of Brake Drum Coupling for Motor:

Q: How does the brake drum coupling accommodate shaft misalignment?

A: The design allows for minor angular, parallel, and axial misalignments, ensuring consistent power transmission even if shafts are not perfectly aligned.

Q: What are the main benefits of its high surface hardness on the gear teeth?

A: With a typical hardness of 50-60 HRC, the gear teeth exhibit superior wear resistance, enhancing durability and minimizing maintenance over the coupling's operational life.

Q: In what temperature range can this coupling safely operate?

A: This coupling is designed to function reliably between -20C and +120C, making it suitable for varied industrial environments, including those with temperature extremes.

Q: How is the coupling lubricated and what are the maintenance requirements?

A: The coupling is grease lubricated, which extends its operational life and reduces wear. It is low maintenance, easily disassembled, and simple to inspect when necessary.

Q: What options are available regarding bore size and bolt holes?

A: Standard and custom bore sizes are offered to match different shaft dimensions, and the number of bolt holes (4-8) varies depending on the drum size, allowing for flexible installation.

Q: What is the process of connecting this coupling to motor shafts and brakes?

A: Installation involves mounting the coupling over the shaft, aligning the gear inserts, and tightening the flanged bolts using standard metric threads to ensure a secure fit.

Q: What materials and surface treatments are used to enhance performance and longevity?

A: Manufactured from En8/En19 steel, cast iron, or alloy steel, each coupling receives a precision-machined, anti-corrosive (phosphated or painted) finish for added strength and rust resistance.
