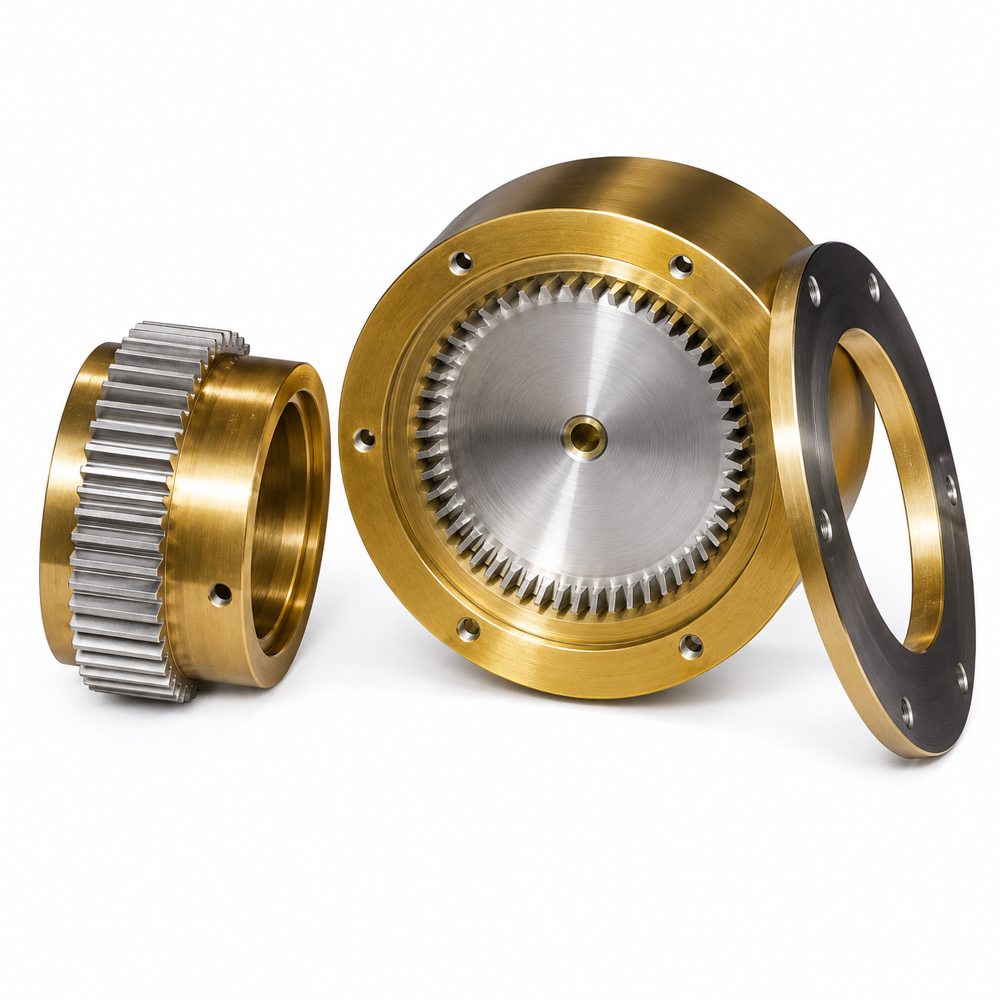

Brake Drum Gear Coupling

Brake Drum Gear Coupling Specification

Max. Speed
Up to 3500 RPM depending on size

Thread
No internal/external threads; bolted assembly

Connection
Bolted/Keyed coupling

Bore
Customizable as per shaft requirements

Torque
Up to 40000 Nm based on model

Sealing
None (open design for easy inspection)

Head Code
Round flange

Material
Alloy steel, Cast iron with high strength surface treatment

Structure
Gear coupling with brake drum integration

Standard
Conforms to AGMA, DIN, or ISO standards (customizable)

Inner Diameter
Available from 25 mm to 300 mm

Outer Diameter
Available up to 500 mm (customizable)

Application
Industrial machinery, material handling, conveyors, and mechanical drive systems

Surface Treatment
Precision finished with anti-corrosive coating

Technique
Machined and precision ground

Shape
Cylindrical with integrated gear teeth

Brake Drum Diameter
As per customer brake size

Finish
Bright, Chemically Passivated

Mounting
Bolt-On with Threaded or Through Holes

Number of Teeth
34 to 80 (depending on size)

Dynamic Balancing
Yes, optional

Lubrication
Grease packed, optional oil bath

Temperature Range
-20C to 120C

Misalignment Tolerance
Up to 1.5 degrees angular

Weight
2kg to 125kg (depending on size)

Hardness
HRC 50-55 for Gears

Brake Drum Gear Coupling About

We offer Brake Drum Couplings, to our clients that is manufactured using qualitative material. Brake drum couplings are also gear coupling and as the name indicates used along with the brakes to stop the unit as and where required. We manufacture these in various sizes and specifications as per the client's requirements.

Highly Durable and Reliable Engineering

Each Brake Drum Gear Coupling is constructed from high-strength alloy steel or cast iron, precision finished, and treated with anti-corrosive coatings. The gears are hardened to HRC 50-55, designed for high performance in demanding industrial setups. Custom dynamic balancing and adaptable sizes ensure reliability across various machinery.

Ease of Installation and Maintenance

The coupling's bolt-on mounting, with either threaded or through holes, facilitates straightforward installation and removal. Its open design lacks internal seals, allowing easy inspection and maintenance without unnecessary disassembly. Customizable bores provide compatibility with diverse shaft requirements.

Optimized for Versatile Industrial Applications

Providing up to 1.5 degrees of angular misalignment tolerance and supporting up to 3500 RPM and 40,000 Nm torque, this gear coupling is suited for heavy-duty applications such as conveyors, mechanical drives, and material handling. Brake drum diameters are tailored per customer needs, and lubrication flexibility (grease-packed or oil bath) enhances operational life.

FAQ's of Brake Drum Gear Coupling:

Q: How does the Brake Drum Gear Coupling accommodate misalignment in industrial systems?

A: This coupling is engineered to tolerate up to 1.5 degrees of angular misalignment between connected shafts. Its precision-machined gear teeth enable smooth torque transmission, reducing wear and operational stress in misaligned setups.

Q: What is the process for installing the Brake Drum Gear Coupling?

A: Installation involves bolting the coupling's round flange to the shaft using either threaded or through holes. The bore is customized for the customer's shaft, and the assembly is typically bolted and keyed, making the process straightforward and secure.

Q: When should I choose grease-packed lubrication versus an oil bath for this coupling?

A: Grease-packed lubrication is standard and requires less frequent maintenance, ideal for most industrial applications. An oil bath option is available for high-speed or continuous-duty operations, providing enhanced cooling and extended lubricant life.

Q: Where can the Brake Drum Gear Coupling be used effectively?

A: The coupling is well-suited for industrial machinery, material handling systems, conveyors, and various mechanical drive systems that require high strength, durability, and precise torque transmission with minimal maintenance.

Q: What are the benefits of the open (no seal) design?

A: The open design allows for easy inspection and maintenance without dismantling the entire assembly, facilitating quick lubricant checks and reducing downtime in industrial operations.

Q: How is the brake drum diameter determined and can it be customized?

A: The brake drum diameter is customized based on the customer's specific brake size requirements, ensuring proper integration with the braking system used in your application.

Q: What standards does the Brake Drum Gear Coupling conform to?

A: The coupling is manufactured in compliance with AGMA, DIN, or ISO standards. If needed, customization to meet specific industry needs can also be accommodated.
