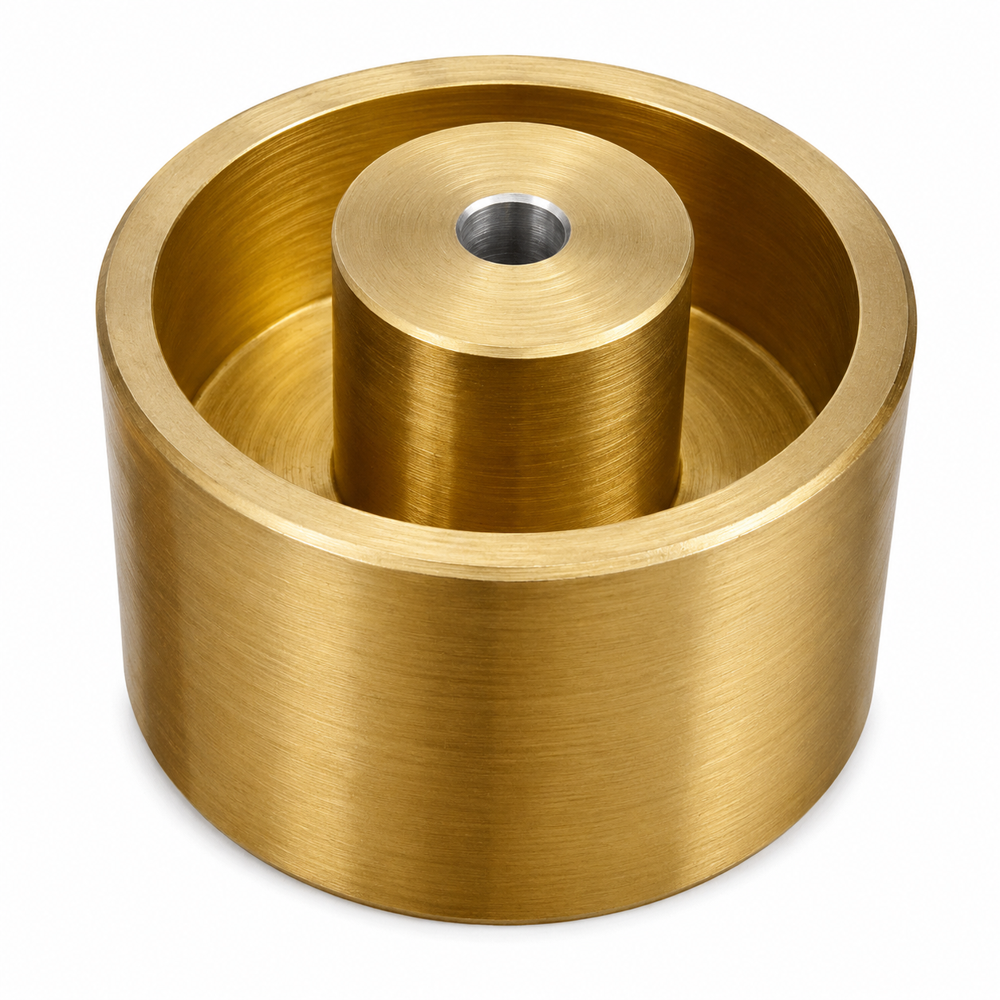

Brake Drum with Gear Coupling

Brake Drum with Gear Coupling Specification

Sealing
No external seal (optional on request)

Head Code
Round flange

Thread
Bolted fit

Connection
Flange mounting with bolts

Torque
High torque capacity, based on size

Bore
Pilot bore or as requested

Max. Speed
Up to 3600 RPM (typical value; customizable)

Material
High-grade bronze or steel alloy

Structure
Brake drum with integrated gear coupling

Standard
Customizable as per requirement

Inner Diameter
Custom; Pilot bore or as per request

Outer Diameter
4 inch, 5.5 inch, 6 inch, 7 inch, 8 inch, 10 inch

Application
Power transmission, industrial brake systems, mechanical drives

Surface Treatment
Anti-corrosive coating, precision machined surface

Technique
Machined, gear cutting

Shape
Cylindrical with gear toothing

Operating Environment
Suitable for indoor and outdoor industrial use.

Manufacturing Tolerance
Precision machined to tight tolerances for proper fit and alignment.

Hardness
Gear teeth surface hardened (typically 40-55 HRC).

Module/Tooth Profile
Standard involute gear profile with optimized tooth surface for high load capacity.

Number of Bolts
Multiple (standard 6 or as per design).

Maintenance
Low maintenance; periodic lubrication recommended for gear teeth.

Compatibility
Compatible with most industrial brake and power transmission setups.

Mounting Type
Flange mount with aligned bolt pattern.

Finish
Polished/brushed industrial finish with protective coating.

Customization
Available with customized bore, bolt pattern, and material on request.

Brake Drum with Gear Coupling About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Precision-Engineered for Demanding Applications

This brake drum with integrated gear coupling utilizes a standard involute tooth profile and high-grade bronze or steel alloy, ensuring superior fit and strength under heavy loads. Each unit is rigorously machined for tight tolerances, supporting seamless installation and optimal performance in mechanical drives and industrial brake systems.

Secure Flange Mounting for Versatile Setups

Flange mounting with a precisely aligned bolt pattern guarantees robust, vibration-free operation. Multiple bolt configurations-including standard 6-bolt or custom layouts-provide adaptability for various power transmission setups, facilitating straightforward replacement or new installations.

Customizable Design Meets Varied Needs

Choose from several outer diameters, pilot or custom bores, and optional sealing solutions. Whether upgrading existing systems or building new machinery, the product's customizable features and industrial-grade finish ensure compatibility and longevity across a spectrum of applications.

FAQ's of Brake Drum with Gear Coupling:

Q: How does the brake drum with gear coupling handle high load capacities?

A: Thanks to its standard involute gear profile and optimized tooth surface, combined with surface hardening (40-55 HRC), the brake drum efficiently transmits high torque under demanding conditions, making it suitable for intensive industrial applications.

Q: What custom options are available for the brake drum with gear coupling?

A: Customization options include selecting the bore size, bolt pattern, choice of material (high-grade bronze or steel alloy), optional external seals, and specific outer diameter to match your application's technical requirements.

Q: Where can this product be used effectively?

A: This brake drum is engineered for use in power transmission systems, industrial brake mechanisms, and mechanical drives. Its anti-corrosive surface and durable build make it suitable for both indoor and outdoor environments.

Q: What is the recommended maintenance process for this product?

A: The brake drum with gear coupling requires minimal upkeep. Periodic lubrication of the gear teeth is advised to maintain optimal performance and prolong product lifespan. Should external seals be included, their condition should also be monitored regularly.

Q: When should a customized solution be considered over standard specifications?

A: Customized solutions are ideal when your system requires unique configurations, such as unconventional bore diameters, bespoke bolt patterns, or alternative materials, ensuring the best fit and performance for specialized setups.

Q: How does the mounting system ensure ease of installation and security?

A: A precision-machined flange mount with a well-aligned bolt pattern allows for straightforward, secure installation. This ensures proper fit, reduces vibration, and aligns seamlessly with most industrial setups.

Q: What are the primary benefits of surface hardening and protective coating?

A: Surface hardening enhances the wear resistance and durability of the gear teeth, while the anti-corrosive protective coating prolongs the product's life, protecting it from harsh industrial environments.
