Copper Crane Motor

Copper Crane Motor Specification

Voltage
415 V

Efficacy
High Efficiency

Motor Type
Squirrel Cage Induction Motor

Torque
74 Nm

Sealed Type
IP55 Sealed

Horse Power
10 HP

Bearing Type
Heavy Duty Ball Bearing

Current Type
AC

Starting Type
Direct On Line (DOL)

Cooling Method
Fan Cooled

Noise Level
<85 dB

Features
Copper Winding, Robust Construction, Low Maintenance

Standard
IS 325

Ambient Temperature
-20°C to +50°C

Rated Voltage
415 V

Poles Number
4 Poles

Power Rating
10 HP

Rated Frequency
50 Hz

Pressure
Atmospheric

Product Type
Crane Duty Motor

Output Power
10 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM

Power
7.5 kW

Color
Grey

Dimension (L*W*H)
570 x 340 x 400 mm

Weight
180 kg

Shaft Diameter
38 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Vibration Level
Within IS limits

Rotor Type
Balanced Rotor

Insulation Class
F Class

Frame Size
132M

Duty Cycle
S4 Intermittent Duty

Service Factor
1.15

Application
EOT Crane, Hoists, Material Handling

Temperature Rise
Less than 75 K

Lubrication
Sealed Bearings with High Temp Grease

Copper Crane Motor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Copper Crane Motor

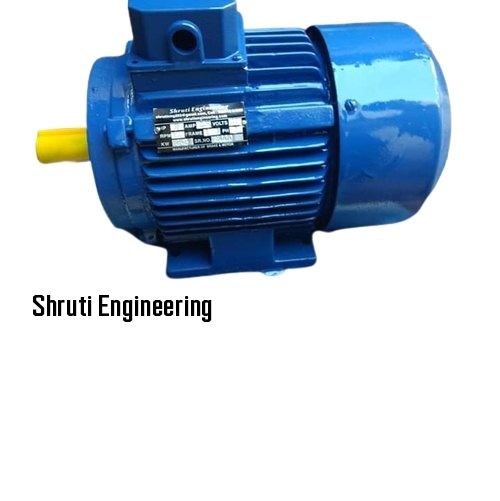

Copper Crane Motor

Product Description:
The Copper Crane Motor is a high-efficiency, heavy-duty motor specially engineered for cranes, hoists, and lifting equipment. Manufactured with 100% copper windings, it offers superior electrical conductivity, higher torque, and extended service life. This motor is designed to handle frequent start, stop, and reverse operations required in material-handling applications.

Reliable Performance for Heavy-Duty Applications

Designed to support EOT cranes and material handling systems, the Copper Crane Motor offers high efficiency, balanced torque delivery, and low vibration, making it ideal for continuous industrial use. Its foot-mounted design and robust construction guarantee stable installation and long-term reliability, ensuring smoother operation in pressured environments.

Advanced Protection and Low Maintenance

Equipped with a Totally Enclosed Fan Cooled (TEFC) system and IP55-rated sealed enclosure, the motor maintains optimal performance even in harsh conditions. The use of sealed bearings lubricated with high-temperature grease, along with copper windings and heavy-duty ball bearings, minimizes upkeep and maximizes operational lifespan in both dockside and indoor settings.

FAQs of Copper Crane Motor:

Q: How is the Copper Crane Motor protected against dust and moisture?

A: This motor features a Totally Enclosed Fan Cooled (TEFC) design with an IP55 rating, ensuring reliable protection against dust ingress and water sprays, suitable for industrial environments like crane operations and material handling.

Q: What are the benefits of F Class insulation and high-temperature grease in the Copper Crane Motor?

A: F Class insulation allows for a higher temperature rise (up to 75 K) without compromising motor longevity, while sealed bearings with high-temperature grease reduce maintenance frequency and enhance durability under intermittent duty cycles.

Q: When should the Copper Crane Motor be used in material handling applications?

A: The motor is intended for intermittent duty cycles (S4), making it ideal for applications like EOT cranes and hoists that require frequent starts and stops, especially in heavy material handling operations.

Q: Where can the Copper Crane Motor be installed?

A: It can be installed in industrial settings where EOT cranes and hoists are used, such as warehouses, manufacturing units, and shipping yards. The foot-mounted design and robust frame ensure secure installation.

Q: What process ensures vibration levels remain within safety standards?

A: The motor is manufactured with a balanced rotor and engineered to comply with IS standards for vibration, maintaining vibration levels well within safety limits for optimal performance and longevity.

Q: How does high efficiency benefit the operator?

A: High efficiency reduces energy consumption and operational costs, providing substantial savings during prolonged use. It also ensures consistent power delivery, which is crucial for precise lifting and movement in crane operations.

Q: What makes the Copper Crane Motor low maintenance?

A: Its sealed bearings with high-temperature grease, TEFC enclosure, and robust construction minimize routine servicing requirements, allowing for sustained, trouble-free operation in environments susceptible to dust and moisture.
