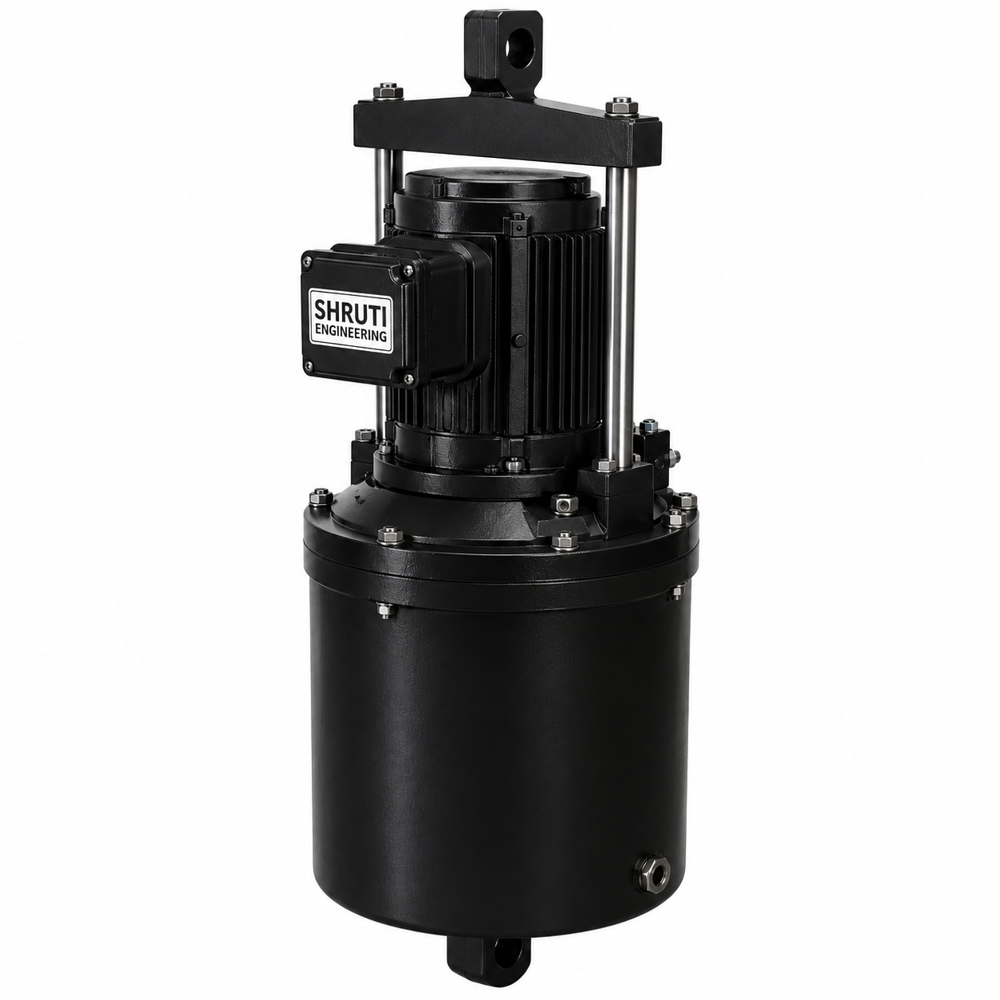

Crane Brake Thruster

Crane Brake Thruster Specification

Thickness
5 mm

Shape
Cylindrical

Pressure
6 kg/cm2

Vehicle Type
Industrial Cranes

Material
Cast Iron, Mild Steel

Loading Capacity
Upto 1500 kg

Diameter
185 mm

Power
0.25 HP to 2 HP

Voltage
415 V AC

Application
Crane Brake System, Lifting & Material Handling

Duty Cycle
S1 Continuous

Mounting Type
Vertical

Speed
1500 RPM

Insulation Class
Class F

Stroke Length
51 mm

Weight
20 kg (approx.)

Finish Type
Powder Coated

Duty Rated
Heavy Duty

Ambient Temperature
-10C to 50C

About Crane Brake Thruster

SHRUTI ENGINEERING is manufacturers, exporters and suppliers of all kinds of Industrial Brakes. We ensure that the products are quality tested and conform to international quality standards. Available in various sizes, designs and capacities, the products are customized according to the clients specifications and requirements.

Engineered for Reliability and Heavy Duty Applications

This crane brake thruster is designed for continuous, heavy-duty performance, supporting industrial cranes and material handling systems. The insulation Class F rating ensures dependable insulation, while the powder-coated, cast iron, and mild steel housing resists corrosion in demanding environments. Operators can confidently utilize this thruster in temperature ranges from -10C to 50C, maintaining consistent performance and safety across applications.

Precision Performance with Enhanced Safety

Featuring a 51 mm stroke length, 1500 RPM operational speed, and robust 6 kg/cm2 pressure capacity, this thruster delivers precise braking for crane systems. Its vertical mounting option and sturdy 185 mm diameter make it versatile for a range of installation requirements. The 5 mm thickness further boosts its resilience, enabling longevity even under strenuous, continuous operation in industrial settings.

FAQ's of Crane Brake Thruster:

Q: How is the Crane Brake Thruster installed and which mounting type does it support?

A: The Crane Brake Thruster is designed for vertical mounting, simplifying the installation process on industrial cranes and material handling systems. For optimal performance, follow the manufacturer's instructions and ensure the mounting surface can support the thruster's 20 kg weight and dimensions.

Q: What applications are suitable for this crane brake thruster?

A: This thruster is ideal for crane brake systems, lifting operations, and general material handling in industrial environments. Its heavy-duty rating, high-pressure capacity, and durable materials make it especially suited for use in industrial cranes requiring reliable and sustained braking power.

Q: When is it recommended to use this thruster's S1 continuous duty cycle?

A: The S1 continuous duty cycle is recommended when operations involve uninterrupted, long-duration running without breaks. This is common in high-demand material handling and crane operations where maximum reliability and consistent power are crucial for safety and efficiency.

Q: Where can this crane brake thruster be most effectively utilized?

A: This thruster is most effective in industrial facilities, factories, shipping yards, and other locations requiring crane-driven material lifting and handling. The device accommodates a wide temperature range, adding versatility for both indoor and outdoor use in various climates.

Q: What are the key benefits of the powder-coated finish and material construction of this product?

A: The combination of cast iron, mild steel, and powder coating provides superior corrosion resistance, structural strength, and longevity. These features ensure the thruster endures in harsh environments, supporting heavy-duty applications with minimal maintenance.

Q: How does the pressure rating of 6 kg/cm2 enhance performance during operation?

A: A pressure rating of 6 kg/cm2 ensures the thruster can generate sufficient force for precise and reliable braking, even when handling loads up to 1500 kg. This pressure capacity supports demanding industrial tasks, improving safety and control in lifting applications.

Q: What is the process for selecting the correct power rating for different crane systems?

A: Selection depends on the specific load and operational requirements. The thruster is available in power ratings from 0.25 HP to 2 HP. Evaluate the weight, crane capacity, and braking needs to choose an appropriate model, ensuring it matches your voltage supply of 415 V AC for optimal performance.
