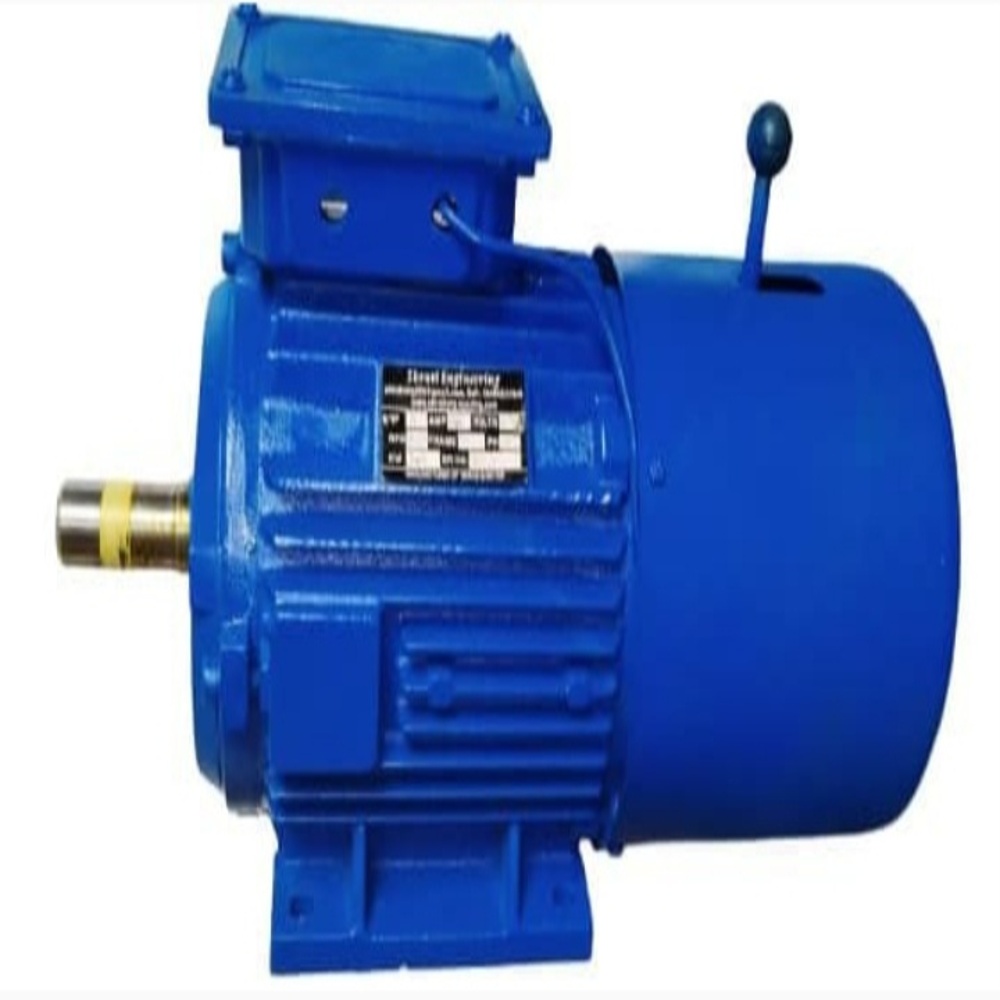

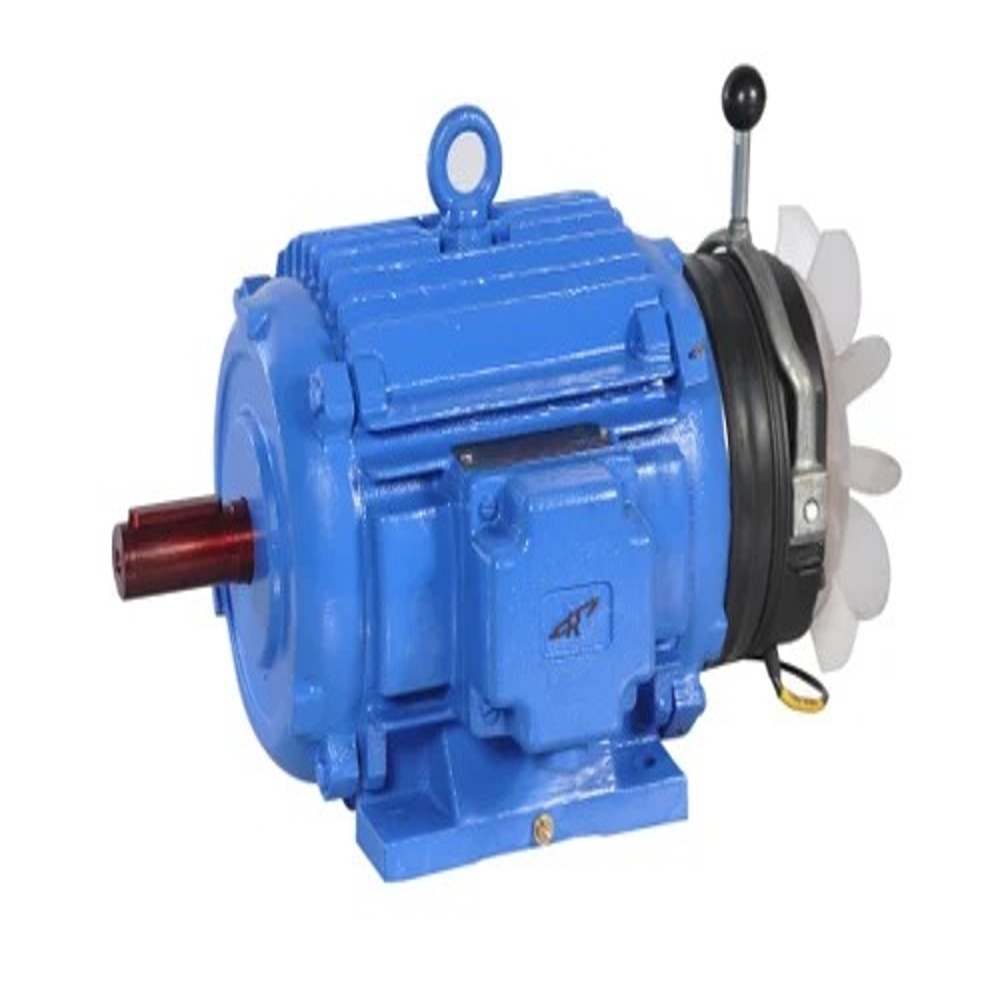

DC Brake Induction Motor

DC Brake Induction Motor Specification

Voltage
220/380/415 V

Current Type
AC

Features
Dynamic Braking, Quick Response, Maintenance Free

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Starting Type
DOL / Star Delta

Poles Number
2 / 4 / 6 / 8 Poles

Ambient Temperature
-15C to +50C

Horse Power
0.5 HP to 20 HP

Rated Voltage
415 V

Motor Type
DC Brake Induction Motor

Standard
IS 325

Efficacy
High Efficiency

Noise Level
Low

Pressure
Normal Atmospheric

Torque
High Starting Torque

Rated Frequency
50 Hz

Power Rating
0.37 kW to 15 kW

Bearing Type
Double Sealed Ball Bearing

Cooling Method
Fan Cooled

Product Type
Electric Motor

Output Power
0.5 HP to 20 HP

Frequency (MHz)
50/60 Hz

Protect Feature
IP55

Phase
Three Phase / Single Phase

Speed
720, 960, 1440, 2880 RPM

Power
0.37 kW to 15 kW

Color
Blue

Dimension (L*W*H)
Standard as per model

Weight
Varies by model

Shaft Diameter
Standard (as per model)

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Construction
Robust Cast Iron/Aluminium

Connection Type
Star / Delta

Brake Voltage
24V / 110V / 190V / 415V DC

Frame Size
71 to 160

Duty Cycle
S1 (Continuous) / S4 (Intermittent)

Insulation Class
F / H

Humidity Tolerance
Up to 95% RH

Application
Cranes, Elevators, Material Handling, EOT, Hoists

Rotor Type
Squirrel Cage

About DC Brake Induction Motor

We being a renowned name are involved in offering and successfully dealing a finest quality range of "Shruti eng." DC Brake Motor. Known for their flawless designs, and optimum performance, these accessible products are highly recommended and are commended by valued clients. Furthermore, by precisely accepting and meeting to the

Engineered for Versatile Industrial Applications

Designed specifically for cranes, elevators, lifts, hoists, and material handling equipment, this DC Brake Induction Motor is suitable for both continuous (S1) and intermittent (S4) duty cycles. Its dynamic braking and maintenance-free operation translate into safer and more efficient equipment control across various demanding industries.

Reliable Performance in Challenging Environments

Featuring an IP55 protection rating, the motor withstands dust, water, and high humidity (up to 95% RH). Its robust cast iron or aluminium housing, double-sealed ball bearings, and temperature resistance from -15C to +50C ensure long-term reliability even in tough working conditions.

Tailored Configurations and Energy Efficiency

Available in a wide range of frame sizes (71-160), speed options (720 to 2880 RPM), and power ratings (0.5 to 20 HP), the motor offers flexibility for specific application requirements. High efficiency, compatibility with three-phase or single-phase AC power, and dynamic braking capabilities round out its outstanding performance profile.

FAQ's of DC Brake Induction Motor:

Q: How does the DC brake function in this induction motor?

A: The DC brake in this induction motor operates independently of the AC supply, utilizing a separate DC voltage (24V, 110V, 190V, or 415V) to provide rapid stopping and secure holding for safety-critical applications like cranes and elevators.

Q: What environments and conditions can these motors operate in?

A: Thanks to IP55 protection, insulation class F or H, and a humidity tolerance up to 95% RH, the motor is well-suited for dusty, humid, or mildly wet environments. Its robust construction and design allow reliable operation from -15C to +50C.

Q: When should I choose S1 (continuous) or S4 (intermittent) duty cycles?

A: Select S1 for constant, steady operation over extended periods (continuous duty), and S4 for applications with frequent starts and stops, such as hoists or EOT cranes, where intermittent running is expected.

Q: Where are DC Brake Induction Motors commonly used?

A: They are primarily utilized in material handling, cranes, elevators, hoists, EOT systems, and similar heavy-duty industrial tasks where controlled stopping and holding are crucial for safe operations.

Q: What is the benefit of high starting torque in these motors?

A: High starting torque ensures reliable start-up under heavy loads, which is essential for cranes, hoists, and material handling applications to prevent stalling and guarantee smooth, powerful operation from standstill.

Q: How can I determine the correct frame size and mounting for my application?

A: Frame size (71-160) and mounting style (foot or flange) should match the mechanical setup and load demands of your equipment. Consult the manufacturer or refer to the specific model's datasheet for precise dimensioning.
