DC BRAKE MOTOR Specification

Shape
Cylindrical with Flange

Thickness
3 mm to 15 mm (Flange thickness)

Pressure
Not applicable (electric braking system)

Vehicle Type
Industrial Equipment (Not for automotive use)

Material
Cast Iron / Mild Steel

Loading Capacity
Up to 2000 Kg (varies by model)

Diameter
80 mm to 280 mm (Shaft diameter varies with rating)

Power
0.18 HP to 20 HP

Voltage
415 V AC or 220 V DC (Brake Coil)

Application
Hoists, Cranes, Lifts, Conveyors, Machine Tools

Brake Type
Fail-Safe Electromagnetic DC Disc Brake

Color
Blue (Custom available)

Speed
720 to 2880 RPM (Varies by power rating)

Ambient Temperature
-10C to +45C

Cooling Type
TEFC (Totally Enclosed Fan Cooled)

Frequency
50 Hz / 60 Hz

Insulation Class
Class F / Class H

Duty Cycle
S1 Continuous

Mounting Type
Foot / Flange Mounted

Protection Class
IP54 / IP55

DC BRAKE MOTOR Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About DC BRAKE MOTOR

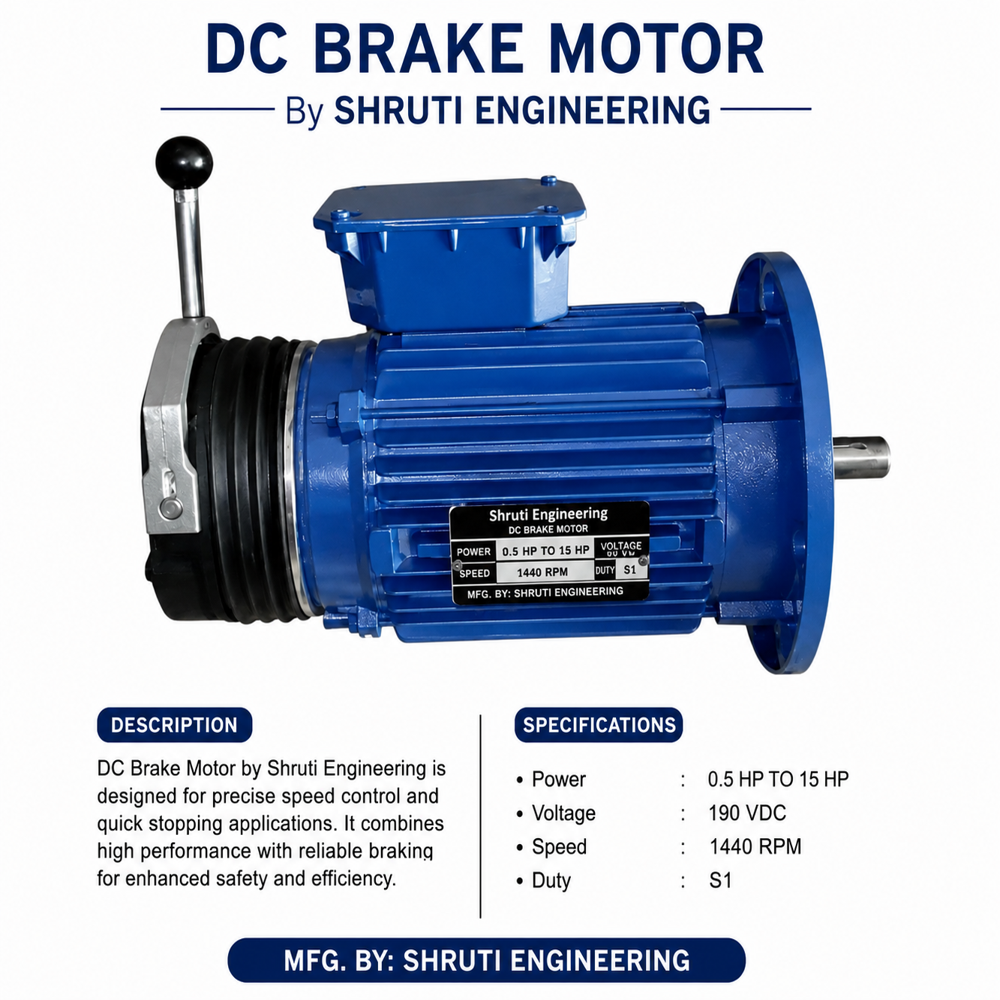

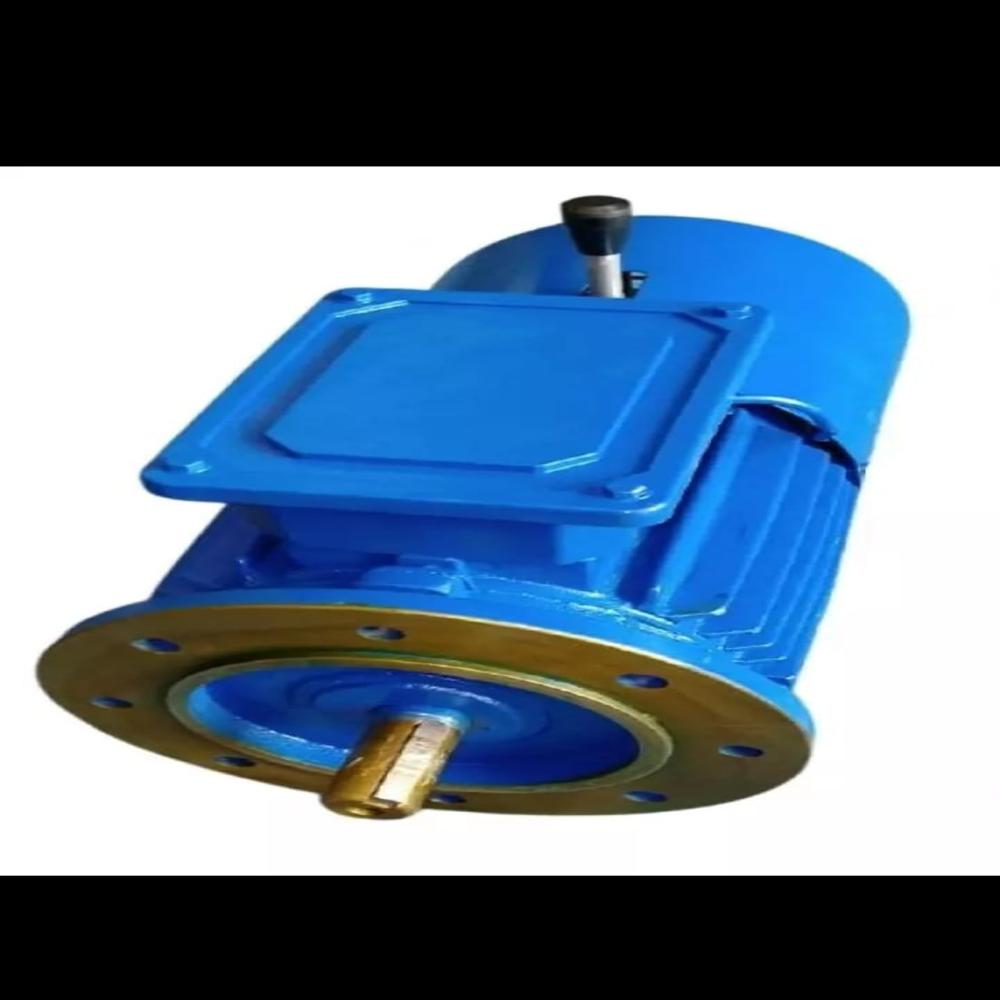

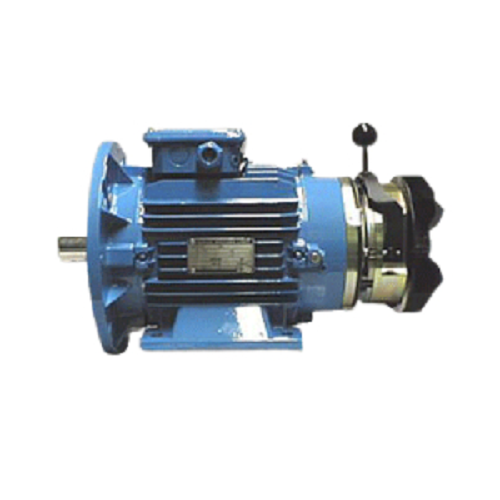

DC Brake Motor Description

DC Brake Motor Manufacturer Shruti Engineering

Shruti Engineering manufactures high-quality DC Brake Motors designed for applications where instant stopping, precise control, and enhanced safety are required. Our DC Brake Motors are equipped with an electromagnetic DC brake system that provides quick braking action during power failure or shutdown, preventing unwanted movement of machinery.

These motors are widely used in cranes, hoists, conveyors, packaging machines, material handling equipment, machine tools, textile machinery, and industrial automation systems.

Features:

Instant and reliable braking action
High starting torque and performance
Low maintenance and long service life
Compact and robust construction
Energy-efficient operation
Available in Foot Mounted and Flange Mounted designs
Suitable for continuous industrial applications

Specifications:

Power Range: 0.25 HP to 20 HP
Voltage: 415V AC, 3 Phase
Brake Type: Electromagnetic DC Brake
Mounting: Foot / Flange Mounted
Duty: S1 Continuous Duty
Insulation Class: F
Protection: IP55

Shruti Engineering specializes in manufacturing customized DC Brake Motors to meet specific industrial requirements with assured quality and performance. Contact us for the best solutions for your braking and motion control applications.

Shruti Engineering
Ahmedabad, Gujarat, India
DC Brake Motor | AC Brake Motor | Helical Gear Brake Motor | NMRV Gear Motor | Electromagnetic Brakes

Designed for Heavy-Duty Operations

Built to support demanding tasks in industrial settings, the DC Brake Motor's sturdy construction and S1 continuous duty cycle allow it to perform dependably on hoists, cranes, and a variety of machinery. Its wide power range from 0.18 HP to 20 HP accommodates diverse load requirements.

Fail-Safe Brake for Enhanced Safety

The integrated fail-safe electromagnetic DC disc brake instantly engages when power is lost, securing moving equipment and ensuring workplace safety. This braking system makes the motor ideal for environments where rapid stoppage of machinery is critical.

Adaptable to Harsh Environments

Thanks to insulation Classes F/H and protection classes IP54/IP55, this motor is engineered to resist dust and water ingress. The TEFC (Totally Enclosed Fan Cooled) design further enhances durability, minimizing maintenance and extending operational life under various industrial conditions.

FAQ's of DC BRAKE MOTOR:

Q: How does the fail-safe electromagnetic DC disc brake system work in this motor?

A: The fail-safe electromagnetic DC disc brake is designed to automatically engage and hold when power is disconnected or in the event of a power failure. This feature rapidly stops the motor shaft, preventing unintended movement and enhancing operator safety.

Q: What types of industrial equipment is this DC Brake Motor suitable for?

A: This DC Brake Motor is ideally suited for machinery such as hoists, cranes, lifts, conveyors, and machine tools. It is purpose-built for industrial applications where reliable stopping power and continuous operation are essential.

Q: When should I consider using a motor with either Class F or Class H insulation?

A: Class F insulation is generally sufficient for standard temperature conditions, while Class H is recommended for applications with higher ambient temperatures or intensive usage demands. Selecting the right insulation ensures optimal motor lifespan and performance.

Q: Where can the motor be installed, considering environmental factors?

A: The motor can be installed in indoor and lightly exposed industrial areas, thanks to its IP54/IP55 protection rating and TEFC cooling. It is designed to function reliably in dusty or moderately wet environments with temperatures between -10C and +45C.

Q: What is the process for customizing the motor's mounting type or color?

A: Customers can request customization when placing an order. Options for mounting include both foot and flange types, and while blue is the standard color, other colors can be supplied on request to match specific aesthetic or branding requirements.

Q: How does the motor benefit heavy load application compared to standard motors?

A: With load capacities up to 2000 Kg and a robust fail-safe braking system, the DC Brake Motor delivers secure handling of heavy and critical loads, reducing the risk of equipment damage or accidents during both operation and emergencies.
