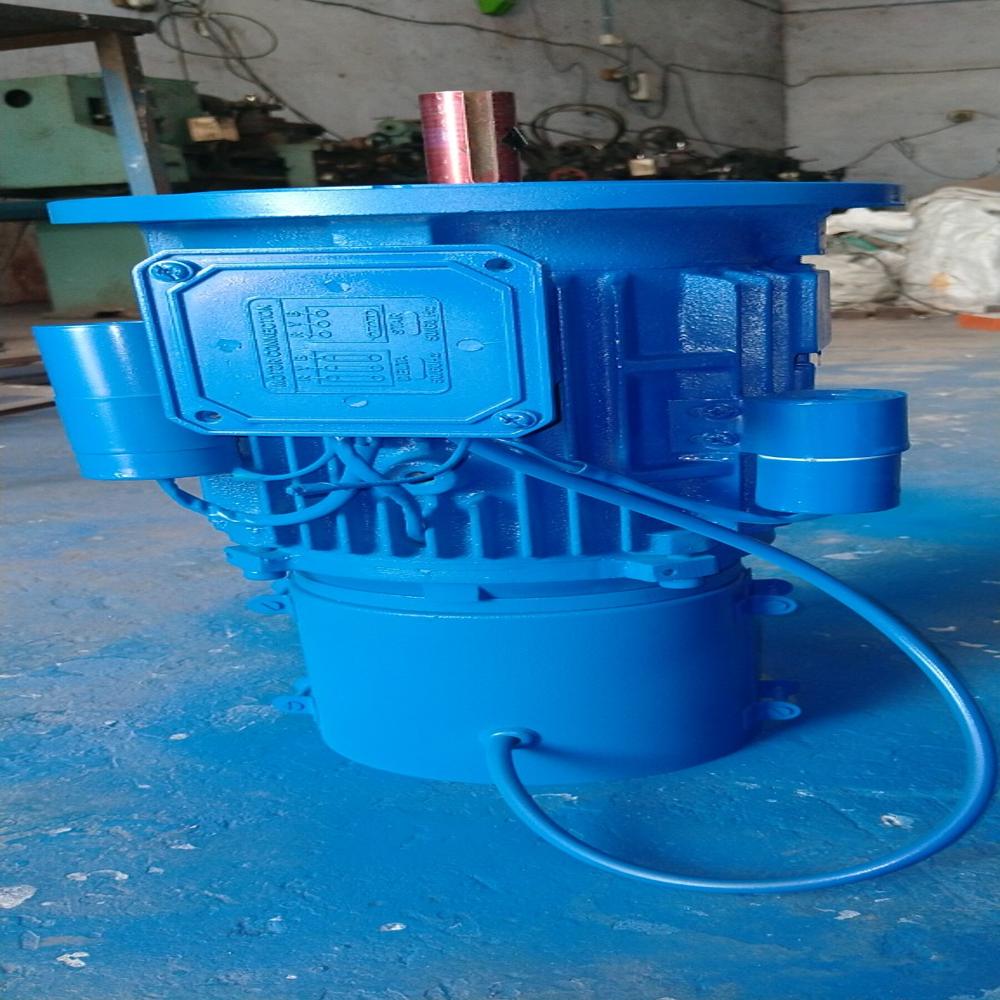

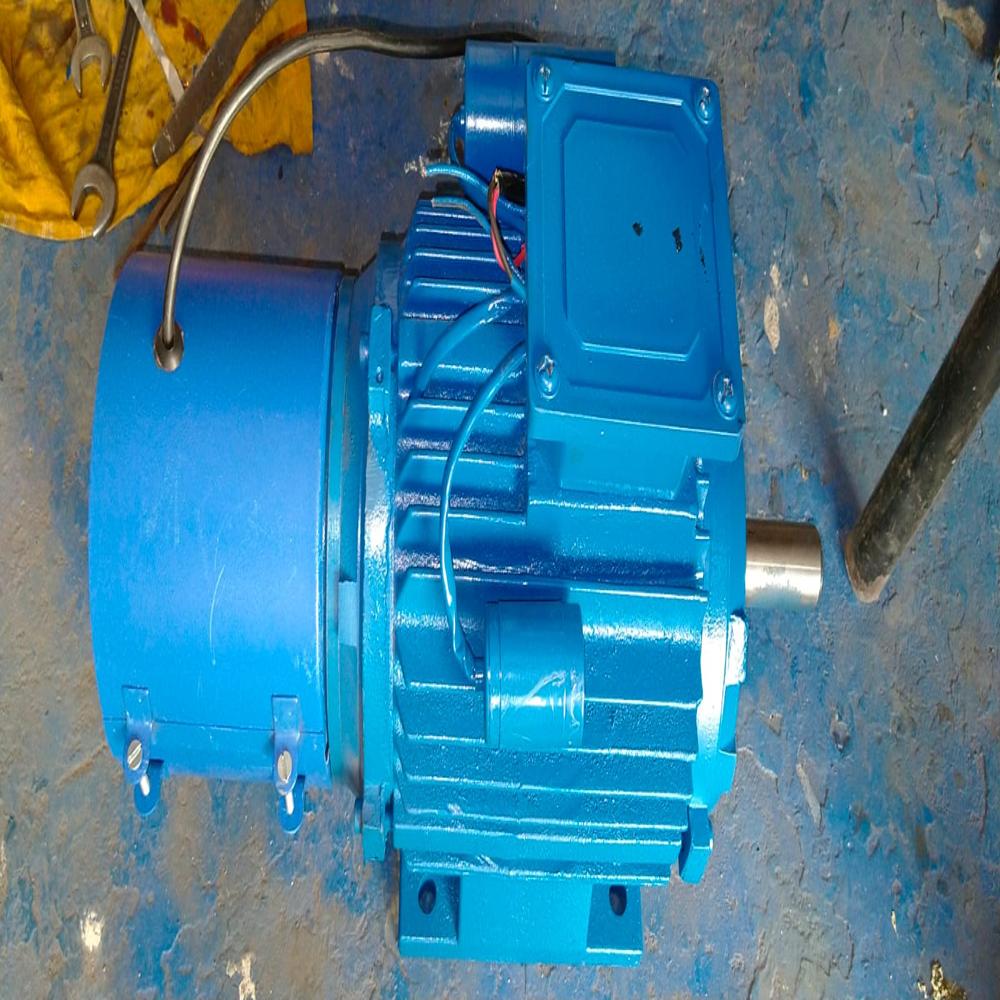

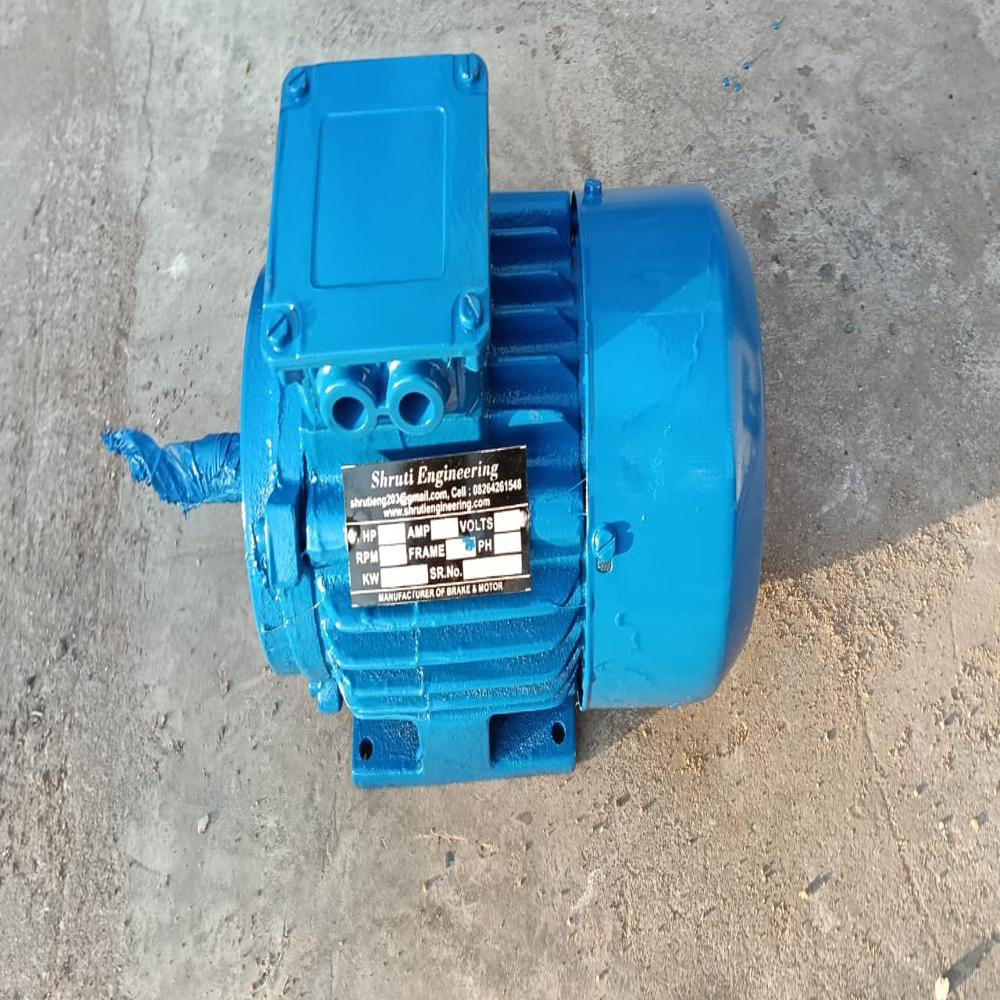

Electric Single Phase Motor

Electric Single Phase Motor Specification

Torque
High starting torque

Power Rating
0.37 kW to 3.7 kW

Pressure
Atmospheric

Ambient Temperature
-15C to 50C

Voltage
220-240 V

Motor Type
Single Phase Induction Motor

Features
Corrosion Resistant, Low Maintenance, Sturdy Design

Poles Number
2/4

Efficacy
High Efficiency

Horse Power
0.5 HP to 5 HP

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Rated Voltage
220-240 V

Bearing Type
Double Sealed Ball Bearings

Rated Frequency
50 Hz

Standard
IS:996, IS:325

Starting Type
Capacitor Start and Run

Current Type
AC

Noise Level
Low

Cooling Method
Air Cooled

Product Type
Electric Motor

Output Power
0.37 kW to 3.7 kW (varies by model)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM / 2880 RPM (Depending on Poles)

Power
Up to 5 HP

Color
Blue

Dimension (L*W*H)
As per model (customizable)

Weight
Approximately 12-48 kg (varies by capacity)

Shaft Diameter
19 mm/24 mm/28 mm (varies by capacity)

Mounting Type
Foot Mounted

IP Rating
IP55

Lubrication Type
Sealed Bearings

Duty Cycle
S1 (Continuous Duty)

Frame Material
Cast Iron Body

Application
Pumps, Compressors, Industrial Machinery, Agriculture

Thermal Overload Protection
Optional

Fan Cover
Powder Coated Steel

Insulation Class
Class B / F

About Electric Single Phase Motor

Discover a sublime synergy of performance and engineering in our Featured Electric Single Phase Motor, now available at a Special Rate. Crafted with a sturdy cast iron body and powder-coated steel fan cover, this motor delivers ineffable durability and high efficiency for industrial, agricultural, and household applications. With a terrific range from 0.37 kW up to 3.7 kW, high starting torque, and protective TEFC IP55 sealing, you'll grab superior reliability and low maintenance-remarkably built for continuous, long-lasting use in any demanding environment.

Unmatched Features & Build Quality in Every Motor

Experience the extraordinary with our Electric Single Phase Motor-meticulously engineered from corrosion-resistant cast iron and powder-coated steel for the fan cover. It boasts sealed double-ball bearings for low maintenance, optional thermal overload protection, and versatile mounting options. Offering both Class B and F insulation and TEFC enclosure, its robust design is ideal for pumps, compressors, and more, ensuring long-term, dependable performance across various sectors.

Sample Policy, Delivery & Market Focus

We offer a clear sample policy so you can assess quality before making bulk decisions. Samples are available upon request with an asking price. Efficient order processing and secure shipping to your designated location ensure a seamless experience. Our motors are supplied primarily to the main domestic market, with prompt support and reliable logistics, ensuring satisfaction from initial enquiry to delivery at your doorstep.

FAQ's of Electric Single Phase Motor:

Q: How do I choose the right model of the Electric Single Phase Motor for my application?

A: Selecting the right model depends on your power requirements, usage-like pumps or compressors-and installation environment. Match the output power, speed, and mounting type to your specifications. Our team can assist in identifying the best fit.

Q: What is the process for ordering and receiving samples?

A: To order a sample, simply contact our sales team with your requirements. After confirming the asking price, we process your order and arrange secure, prompt shipping to your location.

Q: When is thermal overload protection necessary for these motors?

A: Thermal overload protection is optional but recommended for applications with frequent load variations or environments prone to overheating, providing extra safety and motor longevity.

Q: Where can the Electric Single Phase Motor be used effectively?

A: These motors are ideal for industrial machinery, agricultural equipment, pumps, compressors, and various other sectors requiring continuous and efficient operation.

Q: What are the benefits of the TEFC (Totally Enclosed Fan Cooled) feature?

A: The TEFC design offers enhanced protection against dust, moisture, and contaminants, while air cooling ensures consistent operation and minimal maintenance-ideal for challenging environments.

Q: How does the high efficiency of this motor impact energy consumption?

A: High efficiency ensures that the motor delivers maximum output with minimal energy loss, reducing electricity costs and promoting eco-friendly operation.
