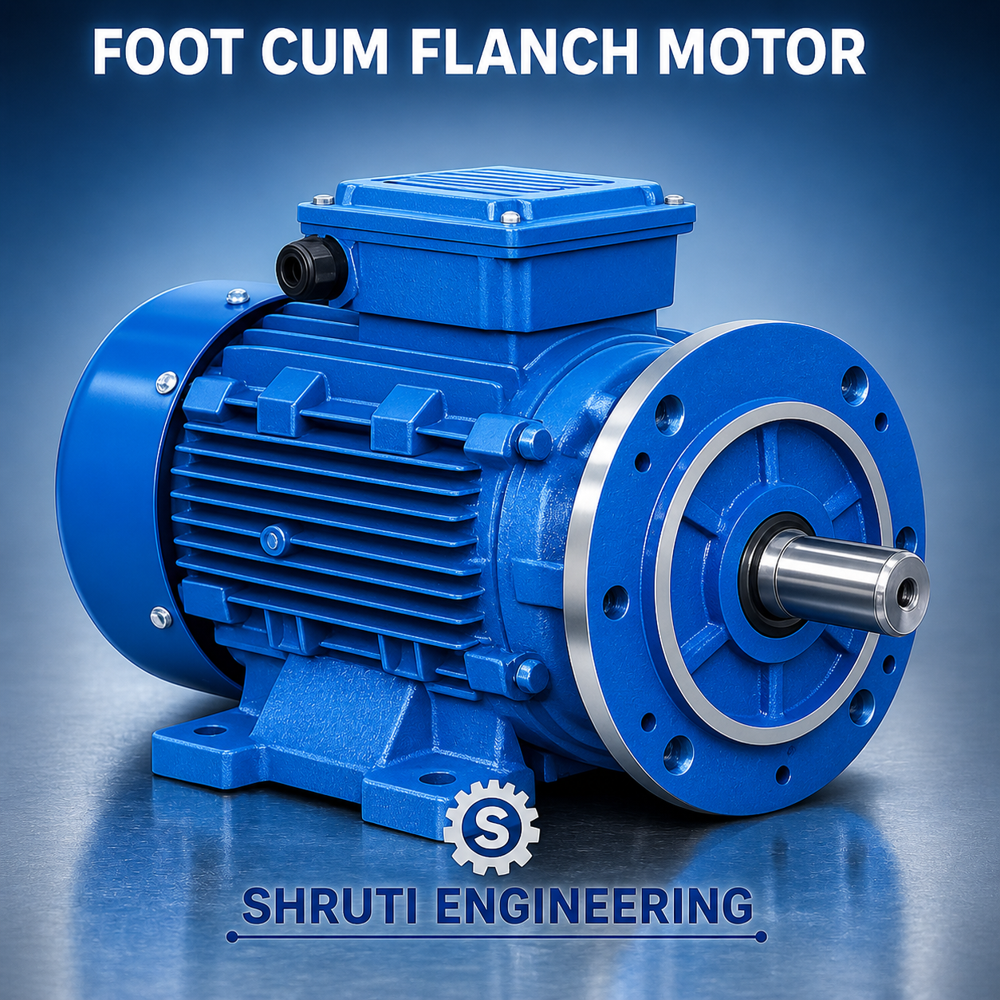

Three Phase Electric Induction Motor

Three Phase Electric Induction Motor Specification

Cooling Method
Fan Cooled

Bearing Type
Double Sealed Ball Bearings

Standard
IS 325/IEC 60034

Horse Power
1 HP - 100 HP

Voltage
380 V / 415 V

Power Rating
As per Output Power

Noise Level
<75 dB

Motor Type
Squirrel Cage Induction Motor

Ambient Temperature
-15C to 40C

Pressure
Standard Atmospheric

Rated Voltage
415 V

Sealed Type
Closed

Features
Robust Construction, Corrosion Resistant, Long Life

Rated Frequency
50 Hz

Torque
High Starting Torque

Poles Number
2, 4, 6 poles

Current Type
AC

Starting Type
Direct-On-Line, Star-Delta Starter

Efficacy
IE2/IE3/IE4 (optional)

Product Type
Three Phase Electric Induction Motor

Output Power
1 HP to 100 HP (varies by model)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM/2880 RPM (depends on poles)

Power
Varies by model (0.75 kW - 75 kW)

Color
Blue

Dimension (L*W*H)
Depends on model, typical frame cast

Weight
Varies by model, approx. 25 kg - 200 kg

Shaft Diameter
Varies by frame size

Mounting Type
Foot Mounted (B3) / Flange Mounted (B5/B14)

IP Rating
IP55

Application
Pumps, Compressors, Conveyors, Fans & Blowers, Industrial Machinery

Duty Cycle
S1 (Continuous Duty)

Body Material
Cast Iron Body

Direction of Rotation
Both (CW/CCW)

Frame Size
71 to 315

Vibration Level
Low Vibration

Altitude
Up to 1000 m above sea level

Thermal Protection
Optional PTC/PT100 available

Insulation Class
Class F

Rotor Type
Aluminum Die Cast

Bearings Lubrication
Pre-lubricated for long service life

About Three Phase Electric Induction Motor

With the Strong Passion for Providing a One-stop Solution to the Various Range of Industrial Solutions, We Emerged as a Successful Enterprise Today. We Excelled at Providing Premium Quality Ac Induction Motors. We Are Proud to Say That Our Electrical Motors Are Highly Recommended in All Industries.

Built for Reliability and Longevity

Manufactured from rugged cast iron and equipped with corrosion-resistant, robust construction, this motor ensures a long service life even under continuous operation. Its double sealed ball bearings and pre-lubricated lubrication system reduce maintenance frequency and enhance durability, making it highly dependable for industrial environments.

Versatile and Customizable Performance

With a wide power range from 1 HP to 100 HP, multiple frame sizes, and speeds of 1440 RPM or 2880 RPM, this induction motor can be tailored to fit various applications. It accommodates several mounting types and supports both clockwise and counterclockwise rotations. Options for efficiency (IE2/IE3/IE4) and thermal protection allow further customization to suit specific operational requirements.

Engineered for Safety and Efficiency

Rated for IP55 protection and equipped with a totally enclosed fan cooled (TEFC) design, the motor operates safely in harsh, dust-prone, or humid environments. Optional PTC/PT100 sensors offer enhanced thermal protection. Ideal for continuous duty cycles, the motor also ensures reliable heat dissipation and quiet operation at below 75 dB noise level.

FAQ's of Three Phase Electric Induction Motor:

Q: How is this three phase induction motor suitable for continuous operation?

A: The motor is designed with S1 duty cycle, which means it can operate continuously at its rated power without overheating. Features like Class F insulation and efficient cooling through its totally enclosed fan cooled (TEFC) design make it reliable for uninterrupted use in industrial applications.

Q: What applications can this electric induction motor be used for?

A: This motor is ideal for a wide range of industrial uses, including pumps, compressors, conveyors, fans, blowers, and other machinery that require robust, efficient, and long-lasting performance.

Q: When should I consider adding optional thermal protection like PTC or PT100 sensors?

A: Optional PTC/PT100 thermal sensors should be considered if your application involves frequent starts, heavy loads, high ambient temperatures, or if enhanced protection against overheating is necessary to safeguard motor longevity and performance.

Q: Where can this motor be installed considering environmental factors?

A: The motor is suitable for installation up to 1000 m above sea level and operates efficiently in ambient temperatures from -15C to 40C. It also has an IP55 rating, ensuring it is protected against dust and water jets, making it ideal for a wide array of industrial settings.

Q: What benefits does the cast iron body offer compared to other materials?

A: A cast iron body offers superior mechanical strength, excellent durability under heavy loads, and better vibration damping. This results in lower maintenance and increased operational stability, especially in rugged industrial environments.

Q: How does the motor ensure quiet and smooth operation?

A: Low vibration engineering, precision-balanced rotors, and double sealed ball bearings keep noise levels under 75 dB and minimize vibration, ensuring smooth and quiet operation that helps maintain a more comfortable workspace.

Q: What mounting options are available, and how do I choose the right one for my setup?

A: The motor is available in foot mounted (B3), flange mounted (B5/B14), or combinations thereof. Selection depends on your machinery's design and installation requirements-foot mounting is typical for base installations, while flange mounting suits vertical or face-attached configurations.
