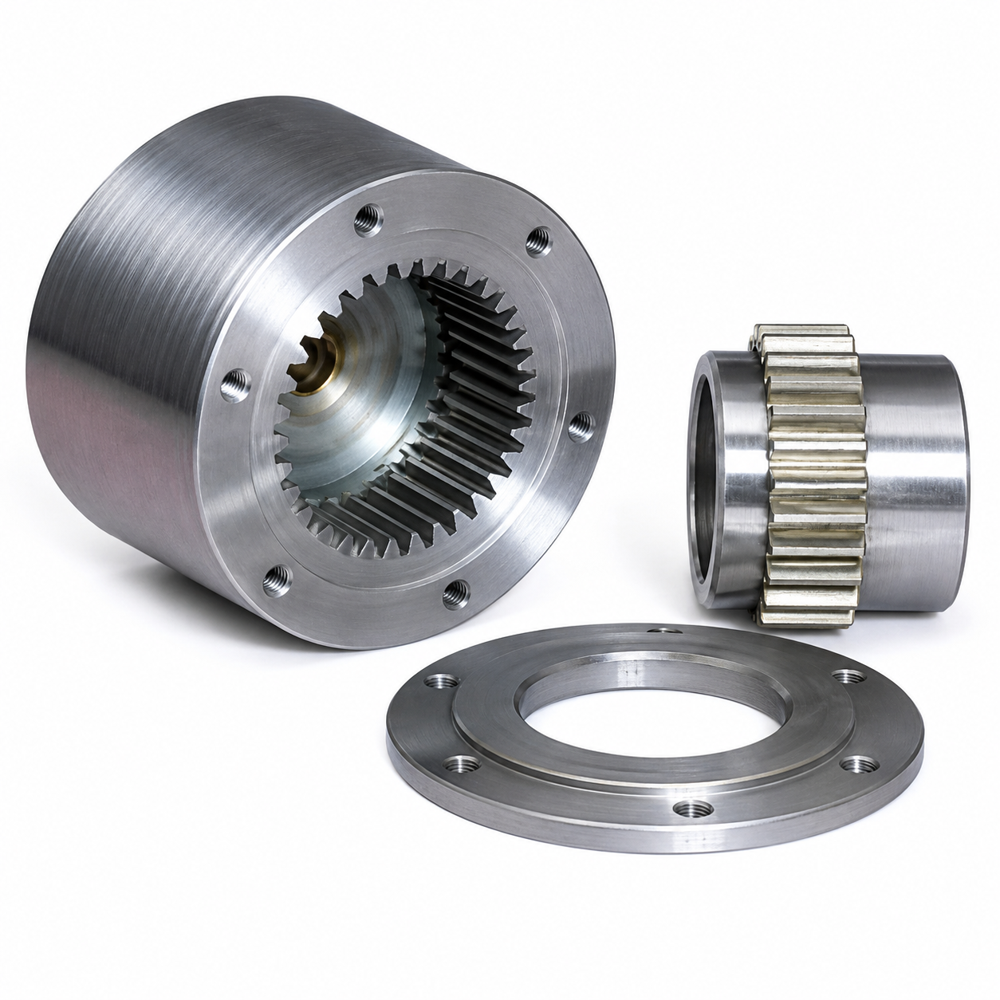

EOT Crane Brake Drum Coupling

EOT Crane Brake Drum Coupling Specification

Torque
Up to 7200 Nm depending on design

Thread
No external threading; mounting with holes

Connection
Flanged, Bolted connection

Max. Speed
Up to 1500 RPM

Bore
Custom machined as per shaft size

Head Code
Round

Sealing
No direct sealing; secured by bolts

Material
Alloy Steel, Cast Iron

Structure
Gear coupling with brake drum interface

Standard
IS/ISO standards for crane components

Inner Diameter
As per design, typically 40mm to 250mm

Outer Diameter
As per drum size (typically 100mm to 500mm)

Application
Used in EOT cranes for coupling between the brake drum and gearbox motor shaft

Surface Treatment
Polished, Rust-proof Coating

Technique
Machined and Precision Engineered

Shape
Cylindrical with internal and external gear profile

OEM/Customization
Available as per Drawing/Requirement

Temperature Resistance
-20C to 200C

Weight
5 kg - 50 kg (depending on size)

Noise Reduction
Low Noise with Proper Lubrication

Hardness
Hardened Teeth 50-60 HRC

Misalignment Compensation
Up to 2 Angular and 1 mm Parallel

Finish
Shot Blasted & Phosphated Surface

Maintenance
Periodic Greasing/Lubrication Required

Usage Environment
Suitable for Heavy-Duty Industrial Conditions

Installation
Easy Fit with Standard Tools

EOT Crane Brake Drum Coupling About

Gear Brake Drum Coupling Description

A Gear Brake Drum Coupling is a robust mechanical power transmission device designed to connect two shafts while providing a reliable brake drum surface for stopping or controlling motion. It combines the features of a gear coupling and a brake drum, ensuring efficient torque transmission, alignment flexibility, and braking facility in a single compact unit.

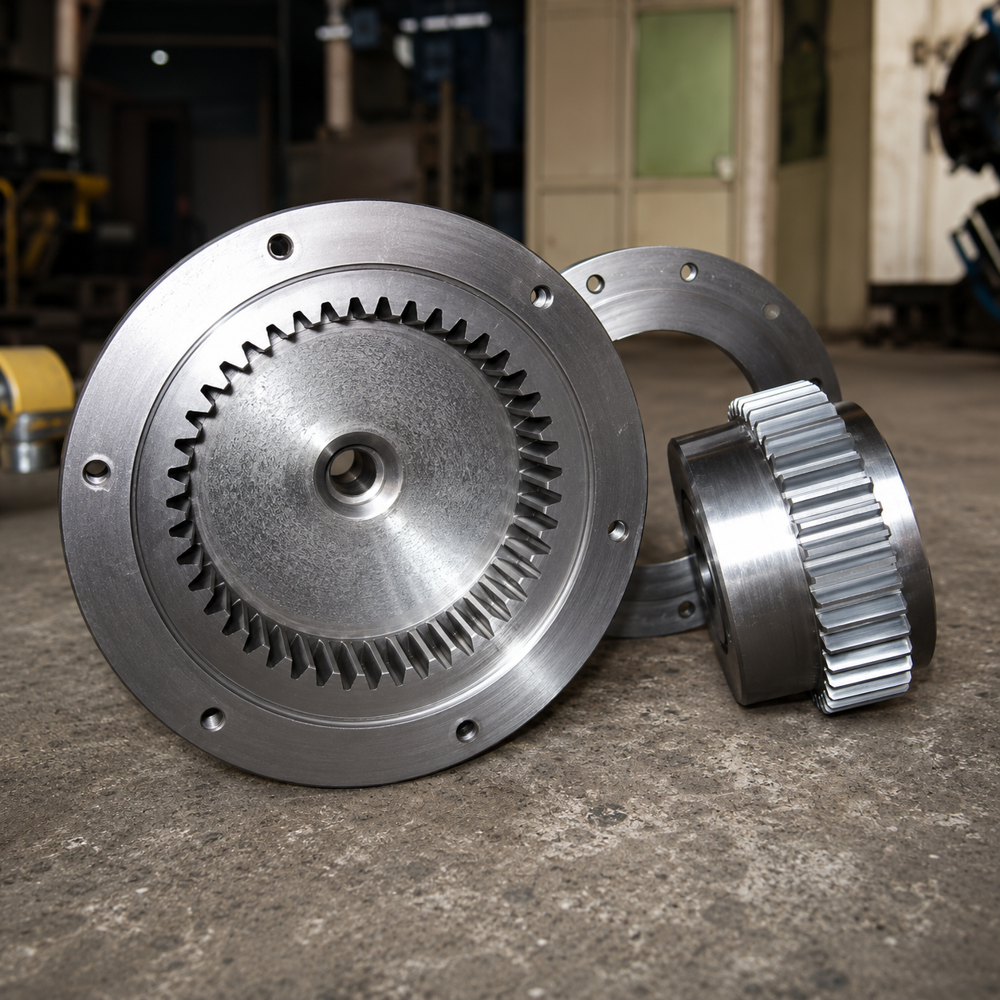

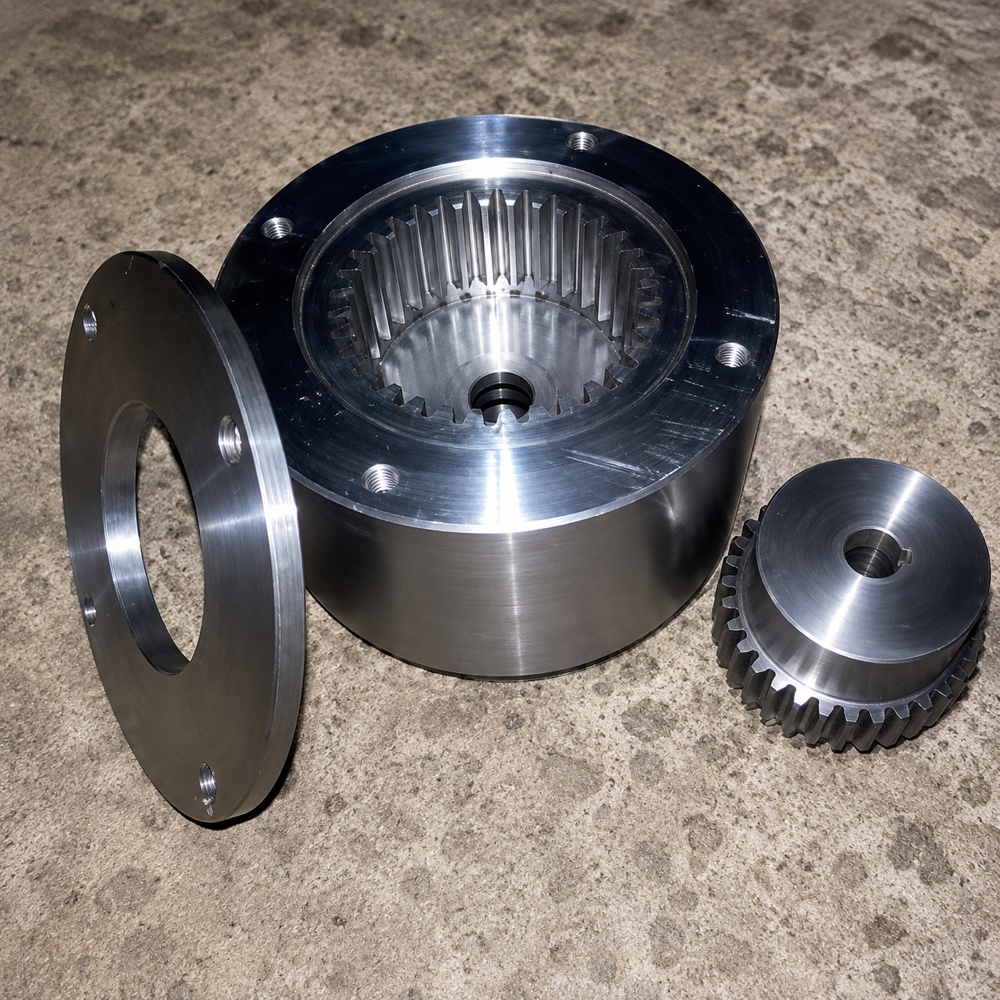

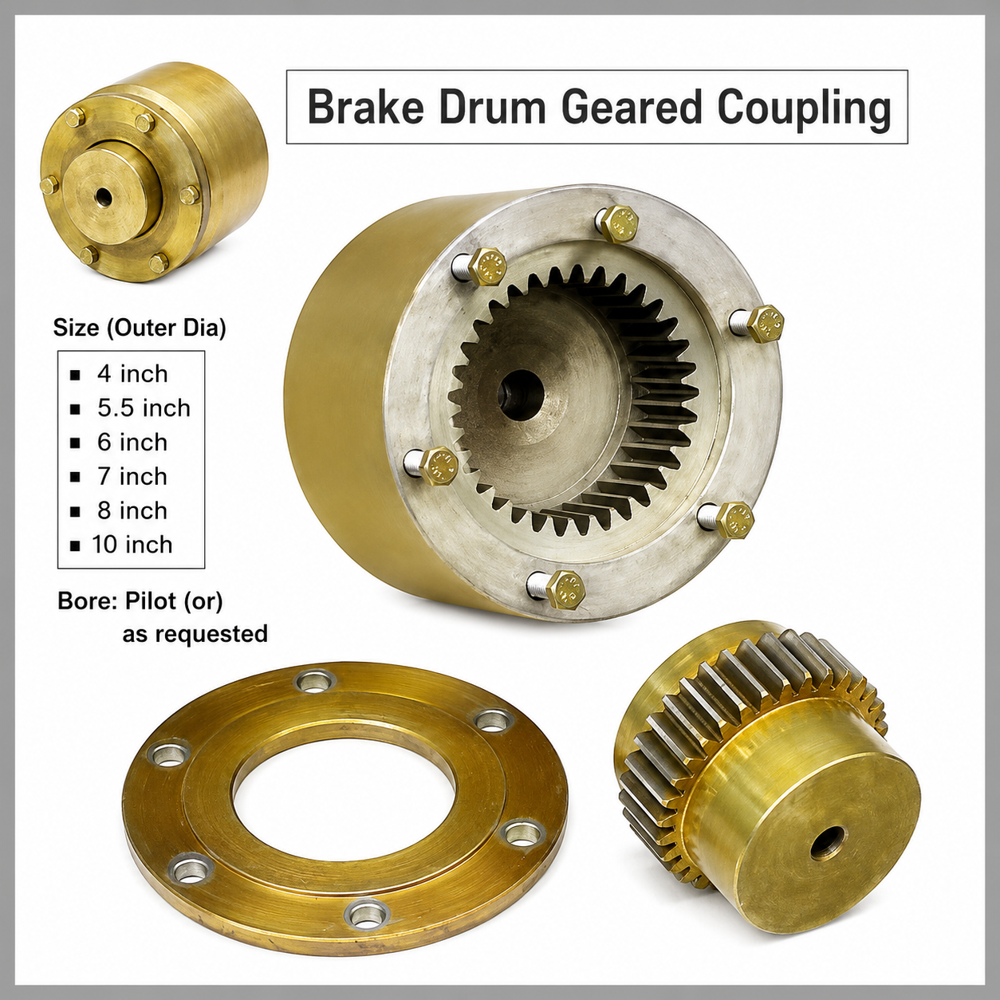

These couplings consist of two hubs with external gear teeth and a brake drum that is integrally mounted. The gear teeth mesh with a sleeve or casing, allowing for slight angular, parallel, and axial misalignments of the connected shafts. The integrated brake drum enables easy installation of a brake shoe or band, making it suitable for applications where controlled stopping, holding, or speed regulation is required.

Key Features:

High torque transmission with compact design
Integrated brake drum for braking applications
Accommodates angular, axial, and parallel misalignment
Easy to assemble and maintain
Heavy-duty cast iron or steel construction for durability
Suitable for reversing and high-speed operations

Precision-Engineered for Durability

This brake drum coupling is manufactured using high-grade alloy steel or cast iron and is precision-engineered to meet IS/ISO standards. The hardening of its gear teeth ensures excellent wear resistance, making it ideal for heavy-duty industrial applications. Its robust construction guarantees lasting performance even under challenging operating conditions.

Custom Solutions and Easy Installation

With its cylindrical, flanged design and machined profiles, the coupling offers flexible customization according to shaft size, head code, and connection requirements. Installation is hassle-free, requiring only standard tools. Periodic lubrication keeps maintenance simple and ensures smooth functioning for long operational life.

Superior Performance in Harsh Environments

Designed to withstand demanding industrial settings, this coupling features shot-blasted, phosphated, and rust-proof coatings. It accommodates slight shaft misalignments and supports up to 1500 RPM and 7200 Nm torque. Ideal for EOT cranes, it delivers reliable torque transmission while maintaining low noise levels with appropriate greasing.

FAQ's of EOT Crane Brake Drum Coupling:

Q: How do you install the EOT crane brake drum coupling?

A: The coupling is designed for easy fitment using standard tools. Simply align the flanged, bolted connections with the brake drum and gearbox motor shaft, secure using bolts, and ensure the correct bore size for a precise fit. No special tools or external threading are required.

Q: What maintenance is needed for this coupling?

A: Periodic greasing or lubrication is recommended to maintain low noise and smooth operation. Routine checks for wear on the gear teeth and ensuring the bolts are properly tightened help maximize longevity and reliability.

Q: When is it necessary to replace or service the coupling?

A: Replacement or servicing is needed if you observe excess noise, increased vibration, signs of gear tooth wear, or a decrease in torque transmission. Regular inspection as part of crane maintenance will help identify issues early.

Q: What are the environmental limits for operating this coupling?

A: This coupling is suitable for environments with temperatures ranging from -20C to 200C and is protected against rust and corrosion, making it reliable for heavy-duty industrial operations.

Q: Where is this brake drum coupling most commonly used?

A: It is primarily used in EOT cranes, forming a link between the brake drum and gearbox motor shaft, and is suitable for various heavy-duty lifting and material handling equipment in industrial settings.

Q: What are the benefits of using a hardened, shot-blasted and phosphated coupling?

A: The hardened teeth (50-60 HRC) provide superior resistance to wear and tear, while shot-blasted and phosphated surfaces protect against rust and corrosion, extending the coupling's operational life.

Q: Can the coupling compensate for shaft misalignment?

A: Yes, it is engineered to handle up to 2 angular and 1 mm parallel misalignment, ensuring reliable performance even with minor shaft alignment deviations.
