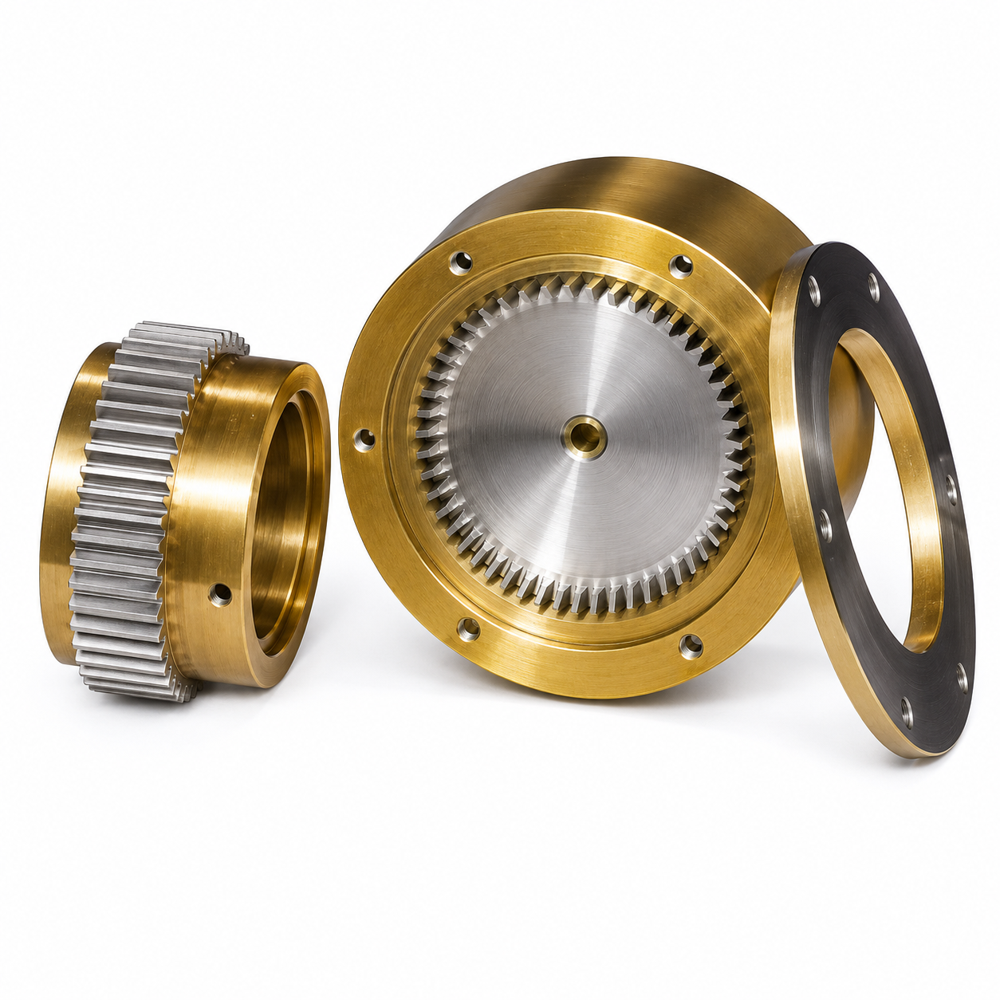

Heavy Machinery Coupling

Heavy Machinery Coupling Specification

Bore
Customizable to shaft size

Max. Speed
Up to 5500 RPM

Connection
Flanged, keyed, or bolt connected

Head Code
Round, flat face

Thread
No external thread, internal threaded holes for bolts

Torque
Up to 250,000 Nm

Sealing
Precision fit, optional gasket

Material
Alloy steel, bronze, hardened steel

Structure
Gear coupling type, modular

Standard
DIN, ISO

Inner Diameter
Up to 200 mm (customizable)

Outer Diameter
Up to 400 mm (customizable)

Application
Heavy machinery, industrial drives, conveyors, pumps, compressors

Surface Treatment
Precision polished, anti-corrosive coating

Technique
CNC machining, gear hobbing

Shape
Cylindrical, flanged

Corrosion Resistance
High

Operational Life
Exceeds 20,000 hours under standard load

Vibration Damping
Excellent for Heavy Loads

Installation
Bolt-On with Set Screw Option

Maintenance
Low; Greasing Required at Regular Intervals

Weight
Varies by size; typically 8 kg - 55 kg per set

Temperature Range
-30C to 120C

Misalignment Compensation
Accommodates Parallel, Angular and Axial Misalignments

Application Industries
Steel Mills, Mining Equipment, Marine Drives, Cement Plants

Heavy Machinery Coupling About

Shruti Engineering is the leading manufacturer and supplier of Brake Drum Coupling in India. Our Brake drums & Gear Coupling are made from premium quality materials which offer strength and durability to them. These brake drums are specially designed and guarantees dimensional accuracy which is inevitable for precise operations. This efficient and versatile product brakes has earned us name among the prime brake drum manufacturers and suppliers in India.

Advanced Misalignment Compensation

Designed to address parallel, angular, and axial misalignments, this coupling ensures reliable performance even under challenging installation conditions or operational stresses. The gear-type, modular structure adapts seamlessly to shaft movements, reducing stress and extending equipment life.

Exceptional Durability and Corrosion Resistance

Constructed from hardened steel and bronze, each coupling undergoes precise polishing and anti-corrosive coatings. This results in remarkable resilience, especially suitable for aggressive environments like mining and marine applications. Operational longevity exceeds 20,000 hours, minimizing downtime and replacement costs.

Easy Installation and Low Maintenance

The bolt-on design, with optional set screw mounting, simplifies installation on diverse shaft types. Internal threaded holes and customizable bores ensure compatibility. Maintenance is straightforward: regular greasing keeps the coupling in optimal condition, while its modular build allows easy replacement of parts if required.

FAQ's of Heavy Machinery Coupling:

Q: How does this coupling handle misalignments in heavy machinery applications?

A: The coupling is engineered to compensate for parallel, angular, and axial misalignments. Its modular, gear-type structure allows for dynamic flexibility, protecting connected equipment from undue stress and enhancing long-term reliability in industrial operations.

Q: What are the recommended maintenance steps for optimal performance?

A: Routine maintenance involves greasing the coupling at specified intervals to ensure smooth operation and prolong operational life. The low-maintenance design, coupled with high corrosion resistance, means minimal intervention is needed apart from periodic lubrication.

Q: When should I consider using a precision gasket with this coupling?

A: A precision gasket is recommended when enhanced sealing is necessary, especially in environments where fluid ingress or greater protection from contaminants is needed. This optional feature can help maintain optimum performance and component integrity.

Q: Where can this heavy-duty coupling be effectively used?

A: This coupling is ideal for demanding industries such as steel mills, mining equipment, marine propulsion systems, cement plants, conveyors, pumps, and compressors, especially where high torque, vibration damping, and misalignment tolerance are critical.

Q: What is the installation process for this coupling?

A: Installation is straightforward with a bolt-on design featuring internal threaded holes for secure fitting. The set screw option adds further mounting stability, and the coupling accommodates customizable shaft sizes through precision-machined bores.

Q: What are the main advantages of using this gear coupling in industrial applications?

A: The main benefits include excellent misalignment handling, superior vibration damping for heavy loads, high corrosion resistance, and long operational life. Customizable dimensions and compliance with DIN and ISO standards ensure adaptability across various machinery and industries.
