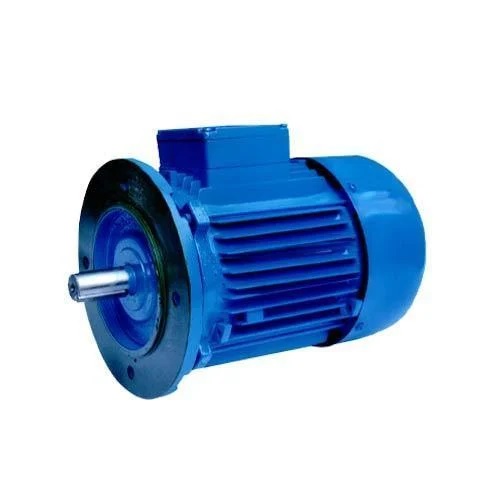

Flange Mounted Single Phase Motor

Flange Mounted Single Phase Motor Specification

Pressure
Standard Atmospheric

Voltage
220 V

Rated Voltage
220 V

Power Rating
0.75 kW

Torque
5.0 Nm

Horse Power
1 HP

Ambient Temperature
-15C to 50C

Noise Level
70 dB

Motor Type
Induction Motor

Sealed Type
IP55

Bearing Type
Deep Groove Ball Bearing

Standard
IS:325

Starting Type
Capacitor Start

Cooling Method
Fan Cooled

Rated Frequency
50 Hz

Features
Low Vibration, Robust Construction, Easy Maintenance

Current Type
AC

Poles Number
4

Efficacy
IE2 (High Efficiency)

Product Type
Flange Mounted Single Phase Motor

Output Power
0.75 kW (1 HP)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
0.75 kW

Color
Blue

Dimension (L*W*H)
330 mm x 200 mm x 230 mm

Weight
Approx. 17 kg

Shaft Diameter
24 mm

Mounting Type
Flange Mounted

IP Rating
IP55

Applicable Industries
Pumps, Blowers, Compressors, Fans

Enclosure Material
Cast Iron

Efficiency at Full Load
78%

Duty Cycle
S1 Continuous

Vibration Level
2.3 mm/s

Insulation Class
Class F

Rotor Type
Squirrel Cage

Thermal Protection
Optional

About Flange Mounted Single Phase Motor

Foot Mounted Single Phase Motor

A Foot Mounted Single Phase Motor is a compact and reliable electric motor designed to operate on a single-phase AC supply, with a robust foot-mounted base for secure installation. This motor type is widely used in industrial, commercial, and residential machinery, providing efficient power transmission and smooth operation.

The motor features durable construction with high-quality laminations, copper windings, and precision bearings, ensuring long service life even under continuous operation. Its foot-mounted design allows easy alignment and stable mounting on machinery frames, pumps, compressors, and other industrial equipment.

Key Features:

Operates on standard single-phase AC supply (230V/240V)
Foot-mounted base for secure and stable installation
High efficiency with low maintenance design
Available in various power ratings and RPMs
Robust construction suitable for industrial and commercial applications
Smooth and reliable operation for continuous duty

Robust and Durable Construction

Engineered with a cast iron enclosure and fully sealed IP55 protection, this flange mounted single phase motor is built for enduring tough industrial environments. Its robust construction not only enhances longevity but also minimizes maintenance requirements, making it ideal for continuous and reliable operation across diverse applications.

Efficient and Reliable Performance

Delivering 0.75 kW (1 HP) of output power with a high efficiency rating of 78% at full load (IE2 standard), this motor supports continuous operation (S1 duty cycle) with minimal energy loss. The capacitor start and fan cooling system ensure dependable start-up and sustained performance even under variable load conditions.

Universal Applications and Easy Integration

With a standard flange mounting, this motor seamlessly fits into applications such as pumps, blowers, compressors, and fans. Its compact form factor (330 mm x 200 mm x 230 mm) and low vibration design allow easy integration into both new and retrofit industrial systems. The motor supports ambient temperatures from -15C to 50C.

FAQ's of Flange Mounted Single Phase Motor:

Q: How is the flange mounted single phase motor installed in industrial equipment?

A: The motor is designed for flange mounting, allowing it to be securely bolted directly onto mating surfaces of equipment like pumps, compressors, or fans. Ensure alignment with the industrial device to reduce stress on the shaft and maximize operational lifespan.

Q: What are the key benefits of the motor's cast iron enclosure and IP55 rating?

A: The cast iron construction provides superior mechanical strength and protection against harsh environmental conditions. The IP55 rating ensures dust protection and resistance to low-pressure water jets, making it suitable for demanding industrial settings.

Q: When is the optional thermal protection recommended for this motor?

A: Thermal protection is advisable when the motor operates in environments prone to voltage fluctuations or excessive ambient temperatures. It helps prevent overheating, thereby extending the life of the motor and reducing maintenance costs.

Q: Where can this motor be used effectively?

A: This motor is ideal for applications in pumps, blowers, compressors, and fans, particularly in industrial, commercial, or agricultural settings where reliable long-term operation is essential.

Q: What process is involved in maintaining this motor?

A: Maintenance involves periodic inspection for vibration, checking bearing lubrication, ensuring the cooling fan is clean, and verifying electrical connections are secure. Its design supports easy access for routine upkeep, minimizing downtime.

Q: How does the motor achieve high efficiency at full load?

A: The IE2 efficiency class, advanced deep groove ball bearings, low vibration operation, and capacitor start mechanism allow the motor to optimize energy conversion and minimize losses during continuous full load operation.

Q: What are the advantages of a squirrel cage rotor in this induction motor?

A: The squirrel cage rotor offers reliable, maintenance-free operation with low noise and robust performance, supporting efficient torque and speed control for a wide range of industrial applications.
