Food Processing Gear Box

Food Processing Gear Box Specification

Gear Type
Helical Gearbox

Material
Cast Iron Body, Alloy Steel Gears

Processing Type
Hardened and Tempered

Gear Tooth Profile
Helical

Gearing Arrangement
Parallel Shaft

Direction
Bi-Directional

Output Torque
Up to 18000 Nm

Rated Power
Up to 200 kW

Input Speed
Up to 1500 RPM

Output Speed
10-400 RPM

Voltage
380V (optional for attached motor)

Efficiency
Up to 98%

Operating Temperature
-10C to +60C

Protection Class
IP54/IP55 (with Motor)

Service Life
Long Service, Low Maintenance

Noise Level
Low Operating Noise

Housing Finish
Industrial Grade Paint, Blue

Lubrication
Oil Splash Lubrication

Mounting Type
Foot Mounted

Application
Food Processing Equipment, Mixers, Conveyors, Agitators

About Food Processing Gear Box

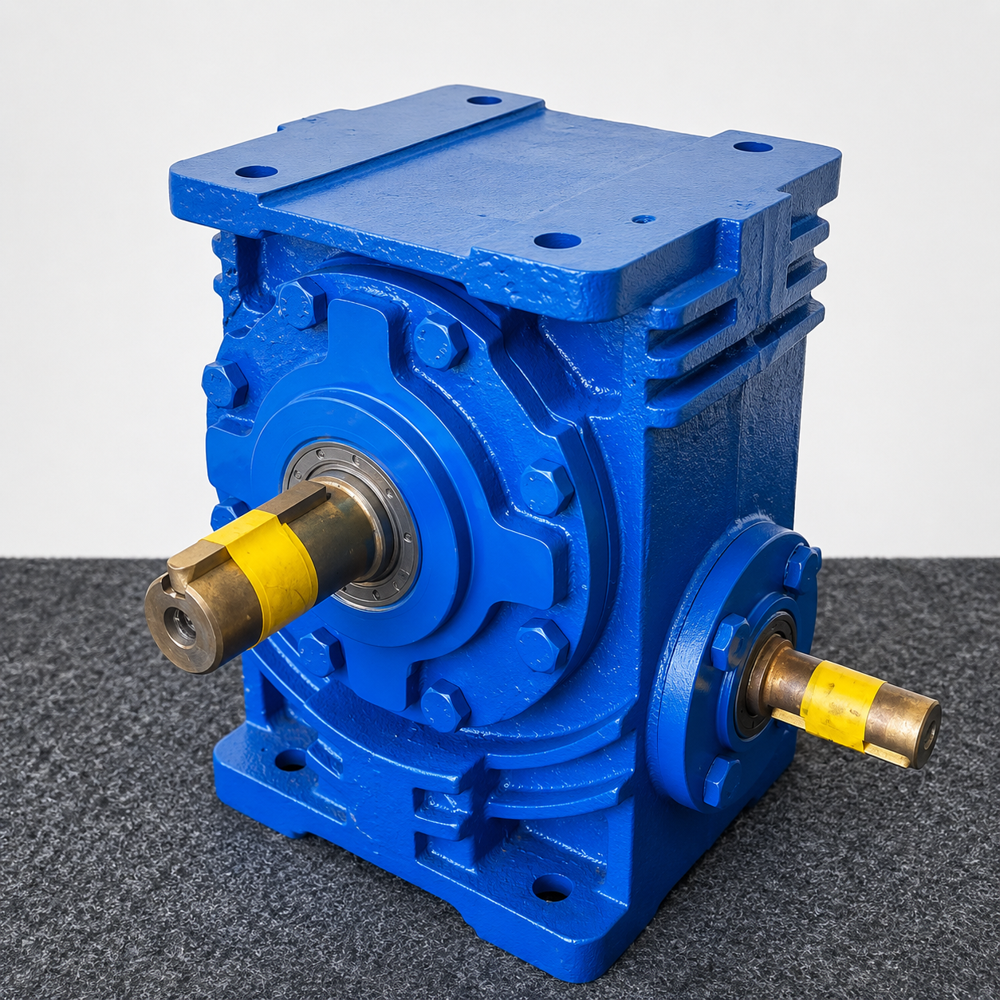

NXU Worm Gearbox Vertical Mounting Description

An NXU Worm Gearbox with Vertical Mounting is a compact, efficient, and durable drive solution designed for industrial applications that require high torque transmission with space-saving installation. Built with precision-engineered worm and worm wheel arrangements, this gearbox ensures smooth operation, reliable performance, and excellent load-handling capacity.

The vertical mounting design makes it suitable for applications where space is limited or where a vertical drive arrangement is essential. With its robust construction and high efficiency, the NXU worm gearbox is widely used in lifting, conveying, and heavy-duty machinery operations.

Key Features:

Vertical mounting design for space-saving and easy installation
High torque output with compact and durable construction
Precision-engineered worm and worm wheel for smooth, quiet performance
Energy-efficient with minimal power loss
Rugged housing and heavy-duty bearings for long service life
Low maintenance and reliable performance in continuous duty applications

Optimized for Food Processing Demands

Designed specifically for food processing environments, this helical gearbox offers outstanding performance in applications such as mixers, conveyors, and agitators. The robust cast iron body and alloy steel gears, combined with precision engineering, guarantee a long operational lifespan even under rigorous conditions. Its bi-directional and low-noise operation facilitate versatile integration into various food industry setups.

Enhanced Durability and Safety Features

With IP54/IP55 protection (when paired with a suitable motor) and a housing finished in industrial grade paint, the gearbox withstands exposure to challenging conditions. The oil splash lubrication system minimizes wear, helping maintain efficiency levels up to 98% while supporting low maintenance requirements. Operating efficiently across a wide temperature range, it ensures safe and reliable performance.

FAQ's of Food Processing Gear Box:

Q: How is this gearbox suited for food processing applications?

A: This gear box is specifically designed for food processing environments, featuring a robust cast iron body, hardened and tempered helical gears, and oil splash lubrication. Its low-noise and smooth operation, along with a durable blue industrial paint finish and IP54/IP55 protection, ensure it withstands continuous use in mixers, conveyors, and agitators.

Q: What are the advantages of the foot mounted design?

A: The foot mounted design allows straightforward and stable installation onto processing equipment. This mounting type promotes easy alignment and secure attachment, which is especially beneficial for food industry machinery where stability and vibration control are crucial.

Q: When should oil splash lubrication be checked or maintained?

A: Oil splash lubrication should be routinely inspected as recommended by the manufacturer, typically during scheduled maintenance intervals. Regular checks help prevent excessive wear and ensure the gearbox maintains its high efficiency and long service life.

Q: Where can this gearbox be used within a food processing facility?

A: This gearbox is ideal for integration into food processing machinery such as mixers, conveyors, and agitators. Its robust construction and bi-directional operation make it suitable for a wide range of processing lines that require reliable power transmission.

Q: What is the benefit of using helical gears in this gearbox?

A: Helical gears offer smoother operation and higher efficiency compared to other gear types. Their design reduces vibration and operating noise, which is especially valuable in the food processing industry, enhancing both equipment longevity and workplace comfort.

Q: How does the gearbox's protection class contribute to its longevity?

A: With IP54/IP55 protection (when the gearbox is used with a compatible motor), the unit is shielded from dust ingress and water splashes. This level of protection helps maintain performance and reduces the risk of mechanical failure in demanding food processing environments.
