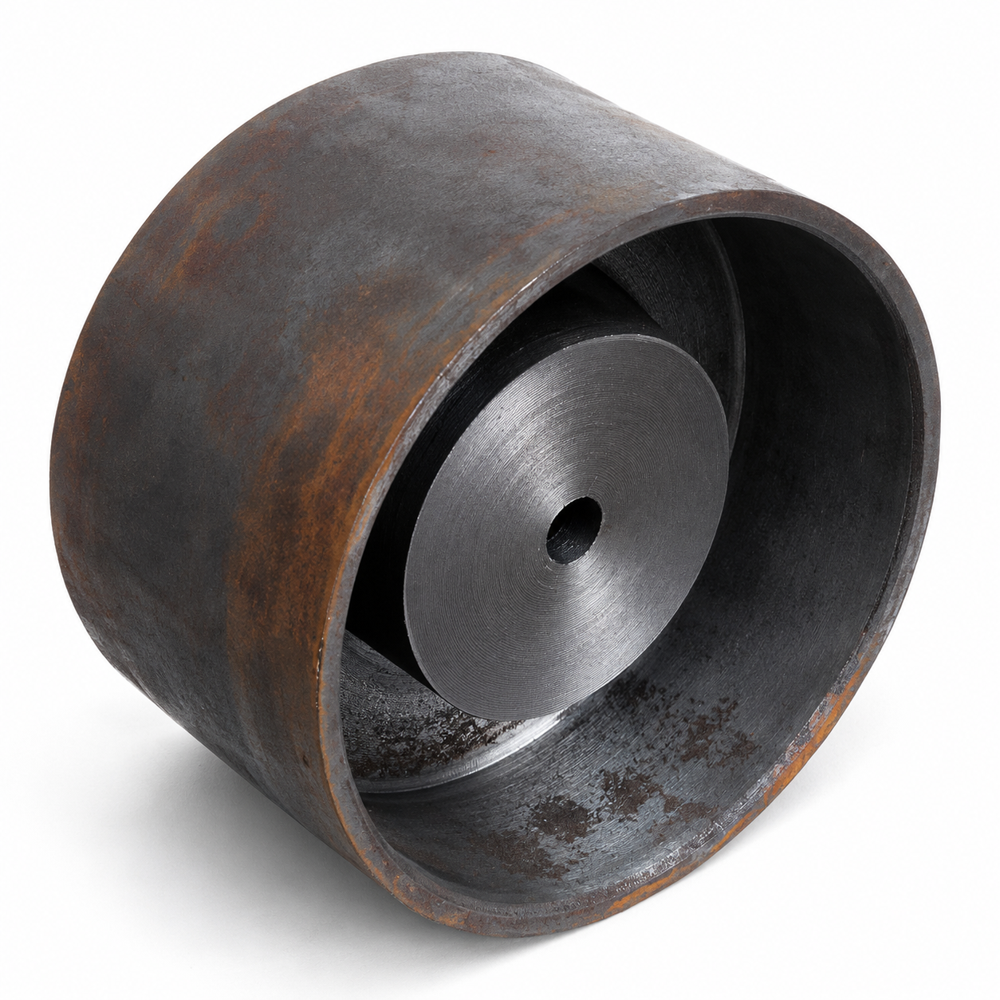

Gear Coupling Brake Drum Assembly

Gear Coupling Brake Drum Assembly Specification

Sealing
No fluid sealing (dry mechanical coupling)

Connection
Flange bolted connection

Max. Speed
Up to 3000 RPM (varies with size and application)

Bore
Customizable to shaft size or as per drawing

Thread
No external thread, bolted assembly

Torque
Ranging from 200 Nm up to 100,000 Nm depending on size

Head Code
Round/Flanged

Material
Forged or high-grade alloy steel (EN8/EN19/EN24 as required)

Structure
Gear coupling integrated with brake drum assembly

Standard
Conforms to AGMA, DIN, or IS standards (as specified)

Inner Diameter
Typically ranges from 30 mm upto 300 mm (custom on request)

Outer Diameter
Specified as per capacity, ranges from 100 mm upto 600 mm

Application
Mechanical power transmission, Brake and drive shaft coupling in industrial machines

Surface Treatment
Precision ground and polished

Technique
Machined, gear-cutting, and CNC turned

Shape
Cylindrical, with integrated gear teeth and drum profile

Hardness
Gear teeth surface hardened to 50-58 HRC

Lubrication
Grease or oil bath recommended for gears

Ambient Temperature Range
-20C to +80C

Corrosion Resistance
High, due to protective surface coating

Teeth Profile Type
Straight or crowned gear teeth, hardened for wear resistance

Dynamic Balancing
Available as per customer request

Mounting Type
Flange mounted, can be fitted horizontally or vertically

Misalignment Compensation
Angular, parallel, and axial misalignments up to 1.5 mm

Brake Drum Diameter
As per design requirement, usually 150 mm to 400 mm

Weight
Varies with size; ranges from 8 kg to 120 kg per assembly

Gear Coupling Brake Drum Assembly About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered Durability and High Performance

Our Gear Coupling Brake Drum Assembly is designed with longevity in mind, utilizing precision-ground, hardened gear teeth and a rugged alloy steel construction. The protective surface coating enhances corrosion resistance, making it suitable for demanding industrial environments. Its robust architecture delivers consistent performance even under high torque or frequent use.

Versatile and Customizable

This product offers customizable options for inner and outer diameters, bore sizes, and dynamic balancing, ensuring a precise fit for a wide range of applications. Its cylindrical design with integrated flange and gear profile accommodates various industrial requirements, while the dry mechanical coupling structure simplifies maintenance.

Reliable Motion and Braking Integration

By combining a gear coupling and brake drum, the assembly simplifies installation and space utilization. Supporting torque values up to 100,000 Nm and operating temperatures from -20C to +80C, it seamlessly accommodates shifting loads, dynamic balancing demands, and provides effective braking while maintaining drive integrity.

FAQ's of Gear Coupling Brake Drum Assembly:

Q: How does the Gear Coupling Brake Drum Assembly compensate for misalignments?

A: The assembly is engineered to adapt to angular, parallel, and axial shaft misalignments up to 1.5 mm, ensuring uninterrupted power transmission and reducing the risk of premature wear or failure in connected machinery.

Q: What types of lubrication are recommended for this gear coupling?

A: For optimal operation, the gear teeth should be lubricated with grease or operated in an oil bath. Proper lubrication minimizes wear, ensures smooth motion, and extends the lifespan of the coupling.

Q: Where is this assembly best used in industrial applications?

A: It is ideally suited for mechanical power transmission and as a brake and drive shaft coupling in heavy-duty industrial machines, such as cranes, conveyors, and material handling systems.

Q: What materials are employed in the construction, and why?

A: The assembly is made from forged or high-grade alloy steel such as EN8, EN19, or EN24, selected for their high strength, wear resistance, and ability to withstand heavy loads and demanding environments.

Q: What standards does the Gear Coupling Brake Drum Assembly comply with?

A: Depending on the requirement, the product is manufactured to conform with AGMA, DIN, or IS standards, ensuring international quality, interchangeability, and performance consistency.

Q: Can the assembly be dynamically balanced, and when should this be requested?

A: Yes, dynamic balancing is available as a customer-specified option. It is recommended when the coupling is to be used at higher rotational speeds or in applications where vibration minimization is critical.
