Wire Rope Hoist Coupling

Wire Rope Hoist Coupling Specification

Max. Speed
Up to 3500 RPM

Connection
Mechanical Fastener with Keyway

Sealing
None required

Torque
Up to 15,000 Nm (depending on size)

Bore
Customized as per shaft size

Thread
No internal thread; assembled with external fasteners

Head Code
Round

Material
Alloy Steel / Stainless Steel

Structure
Gear Coupling (Flanged sleeve, hub and internal gear teeth)

Standard
Conforms to industrial hoist coupling standards (e.g., IS, DIN)

Inner Diameter
As per customer specification (commonly 30mm to 120mm)

Outer Diameter
Varies (commonly 60mm to 180mm)

Application
Wire rope hoist, lifting machinery, industrial automation

Surface Treatment
Polished / Anti-corrosive coating

Technique
Precision Machined

Shape
Cylindrical with gear teeth

Assembly Method
Bolt connected, serviceable design

Finish Type
Corrosion-resistant, bright finish

Industry Use
Material handling, Crane hoists, Industrial equipment

Operating Temperature Range
-20C to +80C

Misalignment Capability
Accommodates angular, axial, and parallel misalignments

Service Life
5000+ operating hours under rated conditions

Coupling Type
Gear Coupling for Wire Rope Hoist

Weight
Varies by size - typically 2kg to 25kg

Dynamic Balancing
Precision balanced for high speed

Suitable Shaft Types
Solid and keyed shafts

Maintenance Requirement
Periodic lubrication recommended

Wire Rope Hoist Coupling About

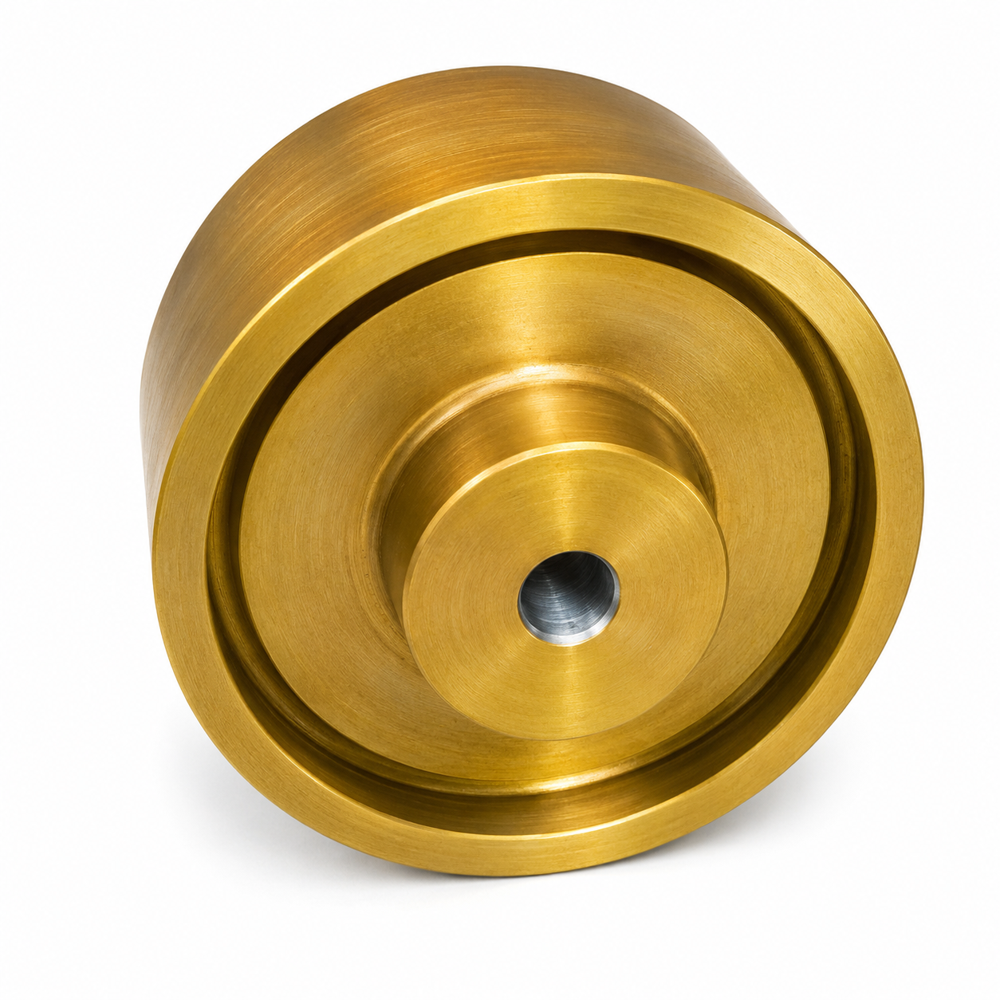

Heavy Duty Gear Brake Drum Coupling

A Heavy Duty Gear Brake Drum Coupling is a robust mechanical power transmission device designed to connect two shafts while providing an integral brake drum for safe and controlled braking. Engineered for demanding industrial applications, this coupling combines the flexibility of a gear coupling with the functionality of a brake drum in a single compact unit.

It consists of high-strength gear hubs, a sleeve with internal gear teeth, and a heavy-duty brake drum. The gear mesh ensures efficient torque transmission and compensates for angular, parallel, and axial shaft misalignments, while the brake drum offers a reliable surface for mechanical or electro-hydraulic brake shoes.

Key Features:

High torque transmission capacity for heavy-duty applications
Rugged cast iron / alloy steel construction for durability
Integral brake drum for braking, load holding, and speed control
Compensates for shaft misalignments, reducing stress and wear
Withstands shock loads and reversing operations
Easy installation and low maintenance design

Precision and Durability for Demanding Applications

Built from robust alloy or stainless steel, the gear coupling delivers high torque capacity and dynamic balance, essential for wire rope hoists and industrial machinery. Its surface treatment includes a polished and anti-corrosive coating, ensuring long-term resistance to harsh operating conditions and extending service life.

Flexible Assembly and Maintenance

The mechanical fastener with keyway allows for easy installation on solid and keyed shafts, while the bolt-connected design is serviceable for ongoing operation. Periodic lubrication is recommended to maintain peak performance, minimizing downtime and ensuring smooth, reliable operation in material handling environments.

FAQ's of Wire Rope Hoist Coupling:

Q: How does the gear coupling accommodate shaft misalignment in wire rope hoists?

A: This coupling is engineered to handle angular, axial, and parallel misalignments, ensuring smooth power transmission even when shaft alignment is not perfect, thereby protecting connected equipment from undue stress and wear.

Q: What is the recommended maintenance process for this coupling?

A: To achieve optimal service life of over 5,000 operating hours, periodic lubrication is advised. This helps reduce wear, maintain efficiency, and uphold the coupling's dynamic balance for high-speed operation.

Q: Where can this coupling be used, and what are its primary applications?

A: It's used in material handling systems, crane hoists, lifting machinery, and industrial automation, offering robust performance in any application requiring reliable, misalignment-tolerant power transmission.

Q: What benefits does the corrosion-resistant, bright finish provide?

A: The corrosion-resistant polished finish protects the coupling from oxidation and harsh environmental conditions, enhancing durability and maintaining performance over extended periods.

Q: How is the coupling assembled, and what types of shafts does it support?

A: Assembly involves bolt connection with a mechanical fastener and keyway, making it suitable for both solid and keyed shafts. The bore is customized according to customer shaft size requirements.

Q: When should users consider replacing or servicing the coupling?

A: Regular inspection during scheduled maintenance is recommended. Replacement or servicing should be performed if signs of excessive wear, unbalanced operation, or loss of lubrication are noted.

Q: What is the maximum speed and torque the coupling can handle?

A: Depending on size, the gear coupling supports up to 3,500 RPM and transmits torque up to 15,000 Nm, providing reliability for demanding industrial applications.
