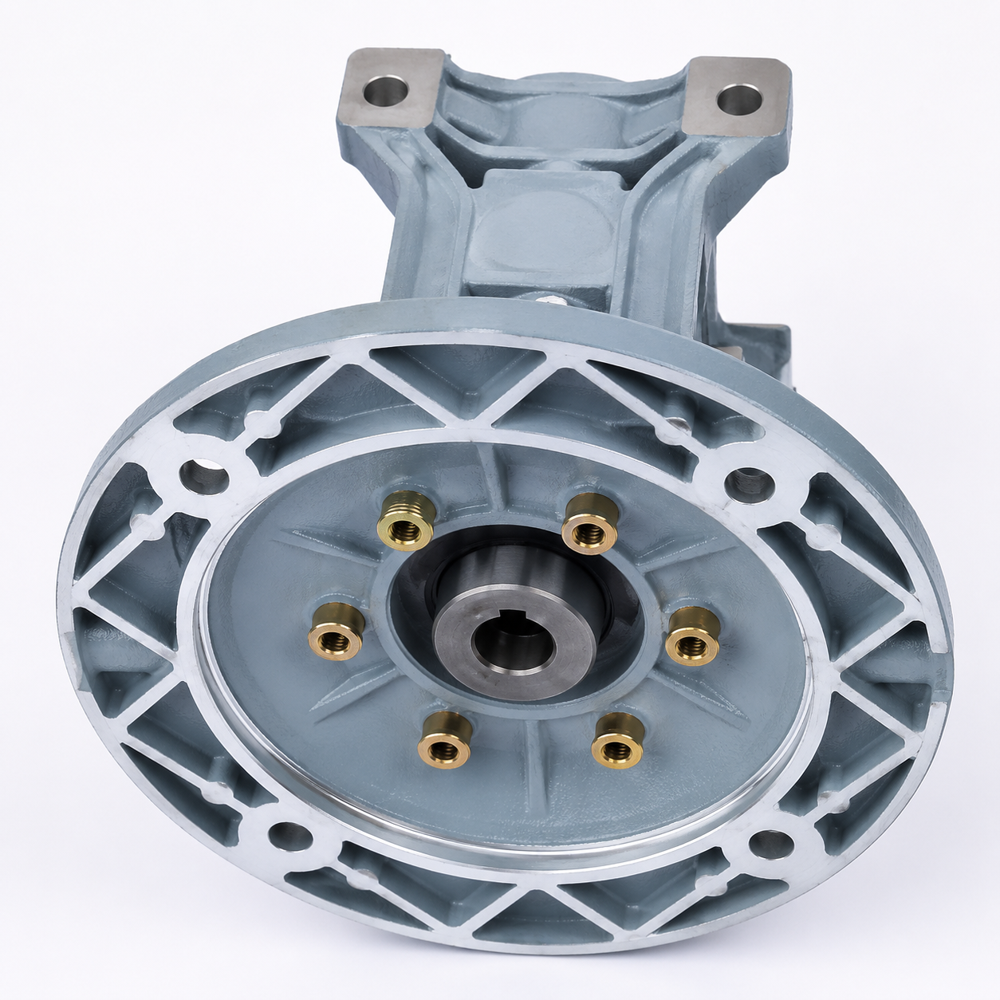

High Torque Gear Box

High Torque Gear Box Specification

Gear Type
High Strength Hardened and Ground Gears

Material
Cast Iron / Alloy Steel

Processing Type
Precision Machined

Gear Tooth Profile
Involute

Gearing Arrangement
Helical / Spur / Planetary / Worm

Direction
Bidirectional / Reversible

Output Torque
High Torque (up to 5000 Nm or as per model)

Rated Power
Up to 50 kW (varies by model)

Input Speed
Up to 1800 rpm

Output Speed
10 to 600 rpm (depends on gear ratio)

Voltage
220V/380V/415V (for geared motors with integrated motor)

Efficiency
Up to 92%

Mounting Type
Flange / Foot Mounted

Housing Finish
Corrosion Resistant Painted

Lubrication
Oil Splash / Grease Filled

Service Life
Designed for long operational life

Temperature Range
-10C to +80C

Protection Class
IP54 / IP55

Noise Level
Low Noise Operation (<75 dB)

Customizable Features
Available on request for special shafts, mountings and gear ratios

About High Torque Gear Box

The Worm Gear Box for Hoist is a compact and efficient power transmission unit specially designed for lifting and hoisting applications. It provides high torque output, smooth performance, and excellent load-holding capability, making it ideal for hoists, cranes, and lifting machinery.

Manufactured using high-grade alloy steel worm and wheel sets and enclosed in a robust cast iron housing, this gear box ensures long service life, low noise, and minimal maintenance. Its compact design allows for easy installation, even in limited spaces, while ensuring reliable and safe operation under heavy loads.

Flexible Mounting and Custom Solutions

Designed with versatility in mind, our gearbox can be easily mounted using either the flange or foot configuration. For specialized needs, we offer custom shafts, mountings, and gear ratios. This flexibility enables seamless integration into a wide range of machinery and industrial systems, ensuring optimal performance and user satisfaction.

Superior Durability and Safety Features

Constructed from high-grade cast iron or alloy steel, the gearboxes are precision machined for accuracy. The housing is finished with a corrosion-resistant paint for enhanced protection. Rated for IP54 or IP55 protection, these gearboxes safeguard against dust and water ingress, supporting a long operational life even in challenging environments.

FAQ's of High Torque Gear Box:

Q: How does the lubrication system of this gear box enhance its performance?

A: The gearbox utilizes an oil splash or grease-filled lubrication system, ensuring that gears remain properly lubricated during operation. This minimizes friction and wear, leading to smoother performance and extended service life.

Q: What are the main benefits of the low-noise design in this gearbox?

A: With a noise level of less than 75 dB, this gearbox minimizes operational sound, making it ideal for environments where reduced noise is important, such as in workshops or urban facilities. This contributes to a more comfortable and productive workspace.

Q: When should I consider customizing the gear box features?

A: Customization is recommended when your application requires specific shaft configurations, unique mounting arrangements, or special gear ratios not covered by standard models. Reach out to our team with your requirements to explore available custom solutions.

Q: Where can these gearboxes be installed and operated?

A: These gearboxes are suitable for a broad spectrum of environments, thanks to their IP54/IP55 protection and corrosion-resistant finish. They are ideal for installations in industrial plants, manufacturing units, and outdoor settings that demand durability and protection.

Q: What is the process for selecting the correct gear box model for my application?

A: Begin by determining your operational requirements, such as output torque, speed, and power. Match these to the specifications offered (torque up to 5000 Nm, rated power up to 50 kW, etc.). If you need special features, consult with our technical team to ensure the optimal fit.

Q: How does the precision-machined gear profile benefit gearbox usage?

A: Precision machining ensures the involute gear tooth profiles maintain optimal contact during power transmission, resulting in higher efficiency (up to 92%) and reduced wear. This guarantees consistent performance over prolonged use.

Q: What advantage does the corrosion-resistant painted housing provide?

A: The corrosion-resistant painted housing safeguards the gearbox from environmental damage, such as moisture and industrial chemicals, thereby extending operational life and reducing maintenance costs.
