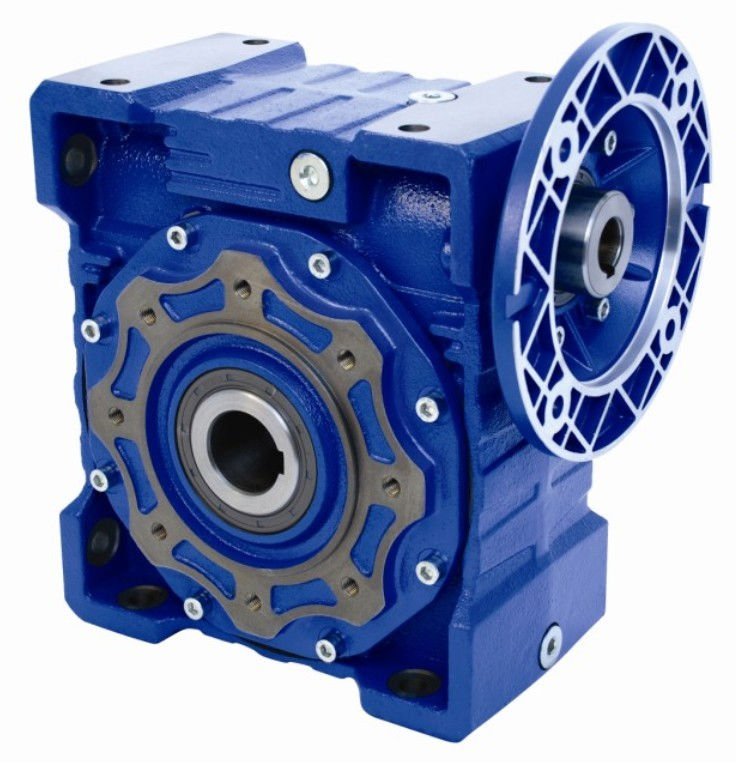

NMRV 150 Gear Box

NMRV 150 Gear Box Specification

Gear Type
Worm Gear

Material
Aluminum Alloy / Cast Iron

Processing Type
Die Casting / Machined

Gear Tooth Profile
Worm

Gearing Arrangement
Worm

Direction
Bidirectional

Output Torque
1150 Nm (Max)

Rated Power
Up to 15 kW

Input Speed
1400-1500 rpm

Output Speed
14-186 rpm (depending on gear ratio)

Voltage
Not applicable (mechanical device)

Efficiency
Up to 90% (depends on gear ratio and lubrication)

Housing
Precision-machined cast housing

Mounting Position
Universal mounting (B3, B5, B6, etc.)

Lubrication
Synthetic oil recommended

Color
Blue (standard)

Noise Level
Low noise operation

Application
Conveyors, Mixers, Industrial Machines

Protection Class
IP55

Cooling
Natural air cooled

Gear Ratio Range
7.5:1 to 100:1

Input Shaft Diameter
42 mm

Weight
Approx 62 kg

Output Shaft Diameter
50 mm

About NMRV 150 Gear Box

Elevate your operations with the resplendent NMRV 150 Gear Box-an indispensable asset for distinguished industries. This must-have gear solution offers sizzling performance, supporting universal mounting (B3, B5, B6, etc.), and is crafted from optimum-quality aluminum alloy or cast iron via precision die casting. Its synthetic oil lubrication ensures efficient, low-noise operation, while the IP55-rated blue casing excels in rigorous environments. With a gear ratio range of 7.5:1 to 100:1, bidirectional function, and output torque up to 1150 Nm, it stands ready for industrial applications like conveyors, mixers, and heavy machinery. Add to Cart to power productivity!

Versatile Applications and Industrial Utility

The NMRV 150 Gear Box finds robust utilization across diverse surfaces of industrial application, including conveyor systems, mixers, and varied industrial machinery. Frequently used by mechanical engineers and factory maintenance teams, this gear box is integral to efficient plant operations. Its universal mounting capability and bidirectional function make it suitable for multiple configurations, delivering optimum torque and reliability, regardless of the plant's specific layout or machinery demands.

Domestic and Global Reach with Certifications

Our NMRV 150 Gear Box is delivered at the lowest price while ensuring reliability and compliance with global standards. With ready availability for both main domestic and major export markets, every shipment is protected with thorough freight procedures. Certified for established industrial benchmarks, our gear boxes assure quality and performance. Customers in India and across continents benefit from our expansive exporter, manufacturer, and supplier network, ensuring trustworthy transactions and swift deliveries.

FAQ's of NMRV 150 Gear Box:

Q: How can the NMRV 150 Gear Box be mounted in industrial setups?

A: Thanks to its universal mounting position (B3, B5, B6, and others), the NMRV 150 Gear Box can be easily integrated into a wide range of machinery and layouts, offering flexibility for both new installations and retrofits.

Q: What types of machinery benefit most from using this gear box?

A: With its robust construction and dependable performance, the NMRV 150 Gear Box is ideally suited for conveyors, mixers, and various types of industrial equipment requiring precise speed and torque management.

Q: When should lubrication be checked or changed for optimum performance?

A: It's recommended to monitor the synthetic oil regularly, with scheduled replacements in accordance with operational hours and load intensity to maintain efficiency and prolong equipment lifespan.

Q: Where does the NMRV 150 Gear Box see the most utilization domestically and internationally?

A: The gear box is widely used across domestic Indian industries and exported to international markets with demanding industrial machinery requirements, such as manufacturing plants and processing facilities.

Q: What certifications ensure the reliability of this gear box for industrial use?

A: Our gear boxes comply with recognized industrial standards and protection class IP55, ensuring durability, safety, and broad acceptance across quality-driven markets.
