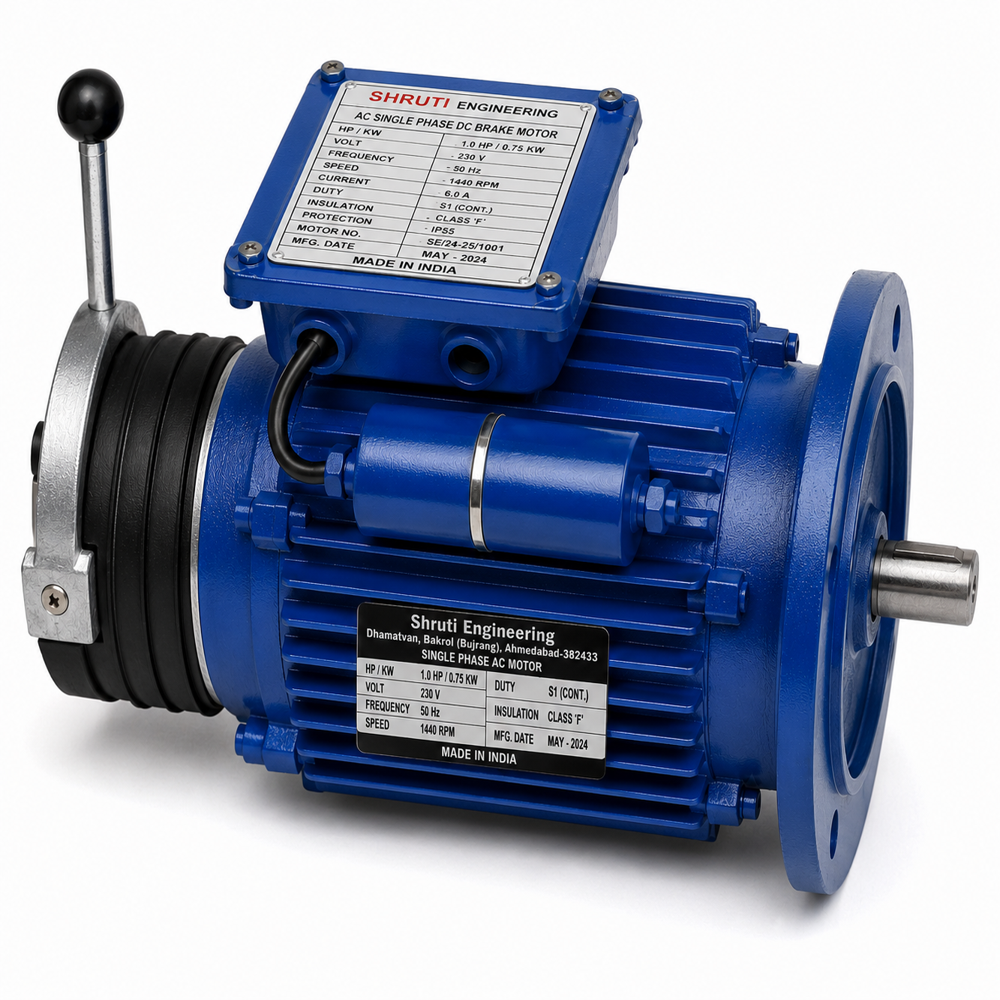

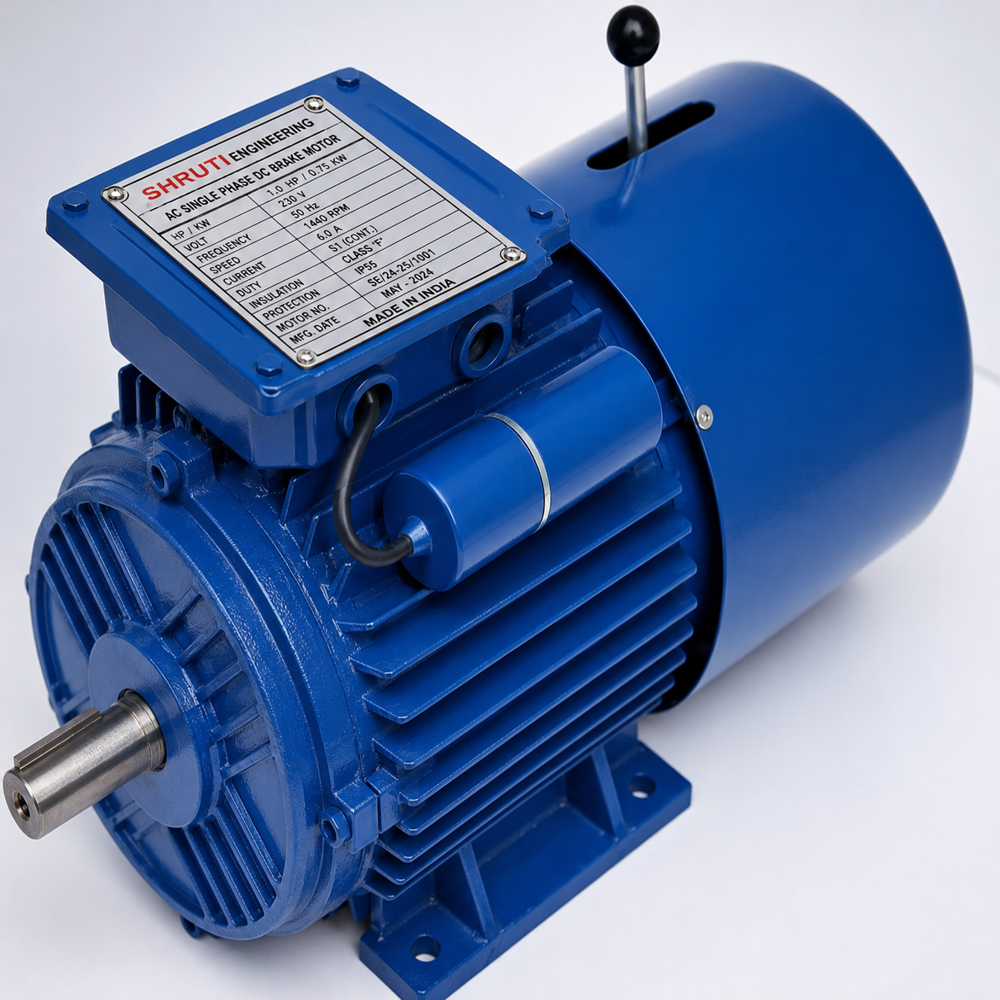

High Torque Single Phase Brake Motor

High Torque Single Phase Brake Motor Specification

Current Type
AC

Bearing Type
Heavy Duty Ball Bearing

Voltage
230 V

Cooling Method
Fan Cooled

Motor Type
Single Phase AC Brake Motor

Ambient Temperature
-15C to +40C (Typical Operating Range)

Noise Level
Low Noise Operation

Standard
IS:325-1001 (Indian Standard)

Features
Equipped with fail-safe DC brake, robust construction, reliable performance, continuous duty

Torque
High Torque

Starting Type
Capacitor Start

Pressure
-- (Not Applicable)

Efficacy
High Efficiency

Horse Power
1 HP

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Rated Frequency
50 Hz

Power Rating
0.75 kW

Poles Number
4 Poles

Rated Voltage
230 V

Product Type
AC Single Phase DC Brake Motor

Output Power
0.75 kW

Frequency (MHz)
50 Hz

Protect Feature
Class F

Phase
Single Phase

Speed
1440 RPM

Power
1 HP

Color
Blue

Dimension (L*W*H)
-- (Refer manufacturer)

Weight
-- (Refer manufacturer)

Shaft Diameter
-- (Refer manufacturer)

Mounting Type
Flange Mounted

IP Rating
IP55

Brake Type
Fail Safe DC Brake (operates on 190V DC)

Frame Size
71-112 (Refer model for exact size)

MFG Date
May 2024

Application
Material Handling, Lifting Equipments, Cranes, Hoists, Textile & Packaging Machinery

Duty
S1 Continuous

Insulation
Class F

Efficiency Class
IE2/Energy Efficient

Surface Finish
Powder Coated

Motor Protection
Thermal Overload Protection (available on request)

High Torque Single Phase Brake Motor About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Precision Engineering for Industrial Applications

Engineered to serve in a variety of industrial sectors, this brake motor is a reliable choice for material handling, cranes, hoists, and packaging machinery. Its robust construction, high torque output, and heavy-duty ball bearings deliver top-tier durability and longevity, especially suitable for continuous operations (Duty: S1).

Enhanced Safety and Reliability

Safety is paramount, with a fail-safe DC brake system that ensures immediate stopping power and added workflow security. Optional thermal overload protection further safeguards the motor, giving operators confidence in demanding or extended usage scenarios.

Energy Efficient and Standard Compliant

Designed to meet IE2 efficiency standards, this motor offers energy savings without sacrificing performance. Adhering to Indian Standard IS:325-1001, it assures quality, consistency, and compatibility with a range of industrial systems.

FAQ's of High Torque Single Phase Brake Motor:

Q: How does the fail-safe DC brake operate in this single phase brake motor?

A: The fail-safe DC brake operates on 190V DC and activates automatically in the event of power loss, promptly stopping the motor to prevent accidental movement. This feature ensures enhanced safety, particularly valuable in material handling and lifting applications.

Q: What are the typical applications for this high torque brake motor?

A: This motor is suited for various industrial uses such as cranes, hoists, textile machinery, packaging equipment, and other material handling systems where precise stopping and continuous duty operation are crucial.

Q: When should thermal overload protection be requested?

A: Thermal overload protection is available on request. It is recommended for situations where the motor is expected to encounter frequent or prolonged high loads, as it helps prevent overheating and extends motor life by shutting down the unit under excessive temperature conditions.

Q: Where can this brake motor be installed for optimal performance?

A: Designed for harsh industrial environments, the motor can be installed in areas with ambient temperatures between -15C and +40C. Its IP55-rated, totally enclosed fan cooled (TEFC) construction protects against dust and water, ensuring reliable performance indoors or in sheltered outdoor settings.

Q: What are the efficiency and compliance standards for this motor?

A: This brake motor conforms to IE2 efficiency class (energy efficient) and is manufactured according to Indian Standard IS:325-1001. This ensures high operational efficiency while meeting stringent industry regulations.

Q: How does the capacitor start mechanism benefit the motor's usage?

A: The capacitor start mechanism provides improved starting torque, which enables the motor to start under load and reach operational speed quickly. This is particularly beneficial for applications necessitating frequent starts and stops, like lifting and conveyor operations.

Q: What process should be followed to choose the correct frame size or shaft diameter?

A: Frame size and shaft diameter can vary by model. To select the appropriate specifications, refer to the manufacturer's model details or consult your supplier, ensuring the motor fits the mechanical requirements of your equipment.
