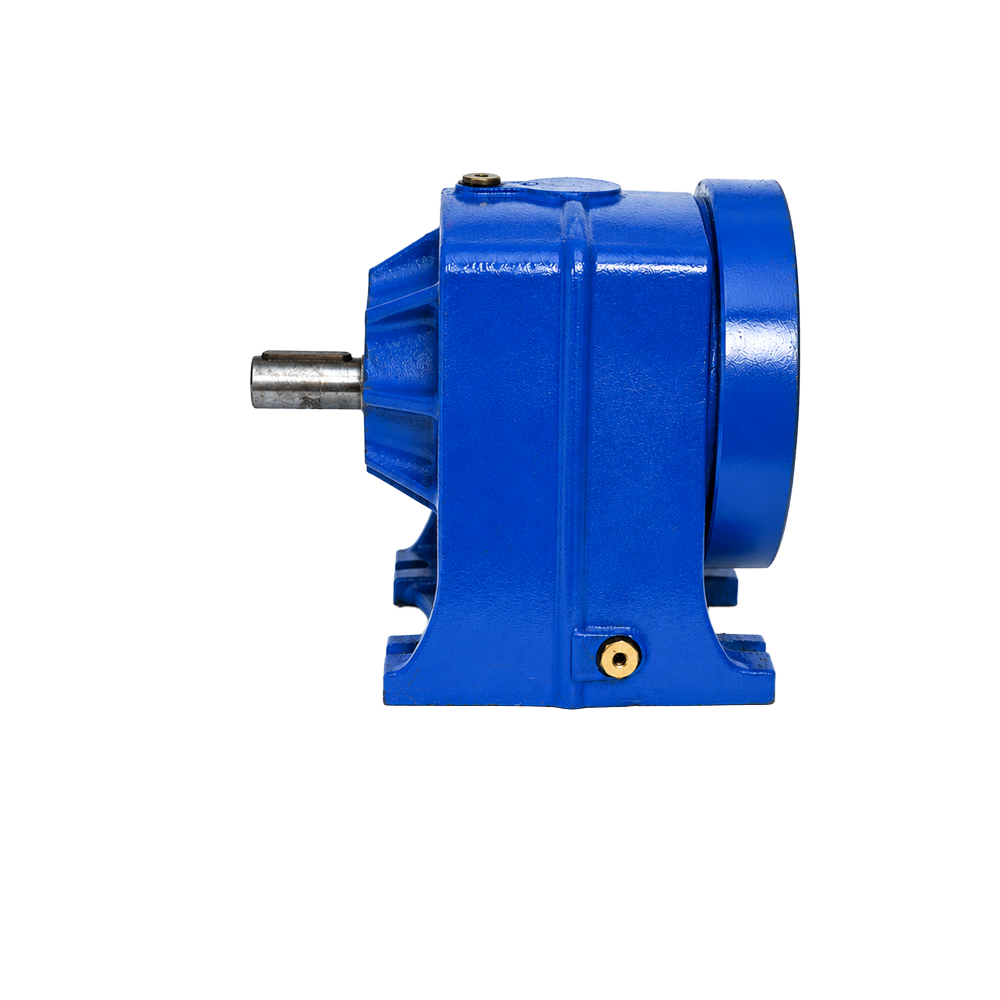

Inline Helical Gear Box

Inline Helical Gear Box Specification

Gear Type
Helical Gear

Material
Cast Iron / Steel

Processing Type
Precision Machined

Gear Tooth Profile
Helical

Gearing Arrangement
Inline

Direction
Bidirectional

Output Torque
Upto 10,000 Nm

Rated Power
0.12 kW - 160 kW

Input Speed
1440 rpm

Output Speed
14 - 280 rpm

Voltage
220 - 415 V

Efficiency
94% - 98%

Service Factor
As per application

Lubrication
Splash lubrication / Oil Bath

Noise Level
Low Noise Operation

Surface Treatment
Powder Coated

Input Type
Motor Mounted / Solid Shaft Input

Usage/Application
Industrial, Conveyor, Material Handling, Agitator, Mixer

Cooling Method
Natural Air Cooled

Reduction Ratio
3.6:1 to 289.74:1

Enclosure
IP54 / IP55

Mounting Type
Foot / Flange mounted

About Inline Helical Gear Box

We are a prominent organization of an extensive range of superior quality Helical Gearbox. These gearboxes are provided to customers in various sizes, thicknesses and lengths at market leading prices. Moreover, our offered gearboxes are delivered at clients end within the committed time frame.
Features:
Rust proof

Precision Machined & Powder Coated for Lasting Performance

Manufactured using advanced precision machining, the Inline Helical Gear Box ensures superior gear alignment, longevity, and tight tolerances for industrial reliability. Its powder-coated surface adds an extra layer of protection against corrosion, extending product life even in challenging environments.

Flexible Mounting & Broad Application Range

With a choice of foot or flange mounting and adaptable input types, this gear box excels in diverse industrial settings. It finds use in conveyors, material handling equipment, agitators, and mixers-providing smooth, efficient, and bidirectional power transmission where it is most needed.

Efficient, Low-Noise Operation & Safe Design

This gear box features a helical tooth profile and splash lubrication, achieving high efficiency (up to 98%) and significantly reducing operational noise. The IP54/IP55 enclosure safeguards internal components from dust and moisture, ensuring safer and more consistent operations regardless of site conditions.

FAQ's of Inline Helical Gear Box:

Q: How is the Inline Helical Gear Box mounted and installed?

A: The gear box can be mounted either by foot or flange, providing flexibility for diverse industrial layouts. Proper alignment during installation is crucial for efficient power transmission and longer lifespan. Professional installation is recommended to ensure safety and optimal operation.

Q: What cooling and lubrication methods are used in this gear box?

A: The Inline Helical Gear Box is naturally air cooled, eliminating the need for external cooling systems. Lubrication is achieved through splash lubrication or an oil bath, ensuring continuous and reliable gear operation with minimal maintenance required.

Q: When should I choose this gear box for my application?

A: This gear box is ideal for applications demanding high torque, low noise, and efficient power transmission-such as in conveyors, agitators, mixers, and material handling equipment. Its wide reduction ratio and high output torque make it suitable for heavy-duty industrial operations.

Q: Where can this gear box be used within an industrial facility?

A: It is designed for use in a variety of industrial applications, including but not limited to conveyors, processing lines, agitators, mixers, and other machinery requiring robust, bidirectional torque transfer and variable speed control.

Q: What benefits does the helical gear design provide?

A: Helical gears offer smoother operation, reduced noise, and increased load capacity compared to other gear types. The design ensures efficient power transmission, making the gear box suitable for high-demand, continuous-operation environments.

Q: How does the enclosure rating (IP54/IP55) enhance safety?

A: The IP54/IP55 enclosure protects internal components from dust ingress and water splashes, improving the gear box's durability and safety in harsh environments. This makes maintenance easier and reduces the risk of component failure due to environmental factors.
