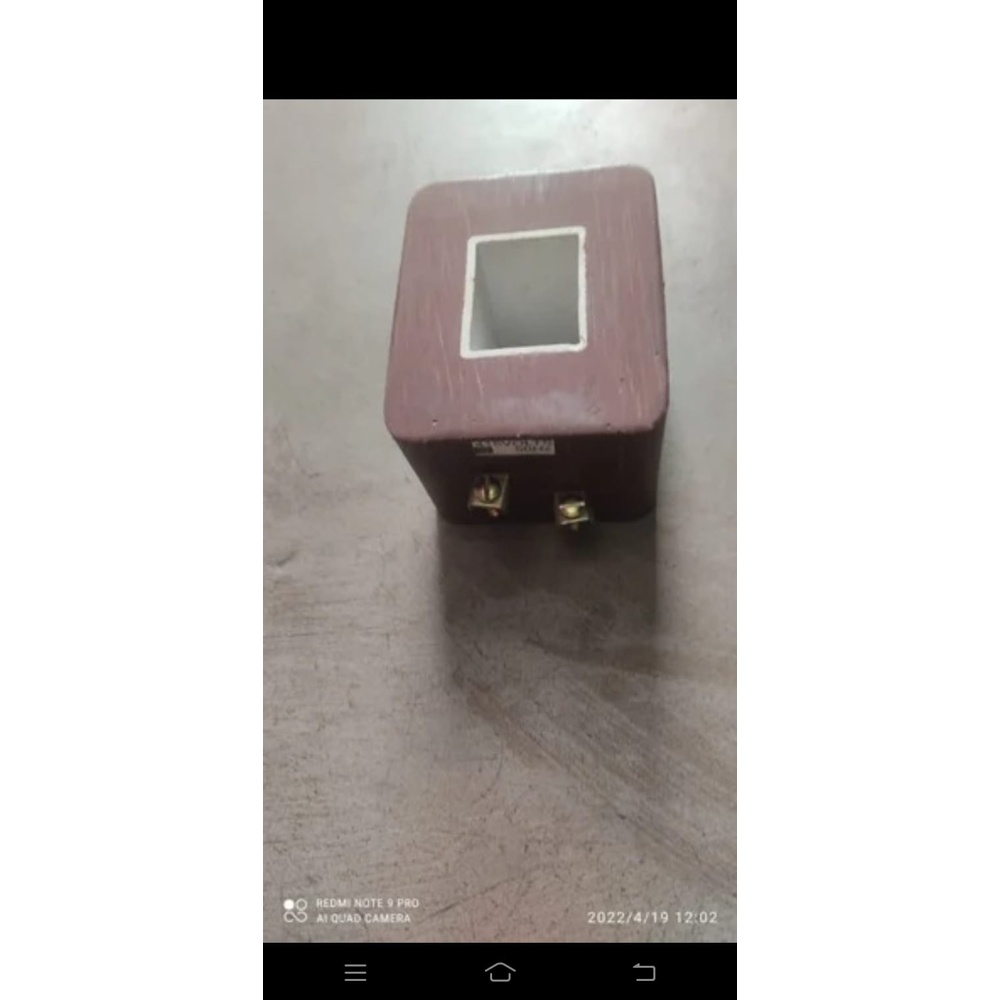

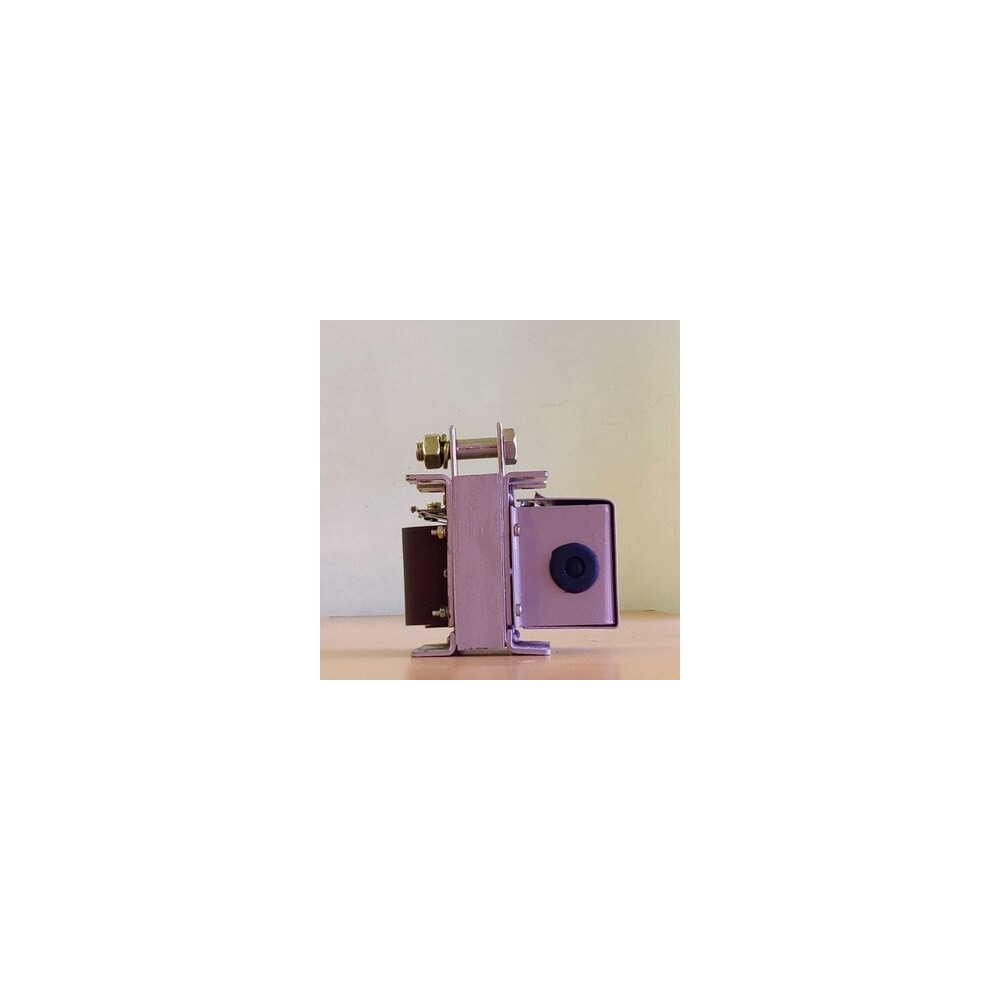

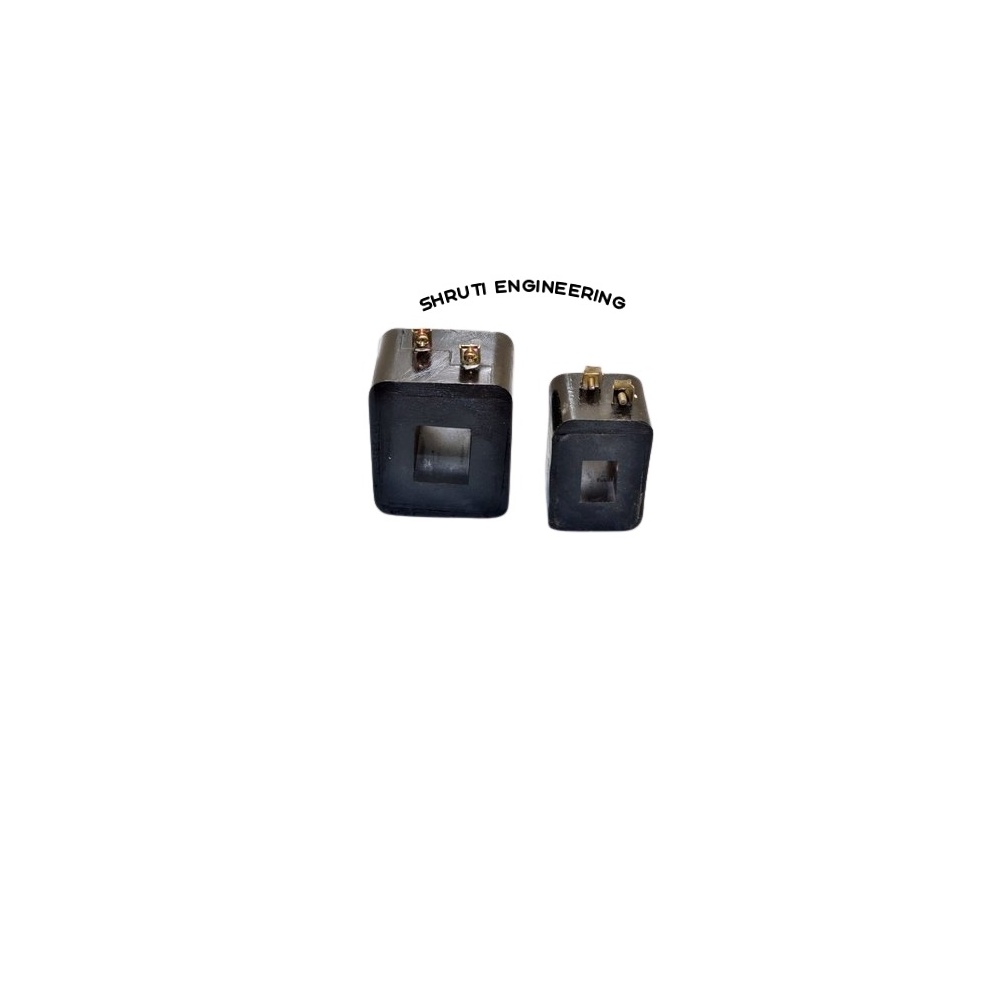

Magnetic Coil with Plunger

Magnetic Coil with Plunger Specification

Shape
Rectangular/Square (Bobbin, Bakelite, Open Type)

Thickness
Standard Bakelite casting thickness; customizable

Material
Bakelite, Copper Winding

Loading Capacity
Customizable as per application

Diameter
Standard and Custom (varies per type: Bobbin, Moulded, Standard Bakelite)

Power
Typically ranges from 5W to 30W (as per model and use)

Voltage
230V AC (other ratings available on request)

Application
Electrical/Electromechanical Actuation, Industrial Automation, Magnetic Locking Mechanisms

Operating Frequency
50 Hz or 60 Hz

Insulation Class
Class B/F (as per request)

Mounting Type
Base Plate with holes for easy mounting

Features
High reliability, long life, robust construction

Customization
Available as per client requirements

Coil Type
Bobbin Type, Moulded Bakelite, Standard Bakelite, Open Type

Plunger Material
High-grade Iron or Steel (for optimal magnetic response)

Product Finish
Premium coating and finish for reliable performance

About Magnetic Coil with Plunger

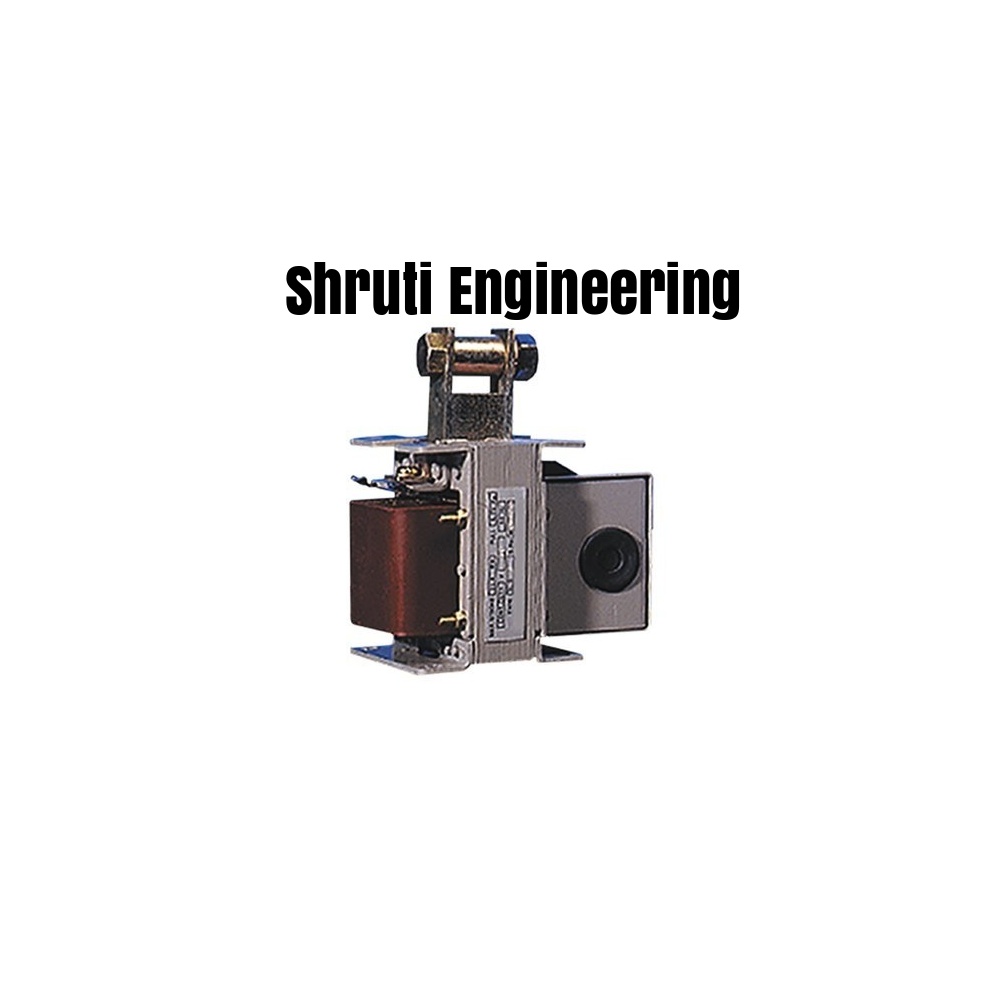

Solenoid Brake Coil for Crane Description

The Solenoid Brake Coil for Crane is a key component in electromagnetic crane braking systems, designed to provide reliable magnetic force for smooth and efficient brake operation. When energized, the coil generates a strong magnetic field that ensures quick brake release and precise stopping control, making it ideal for lifting and material handling applications.

Built with high-grade copper or aluminum windings and heat-resistant insulation, this brake coil is highly durable, energy-efficient, and capable of withstanding continuous duty cycles under heavy loads. It is available in various voltage and frequency ratings (110V, 220V, 415V / 50Hz60Hz) to suit different crane brake models.

Key Features:

Strong magnetic force for dependable crane brake performance
High-quality copper/aluminum winding construction
Excellent heat resistance and long service life
Low maintenance and energy-efficient design
Compatible with a wide range of crane brake systems

Applications:

Versatile Design and Applications

Our coils are adaptable for a wide range of uses, from industrial automation to magnetic locking systems. Available in different shapes and finishes, with customizable power, voltage, and load capacities, these coils fit seamlessly into various electrical and mechanical assemblies. Their engineered design matches both high-standard and tailored requirements.

Quality Construction for Longevity

Each coil features premium Bakelite housing and copper windings to ensure robust structure and prolonged durability. With base plate mounting supporting hassle-free installation, and optional insulation classes to match your operational needs, these coils provide reliable service under demanding conditions.

Customization to Meet Specific Requirements

We offer extensive customization, including diameter, mounting type, insulation class, and electrical ratings to suit client specifications. Experts work closely with clients to deliver optimum performance solutions for both standard applications and specialized projects.

FAQ's of Magnetic Coil with Plunger:

Q: How is the magnetic coil with plunger mounted in industrial setups?

A: The coil features a base plate with holes, allowing for secure and straightforward installation onto panels or machinery surfaces, simplifying integration into various automated or electrical systems.

Q: What are the primary materials used in the coil and plunger, and how do they benefit performance?

A: The coil utilizes Bakelite or copper for winding and a high-grade iron or steel plunger, ensuring strong magnetic response, excellent electrical insulation, and mechanical durability for long life and reliable operation.

Q: When should I choose between Class B and Class F insulation for my application?

A: Class B insulation is sufficient for standard thermal environments, while Class F, with its higher temperature tolerance, is ideal for applications exposed to elevated temperatures or requiring extra thermal safety margins.

Q: Where can this magnetic coil be used effectively?

A: It is suitable for a variety of applications, including industrial automation, magnetic locking systems, and general electromechanical actuation in both new installations and retrofit projects.

Q: What is the process for customizing the coil to meet my project requirements?

A: Simply provide your application details and specifications such as voltage, power, diameter, or mounting preferences. Our engineering team collaborates with you to design and manufacture a solution tailored to your needs.

Q: How does the product ensure reliability and a long operational life?

A: Robust materials like premium Bakelite and copper are used, alongside a coated finish and sturdy plunger design, delivering extended service life even under demanding operational conditions.

Q: What are the available voltage and power options for this coil?

A: Standard models operate at 230V AC and power ratings from 5W to 30W, with additional voltage and power options available upon request for specialized applications.
