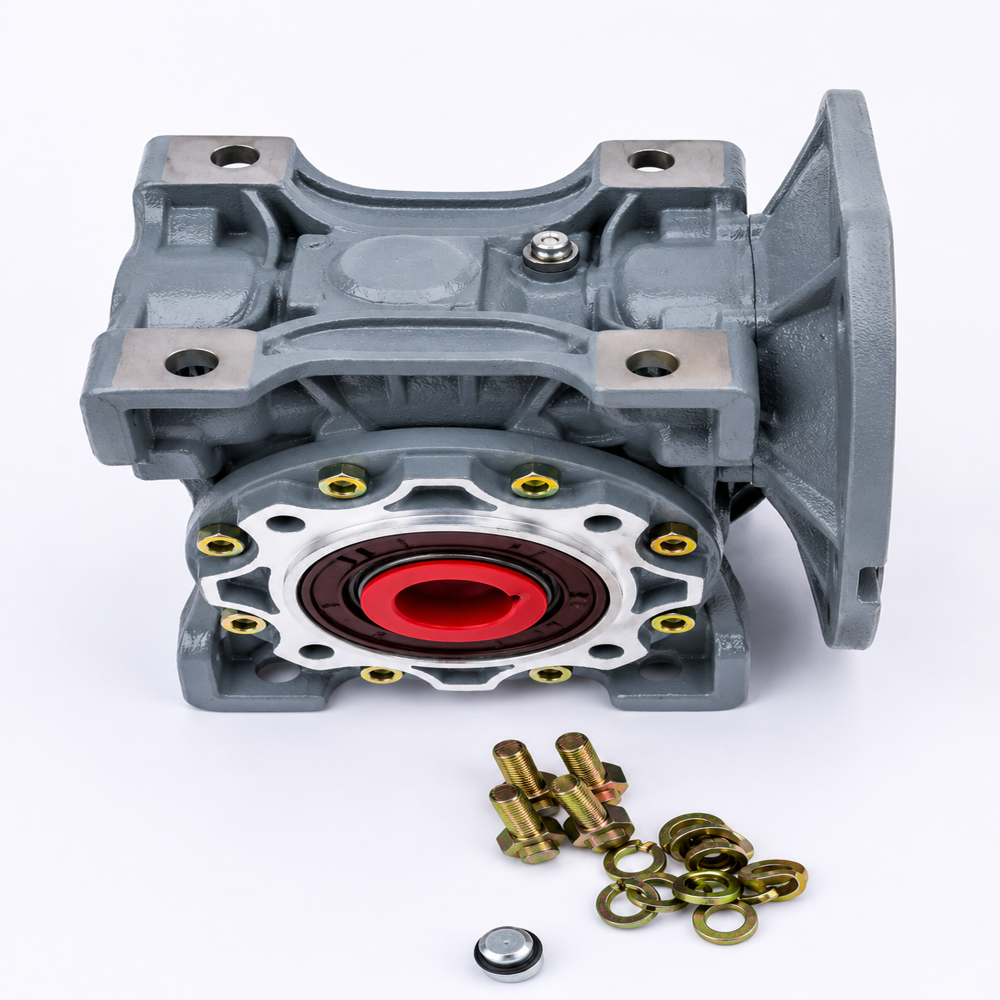

NMRV Speed Reducer Gear Box

NMRV Speed Reducer Gear Box Specification

Gear Type
Worm

Material
Aluminum Alloy Housing, High-Strength Steel Gears

Processing Type
Die Casting, Precision Machining

Gear Tooth Profile
Worm

Gearing Arrangement
Worm Gear

Direction
Universal / Bidirectional

Output Torque
Up to 880 Nm (varies by model)

Rated Power
0.06 kW to 15 kW

Input Speed
1400 - 2800 rpm

Output Speed
14 - 186 rpm (depends on ratio)

Voltage
Not applicable (mechanical device)

Efficiency
Up to 90%

Color
Blue (custom options available)

Noise Level
Low Noise

Application
Conveyors, Packaging, Mixers, Automation Equipment

Protection Class
IP55 (upon assembly with suitable motor)

Reduction Ratio
7.5:1 to 100:1 (standard range)

Mounting Type
Flange / Foot Mounted

Temperature Range
-10C to 40C

Cooling Method
Surface Cooling, Finned Housing

Lubrication
Synthetic Oil or Grease Filled

About NMRV Speed Reducer Gear Box

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Advanced Design and Durability

The NMRV Speed Reducer features a die-cast aluminum alloy housing and high-strength steel gears for superior strength and longevity. Its finned design provides efficient surface cooling, making it ideal for continuous operation in demanding industrial environments.

Flexible Configurations and Mounting

This gear box offers both flange and foot mounting options, allowing seamless integration into new or existing systems. Universal, bidirectional configuration supports a wide range of motion requirements for automation and conveyor systems.

Efficient Performance and Versatility

Designed for performance, the NMRV reducer offers reduction ratios from 7.5:1 to 100:1 and supports input speeds of 1400-2800 rpm, delivering output speeds as low as 14 rpm. Blue is the standard color, with customization options available on request.

FAQ's of NMRV Speed Reducer Gear Box:

Q: How is the NMRV Speed Reducer Gear Box typically installed?

A: The NMRV Speed Reducer can be installed using either flange or foot mounts, depending on your system requirements. This flexibility ensures straightforward integration into various industrial layouts and retrofitting projects.

Q: What type of lubrication does the gear box require?

A: This gear box is filled with either synthetic oil or grease, providing excellent lubrication for smooth operation and extended gear life. Proper lubrication reduces maintenance needs and ensures efficient power transmission.

Q: When should the NMRV Speed Reducer be selected for applications?

A: Select the NMRV Speed Reducer when you need high efficiency, low noise, and versatility in industries such as conveyors, packaging, mixers, or automation equipment, especially when operation within -10C to 40C is required.

Q: Where can this gear box be used most effectively?

A: The NMRV Speed Reducer is most effective in industrial systems such as conveyor belts, automated machinery, material handling, packaging lines, and mixing equipment. Its robust design, protection class, and cooling method allow for dependable use in diverse environments.

Q: What is the process for assembling the gear box with motor protection?

A: For IP55 protection, the gear box must be assembled with a suitable motor. The assembly process involves ensuring a proper seal and alignment to prevent dust and water ingress, safeguarding internal components during operation.

Q: How does the design benefit industrial operations?

A: The die-cast aluminum housing with surface cooling fins, paired with precision-machined, high-strength steel gears, ensures high efficiency (up to 90%), reduced heat, low noise, and extended durability-translating to minimal downtime and maintenance costs.

Q: Can this gear box operate bidirectionally?

A: Yes, the NMRV Speed Reducer supports universal, bidirectional operation, making it suitable for systems requiring frequent or reversible motion without needing additional components.
