Industrial Gear Reducer

Industrial Gear Reducer Specification

Gear Type
Worm Gear

Material
Aluminum Alloy Body, High Strength Steel Gears

Processing Type
Precision Machined - CNC

Gear Tooth Profile
Helical / Worm

Gearing Arrangement
Worm Gear Reducer

Direction
Bidirectional

Output Torque
Up to 800 Nm

Rated Power
0.12 kW - 7.5 kW

Input Speed
Up to 1500 RPM

Output Speed
14 - 280 RPM (Depending on Ratio)

Voltage
230V/415V AC

Efficiency
Up to 92%

Housing Finish
Corrosion Resistant Powder Coating

Noise Level
Low Noise Operation (<60 dB)

Lubrication
Synthetic Gear Oil

Temperature Range
-10C to 50C

Protection Class
IP55

Color
Gray with Yellow Highlights

Mounting Type
Foot/Flange Mount

Applicable Industry
Conveyor, Material Handling, Automation, Packaging

Bearing Type
Ball Bearing

About Industrial Gear Reducer

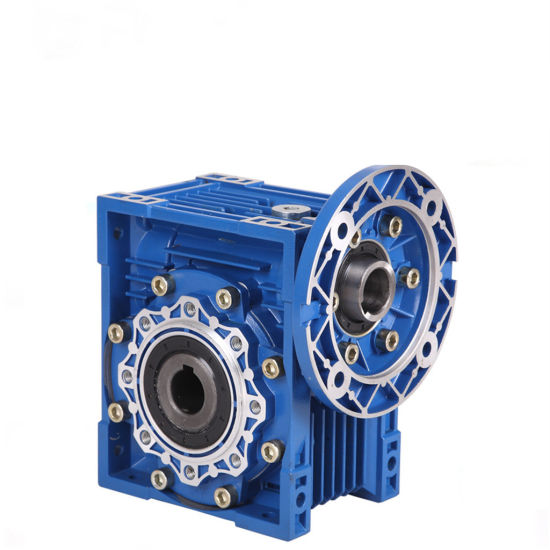

We offer NMRV Worm Gearbox successfully. We have gained vast expertise in offering a superior range of Alumnium box type Gearbox to our clients within sensible prices. These are mostly found its application in various industries across the various sectors like ceramic, Textile, Packing machinery, Conveyor etc. They are well known for their wear and tear resistance as these are packed using high grade packing materials.

Precision Engineering for Demanding Applications

Manufactured using CNC-machined components and featuring helical and worm gear tooth profiles, this gear reducer is built to meet the precision requirements of automation, packaging, and conveyor systems. Its design ensures long-lasting accuracy and optimal performance, even under heavy-duty operational conditions.

Superior Durability and Protection

The gear reducer is equipped with a corrosion-resistant powder coating and an IP55-rated enclosure, protecting it from dust, moisture, and challenging industrial environments. Ball bearings and a robust aluminum alloy body enhance service life and maintain stable operation over extended periods.

Efficient and Quiet Operation

Operating at noise levels below 60 dB and using synthetic gear oil, this gear reducer ensures quiet, smooth, and energy-efficient performance. Designed for input speeds up to 1500 RPM, it delivers consistent output speeds and torque with minimal maintenance.

FAQ's of Industrial Gear Reducer:

Q: How is the industrial gear reducer installed in my application?

A: This gear reducer supports both foot and flange mounting, providing flexibility for integrating into conveyor, material handling, packaging, or automation systems. Simply align the mounting type with your setup for secure, vibration-free installation.

Q: What are the benefits of using synthetic gear oil in this reducer?

A: Synthetic gear oil offers enhanced lubrication, minimizes wear and tear, and enables smooth, low-noise operation. It also maintains optimal performance over a wide temperature range, ensuring reliability and extended service life.

Q: When should I use this gear reducer in industrial settings?

A: This gear reducer is ideal for installations requiring precise speed control and high efficiency, such as conveyors, automation equipment, and material handling machines. Its durability and low noise operation also make it suitable for continuous or high-cycling applications.

Q: Where is the best place to use this worm gear reducer?

A: The gear reducer performs best in indoor industrial environments where protection against dust and moisture is essential. Its IP55-rated housing guarantees consistent performance even in areas exposed to moderate environmental factors.

Q: What is the process behind the precision machining of the gears?

A: The gears are created using CNC precision machining, which ensures tight tolerances and optimal tooth profiles for improved gear meshing, reduced vibration, and heightened operational efficiency.

Q: How does the gear reducer ensure low noise operation?

A: Low noise levels are achieved through the use of synthetic lubricants, precision-machined components, and advanced ball bearing arrangements, helping to keep operational noise below 60 dB.

Q: What advantages do the corrosion-resistant powder coating and aluminum alloy body provide?

A: The corrosion-resistant powder coating and lightweight yet durable aluminum alloy construction protect against harsh industrial environments, preventing rust, extending the reducer's service life, and maintaining its appearance over time.
