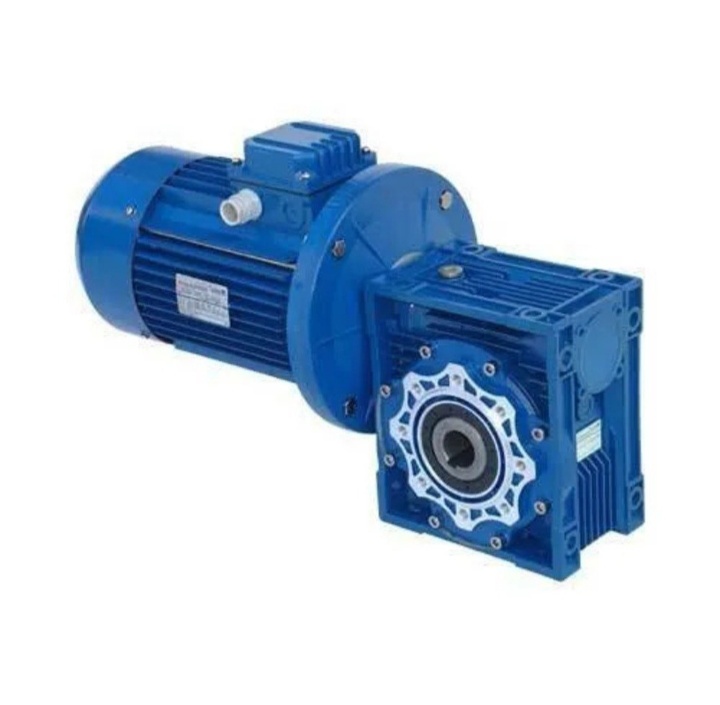

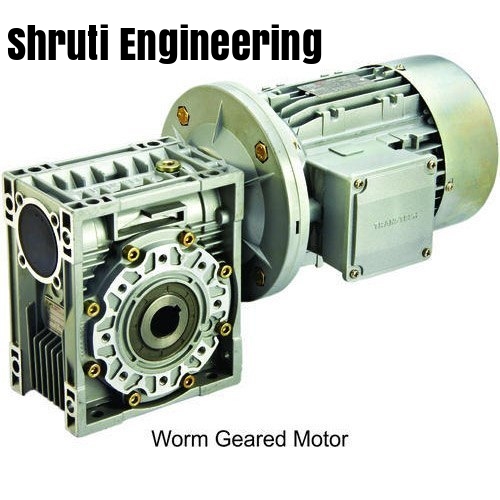

NMRV WORM GEAR BRAKE MOTOR

NMRV WORM GEAR BRAKE MOTOR Specification

Power Rating
0.18~7.5 kW

Noise Level
Low

Ambient Temperature
-15C to +40C

Bearing Type
Ball Bearing

Cooling Method
Fan Cooled

Current Type
AC

Rated Frequency
50 Hz

Torque
Up to 800 Nm

Horse Power
0.25 HP to 10 HP

Rated Voltage
220V / 415V

Motor Type
Worm Gear Brake Motor

Efficacy
High Efficiency

Features
Brake Motor, High Load Capacity, Maintenance Free

Sealed Type
Sealed

Poles Number
2 Pole / 4 Pole

Standard
IS/IEC Standards

Starting Type
Direct On Line (DOL)

Voltage
220-240V / 380-415V

Product Type
Worm Geared Motor

Output Power
0.18 kW to 7.5 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase / Three Phase

Speed
1400 RPM

Power
0.18 kW to 7.5 kW

Color
Silver Grey

Dimension (L*W*H)
Standard as per model

Weight
Varies by model

Shaft Diameter
As per standard model

Mounting Type
Foot Mounted / Flange Mounted

IP Rating
IP55

Brake Type
AC Fail Safe Brake

Operation Position
Horizontal / Vertical

Lubrication
Grease Filled for Lifetime

Gear Material
Aluminium Alloy Housing

Service Factor
1.0 to 1.2

Application
Textile, Conveyor, Packaging Machinery, Industrial Automation

Gear Ratio
7.5:1 to 100:1

Insulation Class
Class F

NMRV WORM GEAR BRAKE MOTOR Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-7 Days

About NMRV WORM GEAR BRAKE MOTOR

Gear Brake Motor Product Description

Shruti Engineering Gear Brake Motor is a compact and efficient drive solution that combines a high-performance electric motor, gearbox, and electromagnetic brake in a single unit. It provides controlled speed, high torque output, and instant stopping capability, making it ideal for material handling, conveyor systems, hoists, cranes, packaging machines, and industrial automation applications.

Features:

High Starting Torque
Instant Brake Operation for Safety
Compact and Space-Saving Design
Smooth and Reliable Performance
Low Noise and Vibration
Available in Foot Mounted & Flange Mounted Types
Wide Range of Gear Ratios
Energy Efficient and Maintenance Friendly
Robust Cast Iron / Aluminum Construction

Applications:

Conveyors
Cranes & Hoists
Material Handling Equipment
Packaging Machinery
Textile Machinery
Food Processing Plants
Industrial Automation Systems
Lifting and Positioning Equipment

Specifications:

Power Range: 0.25 HP to 20 HP
Voltage: 230V / 415V AC
Frequency: 50 Hz
Brake Type: AC / DC Electromagnetic Brake
Mounting: Foot Mounted / Flange Mounted
Protection: IP55
Insulation Class: F

Shruti Engineering manufactures high-quality Gear Brake Motors designed for reliable performance, precise control, and long service life in demanding industrial applications.

Advanced Safety with AC Fail Safe Brake

The NMRV Worm Gear Brake Motor integrates an AC Fail Safe Brake, delivering reliable stopping power for critical machinery. This feature ensures immediate actuation during power failures, making it ideal for environments where operational safety is paramount. It is particularly suited for high-stress applications, providing peace of mind through secure, automatic braking.

Versatile Design for Varied Applications

Engineered for flexibility, this motor supports both horizontal and vertical operations, and is available in foot-mounted and flange-mounted variants. Its efficient cooling via a totally enclosed fan ensures optimum performance across applications like textile production, conveyor systems, and packaging lines. The IP55 protection rating allows safe operation in challenging industrial conditions.

FAQ's of NMRV WORM GEAR BRAKE MOTOR:

Q: How does the AC Fail Safe Brake enhance operational safety?

A: The AC Fail Safe Brake automatically engages when power is lost, bringing machinery to a quick, secure stop. This prevents accidental movement, enhancing safety in industrial settings.

Q: What makes the NMRV Worm Gear Brake Motor maintenance-free?

A: The motor features grease-filled lubrication for lifetime use and ball bearings, minimizing wear and eliminating the need for regular maintenance checks or lubricant changes.

Q: Where can I use this worm gear brake motor?

A: It is ideal for textile machines, conveyor systems, packaging equipment, and various industrial automation applications, thanks to its versatile mounting options and robust construction.

Q: What gear ratios and power outputs are available?

A: Gear ratios range from 7.5:1 to 100:1, with output power options between 0.18 kW and 7.5 kW, accommodating a variety of torque and speed requirements.

Q: How is the NMRV Worm Gear Brake Motor installed and operated?

A: You can mount the unit in either horizontal or vertical positions using foot or flange mounts. It supports direct-on-line (DOL) starting and operates on 50 Hz AC, in both single-phase and three-phase configurations.

Q: What benefits does the aluminium alloy housing provide?

A: Aluminium alloy housing offers corrosion resistance, dissipates heat efficiently, contributes to a lighter overall weight, and enhances motor durability in tough industrial conditions.
