NU GEAR BRAKE MOTOR Specification

Bearing Type
Deep Groove Ball Bearing

Standard
IS: 325/IEC

Pressure
Atmospheric

Poles Number
4 Poles

Voltage
415 V

Rated Voltage
415 V AC

Efficacy
IE2/IE3 (As per standard efficiency rating)

Starting Type
Direct On Line (DOL)

Power Rating
1.1 kW

Horse Power
1.5 HP

Motor Type
Three Phase Induction Motor with Brake

Current Type
AC

Sealed Type
TEFC (Sealed)

Ambient Temperature
-10C to +50C

Noise Level
65 dB

Rated Frequency
50 Hz

Features
Flange/foot mounting, heavy duty design, high efficiency, integrated brake system

Torque
High (As per gearbox ratio and motor power)

Cooling Method
Fan Cooled

Product Type
Brake Motor with Worm Gearbox

Output Power
1.5 HP (as per standard motor rating)

Frequency (MHz)
50 Hz (0.05 MHz)

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM

Power
1.1 kW

Color
Blue

Dimension (L*W*H)
Standard/customized on request

Weight
Approx. 50-85 kg (varies by model size)

Shaft Diameter
24 mm (typical for 1.5 HP motors)

Mounting Type
Base Mounted (Foot Mount)

IP Rating
IP55

Lubrication
Grease/Oil filled

Control Method
Manual/Automatic

Gear Ratio
5:1 to 70:1 (depends on model)

Application
Conveyors, Lifts, Hoists, Packing Machines, Automation

Service Factor
1.15

Frame Size
112 mm

Brake Type
Electromagnetic AC Brake

Rotor Type
Aluminum die-cast

Vibration
2.5 mm/s

Gearbox Type
Worm Reduction Gearbox

Material
Cast Iron body

Max Relative Humidity
90%

Rated Duty
S1 - Continuous

Insulation Class
Class F

NU GEAR BRAKE MOTOR Trade Information

Minimum Order Quantity
1 Number

Delivery Time
5-7 Days

About NU GEAR BRAKE MOTOR

NU Gear Brake Motor Description

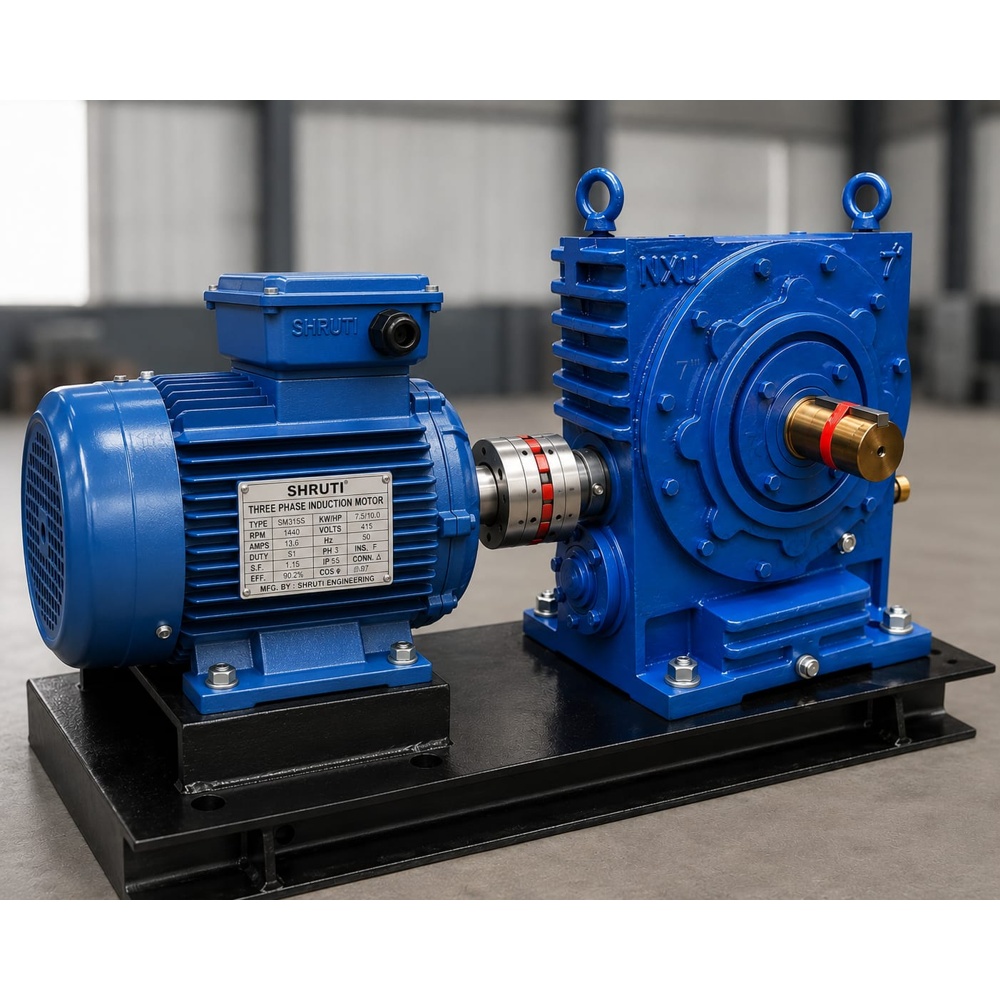

The NU Gear Brake Motor is a compact and efficient power transmission unit that combines a worm gearbox, electric motor, and electromagnetic brake in a single assembly. It is designed to provide high torque output, reliable braking, and smooth operation for applications requiring precise stopping and holding of loads.

Features:

High torque transmission with compact design
Electromagnetic AC/DC brake for instant stopping
Smooth and quiet operation
Robust cast iron/aluminum gearbox construction
Low maintenance and long service life
Available in various reduction ratios and motor ratings
Foot-mounted and flange-mounted options

Applications:

Cranes and Hoists
Conveyors
Packaging Machines
Material Handling Equipment
Elevators and Lifts
Industrial Automation Systems
Textile and Printing Machinery

Benefits:

Prevents reverse movement of loads
Ensures safety during power failure
Improves positioning accuracy
Reduces wear on mechanical components
Energy-efficient and reliable performance

Manufactured by: Shruti Engineering
Product: NU Gear Brake Motor | Worm Gear Brake Motor | Geared Brake Motor Assembly.

Heavy-Duty Design and Longevity

Built with a sturdy cast iron body and deep groove ball bearings, the NU GEAR Brake Motor ensures superior durability and minimal maintenance. The integrated TEFC (Totally Enclosed Fan Cooled) system protects internal components from dust, moisture, and corrosion, making it suitable for varied industrial operating conditions.

Precision, Control, and Versatility

Equipped with an electromagnetic AC brake and worm reduction gearbox, this motor provides precise stopping and torque control across various gear ratios. Its compatibility with both manual and automatic control methods enables seamless integration with conveyors, lifts, hoists, automation, and packing machinery.

Energy Efficiency and Safe Operation

Designed to comply with IE2/IE3 efficiency standards, the NU GEAR Brake Motor optimizes energy use without sacrificing output power. It supports direct on line (DOL) starting, operates quietly at 65 dB, and features advanced Class F insulation, ensuring safe operation at ambient temperatures between -10C and +50C.

FAQ's of NU GEAR BRAKE MOTOR:

Q: How does the electromagnetic AC brake in the NU GEAR Brake Motor enhance operational safety?

A: The integrated electromagnetic AC brake provides immediate and reliable stopping power, minimizing coasting and allowing for precise positioning. This feature is crucial for applications like lifts and conveyors where controlled stopping directly impacts safety and performance.

Q: What is the process for selecting the appropriate gear ratio for my application?

A: To select the right gear ratio (from 5:1 to 70:1), start by assessing the required output speed and torque for your machinery. A higher ratio delivers more torque but reduces speed; consult your system specifications or contact our engineers to match the gear ratio to your operational needs.

Q: Can the NU GEAR Brake Motor function continuously in an industrial environment?

A: Yes, this brake motor is rated for S1 continuous duty and features a TEFC enclosure, Class F insulation, and an IP55 rating. These characteristics allow it to operate continuously and reliably in rigorous industrial settings, including automation and heavy-duty conveyors.

Q: Where can the NU GEAR Brake Motor be installed and how flexible is its mounting?

A: With its base-mounted (foot mount) design, the NU GEAR Brake Motor can be installed on standard or custom machinery frames. It is suitable for installation on conveyors, lifts, hoists, packing machines, and a range of automation systems, offering both flange and foot mounting options.

Q: What benefits do the IE2/IE3 efficiency ratings offer for users?

A: IE2/IE3 high efficiency ratings help reduce energy consumption and operating costs over the motor's lifetime, while also limiting heat generation and extending the motor's lifespan. These benefits are particularly valuable in continuous use applications.

Q: How should the NU GEAR Brake Motor be lubricated for optimal performance?

A: The worm reduction gearbox and bearings can be lubricated with grease or oil according to the manufacturer's schedule. Proper lubrication reduces wear, maintains smooth operation, and supports long-term reliability.
