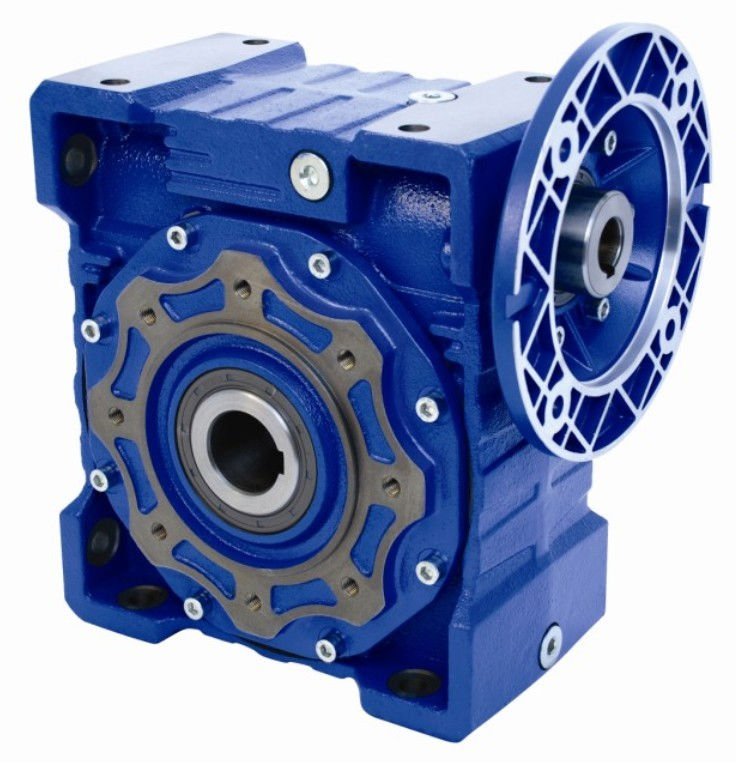

Packaging Machine Gear Box

Packaging Machine Gear Box Specification

Gear Type
Worm Gear, Helical Gear

Material
Aluminum Alloy Body, Hardened Steel Gears

Processing Type
Precision Machined

Gear Tooth Profile
Helical/Worm

Gearing Arrangement
Right Angle

Direction
Bidirectional

Output Torque
Up to 350 Nm

Rated Power
0.25 - 7.5 kW

Input Speed
Up to 1500 RPM

Output Speed
14 - 260 RPM

Voltage
220V/380V/415V (Customizable)

Efficiency
Up to 92%

Application
Packaging Machinery, Conveyors, Material Handling Equipment

Operating Temperature
-10C to +60C

Customization
Available on request

Noise Level
Low Noise Operation

Input Shaft Diameter
Up to 28 mm

Output Shaft Diameter
Up to 70 mm

Weight
6 - 65 kg (depending on model)

Surface Finish
Powder Coated/Enamel Painted

Reduction Ratio
7:1 to 80:1 available

Protection Grade
IP55

Mounting Type
Flange and Foot Mounted

Lubrication
Oil Bath Lubrication

About Packaging Machine Gear Box

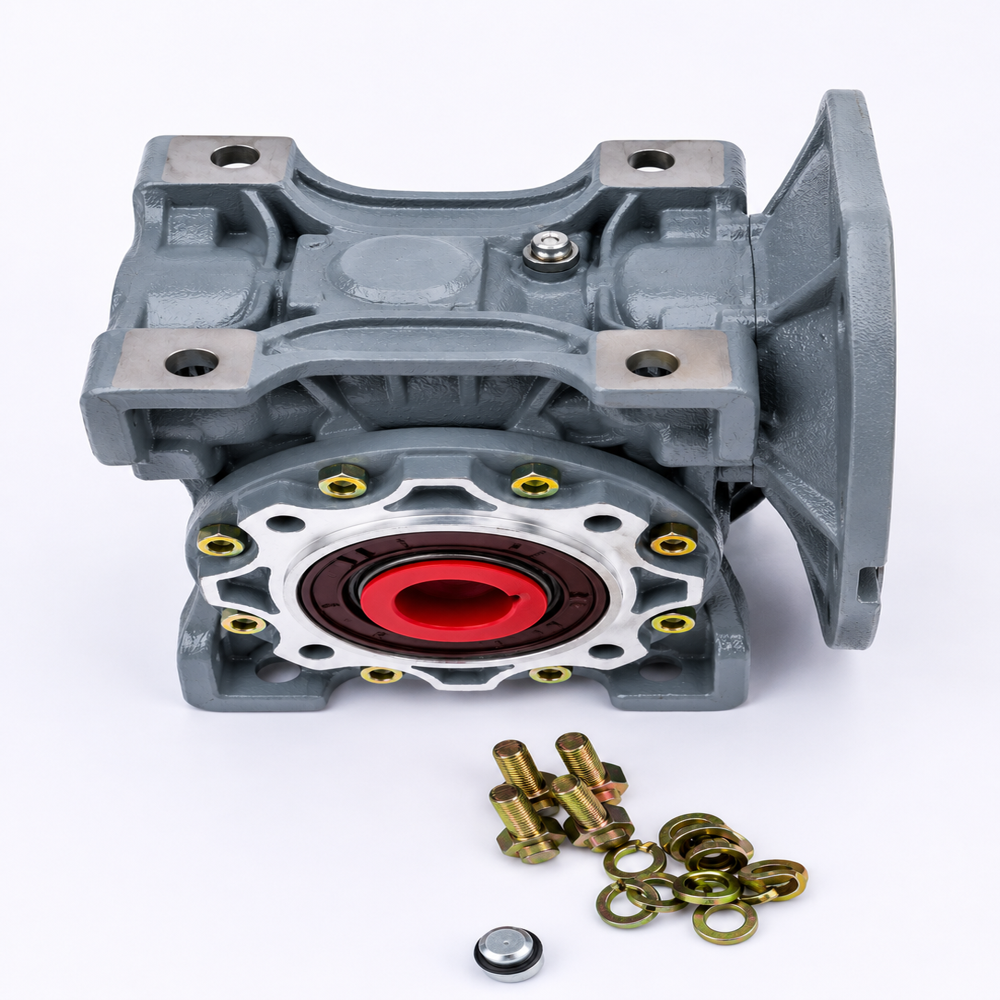

The SW reducer, which complements the Motovario NMRV gear reducer, has a shaft height between 30 and 110 mm (Baugren 030 bis 105) and a compact round smooth body casing design that reduces the space as much as possible. For better reliability and compatibility/effectiveness of supply, the gearing, the bearings, the motor flange and the accessories are those of the NMRV series.

Advanced Mounting Flexibility

Choose between flange or foot-mounted configurations to suit your installation needs. This flexibility allows seamless integration into different packaging, conveyor, or material handling systems, ensuring stability and ease of maintenance during operation.

Designed for Performance and Durability

Built with precision-machined, hardened steel gears inside a robust aluminum alloy body, our gearboxes offer exceptional strength, efficiency (up to 92%), and longevity. Oil bath lubrication and a powder-coated finish further enhance protection and smooth, low-noise operation.

Tailored for Industrial Applications

Serving as a powerful solution for packaging machinery and conveyors, our gearboxes handle input speeds up to 1500 RPM and provide reliable torque. With IP55-rated protection and operating temperature from -10C to +60C, they adapt to various industrial settings with unwavering performance.

FAQ's of Packaging Machine Gear Box:

Q: How does oil bath lubrication benefit the Packaging Machine Gear Box?

A: Oil bath lubrication continuously coats the gears within the gearbox, reducing friction, minimizing wear, and enabling quieter operation. This ensures a longer service life and smooth performance in demanding packaging and conveyor applications.

Q: What is the significance of the IP55 protection grade for this gearbox?

A: An IP55 protection grade means the gearbox is safeguarded against dust ingress and low-pressure water jets. This makes it suitable for use in environments where exposure to dust and moisture might occur, providing reliable and safe operation in industrial settings.

Q: When should I choose flange mounting versus foot mounting for my gear box?

A: Flange mounting is ideal when the gearbox must be directly secured to a machine frame or surface, whereas foot mounting is preferred for installations requiring floor placement or elevated structures. Your choice depends on your equipment's design and available space.

Q: Where can this Packaging Machine Gear Box be used?

A: This gearbox is specially designed for packaging machinery, conveyor systems, and material handling equipment in various industries. Its robust build and adaptable features suit manufacturing plants, warehouses, and other automation environments.

Q: What customization options are available for the gear box?

A: We offer customization for shaft diameters, voltage ratings, reduction ratios, and mounting arrangements. If your project requires special specifications or unique configurations, please request a custom solution tailored to your operational needs.

Q: How does the gearbox ensure low noise during operation?

A: Low noise levels are achieved through precision machining, the use of high-quality helical or worm gears, and constant oil bath lubrication. These features collectively reduce friction, dampen vibration, and minimize operational sound.

Q: What are the operational temperature limits of the gear box, and why are they important?

A: The gearbox operates effectively from -10C to +60C, which enables it to function reliably in both cold and hot industrial environments. Maintaining these temperature limits ensures optimal lubrication performance and protects internal components from thermal damage.
