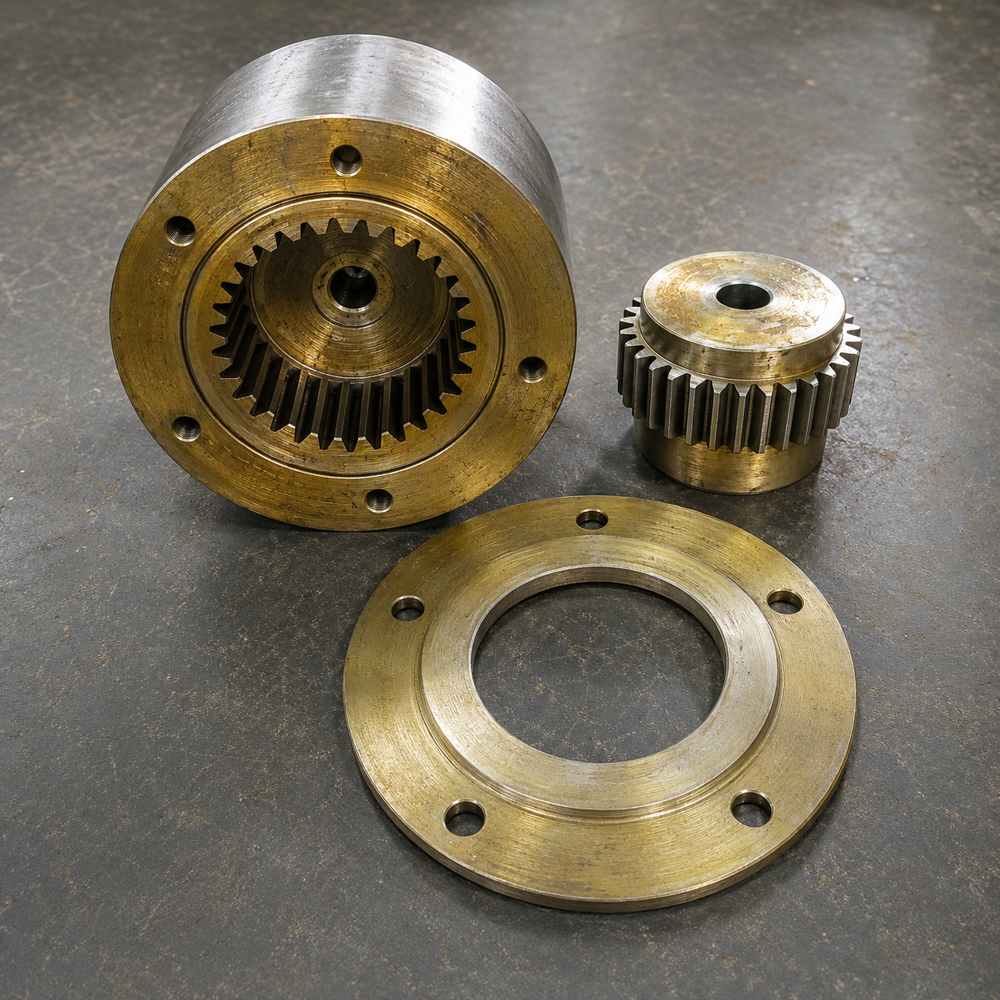

Paper Mill Coupling

Paper Mill Coupling Specification

Thread
No external threading; internal gear teeth

Max. Speed
Up to 3000 RPM depending on size and application

Torque
Rated up to 3500 Nm, size dependent

Sealing
Metal-to-metal fit, optional gasket sealing

Head Code
Round head with flange connection

Bore
Customizable as per shaft size requirements

Connection
Flanged, gear type coupling connection

Material
High-grade alloy steel or phosphor bronze

Structure
Consists of inner gear, outer sleeve, and flange

Standard
Manufactured as per industrial coupling standards

Inner Diameter
Custom to application, typically 40mm - 150mm

Outer Diameter
Customizable, typically 120mm - 280mm

Application
Used in paper mill machinery for connecting shafts to transmit mechanical power

Surface Treatment
Precision-machined, surface ground and anti-corrosive finish

Technique
Machined and gear cut using CNC technology

Shape
Cylindrical with flange type coupling

Misalignment Compensation
Radial & Angular (as per gear design)

Hardness
Hardened to 45-55 HRC (typical)

Lubrication
Required (grease/oil as per use)

Usage Life
Long operational life, low-maintenance

Number of Teeth
Custom as per design

Mounting Holes
4 or 6 (custom machined)

Operational Temperature Range
-10C to +80C

Corrosion Resistance
Yes, with anti-corrosive finish

Color
Metallic, Golden or Silver finish

Weight
Varies based on size, typically 5-20 kg

Paper Mill Coupling About

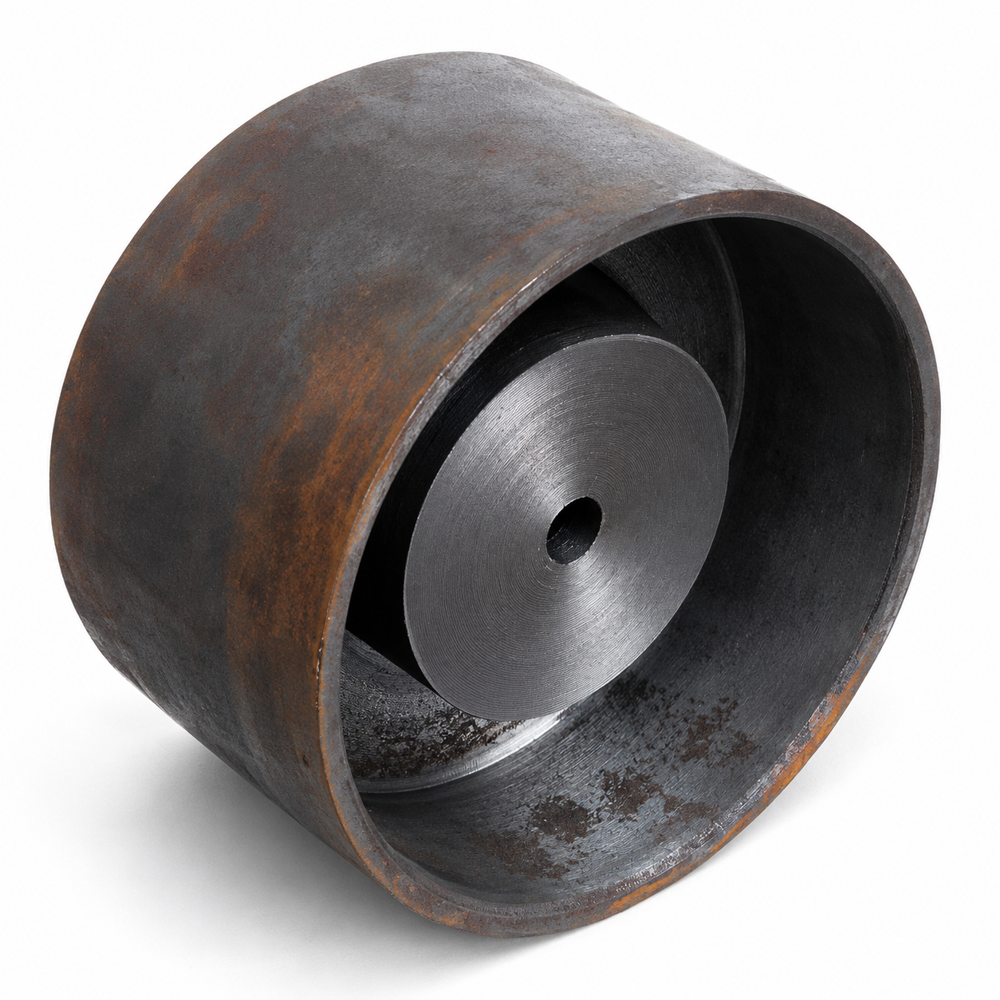

Gear Brake Drum Coupling Description

A Gear Brake Drum Coupling is a robust mechanical power transmission device designed to connect two shafts while providing a reliable brake drum surface for stopping or controlling motion. It combines the features of a gear coupling and a brake drum, ensuring efficient torque transmission, alignment flexibility, and braking facility in a single compact unit.

These couplings consist of two hubs with external gear teeth and a brake drum that is integrally mounted. The gear teeth mesh with a sleeve or casing, allowing for slight angular, parallel, and axial misalignments of the connected shafts. The integrated brake drum enables easy installation of a brake shoe or band, making it suitable for applications where controlled stopping, holding, or speed regulation is required.

Key Features:

High torque transmission with compact design
Integrated brake drum for braking applications
Accommodates angular, axial, and parallel misalignment
Easy to assemble and maintain
Heavy-duty cast iron or steel construction for durability
Suitable for reversing and high-speed operations

Precision-Crafted for Paper Mill Machinery

Our couplings are purpose-built for paper mill equipment, offering customized teeth profiles and bore sizes to match your exact requirements. Each unit is meticulously machined and gear-cut using CNC technology to ensure perfect alignment and superior fitment, maximizing the lifespan and efficiency of heavy-duty applications.

Advanced Materials & Protective Finish

Constructed from high-grade alloy steel or phosphor bronze, every coupling receives precision machining, surface grounding, and an anti-corrosive treatment. Choose from a metallic, golden, or silver finish, all designed for both aesthetic appeal and increased protection in harsh industrial environments.

Engineered for Longevity and Reliability

Designed to last, the hardened surfaces (45-55 HRC) and robust construction enable these couplings to perform under continuous operation with minimal maintenance. Their ability to compensate for both radial and angular misalignments reduces wear and protects connected equipment, ensuring dependable service even in high-torque, high-speed applications.

FAQ's of Paper Mill Coupling:

Q: How do I select the correct Paper Mill Coupling for my machinery?

A: Selection depends on shaft diameter, required torque, operational speed, and alignment conditions. Provide your machine's specifications, and we can customize the bore, teeth, and mounting holes to fit your requirements, ensuring a secure fit and optimal transmission efficiency.

Q: What is the manufacturing process for these couplings?

A: Each coupling is CNC-machined and precision gear-cut to meet industrial coupling standards. Machining includes customization of mounting holes, internal gear teeth, and a metal-to-metal fit. The surface is ground and treated with an anti-corrosive finish, enhancing durability and longevity.

Q: Where are these couplings typically used?

A: These couplings are primarily used in paper mill machinery to connect shafts for mechanical power transmission. However, their robust design and compatibility with high-speed and high-torque systems make them suitable for a wide range of heavy industrial applications.

Q: What maintenance is required for the Paper Mill Coupling?

A: Routine lubrication with the recommended grease or oil is essential for smooth operation and longevity. Thanks to their hardened surfaces and anti-corrosive finish, these couplings require minimal additional maintenance, even under continuous, demanding use.

Q: What benefits do these couplings offer compared to standard models?

A: Compared to standard couplings, these feature customizable design options (teeth, bore, mounting holes), superior misalignment compensation, long operational life, and enhanced corrosion resistance, reducing downtime and prolonging equipment life.

Q: When should I consider replacing my existing coupling?

A: Couplings should be replaced if there is visible wear, misalignment, excessive noise, or a loss of torque transmission efficiency. Our couplings' robust construction and finish are designed to extend service intervals and reduce replacement frequency.

Q: How does the anti-corrosive finish benefit industrial applications?

A: The anti-corrosive finish protects the coupling from rust and chemical deterioration, extending its operational lifespan. This is especially beneficial in moist or chemically aggressive environments typical of paper mills or processing plants.
