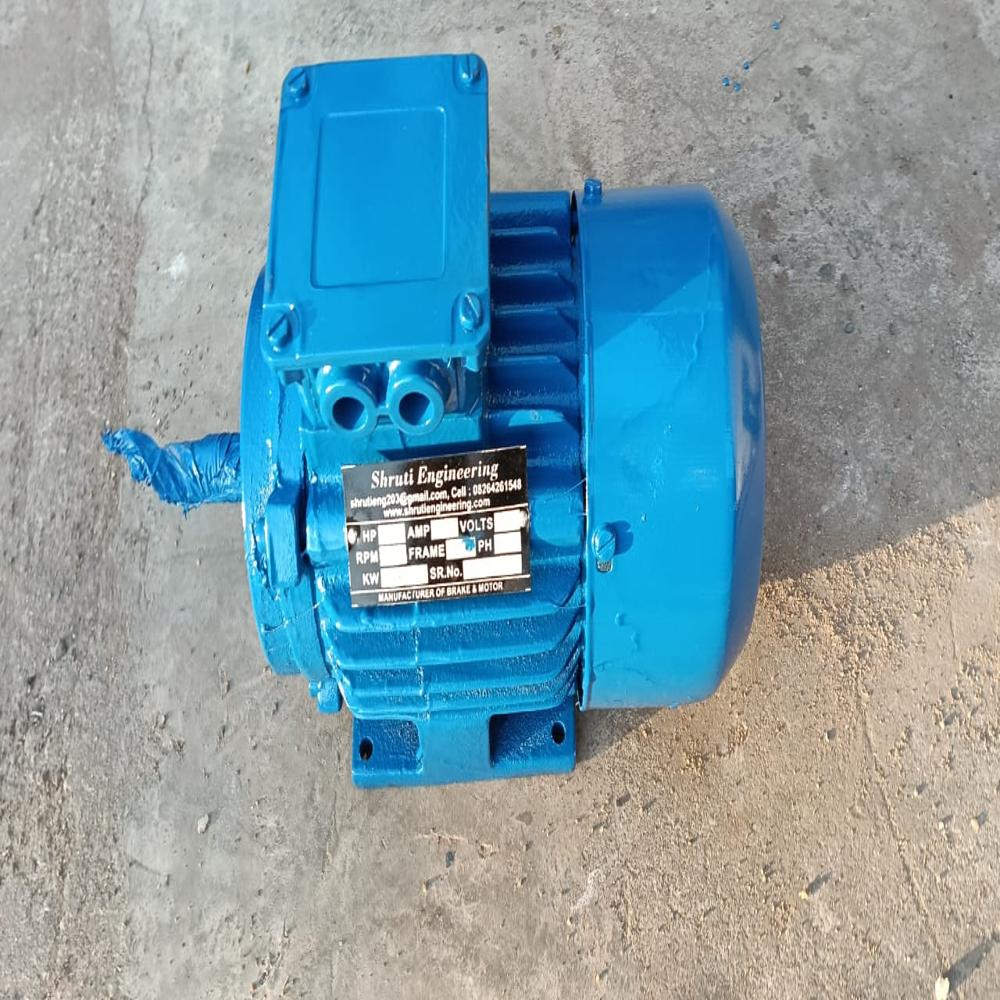

Single Phase Induction Motor

Single Phase Induction Motor Specification

Cooling Method
Air Cooled (Fan)

Ambient Temperature
-15C to +50C

Bearing Type
Ball Bearing

Features
Maintenance-free, Energy Efficient, Smooth Operation

Power Rating
0.37 kW to 3.7 kW

Horse Power
0.5 HP to 5 HP

Torque
High Starting Torque

Noise Level
Low

Pressure
Atmospheric

Standard
IS 325, IEC 60034

Efficacy
High Efficiency

Sealed Type
Standard Sealed

Motor Type
Single Phase Induction Motor

Starting Type
Capacitor Start

Rated Voltage
220 V

Rated Frequency
50 Hz

Current Type
AC

Voltage
220 V

Poles Number
2/4 Poles

Product Type
Electric Motor

Output Power
0.5 HP to 5 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
0.37 kW to 3.7 kW

Color
Blue

Dimension (L*W*H)
Standard as per model

Weight
Varies by model (approx. 12 to 50 kg)

Shaft Diameter
Standard as per power rating

Mounting Type
Foot Mounted

IP Rating
ip44

Applications
Pumps, Fans, Blowers, Compressors, Small Machineries

Frame Material
Cast Iron/Aluminum

Efficiency Class
IE2/IE3 as per requirement

Service Factor
1.0 to 1.15

Enclosure Type
TEFC (Totally Enclosed Fan Cooled)

Insulation Class
F Class

Duty Cycle
S1 Continuous Duty

About Single Phase Induction Motor

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

High-Efficiency Design & Robust Build

With efficiency classes IE2 and IE3, this single phase induction motor combines energy savings with a durable frame in cast iron or aluminum. Its TEFC enclosure guards internal parts from dust and moisture, while Class F insulation and standard sealing prolong motor life in varied environments.

Versatile Applications and Seamless Operation

Engineered for continuous operation, this motor is perfectly suited for pumps, fans, blowers, compressors, and a range of small machines. The high starting torque and low noise performance make it ideal for both commercial and industrial usage, ensuring smooth and maintenance-free operation.

FAQ's of Single Phase Induction Motor:

Q: How does the TEFC (Totally Enclosed Fan Cooled) enclosure benefit the motor?

A: The TEFC enclosure provides excellent protection against dust, dirt, and moisture, making the motor suitable for harsh or challenging environments. Additionally, the integrated fan ensures effective cooling, reducing the risk of overheating and extending the motor's operational life.

Q: What types of applications are these single phase induction motors best suited for?

A: These motors are ideal for a wide range of uses, including pumps, fans, blowers, compressors, and various small machinery. Their robust build and high starting torque make them especially effective in applications requiring reliable and continuous operation.

Q: Where should I install this motor for optimal performance?

A: Install the motor in well-ventilated areas within the recommended ambient temperature range of -15C to +50C. The foot-mounted design ensures stable placement on flat surfaces, while the TEFC enclosure allows for outdoor or indoor setups with minimal maintenance.

Q: What are the main benefits of choosing a motor with efficiency class IE2 or IE3?

A: IE2 and IE3 efficiency classes ensure reduced energy consumption, leading to significant long-term cost savings. Motors in these classes also generate less heat and have longer lifespans, making them a sustainable choice for continuous duty applications.

Q: How is this motor started, and what advantage does capacitor start provide?

A: This single phase motor utilizes a capacitor start mechanism, which delivers a high starting torque. This is beneficial for driving loads that require a strong initial push, such as pumps and compressors, ensuring smooth and reliable start-up under load.

Q: When should regular maintenance be performed on this motor?

A: Thanks to its maintenance-free design and ball bearing construction, routine maintenance is minimal. However, periodic inspections as per standard industrial practices are advisable to ensure long-term performance, especially in demanding environments.
