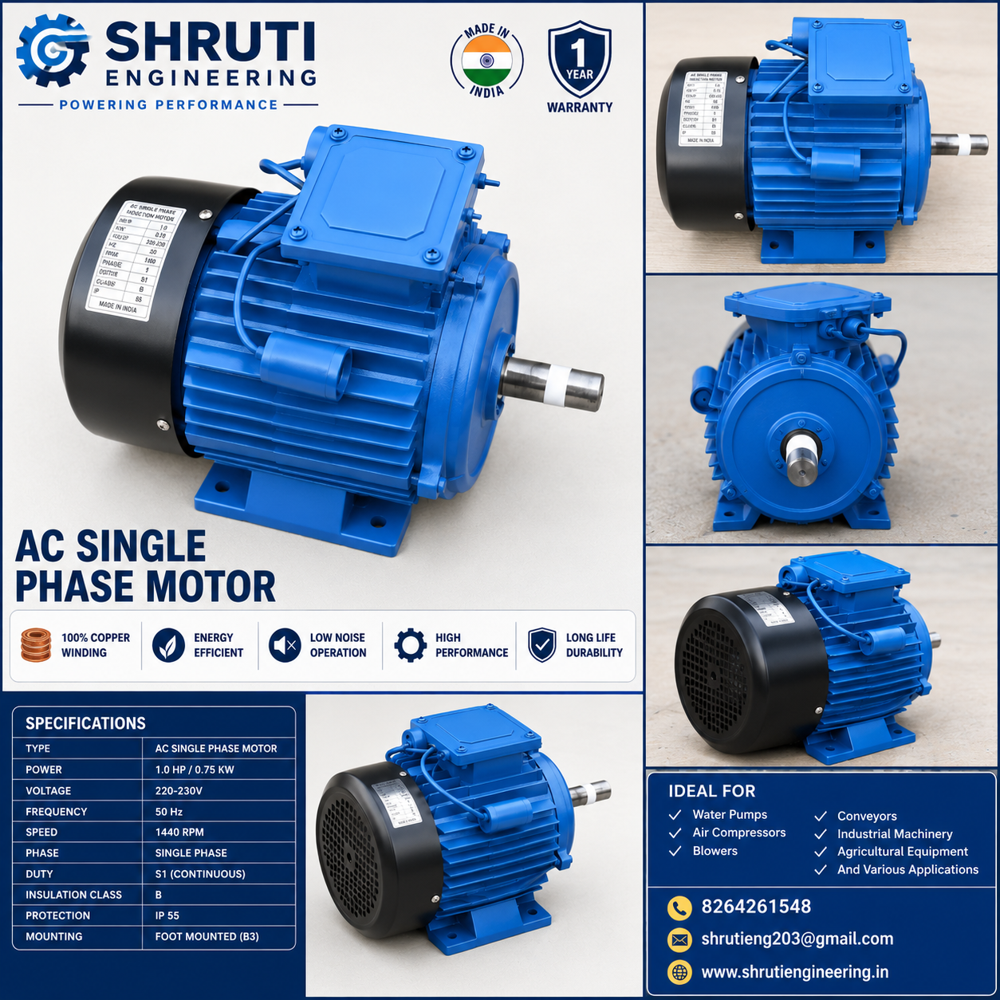

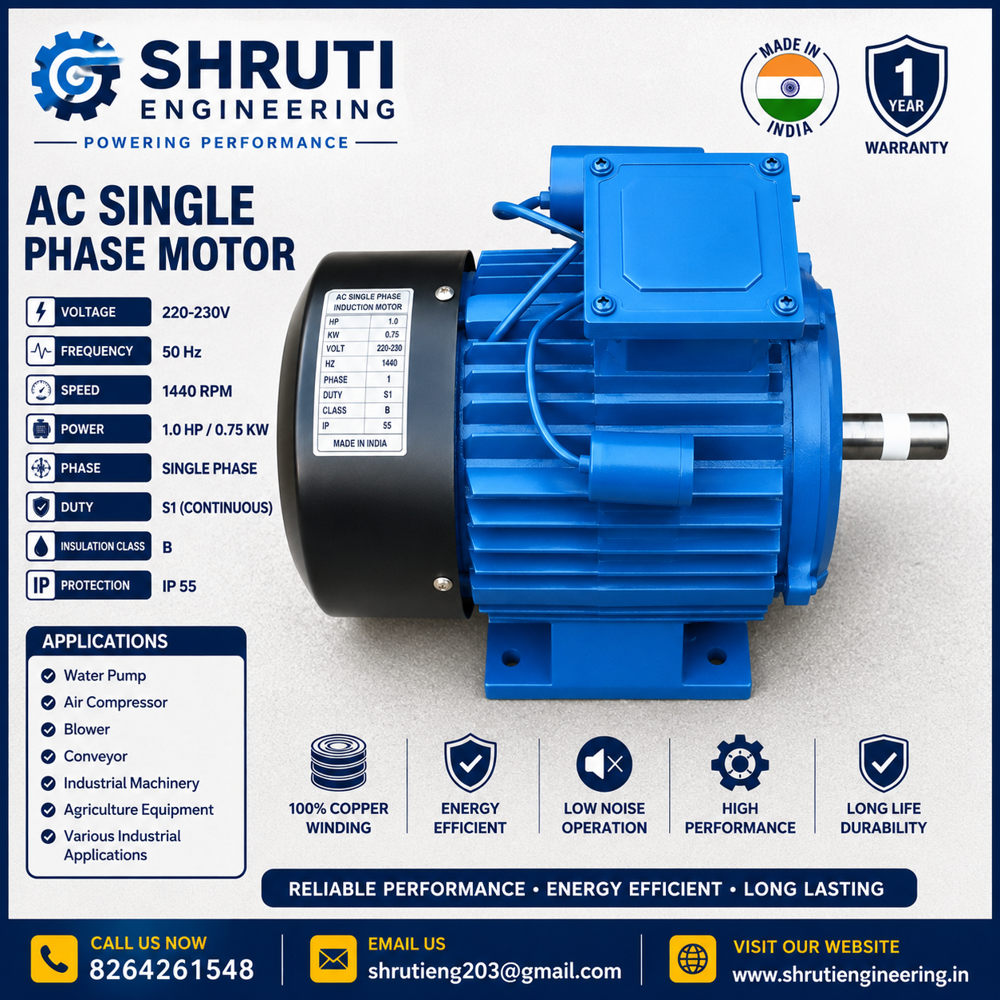

Single Phase Motor for Conveyor

Single Phase Motor for Conveyor Specification

Voltage
220-230V

Standard
Class B Insulation

Features
100% Copper Winding, Energy Efficient, Low Noise Operation, High Performance, Long Life Durability

Power Rating
0.75 KW

Horse Power
1.10 HP

Current Type
AC

Motor Type
AC Single Phase Motor

Rated Frequency
50 Hz

Rated Voltage
220-230V

Efficacy
Energy Efficient

Noise Level
Low Noise Operation

Product Type
AC Single Phase Motor

Output Power
1.10 HP / 0.75 KW

Frequency (MHz)
50 Hz

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
1.10 HP / 0.75 KW

Color
Blue

Mounting Type
Foot Mounted (B3)

IP Rating
IP 55

Duty
S1 (Continuous)

Suitable Applications
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Agricultural Equipment, and Various Applications

Insulation Class
B

About Single Phase Motor for Conveyor

We Are a Manufacturer Of All Types Of Electric Motor like 1 Phase, 3 Phase, AC Brake motor, DC Brake Motor, Flange Mount Motor, Foot Mount Motor, All Types Of gearmotor & Industrial Gearboxes. prices are depends upon variant.

Efficient & Durable Motor for Diverse Applications

Designed for continuous-duty performance, this single-phase motor is an excellent choice for powering conveyors, pumps, compressors, blowers, and various machinery. With 100% copper winding and Class B insulation, it guarantees efficiency, reliability, and safe operation over prolonged periods. The IP55 enclosure provides robust protection against dust and water, making it suitable for challenging environments. Its low noise output and energy-saving design support smooth, uninterrupted industrial or agricultural processes.

Optimized for Performance and Longevity

Combining high performance with energy efficiency, this AC motor operates at 220-230V and delivers a steady output of 1.10 HP. Its solid construction and advanced winding technology minimize maintenance and extend operational life. The B3 foot-mounted setup offers easy installation and stability, enhancing overall user satisfaction. Suited for both new and retrofit applications, it meets the rigorous demands of continuous-use settings.

FAQ's of Single Phase Motor for Conveyor:

Q: How is this single-phase motor installed for conveyor systems or other machinery?

A: This motor features a B3 foot-mounted design, making installation straightforward on conveyor bases or other compatible machinery frames. Secure the motor using proper mounting bolts, ensuring alignment with the driven equipment for optimal performance and reduced vibration.

Q: What are the benefits of using a Class B insulated, 100% copper winding motor?

A: Class B insulation provides enhanced temperature resistance and electrical safety, while 100% copper windings ensure excellent conductivity and energy efficiency, resulting in longer service life, reduced power consumption, and reliable high performance.

Q: Where can this motor be effectively used?

A: This versatile motor is ideal for a variety of applications, including water pumps, air compressors, blowers, conveyors, industrial machinery, and agricultural equipment-making it suitable for manufacturing, agriculture, workshops, and process industries.

Q: When should I choose an IP55 rated motor?

A: Select an IP55 rated motor when your application is exposed to dust or water splashes, such as in agriculture, industrial plants, or outdoor environments. This rating shields the motor from harmful dust ingress and low-pressure water jets, ensuring dependable operation in challenging conditions.

Q: What process does the motor use to deliver low noise and high efficiency?

A: The motor utilizes precision-engineered components and 100% copper winding, reducing energy loss and mechanical noise. Its optimized design and Class B insulation further contribute to efficient, quiet, and continuous-duty operation.

Q: How does this motor support energy-saving requirements in continuous operations?

A: Engineered with energy-efficient components and advanced winding technology, the motor minimizes electrical losses. This not only lowers energy bills but also supports sustainable, cost-effective production over prolonged use.
