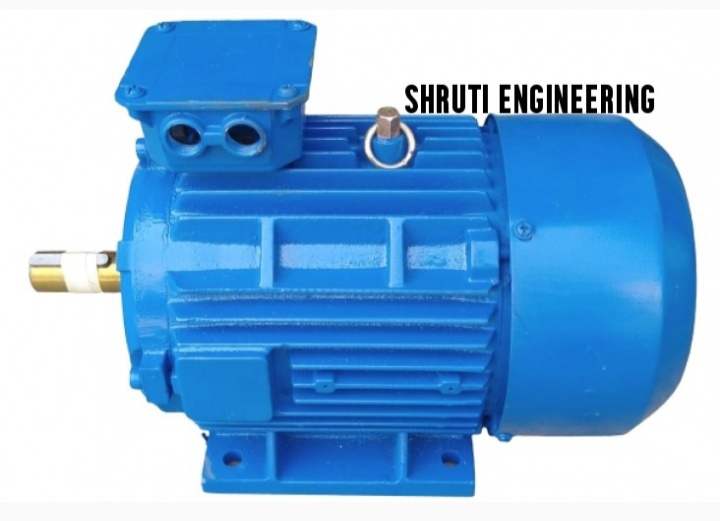

Three Phase Electric Motor

Three Phase Electric Motor Specification

Horse Power
3 HP

Current Type
AC

Features
Heavy Duty, Low Maintenance, Vibration Free

Pressure
Standard Atmospheric

Efficacy
IE2

Sealed Type
Totally Enclosed

Poles Number
4

Rated Voltage
415 V

Power Rating
2.2 kW

Bearing Type
Ball Bearing

Torque
14.6 Nm

Ambient Temperature
-15C to 40C

Noise Level
<65 dB

Motor Type
Induction Motor

Rated Frequency
50 Hz

Starting Type
Direct-On-Line (DOL)

Voltage
415 V

Cooling Method
Air Cooled

Standard
IS 325

Product Type
Three Phase Electric Motor

Output Power
3 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM

Power
2.2 kW

Color
Blue

Dimension (L*W*H)
320 x 200 x 250 mm

Weight
28 kg

Shaft Diameter
28 mm

Mounting Type
Foot Mounted/B3

IP Rating
IP55

Duty Cycle
S1 (Continuous)

Frame Size
100L

Rotation Direction
CW/CCW

Insulation Class
Class F

Efficiency at Full Load
86%

Service Factor
1.0

Application
Industrial, Pumps, Compressors, Blowers, Fans

About Three Phase Electric Motor

We are manufacture, exporter and supplier of brake motor. Basically Brake motor is combination of brake and motor. Our clients can avail from us a wide collection of best quality Brake Motors. These products are appreciated for its optimum performance and excellent quality. Raw material for these products sourced from repudiated vendors, the offered motors are well known among the client and can be availed from us in standard sizes according to the requirements of individual. Highly demanded for its special features, this product is offered at budget friendly prices by us.

Engineered for Demanding Industries

Ideal for continuous duty cycles, this motor is expertly crafted for industrial environments where pumps, compressors, blowers, and fans require consistent, long-term operation. The heavy-duty design ensures reliable service and low maintenance, resulting in reduced downtime and enhanced operational efficiency.

Optimized Performance & Efficiency

Operating at 2.2 kW (3 HP) and achieving an 86% full-load efficiency (IE2 class), this motor helps reduce energy costs. The direct-on-line starting and vibration-free mechanisms make installation and daily use seamless, while the air-cooled, totally enclosed housing (TEFC) provides excellent protection against dust and moisture.

Reliable, Durable & Safe Operation

The Class F insulation and IP55 protection rating guard against thermal and environmental stress, supporting a wide temperature range. Ball bearing construction and a 28 mm shaft diameter reinforce stability and durability, while the low noise level (<65 dB) ensures a more comfortable work setting.

FAQ's of Three Phase Electric Motor:

Q: How do I install the Three Phase Electric Motor with a 100L frame size?

A: This motor is designed for foot mounting (B3) and should be installed on a stable, level surface with proper alignment. Ensure access to a 415 V AC, 50 Hz three-phase supply. For safety and optimal performance, follow the manufacturer's detailed installation instructions and always secure the mounting bolts.

Q: What applications are best suited for this electric motor?

A: This motor is ideal for industrial equipment such as pumps, compressors, blowers, and fans. Its continuous duty (S1) cycle and robust construction allow it to reliably operate in challenging environments, making it suitable for factories, processing plants, and large-scale mechanical systems.

Q: When should I consider routine maintenance for this motor?

A: Routine maintenance should be performed according to the manufacturer's schedule, typically every 6-12 months. Key tasks include checking the ball bearings, inspecting electrical connections, ensuring the TEFC enclosure remains dust-free, and monitoring noise and vibration levels for early signs of wear.

Q: Where can this motor be safely operated?

A: The motor is rated for IP55 protection, so it can be used in environments with typical industrial dust and water exposure. It operates reliably at ambient temperatures between -15C and 40C under standard atmospheric pressure. Install it in locations with adequate ventilation to support the air cooling system.

Q: What are the benefits of the TEFC (Totally Enclosed Fan Cooled) feature?

A: The TEFC design prevents dust, dirt, and moisture from entering the motor casing, thereby enhancing durability and reducing the risk of electrical faults. Additionally, the fan cooling mechanism keeps the motor operating at safe temperatures even under continuous load, decreasing maintenance needs.

Q: How does the IE2 efficiency rating impact energy consumption?

A: An IE2 efficiency rating means the motor operates at higher energy efficiency (86% at full load), translating to lower electricity usage and reduced operational costs. Over time, these savings offset initial investment costs and contribute to sustainable energy practices.

Q: What safety standards and certifications does this motor meet?

A: This motor is manufactured to comply with IS 325 standards, ensuring quality, safety, and compatibility with common industrial requirements. The robust construction and IP55 rating offer additional peace of mind regarding safe and reliable operation.
