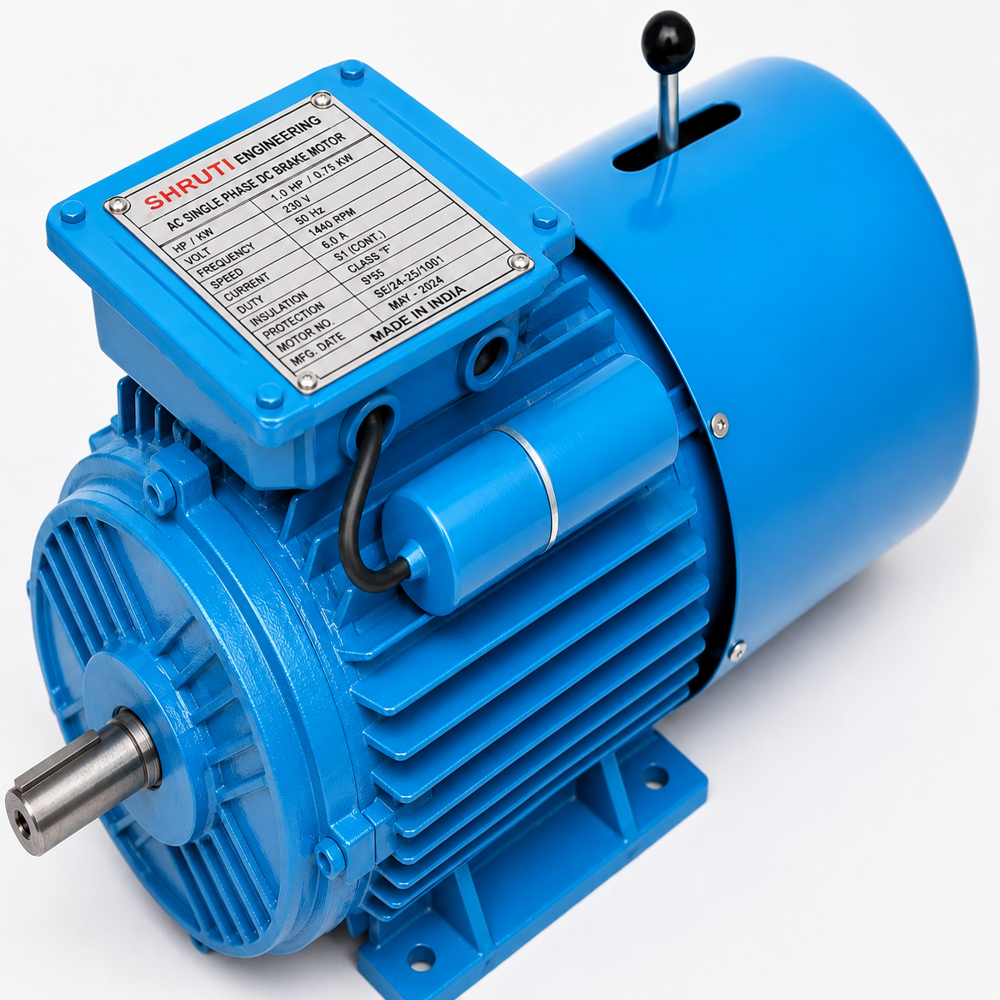

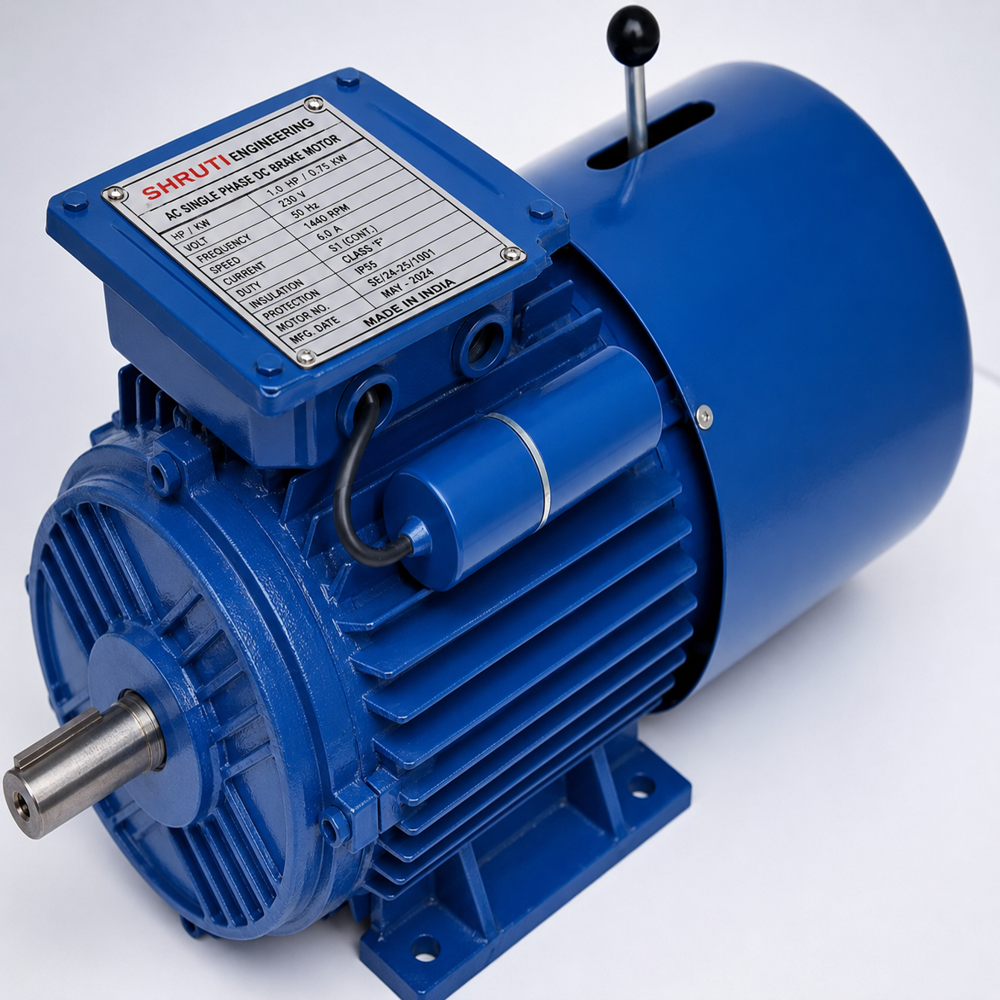

Single Phase Motor with Quick Stop DC Brake

Single Phase Motor with Quick Stop DC Brake Specification

Motor Type
AC Single Phase DC Brake Motor

Features
Quick Stop DC Brake

Current Type
AC

Power Rating
0.75 KW

Rated Frequency
50 Hz

Voltage
230 V

Horse Power
1 HP

Standard
IS 325, IS 4722, IS 1231, IS 2223 (from nameplate specification)

Rated Voltage
230 V

Starting Type
Capacitor Start

Product Type
AC Single Phase Motor with DC Brake

Output Power
0.75 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55 (as per nameplate reference)

Phase
Single Phase

Speed
1440 RPM

Power
1 HP / 0.75 kW

Color
Blue

Mounting Type
Foot Mounted (by visual)

IP Rating
IP55

Duty Type
S1 (Continuous) as per IS 325/4722

Manufacturing Date
May 2022

Insulation Class
Class F

About Single Phase Motor with Quick Stop DC Brake

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Efficient Performance with Advanced Braking

The quick stop DC brake enables immediate halting of machinery, reducing downtime and improving operational safety. This feature is particularly beneficial in environments where fast and controlled stops are essential. The capacitor start design further improves initial torque, ensuring smooth and reliable starts every time.

Designed for Durability and Continuous Operation

With insulation Class F and a duty type of S1 (continuous), this motor withstands high temperatures and prolonged use. The IP55 protection guards against dust and water ingress, adding to its longevity. Its compliance with IS standards assures quality and reliability for diverse industrial settings.

FAQ's of Single Phase Motor with Quick Stop DC Brake:

Q: How does the quick stop DC brake enhance motor safety and productivity?

A: The quick stop DC brake allows the motor to stop rapidly when required, reducing the risk of accidents and enabling swift changeovers. This feature is crucial for machines where safety and productivity depend on the ability to halt operation instantly.

Q: What applications are suitable for this single-phase AC DC brake motor?

A: This motor is ideal for machinery requiring quick, reliable stops, such as conveyors, processing equipment, and textile machines. Its robust build and reliable performance support continuous operation in various industrial settings.

Q: When should you consider using an IP55-rated motor like this one?

A: An IP55 rating signifies strong protection against dust and water jets, so this motor is appropriate for environments prone to moisture or particle ingress. It ensures dependable operation even in demanding conditions.

Q: Where can the motor be installed, and what is its mounting type?

A: The motor features foot mounting, making it straightforward to install on flat surfaces or machinery bases. This flexibility allows easy integration into existing setups in manufacturing plants or workshops.

Q: What is the process for starting this motor, and why is a capacitor start used?

A: The capacitor start mechanism provides higher starting torque, which helps overcome initial resistance during startup. This ensures the motor starts smoothly and reliably, even under load, making it suitable for applications involving frequent starts and stops.

Q: What benefit does insulation Class F offer in this motor?

A: Class F insulation allows the motor windings to withstand higher temperatures, up to 155C. This enhances durability and reliability during continuous operation, minimizing the risk of heat-related failures.
