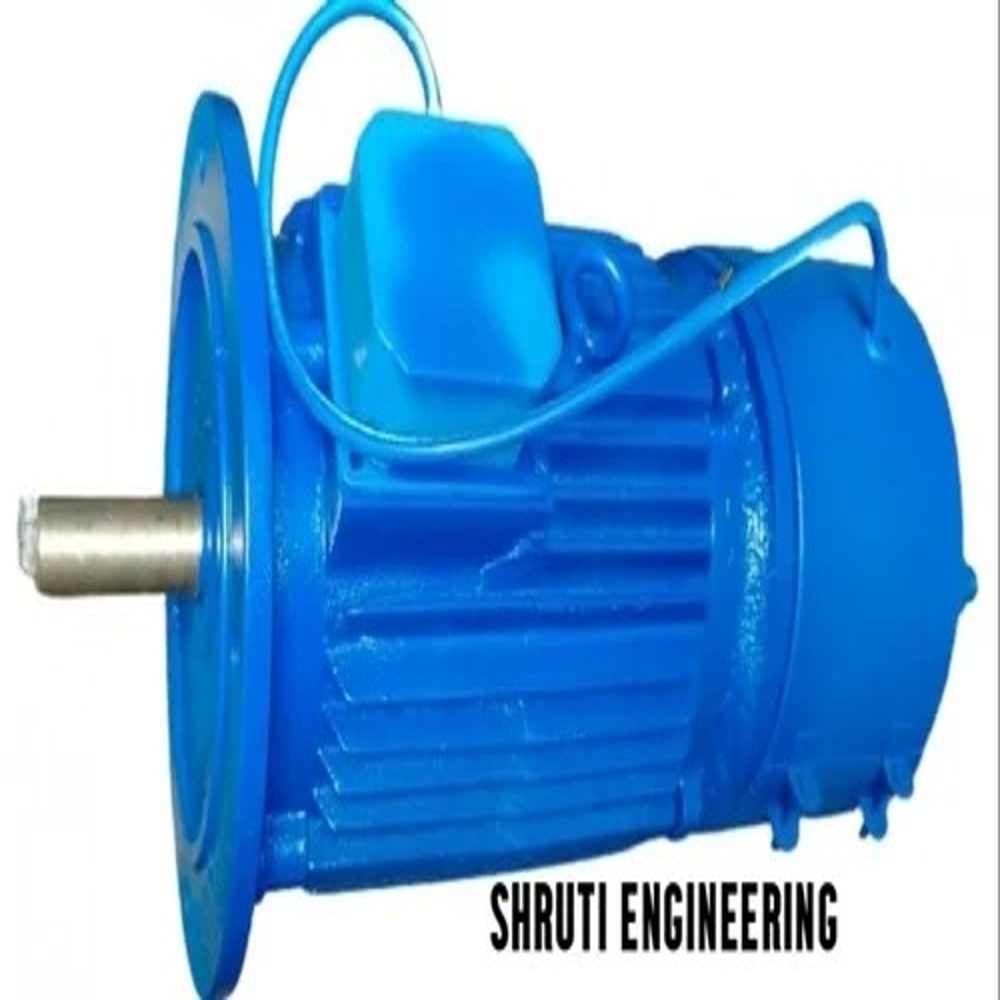

Spring Applied Brake Motor

Spring Applied Brake Motor Specification

Poles Number
2, 4, 6 or as specified

Motor Type
Spring Applied Brake Motor

Features
Spring applied fail safe brake, compact design, high durability, easy installation, minimal maintenance

Voltage
415V AC

Current Type
AC

Horse Power
Upto 40 HP

Noise Level
Low

Rated Voltage
415V

Cooling Method
Fan Cooled

Pressure
Atmospheric

Ambient Temperature
-10C to +50C

Power Rating
Standard ranges (As per requirement)

Efficacy
High Efficiency

Rated Frequency
50 Hz

Standard
IS: 325 / IEC

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Torque
High starting torque

Bearing Type
Double sealed ball bearings

Starting Type
Direct On Line (DOL)

Product Type
Electric Brake Motor

Output Power
Up to 30 kW (varies with model)

Frequency (MHz)
50-60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM or as specified

Power
As per requirement

Color
Blue

Dimension (L*W*H)
Standard, Depends on Power Rating

Weight
Varies with model

Shaft Diameter
Standard (depends on model)

Mounting Type
Flange/Foot Mounted

IP Rating
IP55

Duty Type
S1 (Continuous)

Connection Type
Star/Delta or as required

Frame Size
As per IEC standards

Brake Type
Electromagnetic, Fail safe Spring Applied

Insulation Class
Class F

Brake Voltage
230V / 415V AC

Application
Material handling, lifts, hoists, cranes, conveyors

About Spring Applied Brake Motor

Owing to the immense experience and a competent team of experts, we are able to offer Brake Motor to respectable clients. These brake motors offered by us are made utilizing high grade raw material at trustworthy vendors premises. In addition to this, the offered range of brake motors is suitably checked on different parameters to ensure its adherence with the international quality norms and standards.

High Safety and Control

Designed with a fail-safe, spring-applied electromagnetic brake, this motor instantly engages the brake upon power loss, ensuring enhanced safety in material handling operations. Ideal for critical applications such as cranes, lifts, and hoists, it offers reliable, controlled stopping power, reducing risk and supporting operator confidence in daily use.

Durable, Efficient, and Low Maintenance

Featuring Class F insulation, a robust TEFC design, and double-sealed ball bearings, this brake motor is built for endurance under tough industrial environments. Its high starting torque and energy efficiency meet demanding S1 duty cycles with low noise and minimal maintenance, making it a cost-effective solution for varied material handling needs.

Flexible Installation and Broad Compatibility

Available in standard IEC frame sizes and supporting both flange and foot mounting, this motor is adaptable for new setups and retrofit projects. With output power up to 30 kW, multiple voltage options, and star/delta connections, it easily integrates with a wide range of control systems and equipment configurations.

FAQ's of Spring Applied Brake Motor:

Q: How does the spring applied fail-safe brake enhance operational safety?

A: The spring applied fail-safe brake automatically engages and stops the motor when power is lost or intentionally disconnected, ensuring immediate halting of moving machinery like cranes or hoists. This mechanism effectively reduces risks of accidental loads dropping or uncontrolled movements, protecting both operators and equipment.

Q: What applications are best suited for this brake motor?

A: This brake motor is ideal for material handling equipment including hoists, lifts, conveyors, and cranes, where precise control, rapid stopping, and dependable operation during continuous service are essential. Its robust design is tailored for use in industrial and commercial settings requiring enhanced safety and reliability.

Q: When should I choose a motor with insulation Class F and IP55 rating?

A: You should opt for a motor with insulation Class F and IP55 protection when it will be operating in environments prone to higher temperatures, dust, or moisture. This combination ensures better heat resistance, electrical insulation, and ingress protection, thus providing longer motor service life and safe performance.

Q: Where can this brake motor be mounted during installation?

A: The motor can be installed using either the flange or foot mounting options, as per site requirements and IEC frame standards. This flexibility allows integration into various equipment setups, making it suitable for both new machinery and replacement projects in existing material handling systems.

Q: What is the process for connecting the motor - and can I use Star/Delta starting?

A: The brake motor supports both star and delta connections, providing users with choice based on their supply voltage and control requirements. Star/Delta starting is possible, particularly for larger motors, to reduce initial current draw and mechanical stress during powering-up.

Q: What are the key benefits of using a Totally Enclosed Fan Cooled (TEFC) design?

A: A TEFC design keeps internal components protected from dust, moisture, and contaminants, enhancing durability and minimizing maintenance needs. The integrated fan provides effective cooling, supporting continuous duty (S1) operation and boosting the motor's efficiency and lifespan in industrial environments.
