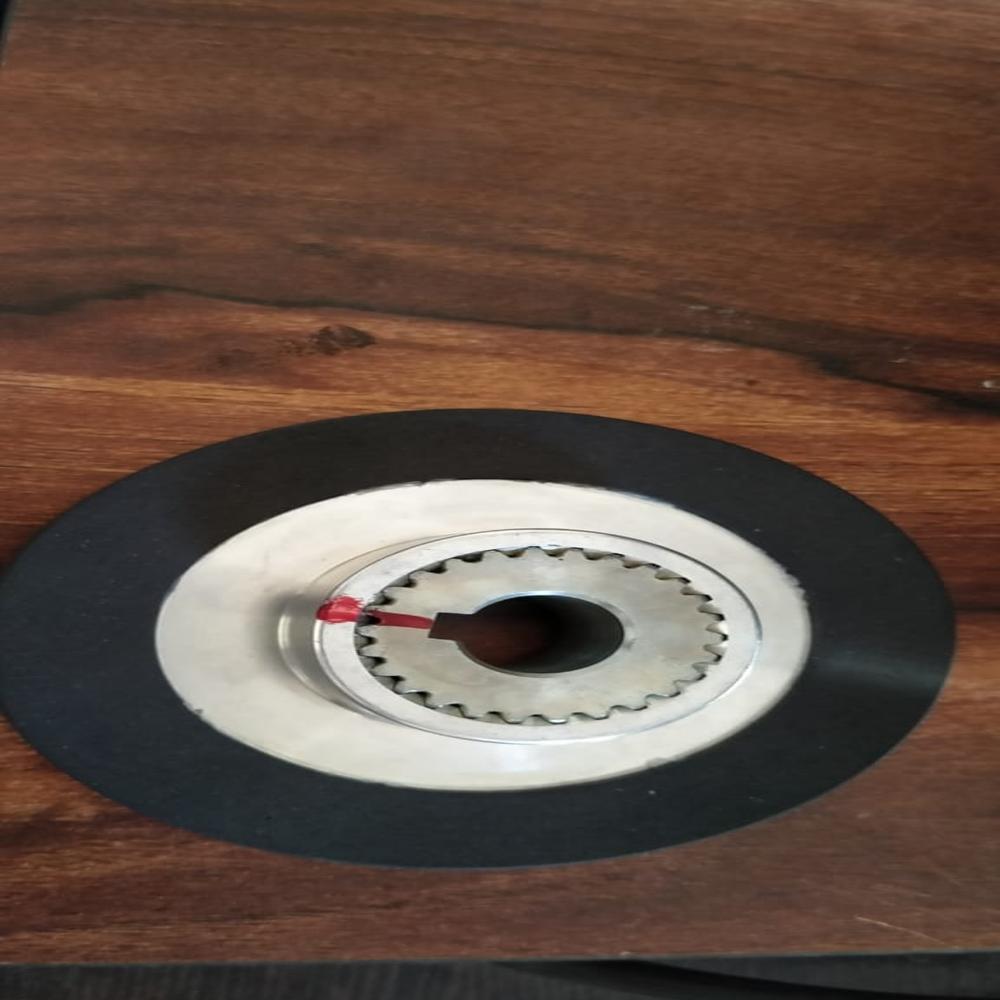

Spring Applied DC Brake Liner

Spring Applied DC Brake Liner Specification

Pressure
Spring Applied

Vehicle Type
Suitable for Industrial/Material Handling Vehicles

Thickness
15 mm

Shape
Round

Material
High Grade Steel and Friction Liner

Loading Capacity
Up to 1000 kg (customizable)

Diameter
150 mm

Power
DC Operated

Voltage
24V/48V/110V DC (as required)

Application
Industrial Machinery, Hoists, Elevators, Material Handling Equipment

Torque Range
10 Nm to 200 Nm (as per model)

Friction Material Type
Non-asbestos Ceramic/Resin Bonded

Mounting Type
Flange Mounted

Color
Black & Silver

Operating Temperature Range
-10C to +80C

Finish
Anti-corrosive Coating

Resistance to Wear
High

About Spring Applied DC Brake Liner

Country of Origin	Made in India
Vehicle Type	Industrial
Packaging Type	Carton Box
Material	Aluminium
Thickness	10 MM
Brand/ Manufacturer	Shruti
Abestos	Non-Asbestos

OD 78

HUB BORE -14,15,PILOT

HUB LENGTH 20

TEETH 23

Reliable Braking Performance for Industrial Needs

Designed for demanding industrial environments, this DC brake liner ensures dependable stopping power. Its spring applied mechanism activates the brake precisely when needed, making it particularly suitable for hoists, elevators, and other material handling applications where safety and efficiency are paramount. High-grade material construction and anti-corrosive coating guarantee longevity even under continuous operation.

Customizable and Robust Construction

Select from various models with torque values between 10 Nm and 200 Nm and loading capacities of up to 1000 kg, tailored for specific operational needs. The use of high-grade steel and advanced non-asbestos friction material results in high wear resistance, enhancing both performance and working life. Its flange-mounted design simplifies installation in a wide array of industrial machinery and vehicles.

FAQ's of Spring Applied DC Brake Liner:

Q: How is the spring applied DC brake liner installed in industrial equipment?

A: The brake liner features a flange-mounted design, which allows for straightforward installation on the intended machinery. It is compatible with a range of industrial equipment, and mounting instructions are typically provided to ensure correct assembly and safe operation.

Q: What makes the non-asbestos ceramic/resin bonded friction material beneficial?

A: This friction material offers high resistance to wear, ensuring a longer service life and reduced maintenance. Being non-asbestos, it is safer for the working environment, and it delivers reliable performance under varying loads and temperatures.

Q: Where can these brake liners be used?

A: They are ideally suited for use in industrial machinery, hoists, elevators, and material handling equipment. The design is also compatible with industrial and material handling vehicles that require reliable and efficient braking systems.

Q: When should I choose a customizable loading capacity for my application?

A: You should select a customizable loading capacity up to 1000 kg when your application has specific load requirements beyond the standard offering, ensuring optimal performance and safety tailored to your operational needs.

Q: What is the process for selecting the correct torque and voltage model?

A: Assess your equipment's operational requirements, such as braking torque, voltage compatibility (24V, 48V, or 110V DC), and application type, then choose the corresponding model for precise performance. Manufacturer guidance can help determine the most suitable specification.

Q: How does the anti-corrosive coating benefit the brake liner?

A: The anti-corrosive coating protects the brake liner against rust and other environmental effects, significantly extending the product's working life and ensuring consistent performance even in harsh industrial settings.
