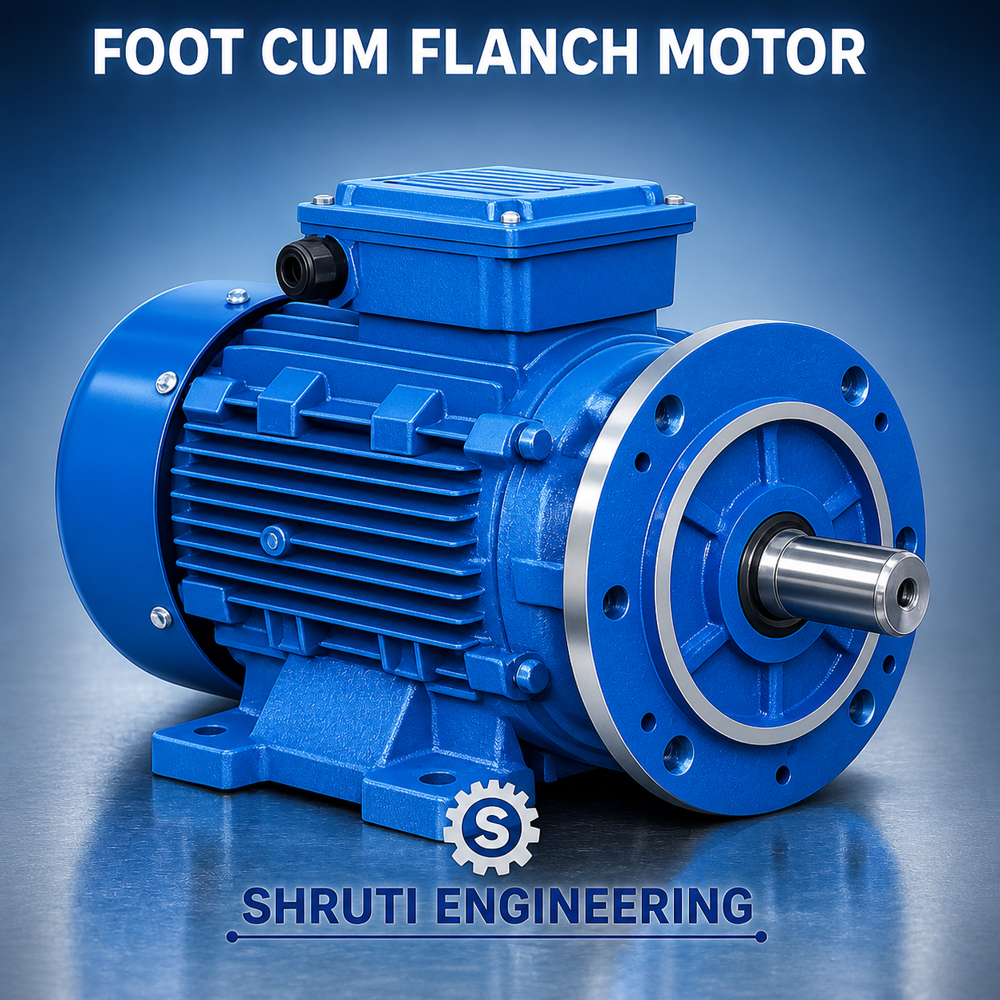

Three Phase Motor for Conveyor

Three Phase Motor for Conveyor Specification

Starting Type
Direct On Line (DOL) / Star-Delta

Current Type
AC

Bearing Type
Double sealed ball bearing

Standard
IS:325 / IEC 60034

Rated Voltage
415V

Poles Number
2, 4, 6, 8

Horse Power
0.5 HP to 30 HP

Ambient Temperature
-15C to +50C

Efficacy
High Efficiency IE2/IE3

Sealed Type
IP55

Rated Frequency
50 Hz

Features
Low Vibration, High Efficiency, Long Life

Noise Level
Low noise (<70 dB)

Pressure
Atmospheric

Voltage
415V AC

Power Rating
As per model specification

Torque
High starting torque

Cooling Method
Fan cooled

Motor Type
Squirrel Cage Induction Motor

Product Type
Three Phase Motor for Conveyor

Output Power
0.37 kW to 22 kW

Frequency (MHz)
50/60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
750, 1000, 1500, 3000 RPM

Power
0.5 HP to 30 HP

Color
Blue

Dimension (L*W*H)
Varies by Model

Weight
Varies by Model

Shaft Diameter
Standard as per IEC

Mounting Type
Foot cum Flange Mounted

IP Rating
IP55

Vibration
Within permissible limits of IS standards

Cable Entry
Double cable entry

Insulation Class
Class F

Service Factor
1.15

Thermal Protection
Optional

Direction of Rotation
Both directions

Lubrication Type
Grease lubricated bearings

Body Material
Cast Iron

Duty
S1 continuous duty

Finish Type
Powder coated

About Three Phase Motor for Conveyor

Specifications and Performance:
Motors are continuously rated 51 duty, suitable for 415 volts -6%, 50 C/s -3%, three phase A.G. Supply with class "EIS" insulation, an ambient temperature of 40C and site attitude of up to 1000m above main sea level. All T.E.F.C. Squirrel cage motors comply with IS:325 & dimension

Rugged Construction for Long Operational Life

With a cast iron body and powder-coated finish, this three-phase motor is built to offer exemplary resilience against wear, corrosion, and mechanical stress. The IP55 rating ensures strong protection against dust and water ingress, making it suitable for various conveyor environments. Double sealed bearings and continuous lubrication further enhance life expectancy and reduce maintenance demands.

Optimal Performance and Efficiency

Designed to suit demanding conveyor applications, the motor operates at high efficiency (IE2/IE3) and provides stable output across a wide power range. Advanced features like high starting torque, low vibration, and low noise (<70 dB) contribute to smooth, reliable, and energy-saving performance, all compliant with IS:325 and IEC 60034 standards.

FAQ's of Three Phase Motor for Conveyor:

Q: How should the three phase motor for conveyors be installed to ensure optimal performance?

A: The motor should be installed using the provided foot cum flange mounting on a stable base, with secure alignment of the shaft as per IEC standards. Ensure proper cable connections through the double cable entry points and maintain ambient temperature between -15C and +50C. For correct operation, follow the recommendations on mounting and electrical setup as indicated in the user manual.

Q: What are the main benefits of using a cast iron body motor with high efficiency for conveyors?

A: Cast iron construction offers excellent strength, durability, and resistance to harsh environments, ensuring a long operational life. High efficiency (IE2/IE3) significantly reduces energy consumption, lowering operational costs and supporting eco-friendly industrial practices. The combination is ideal for continuous-duty conveyor systems.

Q: When is thermal protection recommended for this motor model?

A: Thermal protection is recommended in applications where temperature fluctuations are common or where motor overloads may occur. This optional feature prevents overheating, thereby extending the motor's life and reducing risk of unexpected shutdowns.

Q: Where are these motors typically used, and what conveyor types are compatible?

A: These motors are ideal for use in manufacturing, packaging, food processing, and material handling industries. They suit a variety of conveyor types, including belt, roller, and chain conveyors, due to their high starting torque, variable speed, and dual direction rotation capabilities.

Q: What is the lubrication process for the bearings in this motor?

A: The motor uses grease-lubricated double sealed ball bearings. Regular maintenance involves periodic inspection and re-greasing as per the schedule outlined in the manufacturer's guide, ensuring smooth operation and reduced wear over time.

Q: How does the Totally Enclosed Fan Cooled (TEFC) feature benefit motor operation?

A: TEFC construction keeps the internal components safe from dust, moisture, and contamination, thus extending the equipment's service life. The dedicated fan provides effective cooling, enhancing motor efficiency and supporting reliable operation in demanding environments.

Q: What standards are these conveyor motors designed to meet?

A: These motors conform to IS:325 and IEC 60034 standards, ensuring they meet stringent requirements for safety, efficiency, and reliability in both domestic and international industrial applications.
