Three Phase Motor for Pump

Three Phase Motor for Pump Specification

Rated Frequency
50 Hz

Poles Number
2

Current Type
AC

Standard
IS 325, IEC 60034-1

Motor Type
Squirrel Cage Induction Motor

Voltage
415 V

Starting Type
Direct On Line (DOL)

Bearing Type
Deep Groove Ball Bearing

Efficacy
IE2 High Efficiency

Torque
4.9 Nm

Rated Voltage
415 V AC

Sealed Type
IP55 Sealed

Horse Power
2 HP

Power Rating
1.5 kW

Pressure
Suitable for pump applications

Cooling Method
Fan Cooled

Noise Level
<65 dB

Features
High efficiency, robust construction, corrosion resistant body

Ambient Temperature
-15C to 50C

Product Type
Three Phase Motor for Pump

Output Power
1.5 kW (2 HP)

Frequency (MHz)
50 Hz

Protect Feature
Totally enclosed fan cooled (TEFC)

Phase
Three Phase

Speed
2900 RPM

Power
2 HP

Color
Blue

Dimension (L*W*H)
350x230x260 mm (approx)

Weight
24 kg

Shaft Diameter
28 mm

Mounting Type
Foot Mounted (B3)

IP Rating
IP55

Frame Size
90L

Thermal Protection
PTC Thermistors available on request

Rotor Type
Aluminum/Copper

Service Factor
1.15

Enclosure Type
TEFC (Totally Enclosed Fan Cooled)

Insulation Class
Class F

Connection Type
Star/Delta

Duty Cycle
S1 (Continuous Duty)

Application
Water pumps, compressors, industrial machinery, agricultural equipment

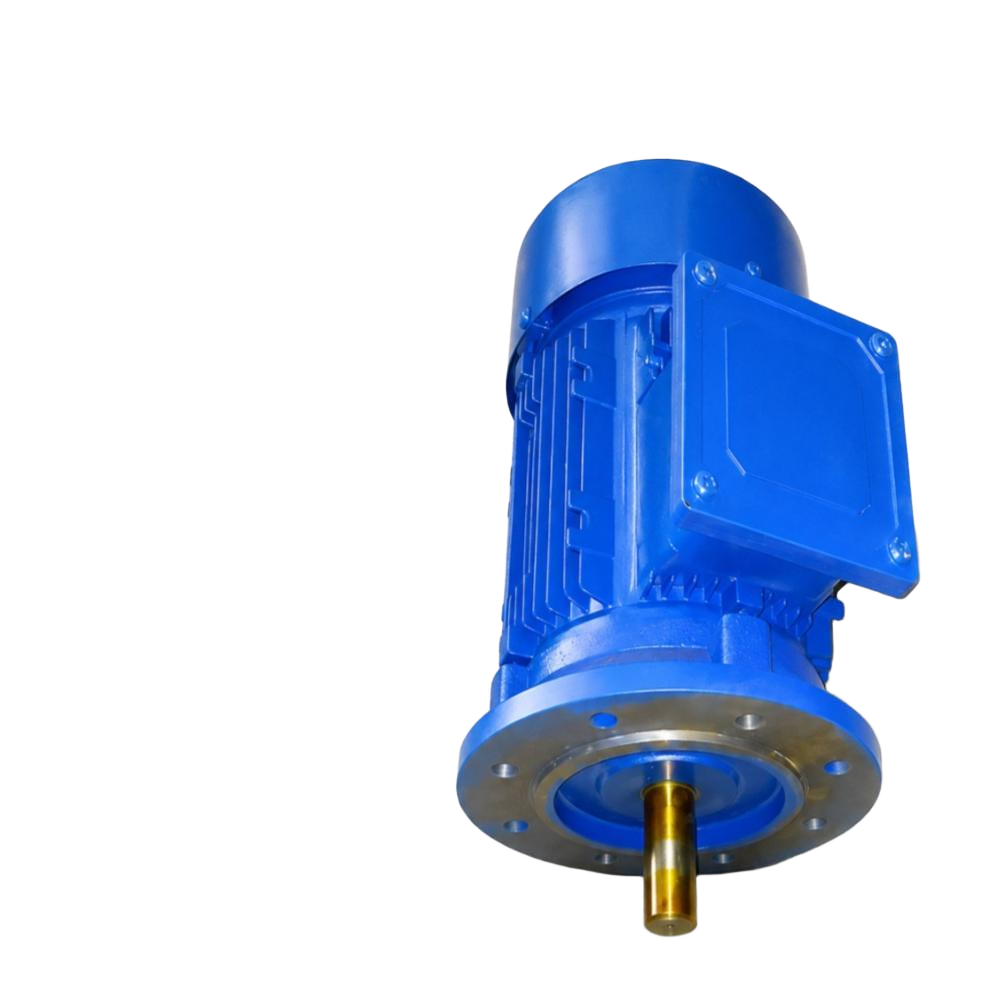

About Three Phase Motor for Pump

With the Strong Passion for Providing a One-stop Solution to the Various Range of Industrial Solutions, We Emerged as a Successful Enterprise Today. We Excelled at Providing Premium Quality Ac Induction Motors. We Are Proud to Say That Our Electrical Motors Are Highly Recommended in All Industries.

Durable and Efficient Motor Design

This motor is built with a corrosion-resistant body and high-efficiency IE2 standards for demanding environments. Class F insulation and TEFC enclosure ensure prolonged longevity and stability, even at ambient temperatures from -15C to 50C. The robust construction and IP55 sealing make it suitable for harsh conditions found in industrial, agricultural, and water pumping applications.

Versatile Applications & High Reliability

The motor's design allows seamless integration with various systems, from water pumps to compressors and agricultural equipment. Its service factor of 1.15 and continuous S1 duty cycle guarantee dependable performance with minimal maintenance. Deep groove ball bearings, fan cooling, and optional PTC thermistors further enhance its reliability and extend operational life.

FAQ's of Three Phase Motor for Pump:

Q: How is the Three Phase Motor with TEFC enclosure protected from dust and moisture?

A: This motor features a Totally Enclosed Fan Cooled (TEFC) design and IP55 rating, providing strong protection against dust ingress and water jets from any direction, making it suitable for tough environments like pump rooms and outdoor installations.

Q: What are the advantages of using this motor for continuous duty (S1) in industrial applications?

A: Designed for S1 (continuous) duty, the motor can operate at rated load without interruption, ensuring consistent performance in applications such as water pumps, compressors, and industrial machinery, reducing downtime and increasing efficiency.

Q: When should the PTC thermistor thermal protection be requested?

A: PTC thermistors are recommended when thermal overload protection and precise motor temperature monitoring are required, especially in environments with fluctuating loads or critical installations where overheating risks must be minimized.

Q: Where can this motor be installed and used effectively?

A: The motor is suitable for indoor and outdoor installations in industrial plants, water pumping stations, agricultural fields, and compressor rooms, thanks to its robust build, corrosion resistance, and IP55 protection against harsh weather conditions.

Q: What is the process for connecting this motor to a power supply?

A: The motor supports star/delta connection types and is designed for Direct On Line (DOL) starting. Ensure the correct wiring according to the provided diagrams and connect to a 415 V AC three-phase supply for optimal performance.

Q: How does the motor's IE2 efficiency rating benefit the end user?

A: An IE2 high-efficiency rating translates to reduced energy consumption, lower running costs, and less heat generation, which helps extend the motor's lifespan and improve sustainability in daily use.
