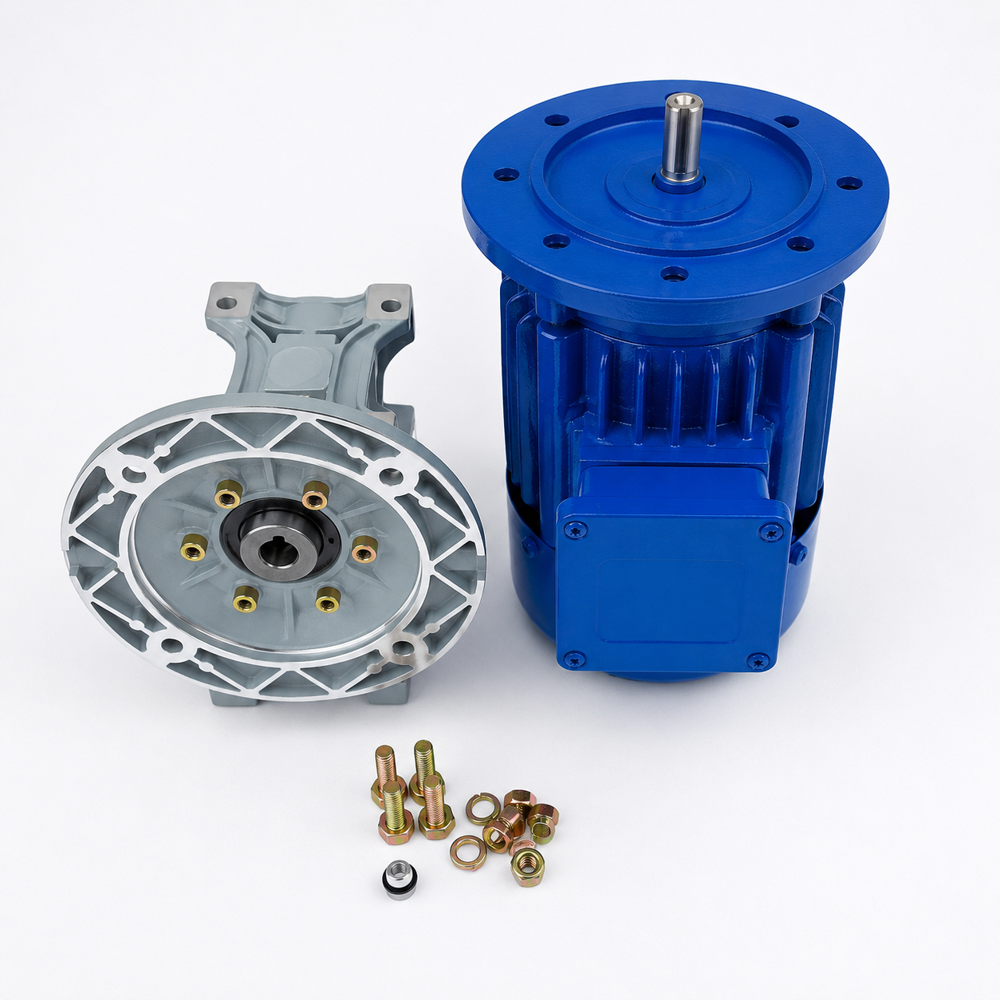

Three Phase Worm Gear Motor

Three Phase Worm Gear Motor Specification

Rated Voltage
380V / 415V

Horse Power
0.25 HP to 20 HP

Poles Number
2/4/6/8 Poles

Efficacy
IE2 / IE3

Motor Type
Worm Gear Motor

Features
Low Noise, Compact Structure, High Durability

Current Type
AC

Torque
Up to 1200 Nm

Power Rating
0.18 kW to 15 kW

Rated Frequency
50/60 Hz

Sealed Type
Sealed Bearings

Bearing Type
Deep Groove Ball Bearing

Standard
IEC Standard

Ambient Temperature
-10C to +45C

Noise Level
Below 70 dB(A)

Voltage
380V / 415V AC

Cooling Method
Fan Cooled

Starting Type
DOL

Product Type
Three Phase Worm Gear Motor

Output Power
0.18 kW to 15 kW

Frequency (MHz)
50/60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
14-180 RPM (Depending on Gear Ratio)

Power
0.25 HP to 20 HP

Color
Blue / Silver

Dimension (L*W*H)
Varies by Output Power and Gear Ratio

Weight
Varies by Model

Shaft Diameter
14mm to 48mm (depending on power)

Mounting Type
Flange / Foot Mounted

IP Rating
IP54 / IP55

Application
Conveyor Systems, Mixers, Elevators, Packaging Machinery, Automation

Overload Capacity
150% of Rated Load

Thermal Protection
Optional

Insulation Class
F Class

Vibration
Low Vibration Design

Gearbox Material
Aluminium Alloy / Cast Iron

Reduction Ratio
7.5:1 to 100:1

Lubrication
Synthetic Oil Lubricated

About Three Phase Worm Gear Motor

is a trusted Industrial Gear Motor Supplier, offering a wide range of high-performance and energy-efficient gear motors designed for various industrial applications. Our gear motors combine durable gear boxes with powerful electric motors to deliver high torque, smooth operation, and long service life even under continuous heavy-duty conditions.

Manufactured using premium-grade materials and precision engineering, our industrial gear motors ensure low noise, compact design, and maintenance-free performance. We supply reliable gear motor solutions for cranes, hoists, conveyors, lifts, and material-handling equipment.

Reliable and Efficient Power Transmission

Built to international IEC standards, this worm gear motor assures high efficiency (IE2/IE3), compactness, and outstanding reliability in power transmission. Its totally enclosed fan-cooled (TEFC) construction and sealed bearings enable safe, low-maintenance operation even in challenging industrial environments.

Flexible Application Range

Thanks to its wide output power range, multiple mounting options (flange or foot), and gear reduction variations, this gear motor is perfectly suited for conveyors, mixers, elevators, packaging machinery, and automated systems. The durable chassis and low vibration design make integration and retrofitting straightforward across various production lines.

FAQ's of Three Phase Worm Gear Motor:

Q: How does the synthetic oil lubrication benefit the gear motor's operation?

A: Synthetic oil lubrication reduces wear, provides excellent thermal stability, and extends maintenance intervals, allowing the worm gear motor to operate smoothly under varied loads and temperatures.

Q: What applications is the three phase worm gear motor best suited for?

A: This gear motor is ideal for use in conveyor systems, mixers, elevators, automated machinery, and packaging equipment, offering reliable torque and speed control they require.

Q: When should I consider using the optional thermal protection feature?

A: Thermal protection should be selected for continuous or demanding applications where the motor may experience sustained high loads, to automatically safeguard against overheating and prolong motor life.

Q: Where can these gear motors be installed?

A: Due to their compact size, flexible mounting (flange or foot), and IP54/IP55 protection ratings, these motors are suitable for installation in industrial plants, manufacturing lines, warehouses, and any controlled environment within the specified temperature range of -10C to +45C.

Q: What is the process of selecting the right gear motor for my application?

A: Selecting the right model involves evaluating load requirements, desired output speed (RPM), torque, mounting type, and supply voltage. Matching the reduction ratio to the needed output speed and torque ensures optimal performance and service life.

Q: How does the gear motor's overload capacity benefit my operation?

A: With a 150% overload capacity, the motor can handle brief spikes in demand or load changes without performance loss or damage, enhancing operational safety and stability.
