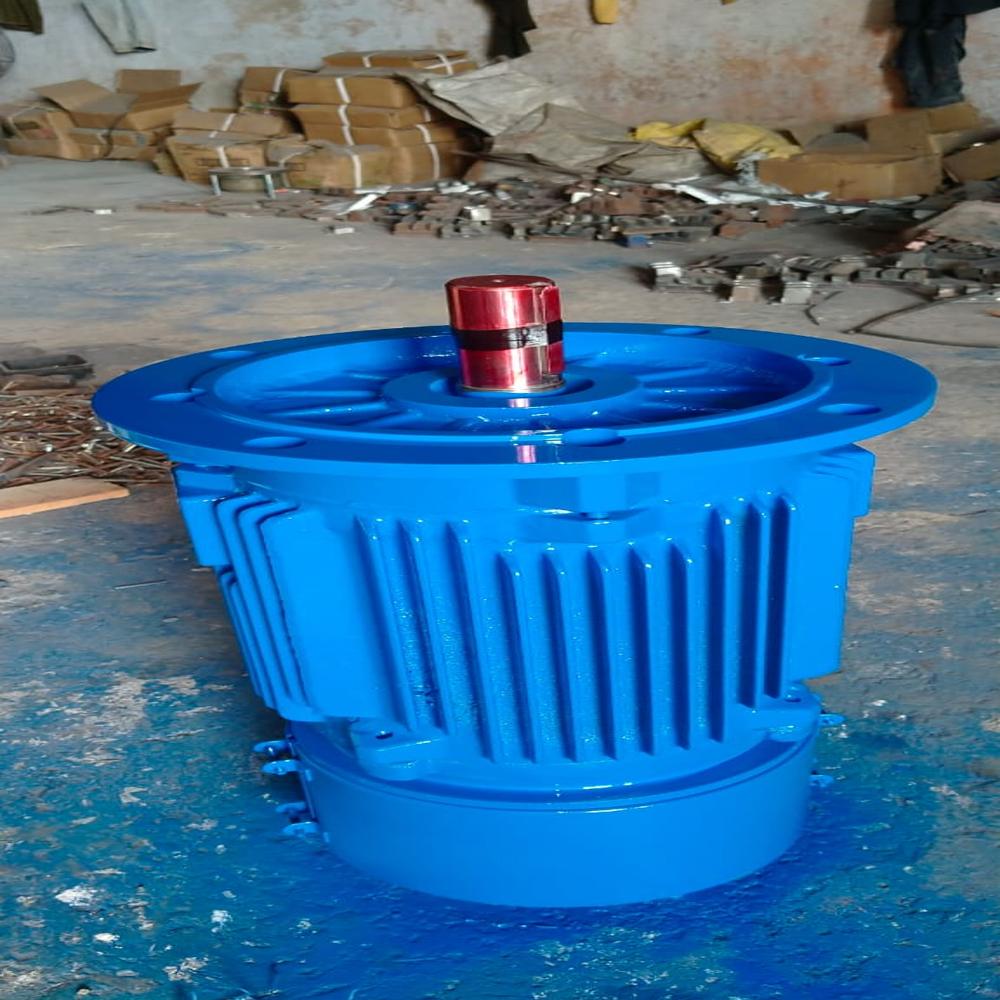

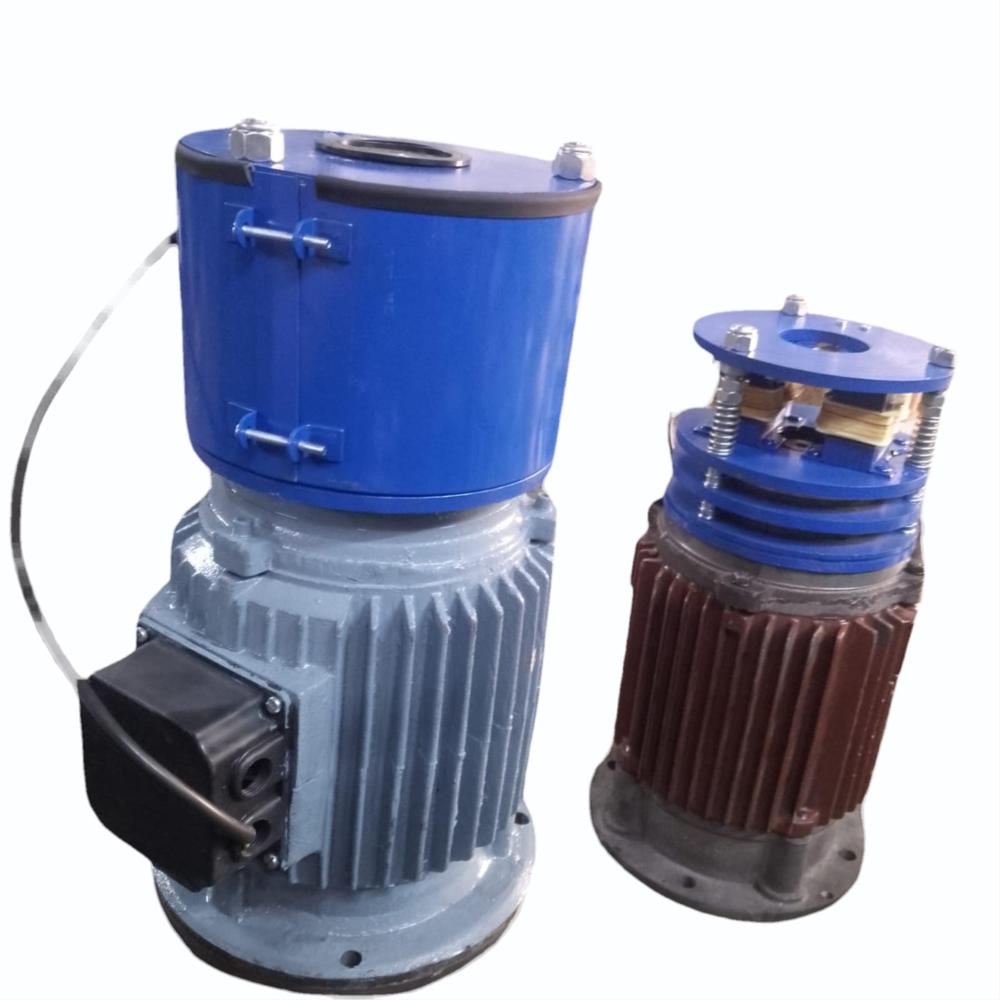

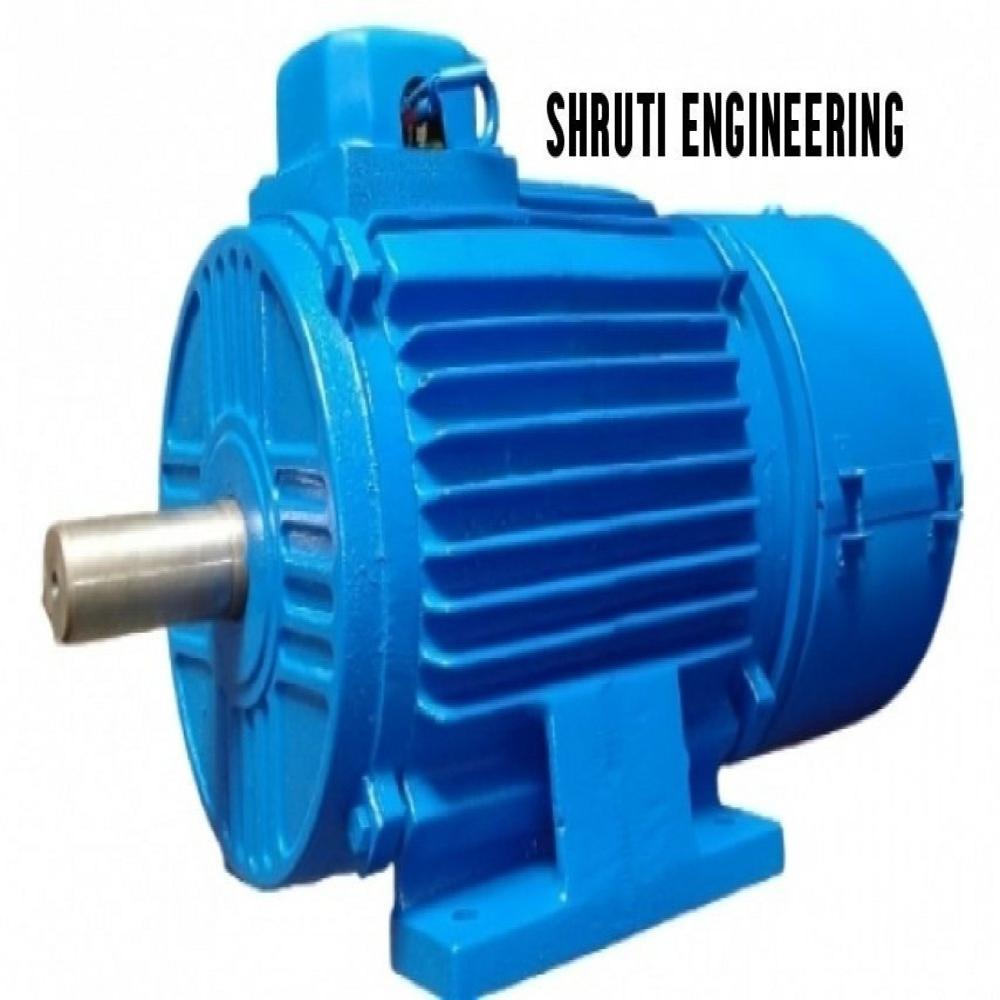

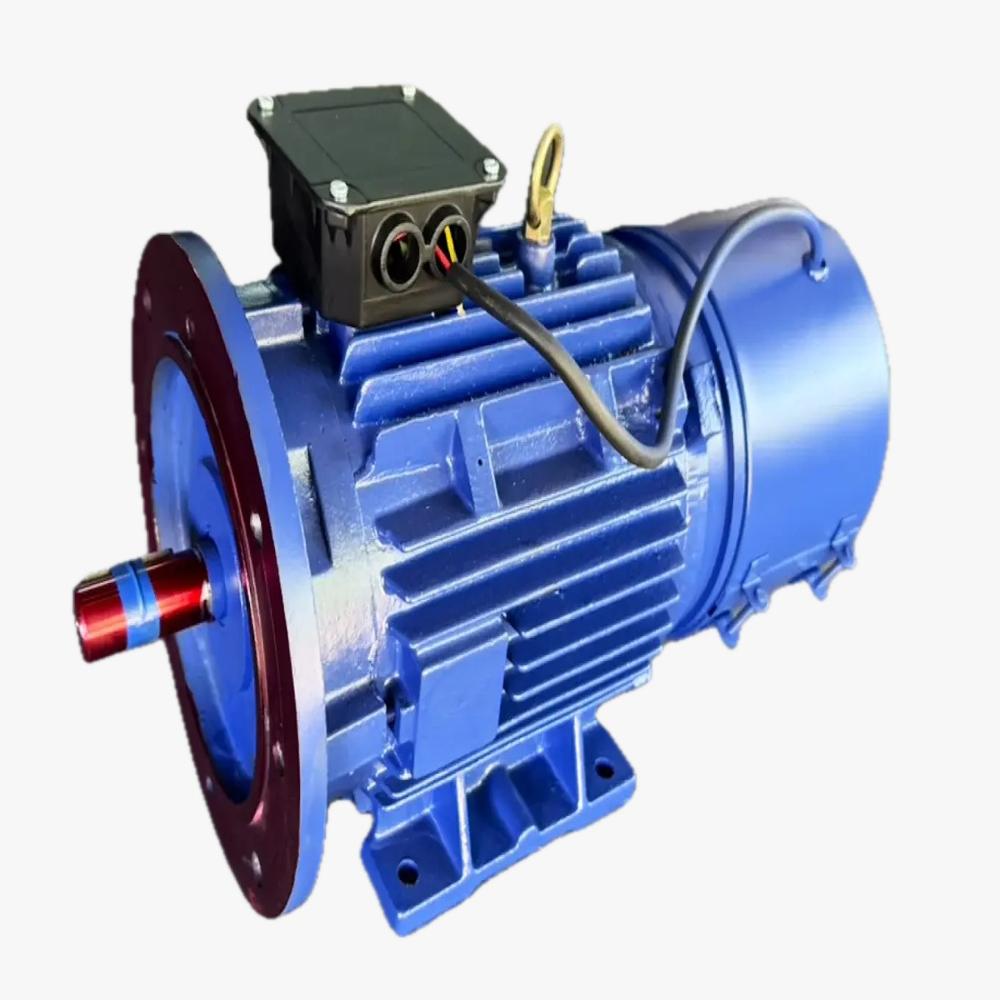

AC Brake Motor

AC Brake Motor Specification

Noise Level
Low Noise (< 70 dB)

Standard
IS/IEC Standards

Poles Number
2 / 4 Pole

Cooling Method
Finned Cooled

Horse Power
0.5 HP to 20 HP

Efficacy
IE2 / IE3 (High Efficiency Class)

Rated Voltage
415V AC

Current Type
AC

Ambient Temperature
-15C to +45C

Torque
High Starting Torque

Pressure
Standard atmospheric pressure

Voltage
415V / 230V

Sealed Type
IP55

Motor Type
AC Induction Brake Motor

Starting Type
DOL / Star Delta

Power Rating
0.37 kW to 15 kW

Bearing Type
Deep Groove Ball Bearing

Features
Dust Proof, Shock Resistant, Minimal Maintenance

Rated Frequency
50 Hz

Product Type
Brake Motor

Output Power
2 Horsepower (HP)

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Totally Enclosed

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.37 kW to 15 kW

Color
Blue

Dimension (L*W*H)
Depends on model - compact design

Weight
Varies as per model (e.g. 10 Kg to 120 Kg)

Shaft Diameter
Customizable per model

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Service Factor
1.15

Direction of Rotation
Reversible

Duty Cycle
S1 Continuous

Connection Type
Star / Delta Connection

Thermal Protection
Optional

Frame Size
71 to 180 Frame

Painting
Anti-Corrosion Blue Enamel

Rotor Type
Squirrel Cage

Braking Torque
Custom as per requirement

Insulation Class
F Class

Enclosure Type
TEFC

Brake Type
Electromagnetic AC Brake

Vibration Level
Within Permissible Limits

Application
Cranes, Hoists, Elevators, Conveyor Systems, Textile Machinery

About AC Brake Motor

Shruti Engineering AC Brake Motor

AC Brake Motor is an electric motor with an integrated electromagnetic brake system that provides instant stopping, precise positioning, and enhanced safety during operation. When the power supply is switched off, the brake automatically engages and stops the motor shaft quickly, preventing unwanted movement of the load.

Our AC Brake Motors are manufactured using high-quality components to ensure reliable performance, low maintenance, and long service life in demanding industrial applications.

Features:

Instant stopping and accurate positioning
High braking torque
Low noise and vibration
Compact and robust design
Energy-efficient operation
Easy installation and maintenance
Available in Foot Mounted and Flange Mounted designs

Applications:

Cranes & Hoists
Material Handling Equipment
Conveyors
Packaging Machines
Textile Machinery
Printing Machines
Elevators & Lifts
Industrial Automation Systems

Specifications:

Power Range: 0.25 HP to 20 HP
Voltage: 230V / 415V AC
Frequency: 50 Hz
Mounting: Foot / Flange
Insulation Class: B / F
Protection: IP55

Manufactured by: Shruti Engineering
Product: AC Electromagnetic Brake Motor
Application: Safe, reliable, and controlled stopping for industrial machinery.

Rugged Design and Superior Protection

Engineered with a Totally Enclosed Fan Cooled (TEFC) housing, this motor stands up to harsh industrial environments. The anti-corrosive blue enamel finish, combined with dustproof and shock-resistant construction, guarantees long-lasting durability and reduced maintenance in demanding applications.

Versatile Applications and Customizability

Ideal for cranes, hoists, elevators, conveyors, and textile machinery, this AC Brake Motor comes with customizable braking torque, shaft diameters, and optional thermal protection, ensuring maximum adaptability to your specific operational requirements across a range of industries.

Efficiency, Performance, and Safety

With high starting torque, IE2/IE3 energy-efficient operation, and low noise output, this motor assures reliable, continuous performance. The reversible direction, multiple mounting options, and optional thermal protection further enhance operational safety and flexibility.

FAQ's of AC Brake Motor:

Q: How is the AC Brake Motor installed and what mounting options are available?

A: The AC Brake Motor can be installed using either foot or flange mounting, ensuring compatibility with a wide range of machinery and setups. Detailed instructions and mounting kits are provided for secure and correct installation.

Q: What are the main advantages of using an electromagnetic AC brake in this motor?

A: The electromagnetic AC brake offers rapid and reliable stopping, ensuring safety for applications such as cranes and hoists. It delivers consistent performance, minimal wear, and quick response times compared to mechanical braking systems.

Q: When should I consider customizing the braking torque or shaft diameter?

A: Customization is recommended when standard specifications do not align with your system's requirements-such as unique load parameters, specific hoist speeds, or integration with non-standard couplings. Manufacturers can configure these features to match your precise needs.

Q: Where can this AC Brake Motor be effectively applied?

A: This motor is designed for use in a variety of demanding industrial settings, including cranes, hoists, elevators, conveyor systems, and textile machinery, where reliable braking and efficient performance are necessary.

Q: What process is followed for routine maintenance of the AC Brake Motor?

A: Routine maintenance involves periodic inspection of brake pads, checking electrical connections, monitoring vibration levels, and ensuring ventilation paths are clear. Thanks to its minimal maintenance design, downtime is considerably reduced.

Q: How does the motor ensure reliable operation in challenging environments?

A: With an IP55 rating, totally enclosed construction, anti-corrosion coating, and deep groove ball bearings, the motor operates reliably in dusty, humid, or corrosive conditions while providing long service life with stable performance.

Q: What benefits does the high efficiency (IE2/IE3) classification provide?

A: IE2/IE3 efficiency reduces energy consumption and operational costs while maintaining superior performance. These ratings also support environmental sustainability and regulatory compliance for modern industrial facilities.
