AC SINGLE PHASE BRAKE MOTOR Specification

Features
Quick Stopping, Compact Design, Durable, Reliable Performance

Efficacy
High Efficiency

Poles Number
2/4

Motor Type
Single Phase AC Brake Motor

Voltage
220V

Bearing Type
High Quality Deep Groove Ball Bearing

Horse Power
0.25 HP to 5 HP

Cooling Method
Fan Cooled

Starting Type
Capacitor Start and Run

Rated Voltage
220V

Pressure
Standard Atmospheric

Noise Level
Low Noise

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Power Rating
0.18 kW - 3.7 kW

Torque
High Starting Torque

Rated Frequency
50Hz

Current Type
AC

Ambient Temperature
-15C to 40C

Standard
IS:996, IS:325

Product Type
AC Single Phase Brake Motor

Output Power
0.25 HP to 5 HP

Frequency (MHz)
50

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM / 2880 RPM

Power
0.18 kW to 3.7 kW

Color
Blue

Dimension (L*W*H)
Varies by Model

Weight
Depends on Model (Approx. 15-45 kg)

Shaft Diameter
Standard depending on HP

Mounting Type
Foot / Flange Mounting

IP Rating
ip44

Enclosure Type
Totally enclosed

Thermal Protection
On request

Rotor Type
Balanced, dynamically tested

Application
Machinery, Lifts, Conveyors, Machine Tools

Brake Operation Voltage
Same as motor supply

Frame Material
Cast Iron / Aluminium

Mounting Position
Horizontal / Vertical (as required)

Brake Type
Electromagnetic AC brake built-in

Service Factor
1.0 to 1.15

Control Box
Weatherproof Terminal Box

Insulation Class
Class B / F

Duty Cycle
S1 (Continuous)

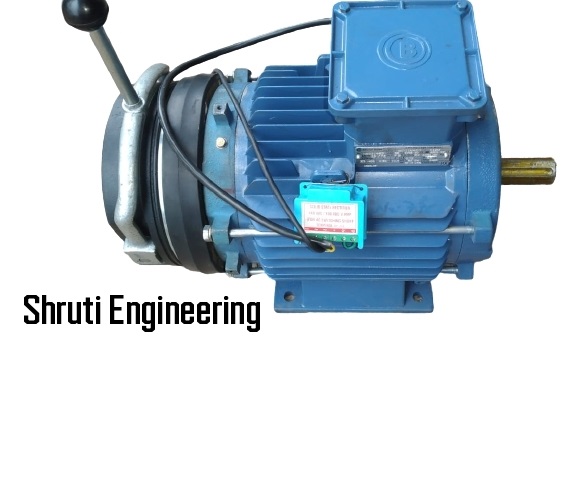

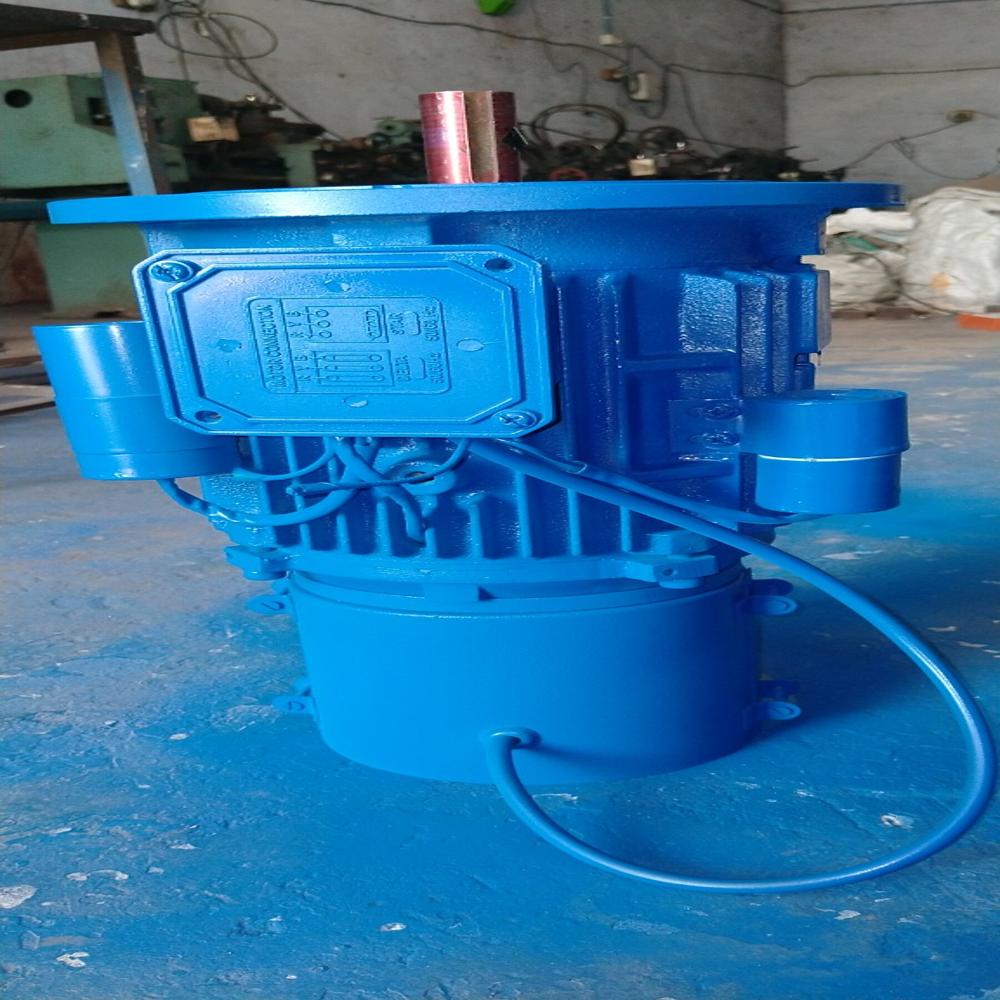

About AC SINGLE PHASE BRAKE MOTOR

Single Phase Brake Motor Description

Single Phase Brake Motor is a specially designed electric motor with an integrated electromagnetic brake system. It operates on a 230V single-phase power supply and provides instant stopping and holding of the motor shaft when power is switched off, ensuring safety, accuracy, and control in various industrial applications.

Manufactured by Shruti Engineering, these motors are widely used in hoists, lifts, conveyors, packaging machines, woodworking machines, textile machinery, rolling shutters, and material handling equipment.

Features:

Operates on 230V Single Phase Supply
Fast and Reliable Braking Action
High Starting Torque
Low Noise and Smooth Operation
Compact and Robust Construction
Energy Efficient Design
Available in Foot Mounted and Flange Mounted Types
Suitable for Continuous Duty Applications

Applications:

Electric Hoists
Mini Cranes
Conveyor Systems
Packaging Machines
Textile Machinery
Rolling Shutters
Material Handling Equipment
Woodworking Machines

Shruti Engineering manufactures and supplies high-quality Single Phase Brake Motors with durable performance, long service life, and customized specifications to meet industrial requirements.

High Performance with Enhanced Safety

The motor integrates an electromagnetic AC brake that provides efficient and rapid stopping, enhancing safety in applications where instant braking is crucial. Its totally enclosed design protects against dust, contaminants, and environmental factors, ensuring long-term reliability and reduced maintenance.

Versatile Application and Mounting

Designed for various machinery including lifts, conveyors, and machine tools, this brake motor supports both horizontal and vertical mounting positions. Its compact, robust construction is available in multiple frame sizes and colors, catering to a wide array of operational requirements.

FAQ's of AC SINGLE PHASE BRAKE MOTOR:

Q: How does the electromagnetic brake in this AC single phase brake motor operate?

A: The electromagnetic AC brake is built into the motor and functions by energizing a coil when power is applied, creating a magnetic field that quickly activates the braking mechanism. When power is cut, the brake releases, allowing for immediate stopping or holding of loads, enhancing safety and control.

Q: What are the benefits of the totally enclosed fan cooled (TEFC) design?

A: The TEFC design protects the internal components from dust, moisture, and debris, prolonging the motor's life. It also facilitates efficient cooling through a fan system and meets the IP44 protection standard, ensuring reliable performance even in demanding industrial environments.

Q: Where is this brake motor commonly used?

A: This AC single phase brake motor is ideal for use in machinery such as elevators, conveyors, and machine tools where precise braking and rapid stopping are needed. Its robust build and quick-stopping feature make it suitable for a wide range of industrial and mechanical applications.

Q: When should I consider requesting thermal protection for the motor?

A: Thermal protection is recommended for situations where the motor will be subjected to frequent or prolonged operations at high loads, or in environments with elevated ambient temperatures. It provides an added layer of security against overheating, thereby protecting the motor from damage and increasing its longevity.

Q: How do I select the appropriate mounting position or type for my application?

A: This motor accommodates both horizontal and vertical mounting, as well as foot or flange mounting. The choice depends on your machinery's design and installation space. Always refer to your equipment's requirements and consult the supplier for guidance on the optimal mounting configuration.

Q: What is the process for installing the control terminal box?

A: The weatherproof terminal box is designed for easy installation and connection of power supply wires. It is typically mounted on the motor body and sealed to prevent ingress of water or dust, ensuring safe operation in varied environments. Installation should be done by a qualified technician following relevant electrical standards.
